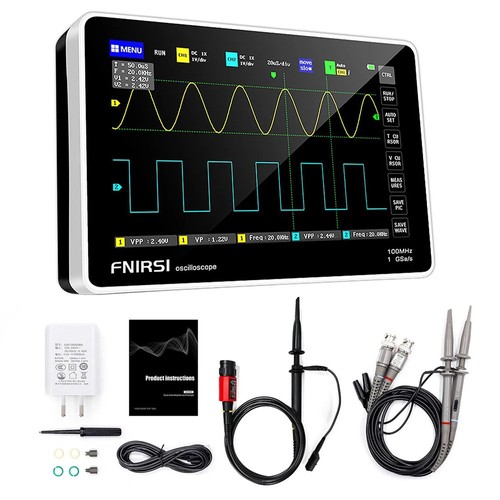

FNIRSI 1013D 7 inch Tablet Oscilloscope with 100X High Voltage Probe, 2 Channels, 100MHz Bandwidth, 1GSa/s Sampling - EU Plug

Highlights

Professional Designed

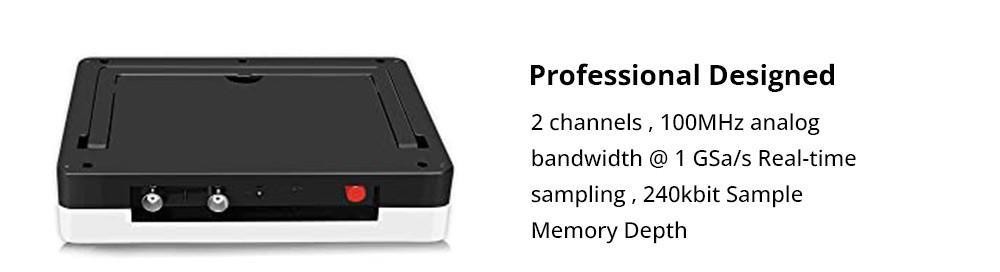

FNIRSI oscilloscope has a real-time sampling rate of up to 1GSA/S and an analog bandwidth of 100MHZ * 2. Fnirsi oscilloscope has a complete trigger function (single/normal/automatic), it can be used freely for both periodic analog signals and aperiodic digital signals.
Highly Performance

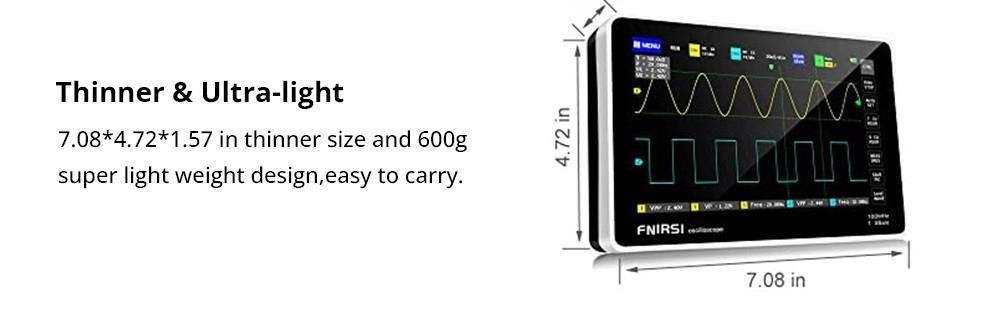

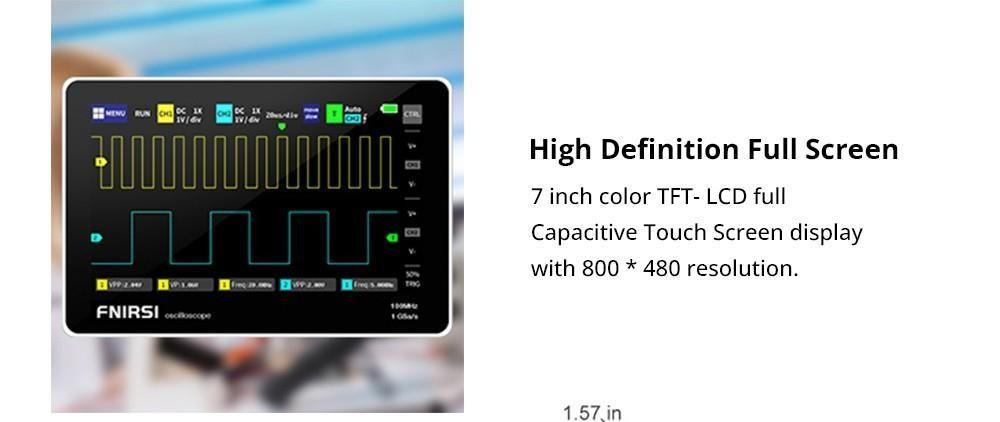

7 inches, 800 * 480 resolution, bright colors and high contrast. Ultra-thin and easy to carry. Built-in high-voltage protection module can tolerate a continuous voltage of up to 400V. 6000mAh high-performance lithium battery can be used continuously for 4 hours after fully charged.
Easy to Operate
Equipped with an efficient one-button automatic device. One-click waveform saving and screenshots. The built-in 1GB storage space can store up to 1000 screenshots and 1000 sets of waveform data. Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page-turning, deletion, and waveform zooming in, zooming out, moving, etc
Easily Measuring
Capacitive screen touch & gesture operation, cursor measurement function, when manually reading amplitude-frequency parameters, you do not need to read the background scale unit and quantity, and you can directly get the peak-to-peak value and frequency without conversion.
Lissajous Graphic Display & FFT Viewing
Lissajous graphic display function can be used to compare the amplitude, frequency and phase of the two sets of signals. FFT viewing function can roughly estimation of the harmonic content of the signal.

Specification
