FNIRSI DSO-TC3 3 in 1 Digital Oscilloscope, DDS Signal Generator, Transistor Tester, 1 Channel, 500Khz Bandwidth, 10MSa/s Sampling Rate, 6 Types of Waveforms

Highlights

3-in-1 Digital Oscilloscope

FNIRSI DSO-TC3 ingeniously integrates a digital oscilloscope, electronic component tester, function signal generator, and other functions into one. Equipped with 2.4 inches TFT color screen and a built-in rechargeable lithium battery, it can bring more practical functions to users with a small size.

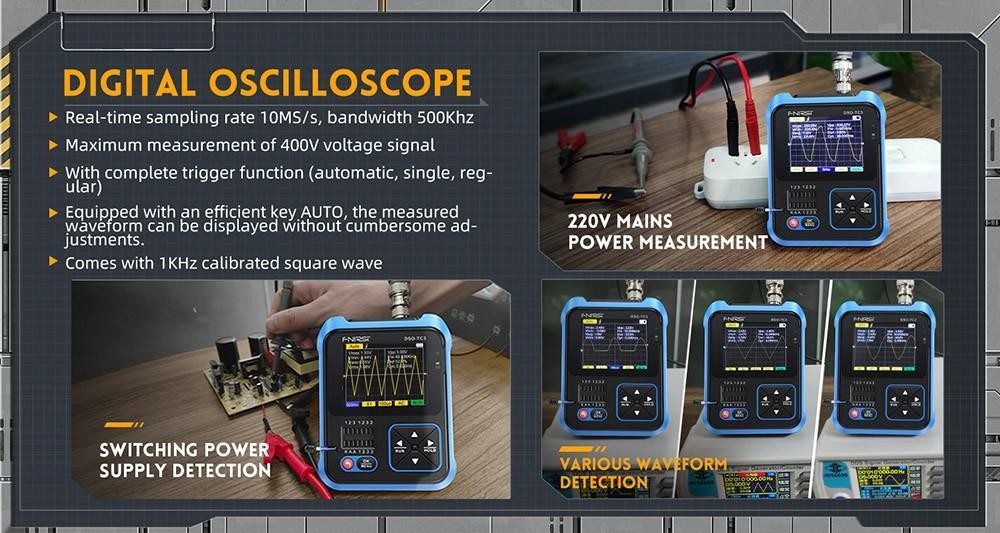

Handheld Oscilloscope

DSO-TC3 handheld oscilloscope has a real-time sampling rate of 10MS/s and a 500kHz bandwidth. With a complete trigger function (Single, Normal, Automatic), it can be used freely for both periodic analog signals and aperiodic digital signals. Equipped with efficient one-key AUTO, the measured waveform can be displayed without cumbersome adjustment.

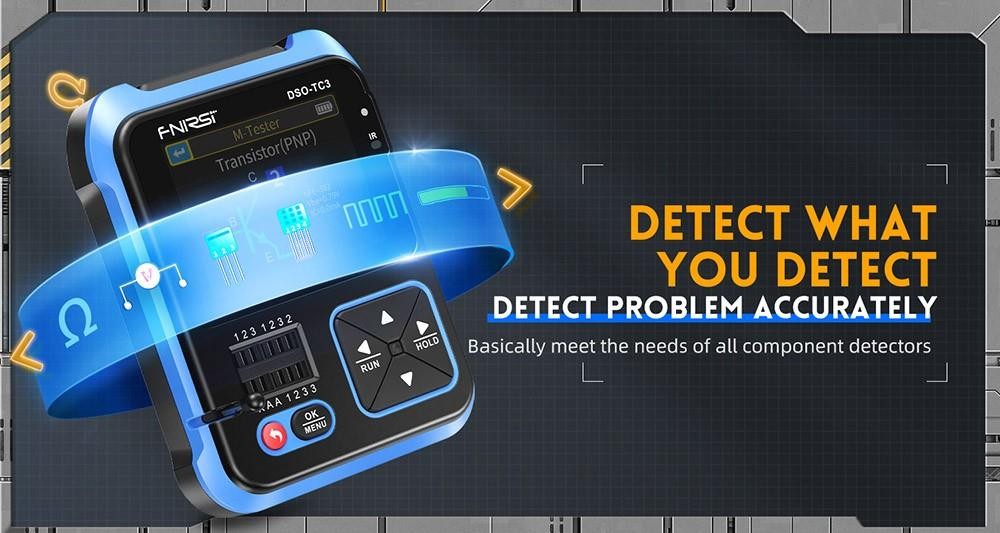

Transistor Tester

With transistor tester function, it can automatically identify and measure various transistors, including NPN and PNP transistors, N-channel and P-channel field effect transistors, junction field effect transistors, diodes, dual diodes, thyristors, resistors, inductors, capacitors, and other passive components. It also has automatic detection of pin definition, and can automatically analyze NEC protocol infrared code.

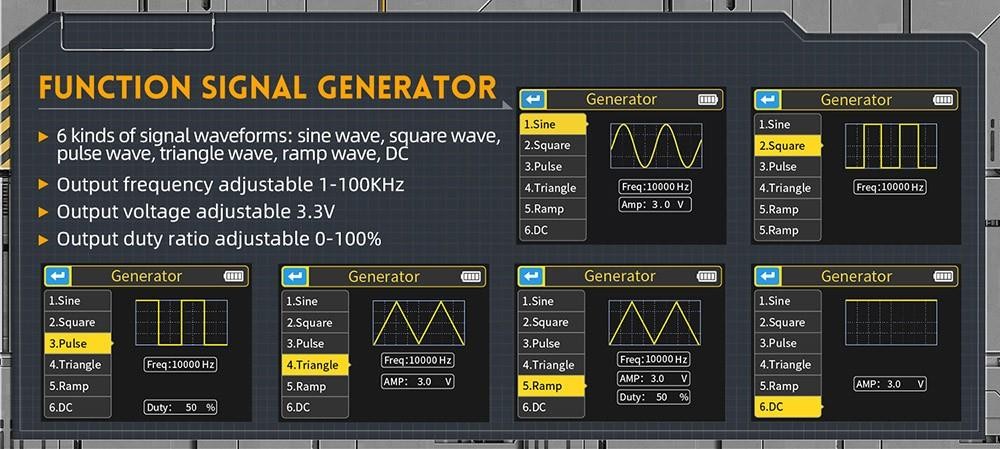

Function Signal Generator

The signal generator has a total of 6 waveforms to choose from: sine wave, square wave, pulse wave, triangle wave, ramp wave, and DC. The output frequency, output voltage, and output duty ratio are adjustable.

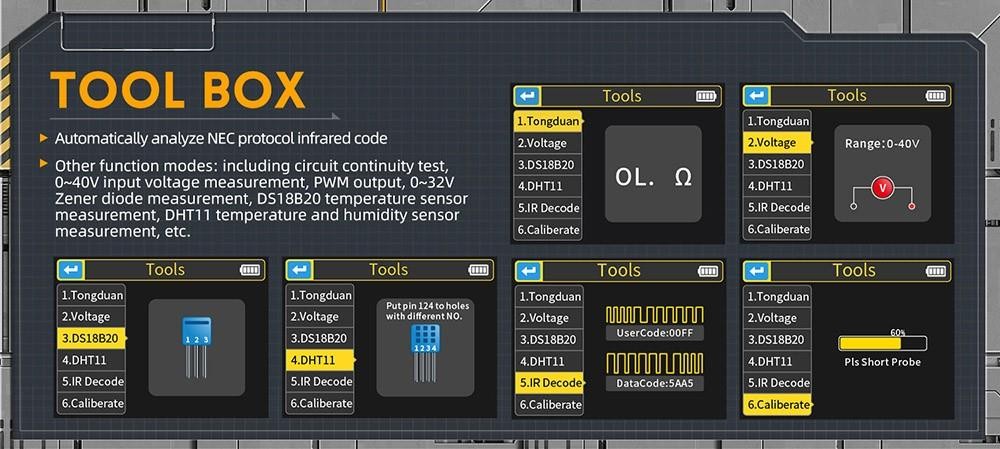

Other Functional Modes

Including circuit continuity test, 0-40V input voltage measurement, PWM output, 0-32V regulated diode measurement, DS18B20 temperature sensor measurement, DHT11 temperature, and humidity sensor measurement, etc.

Specification
