Highlights
1. High-speed USB2.0 interface, up to 480Mb/s.
2. Large area array CMOS progressive scan image sensor.
3. Support for static and dynamic image capture.
4. Exposure time: any adjustable.
5. 8-bit uncompressed raw image data, software implementation Bayer color conversion, plug and play installation.
6. Support Win XP/Win7/Win10/win11, Linux / Android (Devices that comply with the UVC protocol), MAC OS X10.4.8 or later (Devices that comply with the UVC protocol).
7. The image is stable and reliable, after a long period of rigorous testing performance indicators.
8. It can be widely used in pattern recognition, industrial testing, medical microscopy, traffic management, machine vision, and other fields. It is more widely used in various fields of microscope and image acquisition on various occasions.

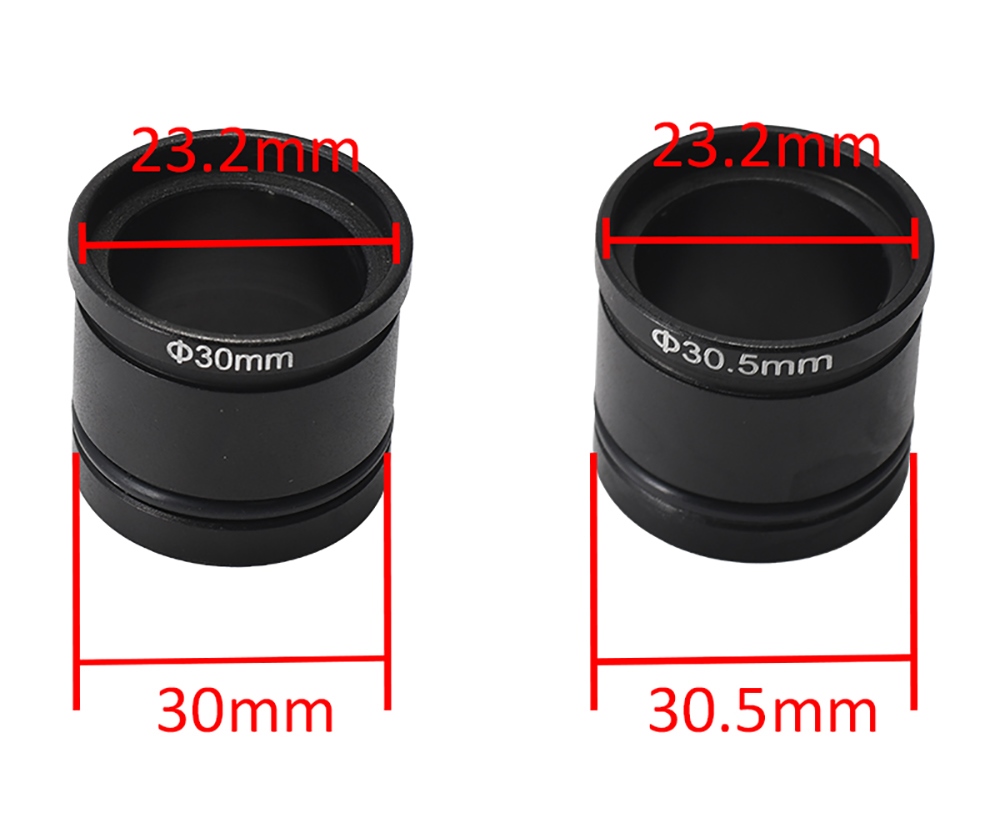

9. C-mouth eyepiece interface (adapter), designed for the microscope. The under mouth is the 23.2mm 30mm 30.5mm straight inserted.
Specification

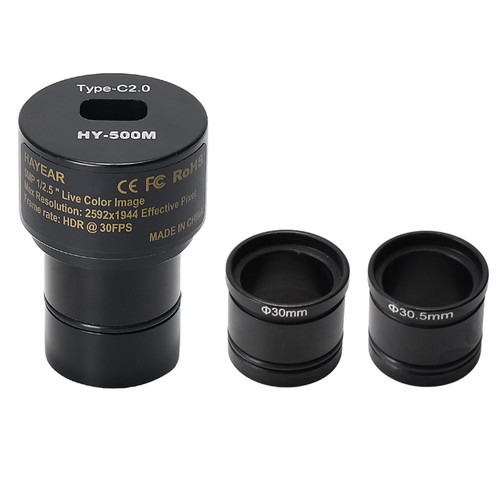

| General | Brand: HAYEAR Type: Microscope Camera Eyepiece Model: HY-500M Color: Black |
| Specification | Image sensor: 1 / 2.5" color CMOS image sensor Pixels size: 2.2 μm × 2.2 μm The spectral response: 550nm Scan mode: progressive scan Pure hardware 5-megapixel image sensor, no compression, no interpolation Resolution: 640X480@30fps, 1280x1024@30fps, 1600x1200@30fps, 1920x1080@30fps, 2048x1536@30fps, 2592x1944@30fps White Balance: Auto / Manual R.G.B value setting independent Auto Exposure Control: Auto/Manual Image output: USB2.0, 480Mb/s Operating temperature: 0 - 50 Celsius Working current: about 200mA Application: Microscope imaging, General image acquisition, macro imaging, etc. Support OTG to Android Phone (OTG Cable is not included) (Mini USB and Type C interface versions will be sent randomly. Except for different interfaces and slightly different appearances, the effects and usage are the same.) |
| Weight & Size | Package Weight: 0.3kg Package Size(L x W x H): 22x14x8cm |

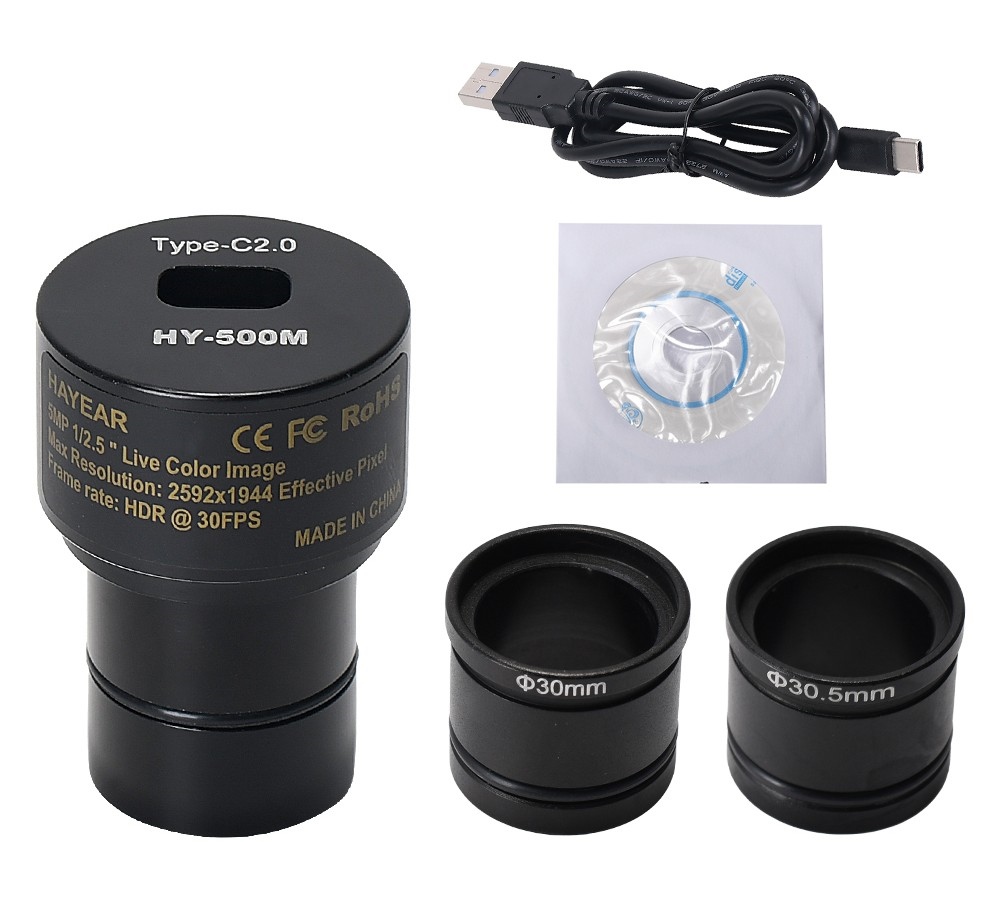

| Package Contents | 1 x Microscope Camera Eyepiece 1 x USB Cable 1 x 30mm Adapter 1 x 30.5mm Adapter 1 x CD |
