Highlights

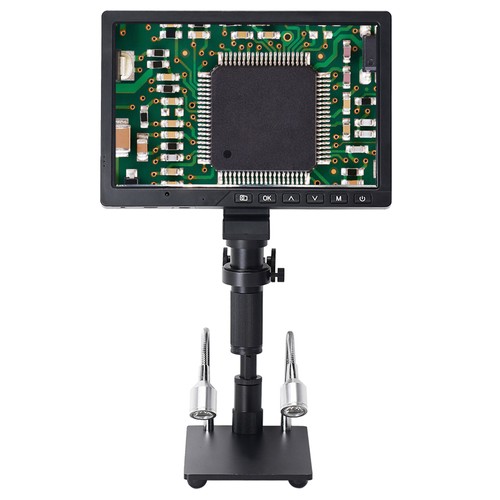

Multifunctional Digital Microscope
The HY-1090 is a multifunctional digital microscope, individually designed and developed. It realizes full HD, high object distance, multifunction, and multi-output at the same time. With the help of the Hayear measuring software, it can easily meet many different requirements in many fields, such as industrial overhaul and teaching demonstration. Its appearance design combines more ergonomic considerations and provides users with a better experience. We sincerely hope this product can release your eyes and improve your work quality.
Wide Application
Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc., especially suitable for observing the surface microstructure of large objects.
16MP CMOS Sensor

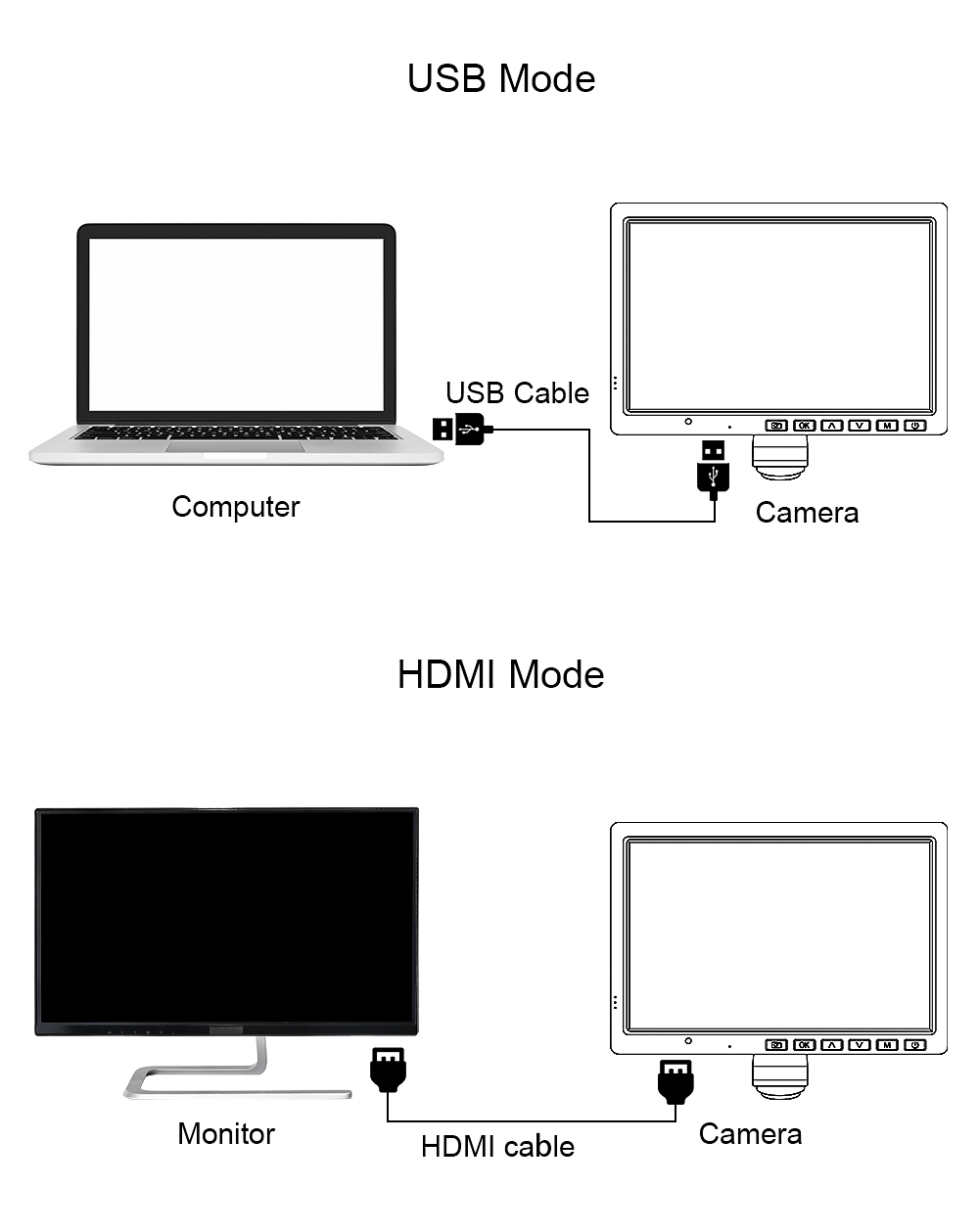

HD camera is designed with a 1/2.8 inch 16 megapixel CMOS sensor, with an HDMI USB port.
High Safety Factor
Using high-quality materials, it is strong and durable and has a long service life. With strict quality control, quality assurance, and high safety factors, it can be used with peace of mind.
Specification
| General | Brand: HAYEAR Type: Microscopic Camera Kit Model: HY-1090-150X-ZJ US Plug Color: Black |
| Specification | Sensor: 16 Megapixel SONY IMX sensor Pixel Size: 2.0 × 2.0μm Sensor Size: 1/2.8 inch Video Output Interface: HDMI / USB (HD Interface) Resolution: 1920x1080@60FPS(HDMI) Monitor Size: 10.1 inches USB Output: 1920x1080@30FPS(USB) Video Ratio Support: 16:9, 4:3 Mode Picture Resolution: 4608 x 3456 Frame Rate: 30@FPS Color: R/G/B support manual adjustment Cross Line: 5 horizontal/vertical lines, color & size of the line can be adjusted, cross line with scale Zoom: 7X digital zoom Magnifier Function: Support magnifying on the same screen Sensitivity Level: Middle(can be used with extra light source) Interface for Lens: Standard C/CS interface Dynamic Range: 40dB PC Systems: Support Windows XP/7/8/10, with measurement software(gift) Picture Format: JPEG Language: CN, EN, JP, FR, DE, RU, IT, KR, TUR Working Voltage: 12V/1A Spectral Response (Wavelength): 400nm-700nm (Strong) White Balance: Manual/Auto SNR: 45dB Mirror Image: Support Up/Down, Right/Left Black & White Mode: Support Storage: TF Card, Maximum support 256GB Working Temperature: -40°C-70°C 8X-150X Zoom C-mount Lens: |
| Weight & Size | Product Weight: 1.9kg Package Weight: 2kg Package Size(L x W x H): 30*18*23cm |
| Package Contents | 1 x 10.1-inch HD LCD Monitor 1 x 150X C-Mount Lens 1 x Power Supply 1 x USB Cable 1 x Adjustable Stand 1 x Remote Control 1 x HDMI Cable |
