Highlights

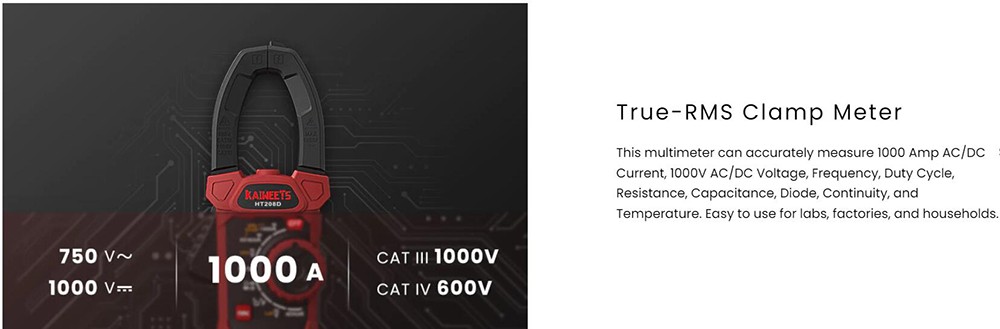

True-RMS Clamp Meter with Multiple Measurements
Accurately measure up to 1000 Amp AC/DC Current, 1000V AC/DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity, and Temperature. Easy to use for labs, factories, and households.

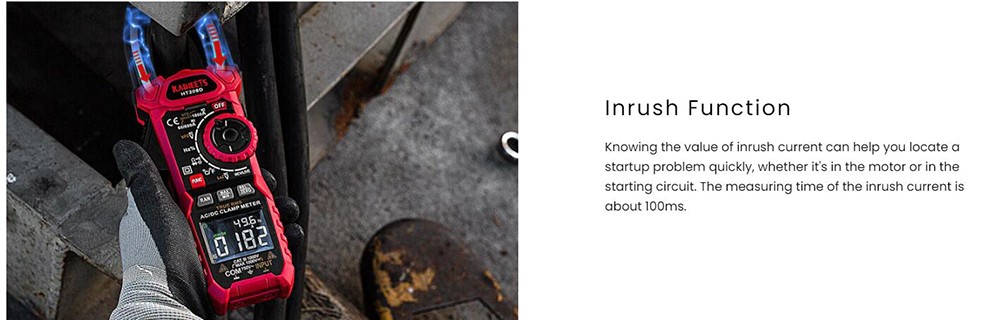

Identify Startup Issues Quickly
The inrush current meter helps you pinpoint startup problems in motors or circuits. With a measurement time of about 100ms, it functions effectively when the current exceeds 10A. Note: The inrush function is only available in AC mode, not DC.

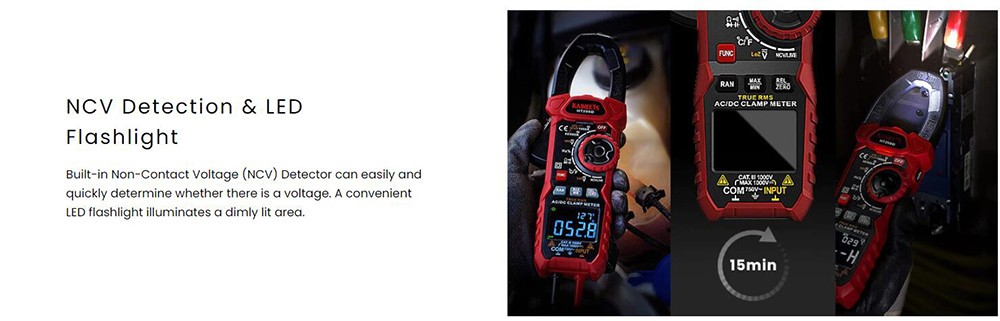

Safe Voltage Detection & Illumination
Equipped with a built-in Non-Contact Voltage (NCV) Detector to easily identify voltage presence. The LED flashlight helps illuminate dimly lit areas for safer and more convenient use.
Enhanced Accuracy Features
The clamp meter includes Variable Frequency Drive Filtering (VFD) and Low Input Impedance (LoZ) modes, providing higher accuracy readings for complex electrical systems.
Safety Standards and Double Insulation
Meets safety standards IEC 61010-1, CAT IV 600V, and CAT III 1000V. Features double insulation and high-quality materials to prevent electric shock hazards, ensuring safe and reliable operation.
Specification
| General | Brand: KAIWEETS Type: Inrush Clamp Meter Model: HT208D Color: Black + Red |
| Specification | DC Voltage: 600mV/6V/60V/600V/1000V, ±(0.5%+3) AC Voltage: 600mV/6V/60V/600V/750V, ±(0.8%+3) DC Current: 60A/600A/1000A, ±(2.5%+5) AC Current: 60A/600A/1000A, ±(2.5%+5) Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ, ±(0.8%+3) Capacitance:10nF/100nF/1uF/10uF/100uF/1mF/10mF/100mF, ±(3.0%+3) Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz, ±(0.5%+5) Duty: 1%~99%, ±(1.0%+2) Temperature: -40°C-1000°C ±(1.0%+2), -40℉-1832℉ ±(1.0%+2), Counts: 6000 |
| Weight & Size | Product Weight: 0.7kg Package Weight: 0.7kg Package Size(L x W x H): 28.5x13.5x6cm |

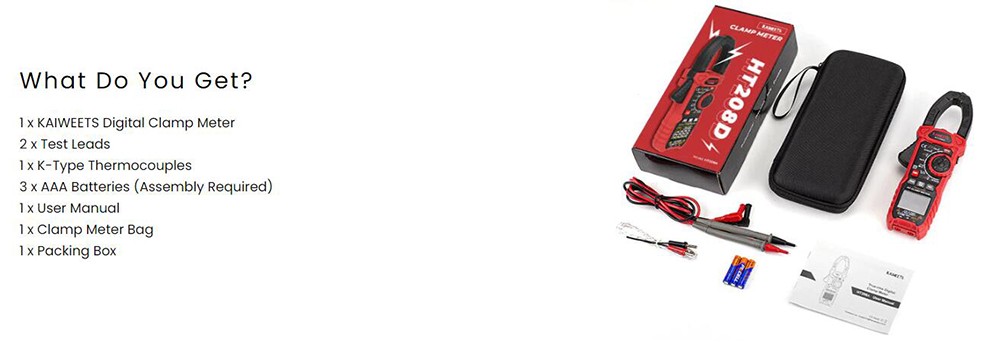

| Package Contents | 1 x Digital Clamp Meter 2 x Test Leads 1 x K-Type Thermocouples 3 x AAA Batteries (Assembly Required) 1 x User Manual 1 x Clamp Meter Bag 1 x Packing Box |
