Highlights

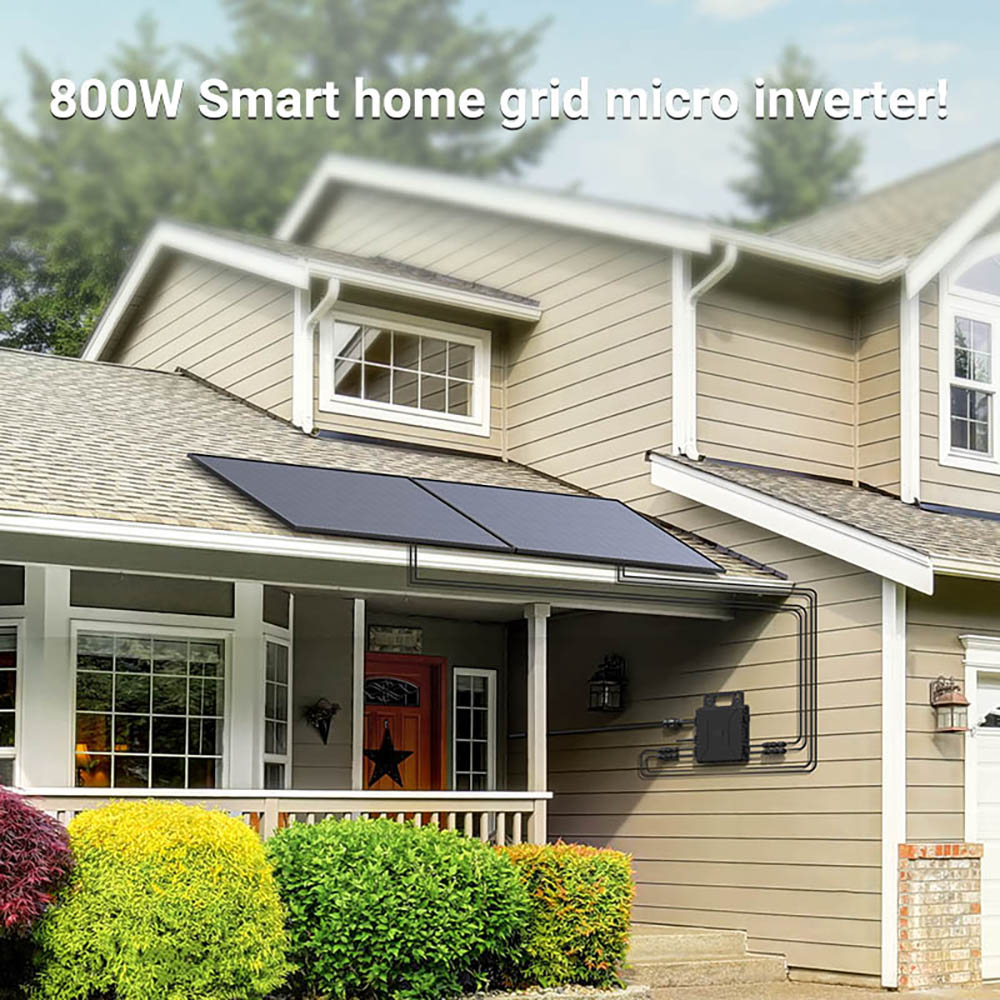

Power & Versatility

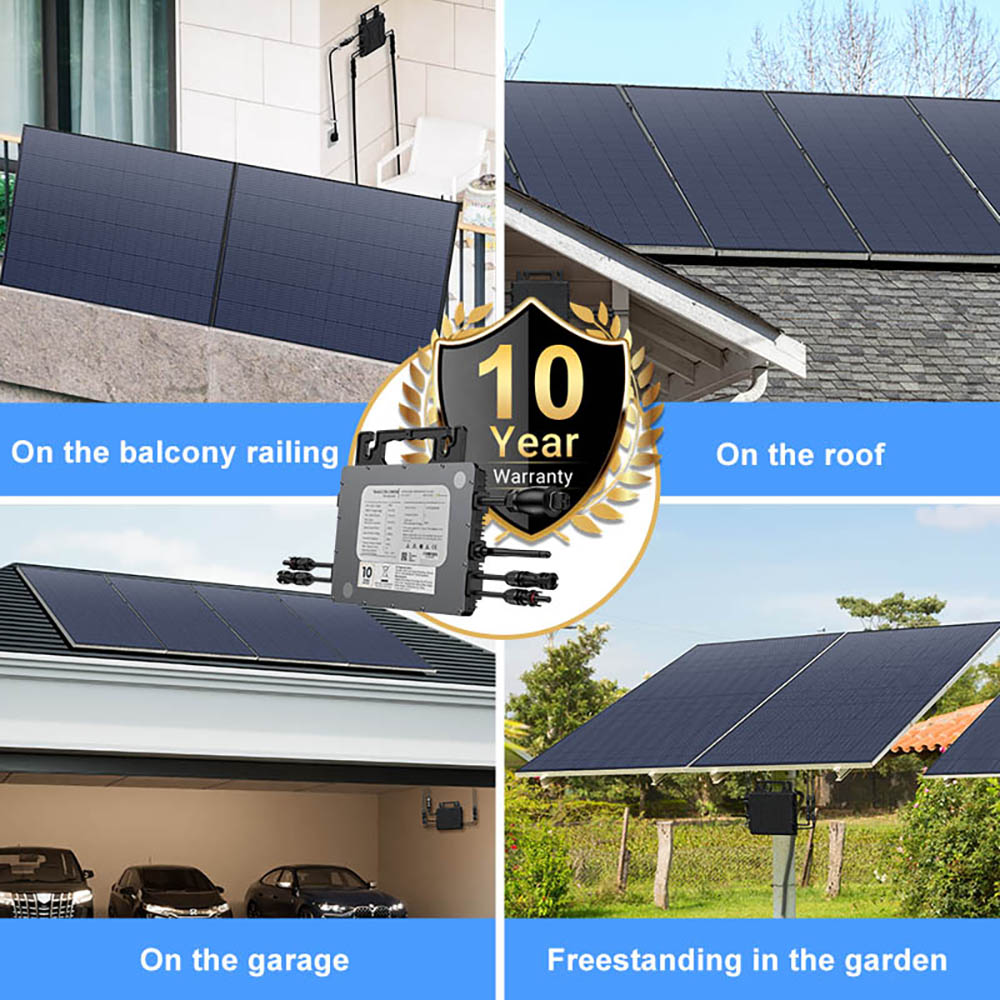

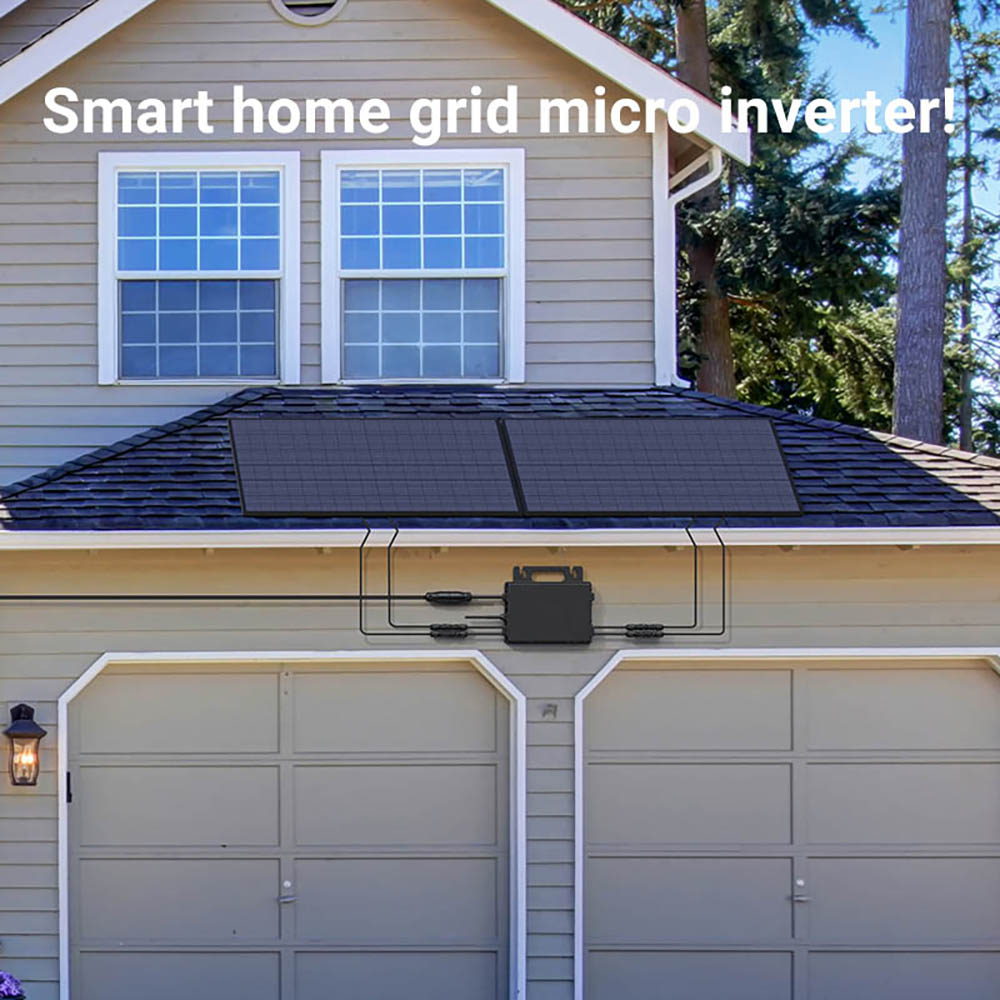

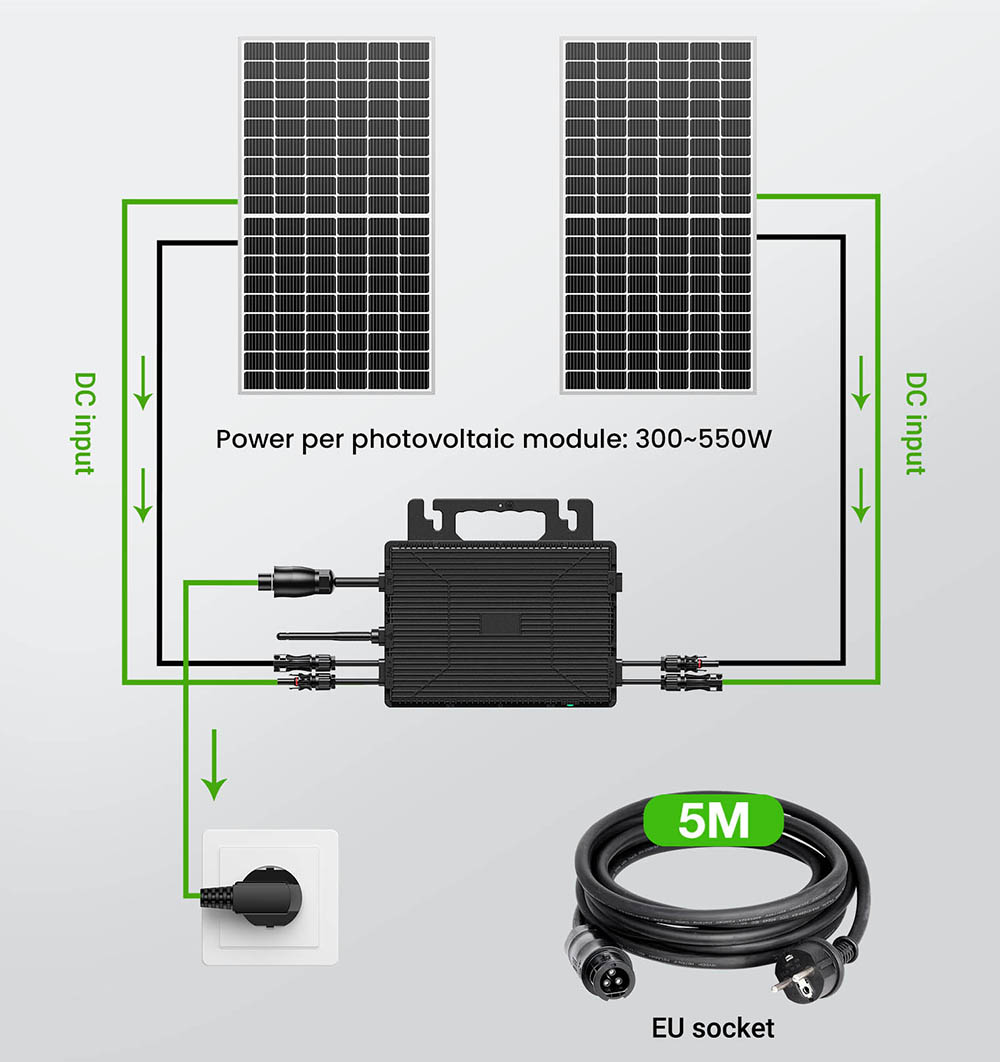

Delivers 800W output, ideal for residential, small industrial, and commercial applications, with wide compatibility, excellent low-light performance, and flexible system design.

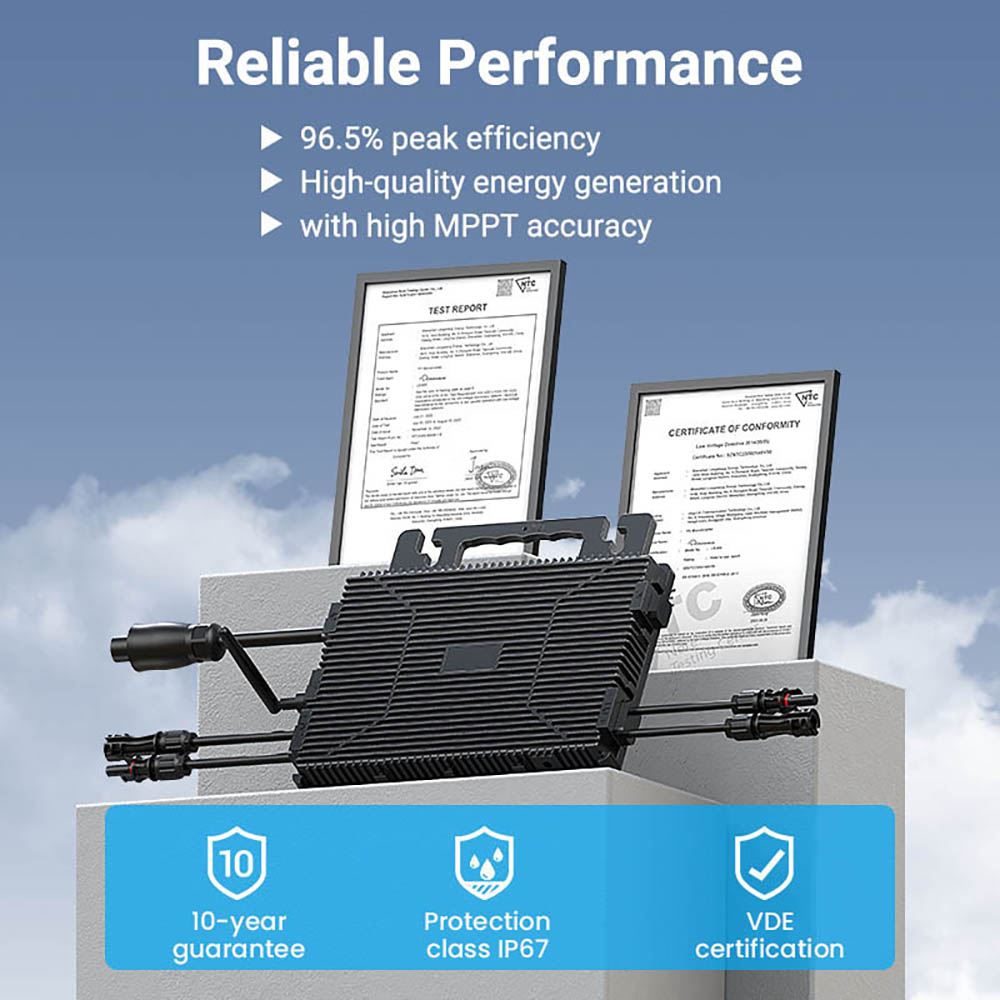

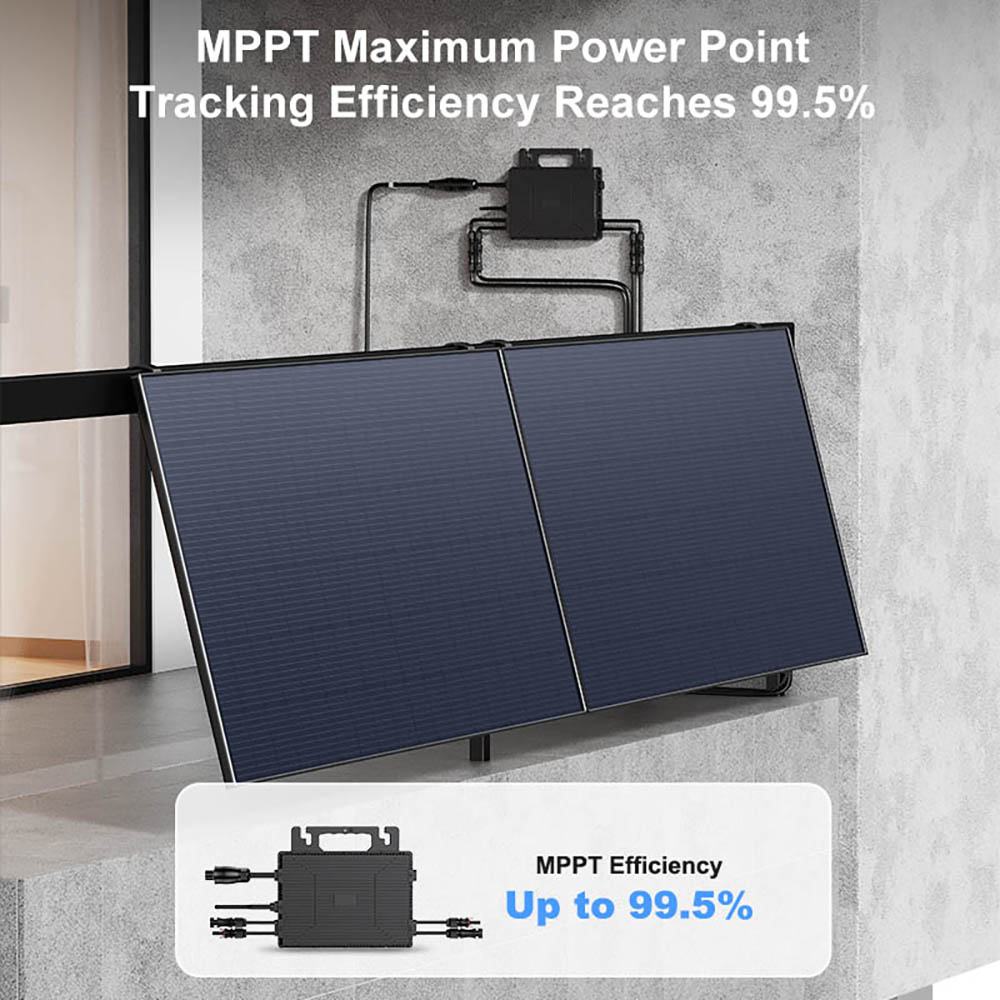

High Efficiency & Maximum Power
Up to 96% efficiency with 2 independent MPPTs, enabling precise monitoring to maximize energy generation.

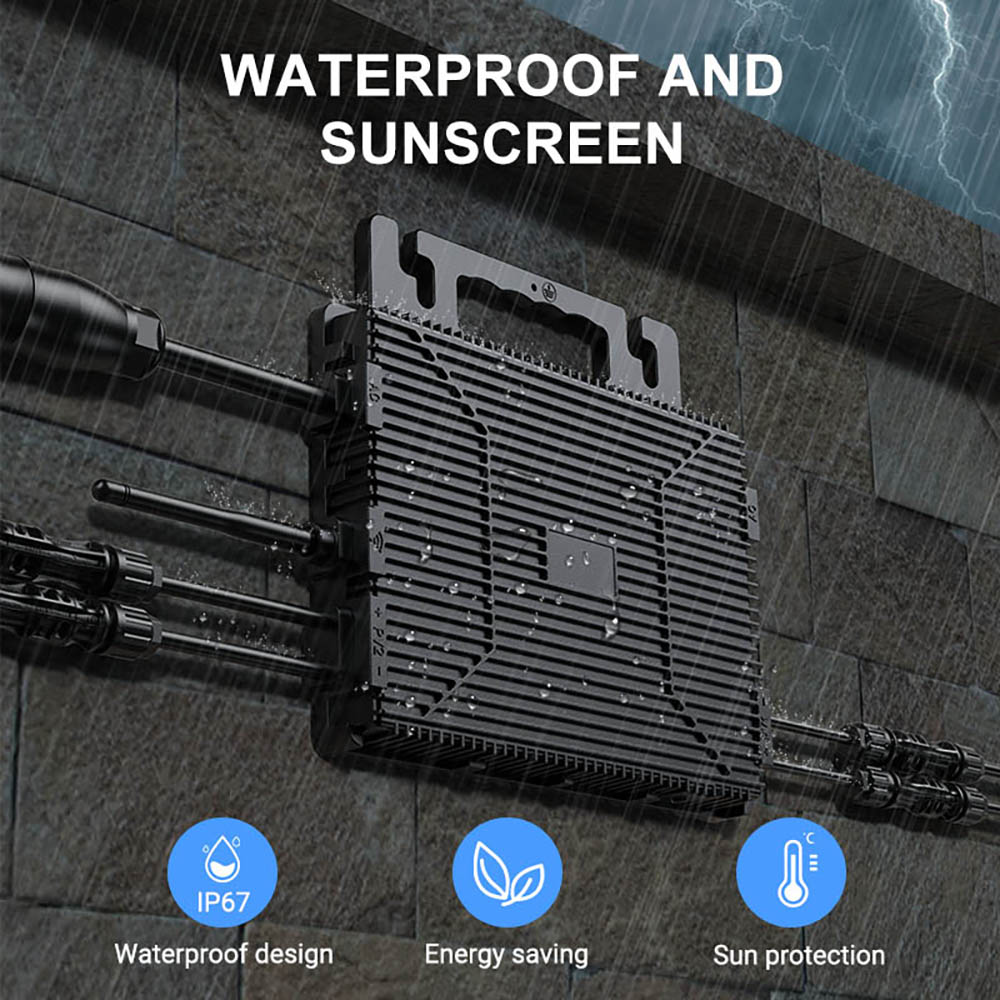

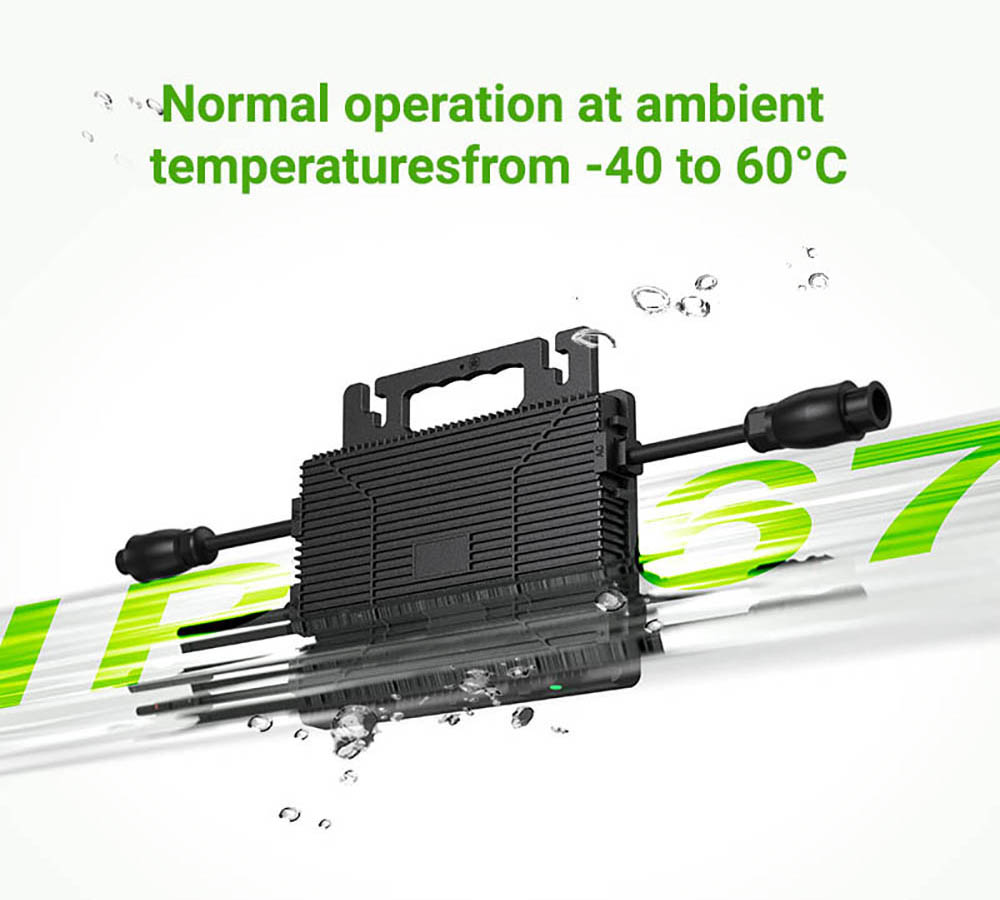

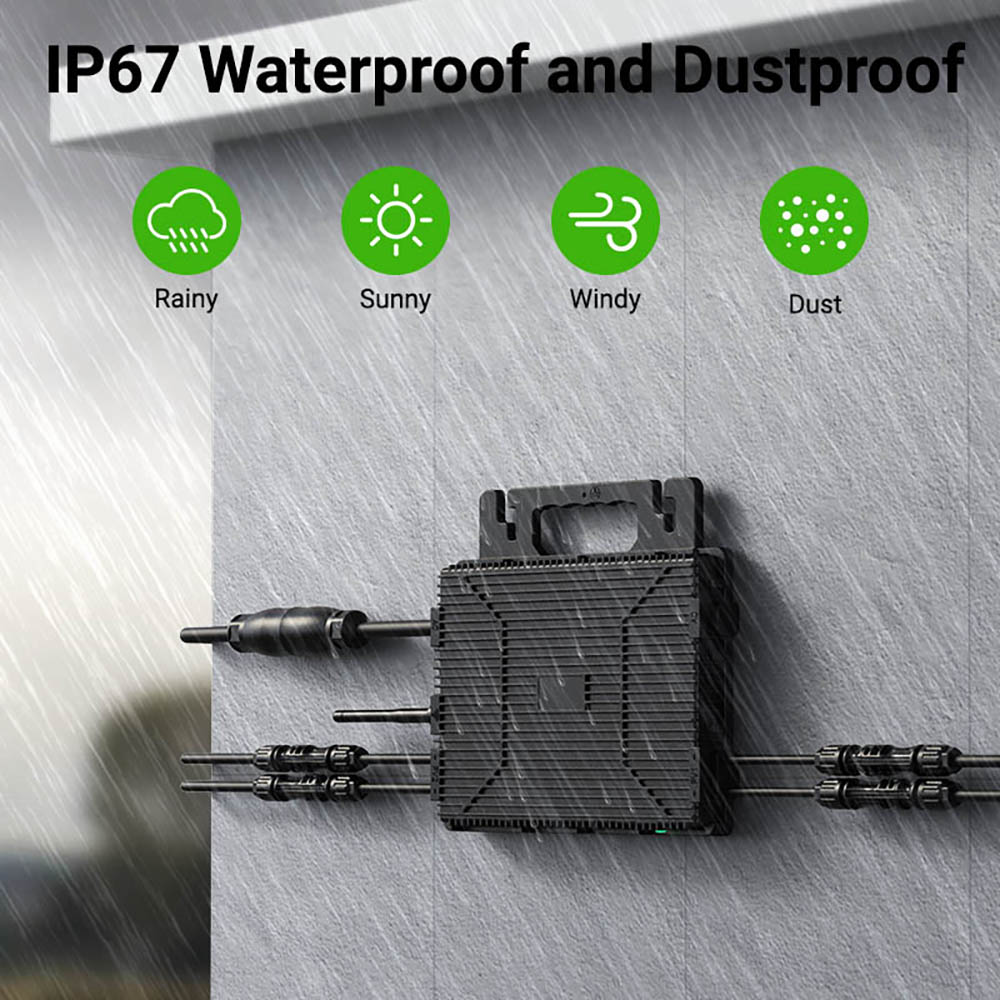

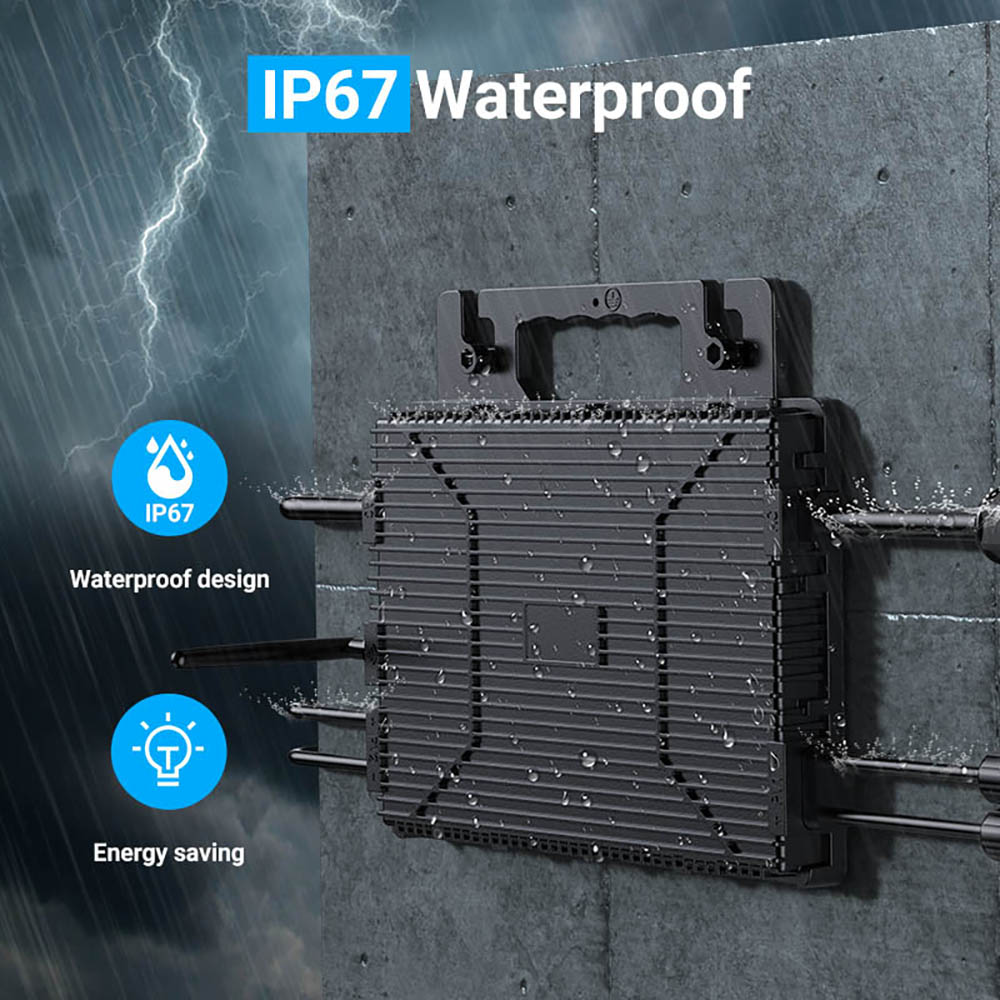

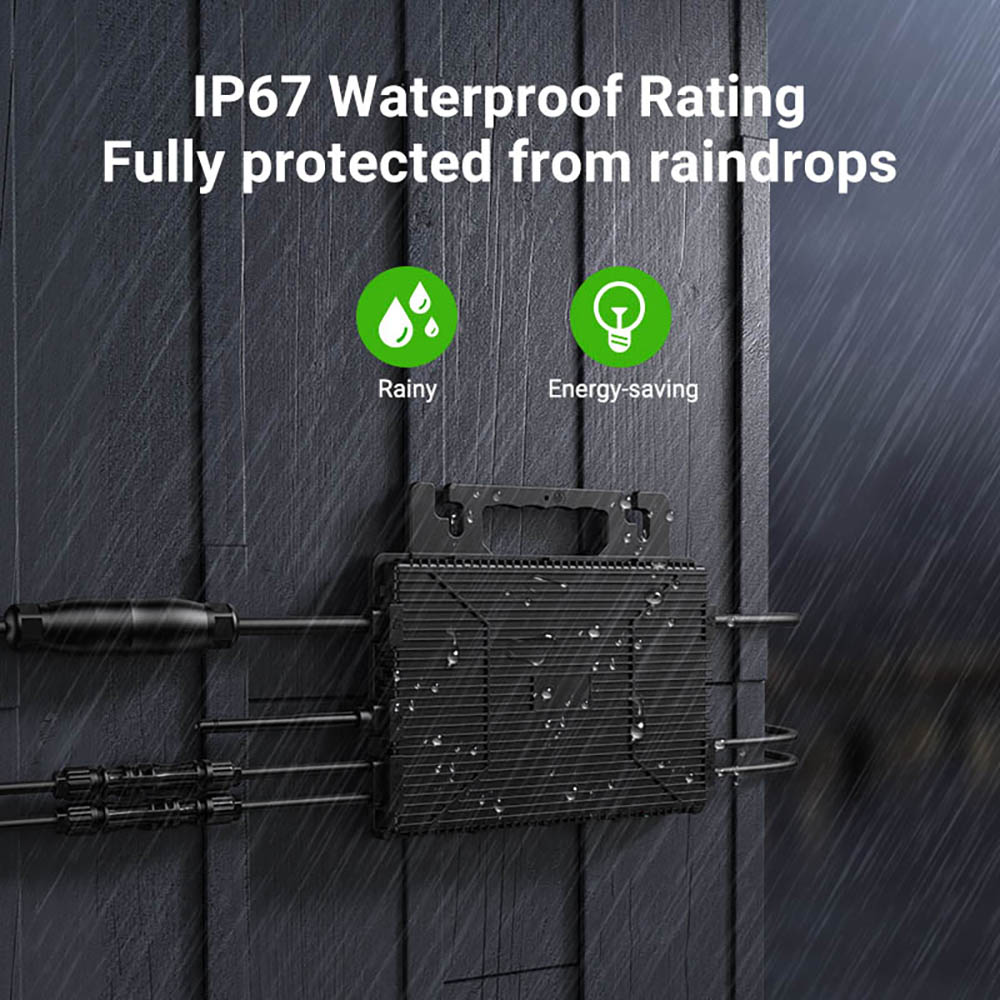

Durable & Reliable
IP67 protection and die-cast design ensure stable operation even in harsh environments.

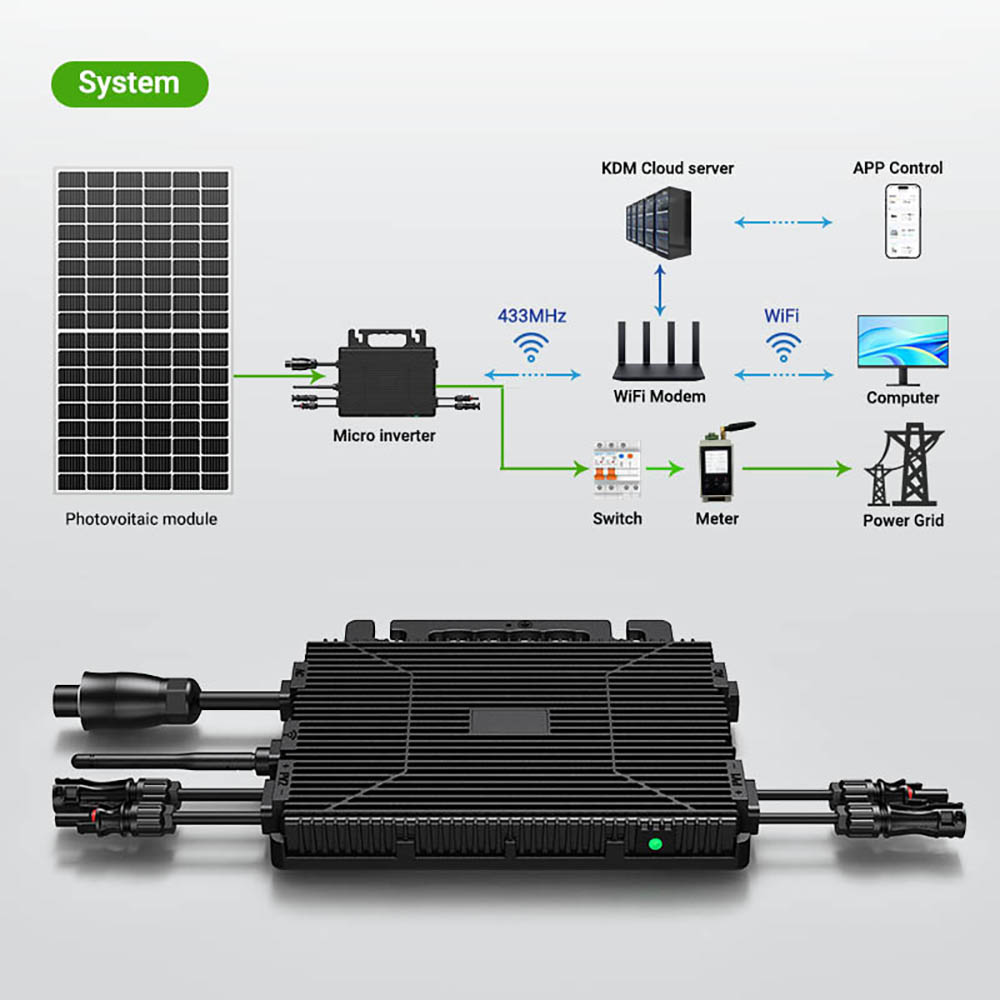

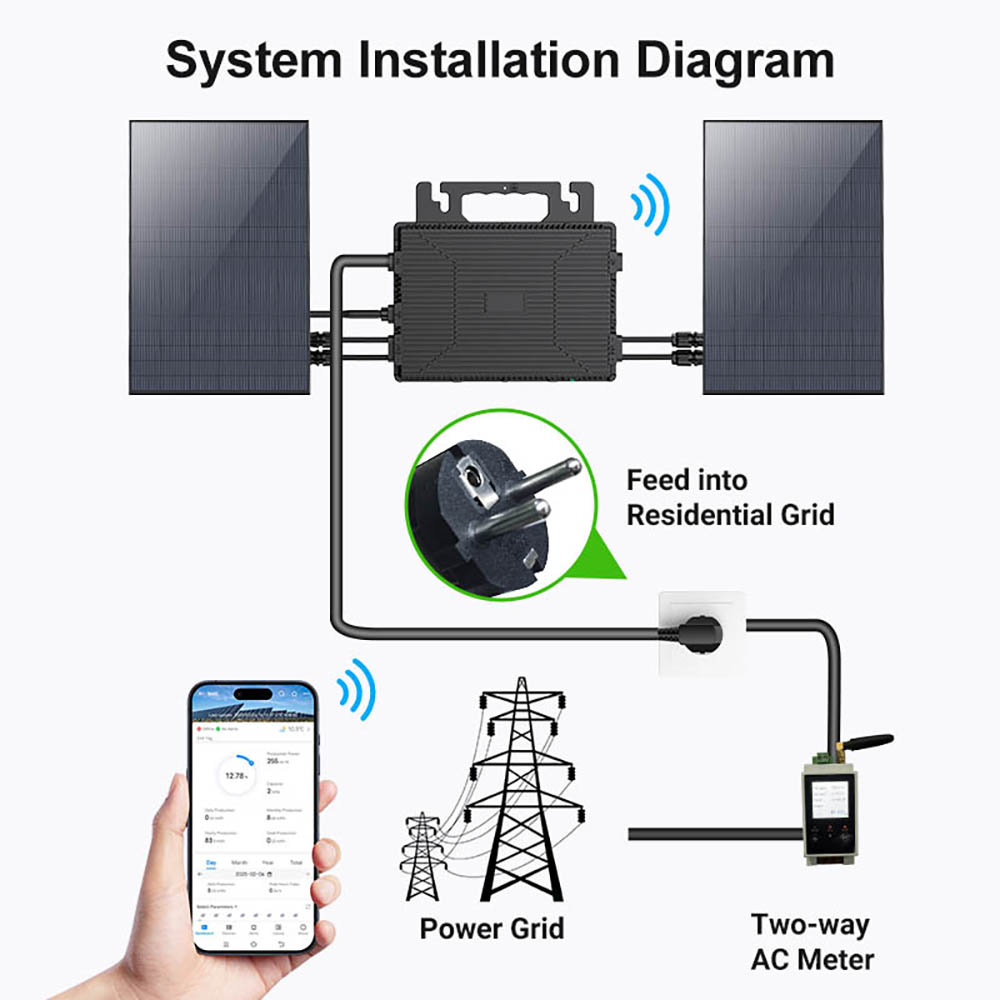

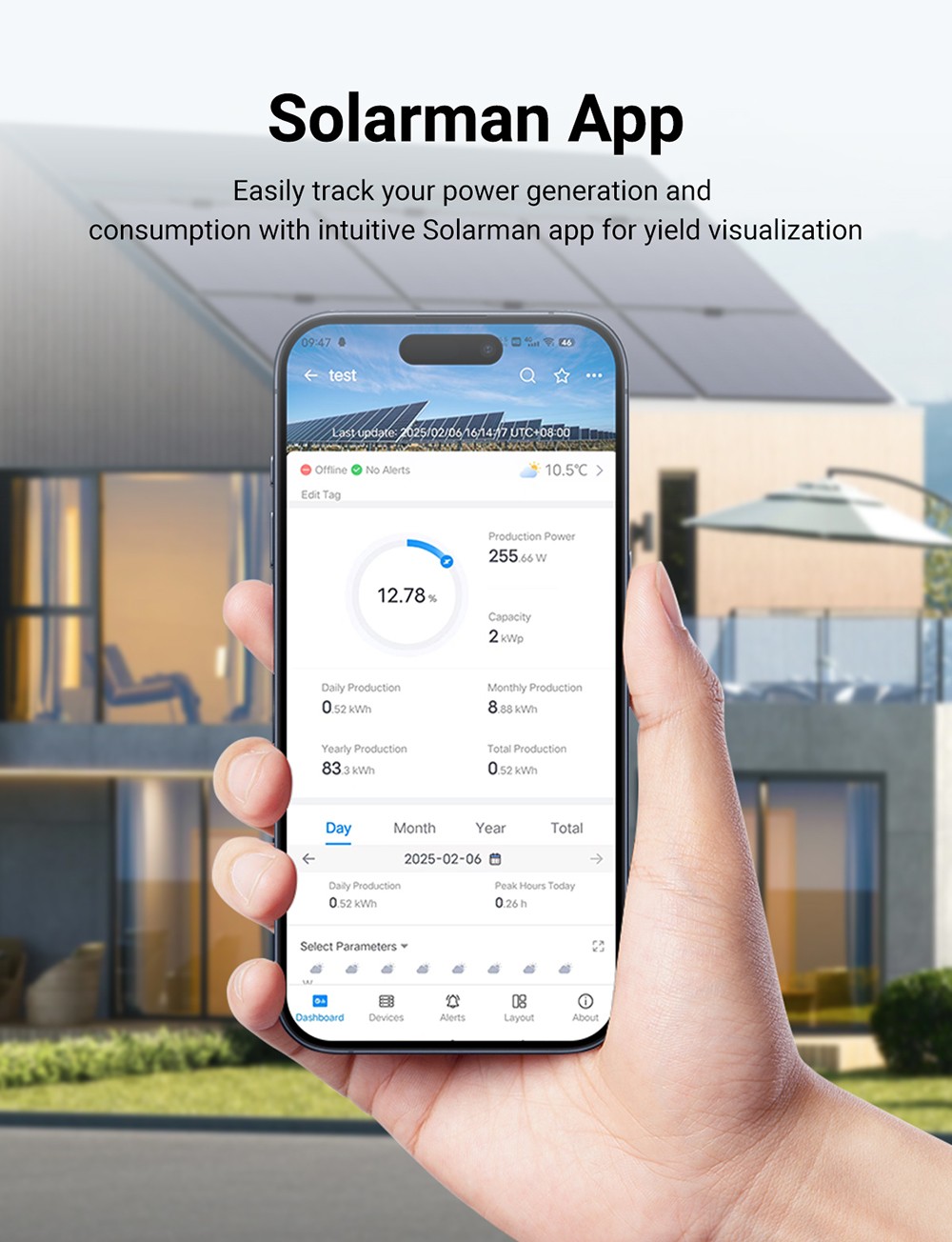

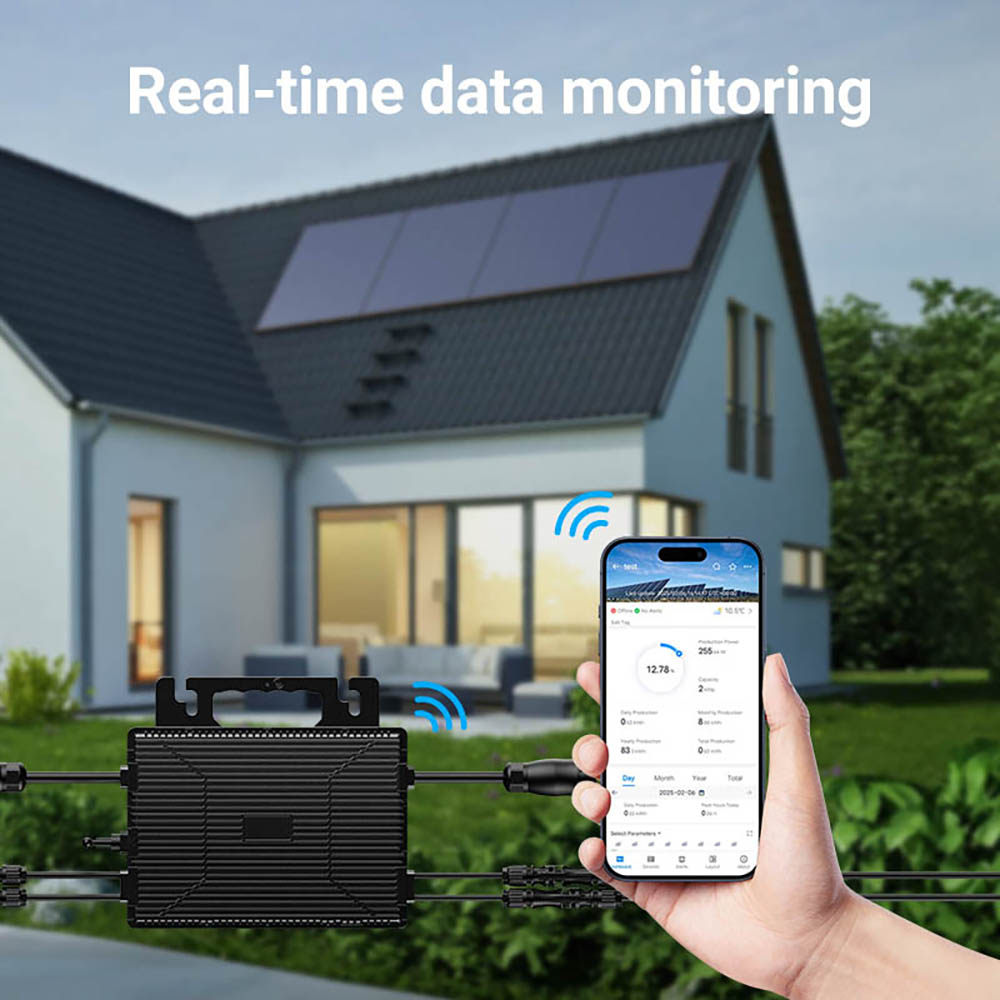

Smart Monitoring & Control
Built-in Wi-Fi provides real-time monitoring, fault detection, and dynamic power adjustment from 5% to 100% via the integrated smart communication system.

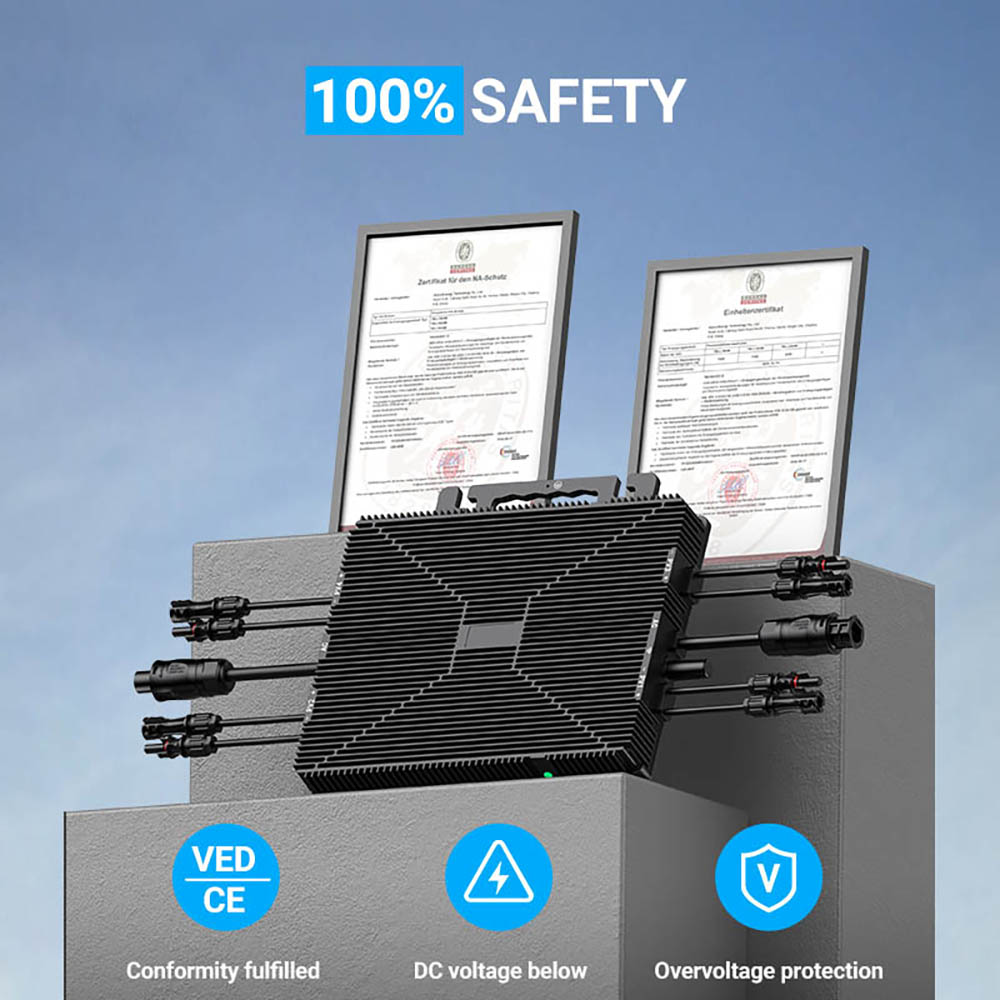

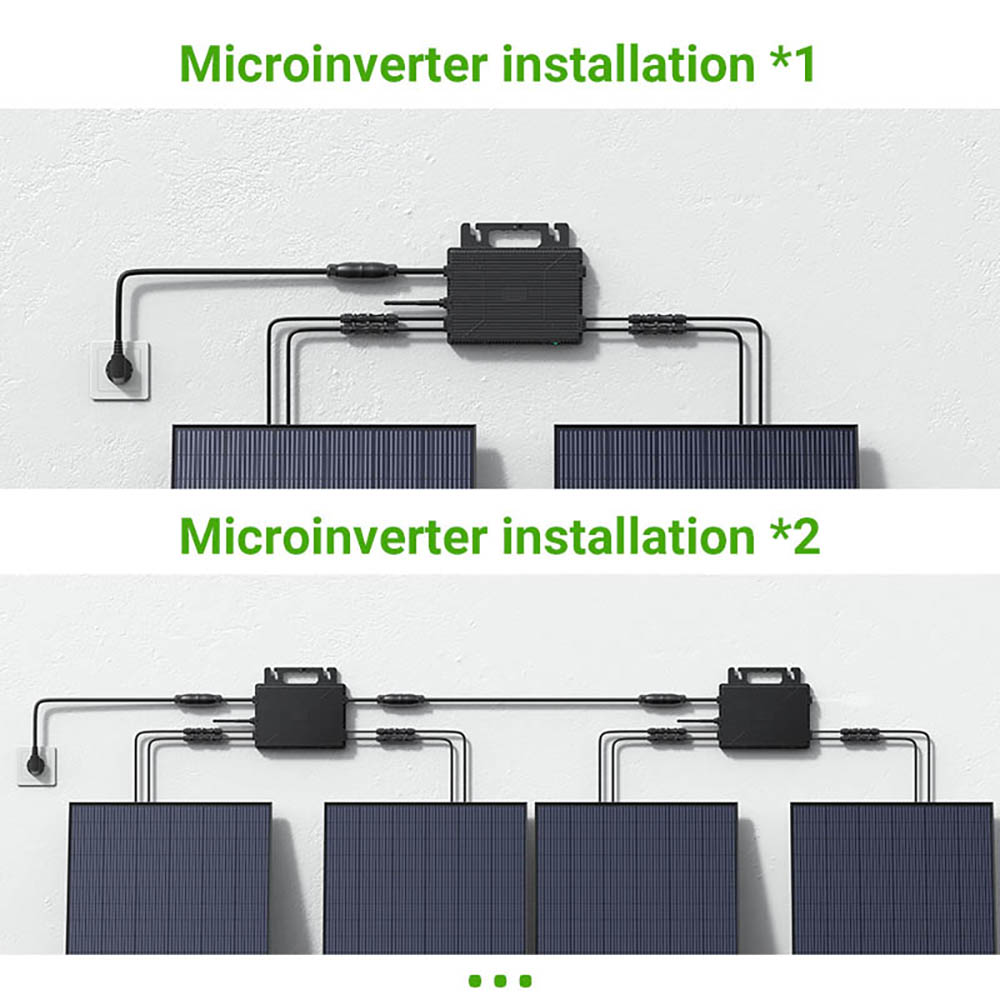

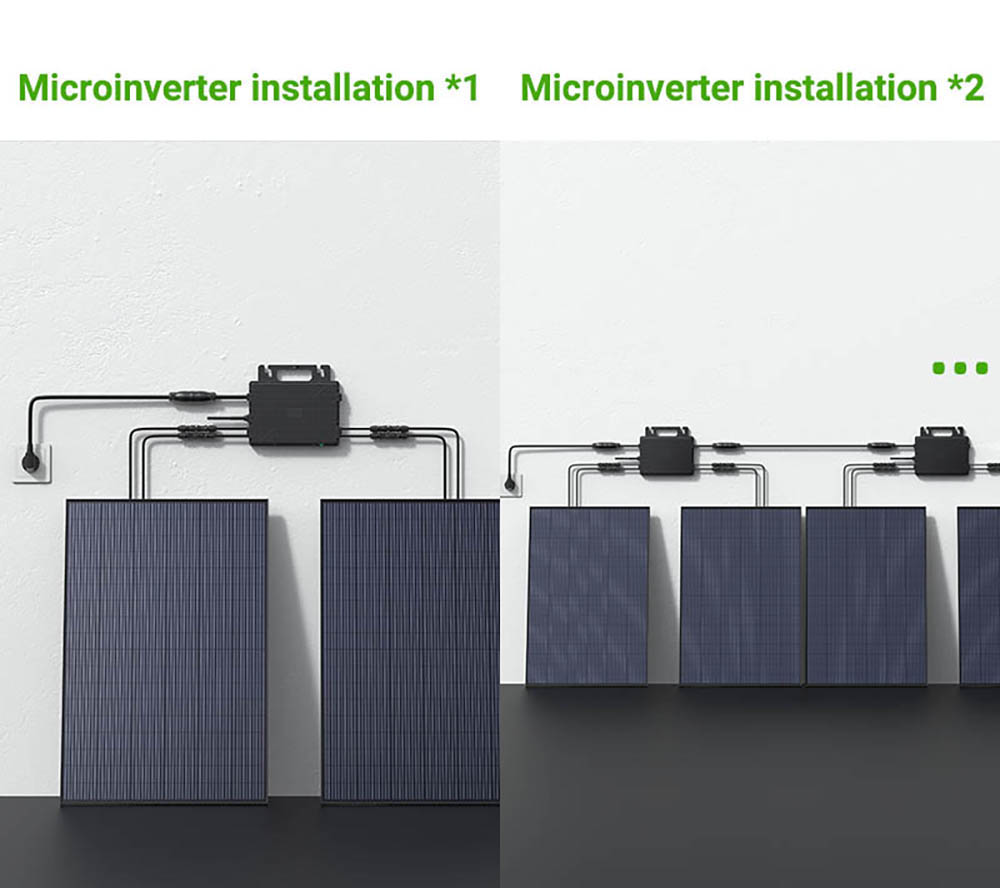

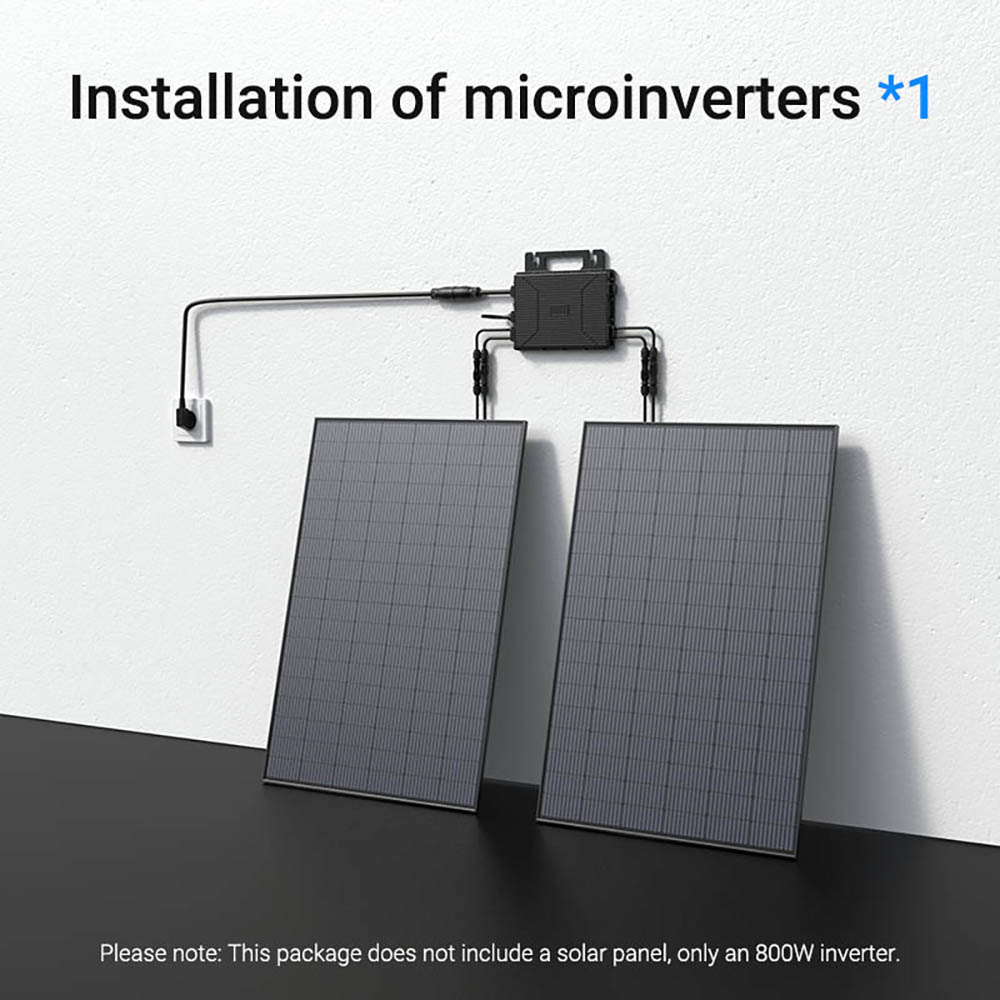

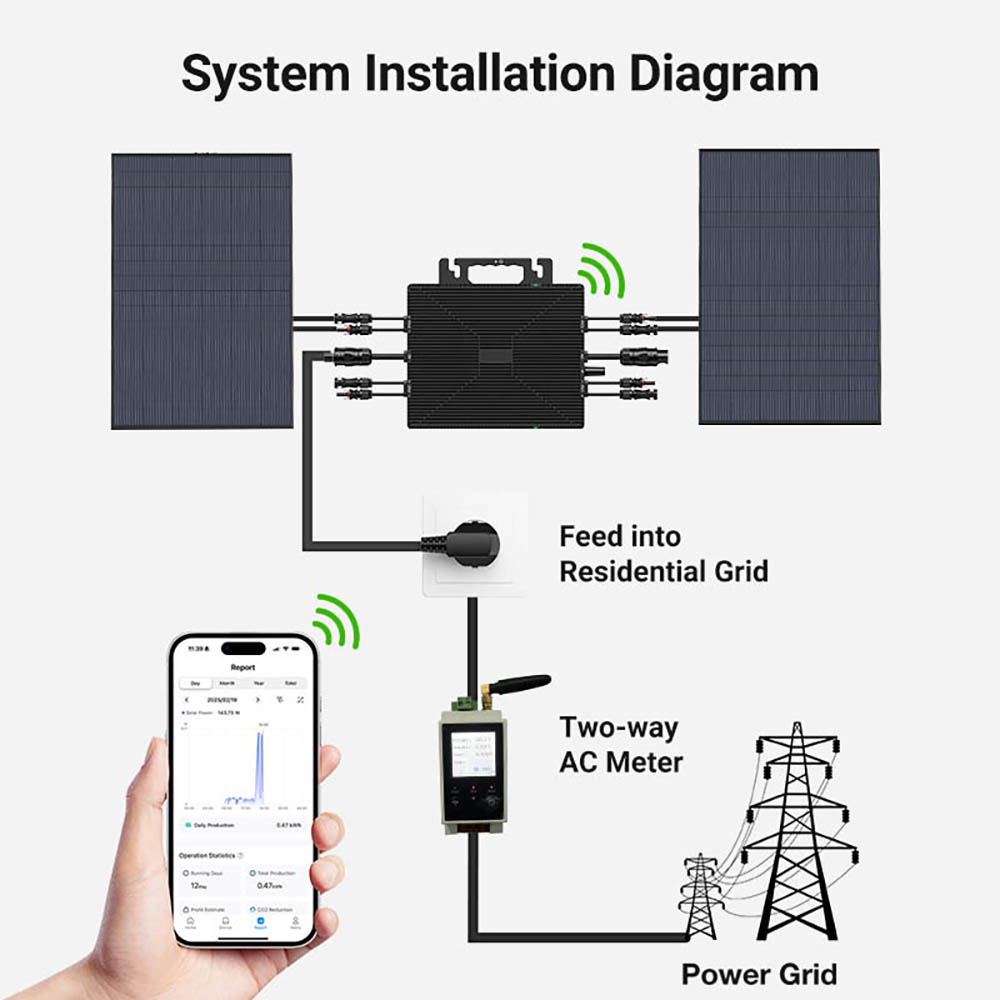

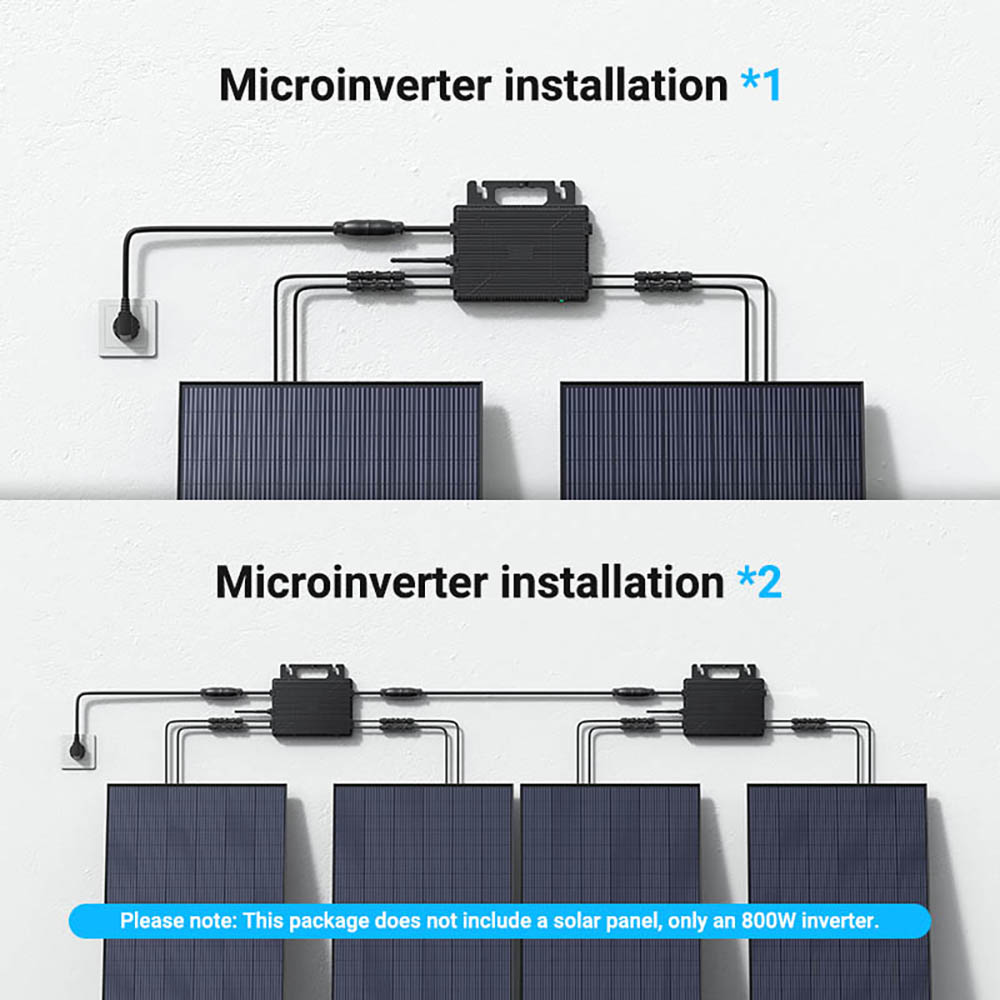

Safe & Easy Installation
Supports a maximum DC voltage of 60V and plug-and-play setup for hassle-free installation.
Long Lifespan & Warranty
Designed for 25 years of use and backed by a 10-year product warranty for long-term reliability.
Specification
| General |
Brand: LIONESHEE |
| Specification | Recommended PV Module Power: 280W – 550W Start-up Voltage: 20V MPPT Voltage Range: 25V–55V Max. Input Voltage: 60V Max. Input Current: 13.5A × 2 Max. DC Short-Circuit Current: 16.5A × 2 Number of MPPTs: 2 Rated Output Power: 800W Nominal Output Voltage: 230V Extended Output Voltage Range: 184V–253V Nominal Output Current: 3.47A Max. Output Current: 4A Nominal Frequency / Range: 50Hz / 45–55Hz Power Factor: >0.99 (default) Total Harmonic Distortion (THD): <3% Max. Units Per Branch: 5 Peak Efficiency: 96.0% CEC Efficiency: 95.5% Static MPPT Efficiency: 99.5% Night-Time Power Consumption: <50mW Ambient Temperature Range: -40℃ ~ +65℃ Enclosure Rating: IP67 Cooling: Natural Convection (No Fans) Isolation Type: High-Frequency Transformer Communication: Wi-Fi Energy Management: Solarmon Online Platform Warranty: 10 Years Standard |
| Weight & Size | Product Weight: 2.9 kg Package Weight: 3.5 kg Product Size(L x W x H): 26x22.5x3.2 cm Package Size(L x W x H): 36x28x12 cm |
| Package Contents |
1 x Micro Inverter |
