Highlights
Resume from Power Failure
The printer will save the printing progress if meet an unexpected power failure and can continue printing after the power is restored.

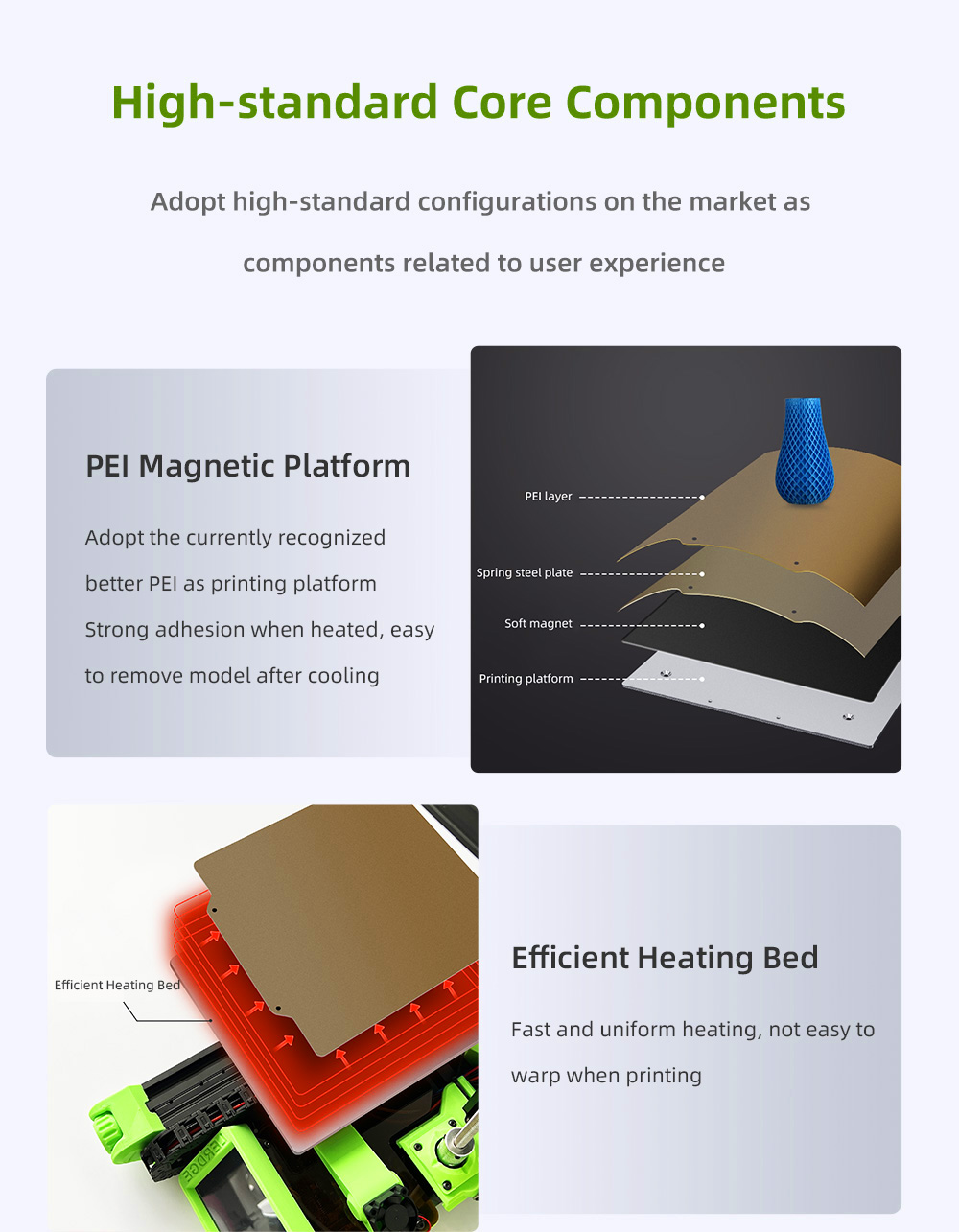

PEI Flexible Sheet
Equipped with the most popular PEI magnetic sheet on the market, which makes the printing of the first layer more perfect and makes it very easy to remove the model.

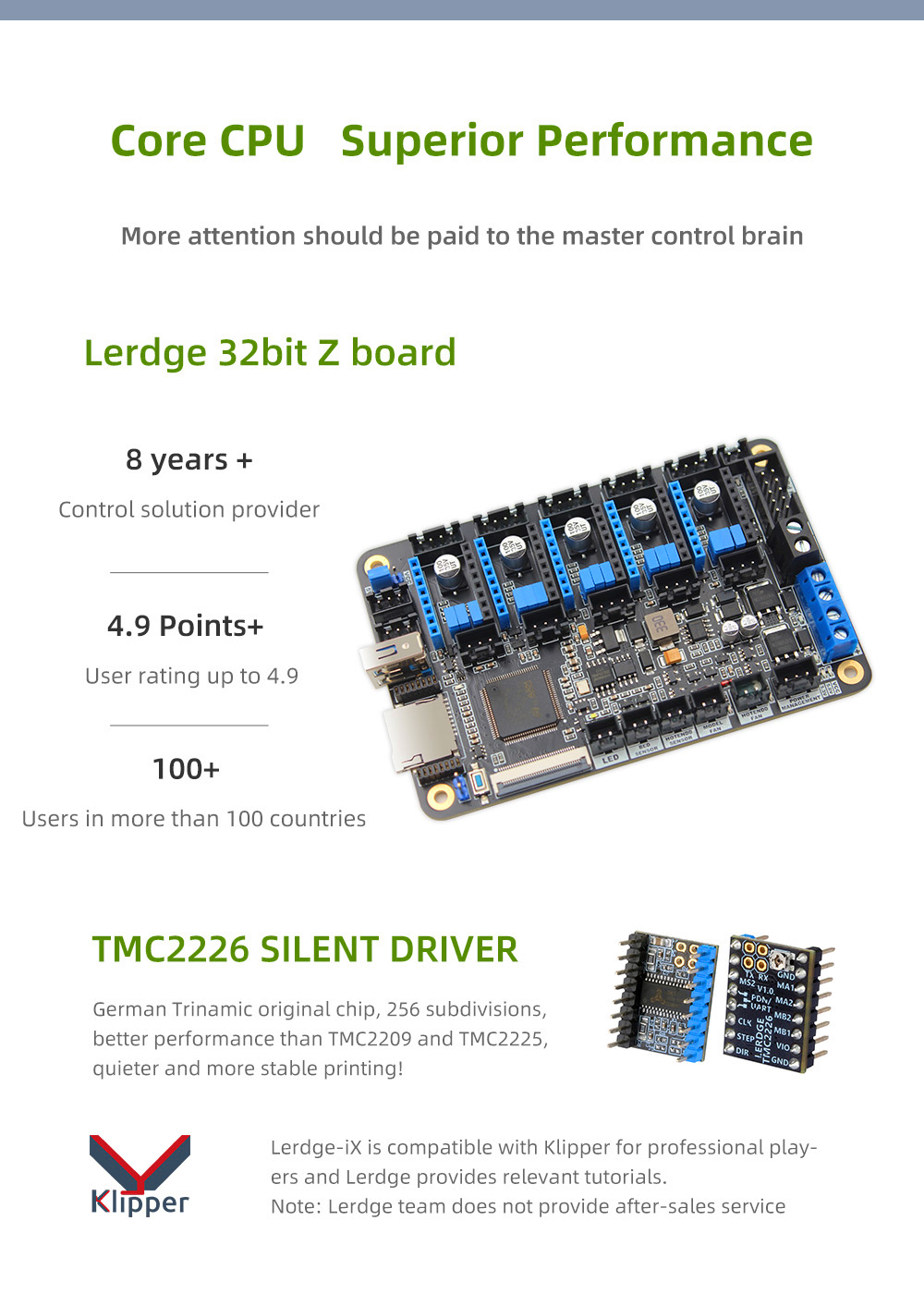

32bit Lerdge Mainboard
Lerdge has 7 years of experience in the FDM 3D printer 32-bit control solution. Lerdge board is able to perform all the settings of the 3D printer through the display, it is very easy to use.
TMC2226 Silent Driver
The original German TMC2226 driver chip, high-quality stepper motor, and flexible belt bring a smooth and quiet experience when the printer is running. Even at the night, Lerdge iX will not disturb your rest.
Z-axis Fine Adjustment
When printing the first layer, the distance between the print head and the printing platform can be adjusted in real-time to improve the quality of the first layer.
One-Click Refueling
You can load or exit the filament with one click on the touch screen.
Automatic Shut-down
The printer can automatically cool the hotend and turn it off after the printing is finished.
Open Source Hardware
Lerdge website provides structural parts design drawings, specifications, BOM, etc.
More Functions
We have equipped Lerdge-iX with almost all practical functions on the market, including automatic leveling, model preview window, colorful screen, network connectivity, temperature protection, filament runout sensor, etc. It supports TF card, U disk, and USB serial port. It can realize offline printing from TF card or U disk, and can also be connected to Raspberry Pi or computers via USB.
Note:

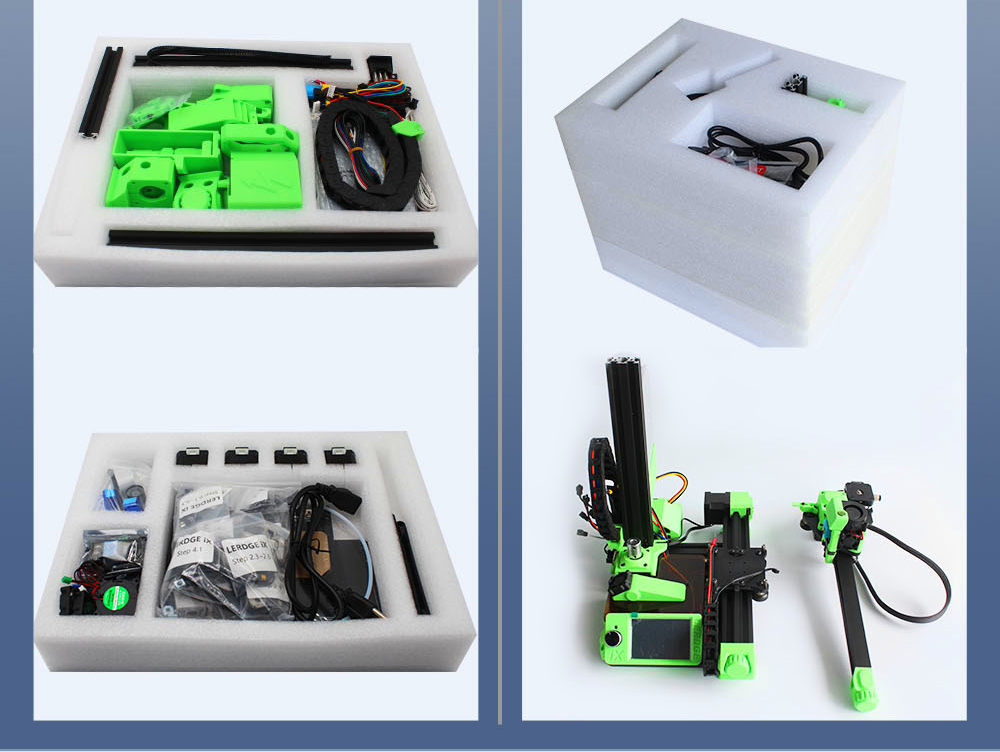

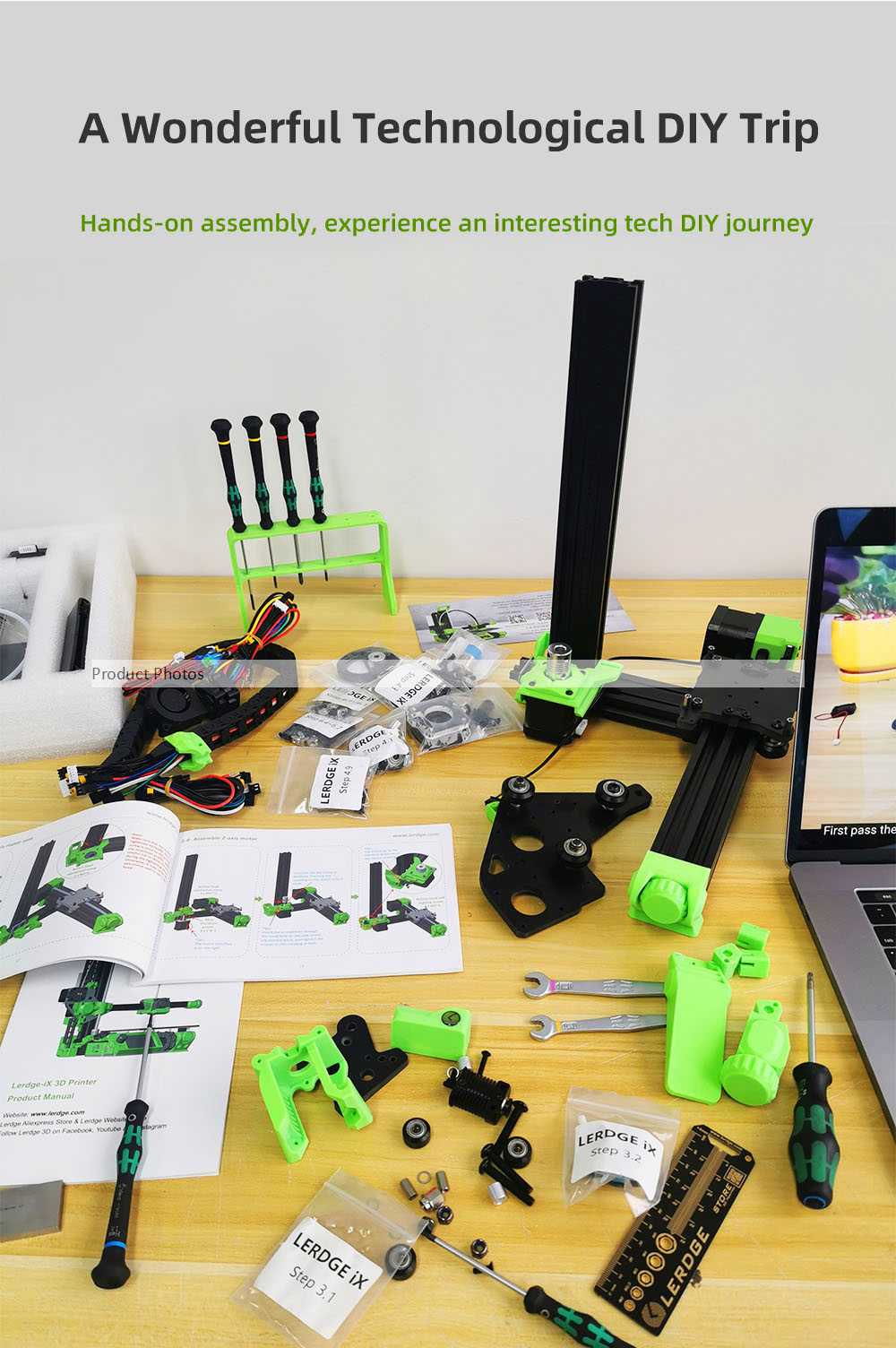

1. KIT version: Lerdge iX are shipped in the form of separate parts, including colorful printed parts, you need to assemble it yourself but don't need to print the plastic parts.
2. The required assembly tools are not included in the KIT version. There are the specifications of the tools needed in the assembly process for the Kit version. You guys can buy them according to your own budget:
1.5 Allen screwdriver, 2.0 Allen screwdriver, 3.0 Allen screwdriver, 2mm slotted screwdriver, Ph1 Phillips screwdriver, 7mm open wrench, 8mm open wrench.
Specification

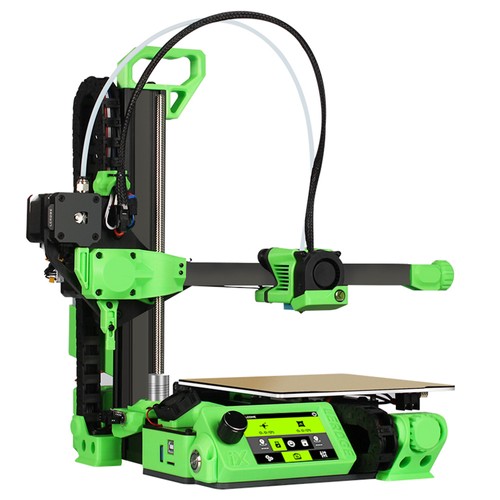

| General | Brand: Lerdge Type: 3D Printer Model: iX Color: Green |

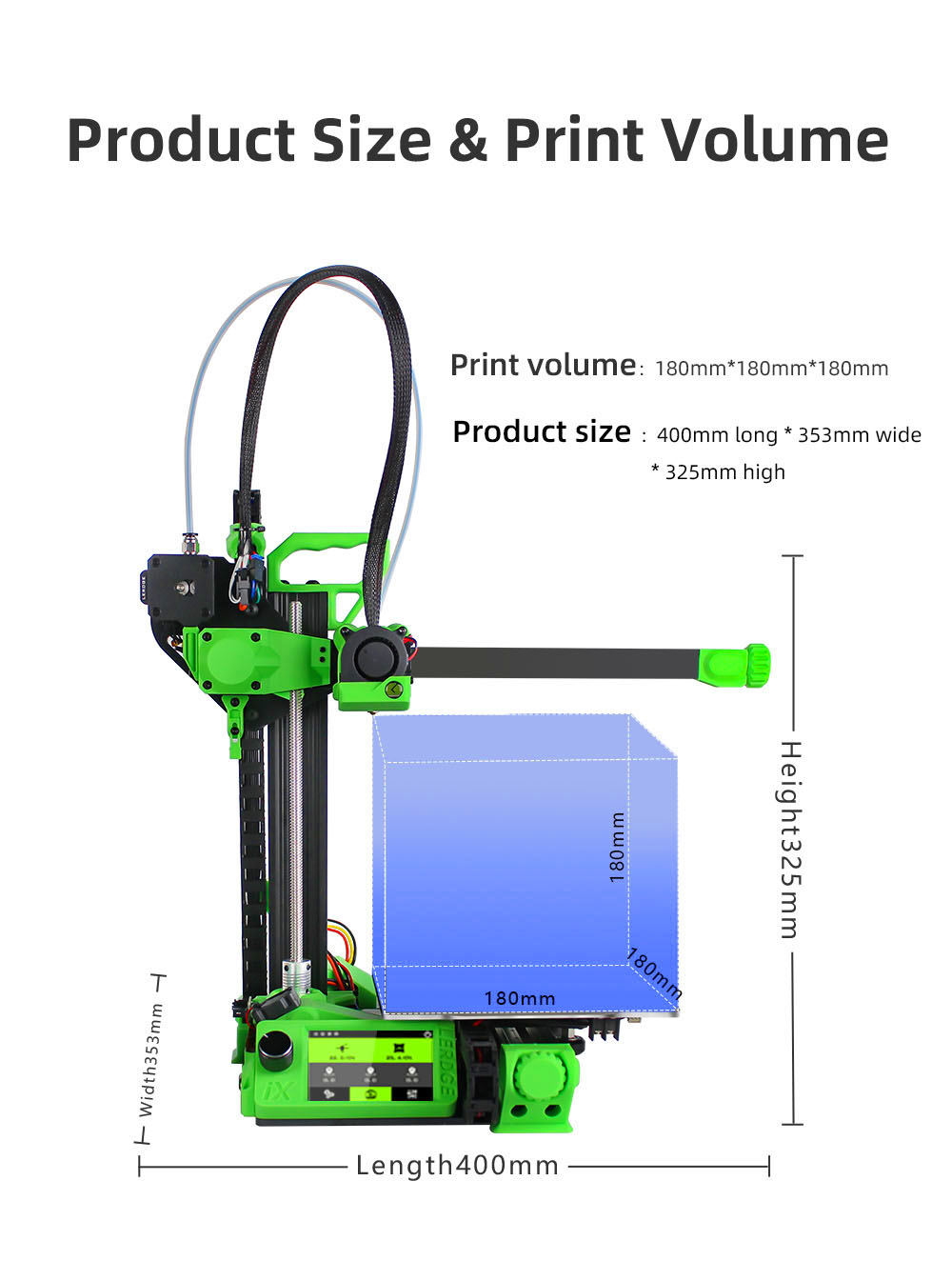

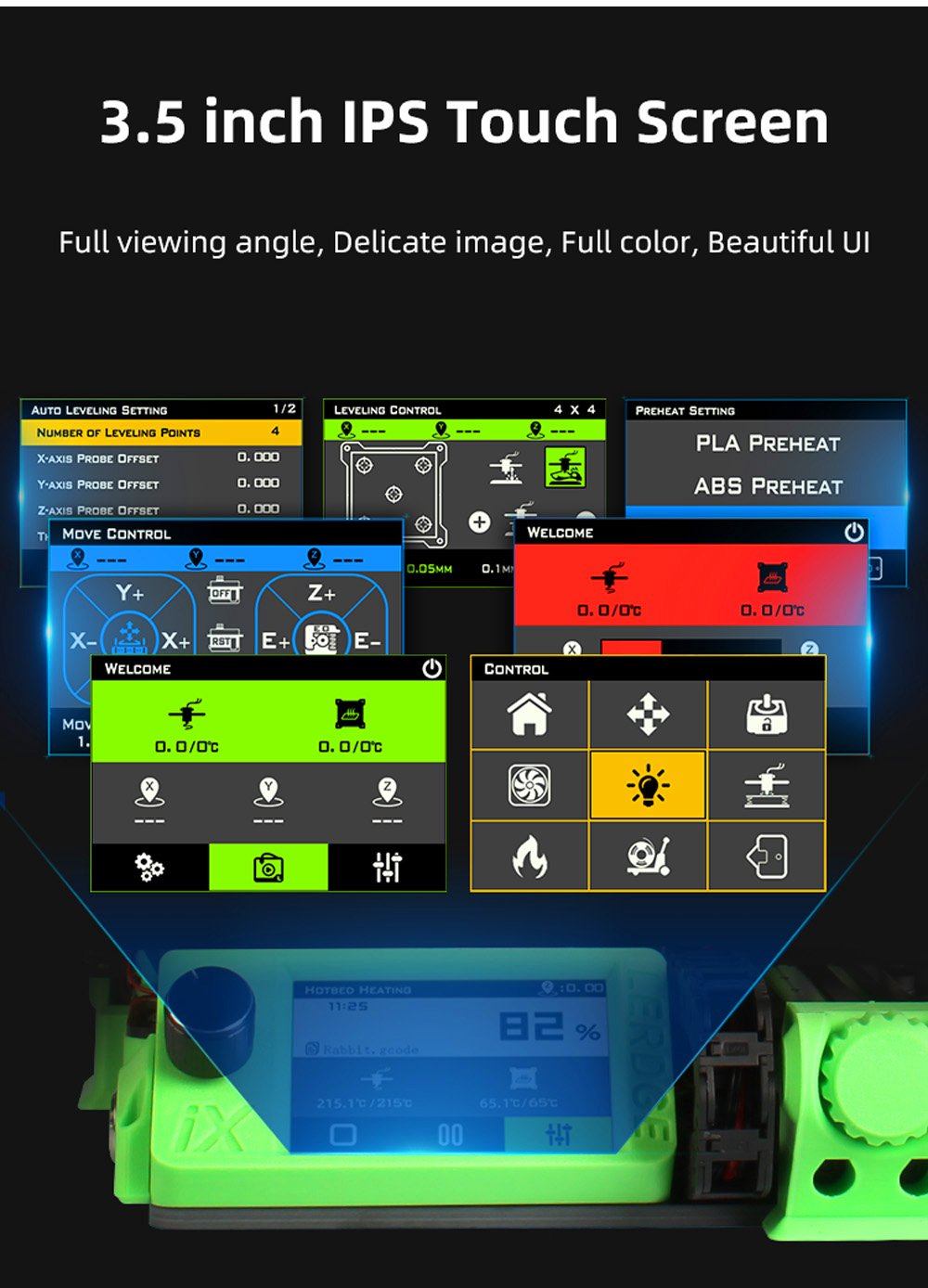

| Specification | Printing Technology: FDM Structure: XYZ Structure Print Area: 180x180x180mm Firmware: Lerdge Z firmware Work Voltage: 100-240V Maximum Power: 240W Communication: USB Serial port Filament Diameter: 1.75mm Display: 3.5 Inch IPS Touch Screen Applicable Filament: PLA, PETG, ABS, HIPS, Wood, etc. Running Speed: 10-200mm/s Positioning Accuracy: 0.01mm Printing Accuracy: 0.1mm Min Layer Thickness: 0.05mm Nozzle Diameter: 0.4mm Max Tem of PrintHead: 280 Celsius Max Tem of HotBed: 100 Celsius Executable File: G, .gcd, .gcode Output File: Gcode Support Slicer: PrusaSlicer, Cura, Repetier-Host, Simplify3D, Slic3r, etc. System Language: English, Russian, German, French, Portuguese, Spanish |
| Weight & Size | Product Weight: 5.5kg Package Weight: 6kg Product Size(L x W x H): 35.3x40x32.5cm Package Size(L x W x H): 40x30x18cm |
| Package Contents | 1 x 3D Printer Kit 1 x User Manual |
LERDGE IX TUTORIAL MATERIALS:
We provide detailed assembly electronic documents. For detailed information, please visit Lerdge's official website (https://www.lerdge.com/machine/LerdgeIX) to view.
Assembly Manual: https://www.lerdge.com/machine/lerdge-ix/manual
STL/CAD Preview: https://www.lerdge.com/machine/lerdge-ix/viewstl
BOM List: https://www.lerdge.com/machine/LerdgeIX
we gradually released the videos that accompany the assembly manual. You can view them on the Lerdge 3D Youtube channel: https://www.youtube.com/channel/UCS0bM7-MhgW5B0L2XJ3zUDg
