Highlights

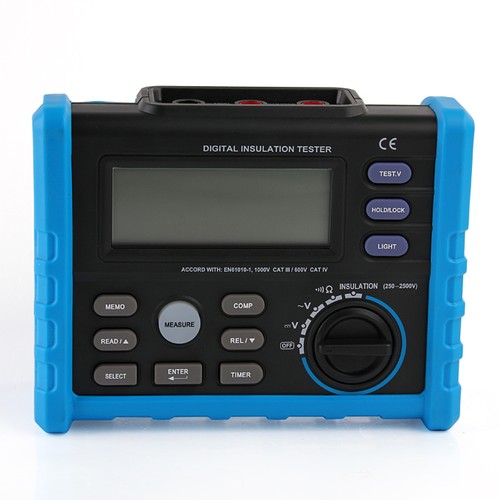

- This style of digital multimeter is designed and manufactured according to the safety requirements set out by the IEC61010-1 standards for electronic test instruments
- Its design and manufacture is strictly based on the provisions in the 1000V CAT III of IEC61010-1 and the Stipulation of 2-Pollution Grade.
Insulation Tests |
||
Source output voltage |
Measuring range |
|
250V (0%~+20%) |
0.01MΩ~250MΩ ±3% |
|
500V (0%~+20%) |
0.01MΩ~500MΩ ±3% |
|
1000V (0%~+20%) |
0.1MΩ~1000MΩ ±3% |
|
1.00GΩ~5.00GΩ ±5% |
||
5.00GΩ~10.00GΩ ±10% |
||
2500V (0%~+20%) |
0.1MΩ~2.00GΩ ±3% |
|
2.00GΩ~20.00GΩ ±5% |
||
20.0GΩ~100.0GΩ±10% |
||
Short circuit current |
2mA |
|
Multimeter functions |
||
DC Voltage Test |
Input impedance |
Measuring range |
10MΩ |
0.1V~1000V ±0.5% |
|
AC Voltage Test |
Input impedance |
Measuring range |
10MΩ |
0.1V~750V ±1% |
|
Continuity Test |
0.01Ω~200.0Ω±0.5% |
|
General |
||
Power Supply |
8×1.5V AA battery |
|
Product Size |
180mm×140mm×65mm/7.1”×5.5”×2.6” |
|
Product Weight |
950g/2.0lb |
|
Category |
CE CAT.III 1000V |

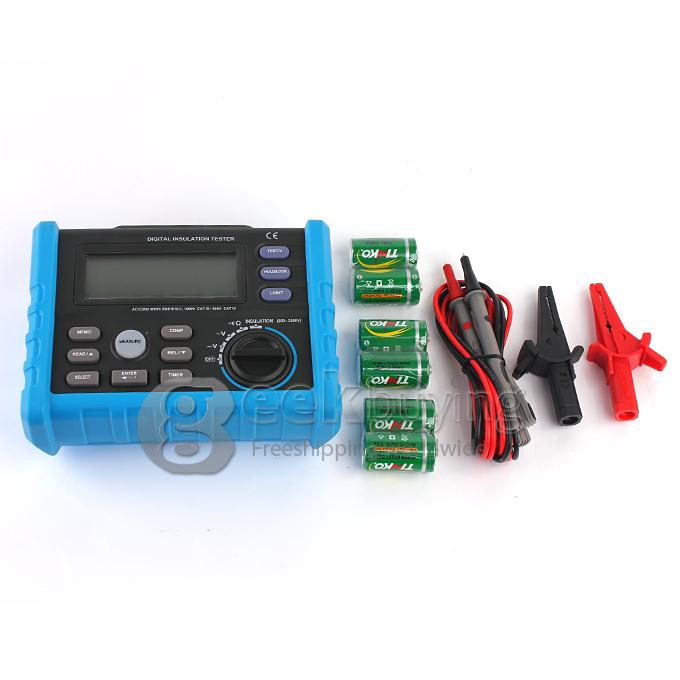

What's in the box?
- 1 x Tester
- 2 x Clip
- 1 x set of Test Leads
- 6 x Battery
- 1 x User Manual
