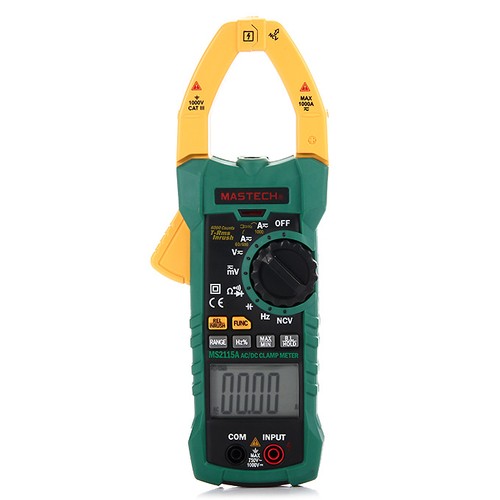

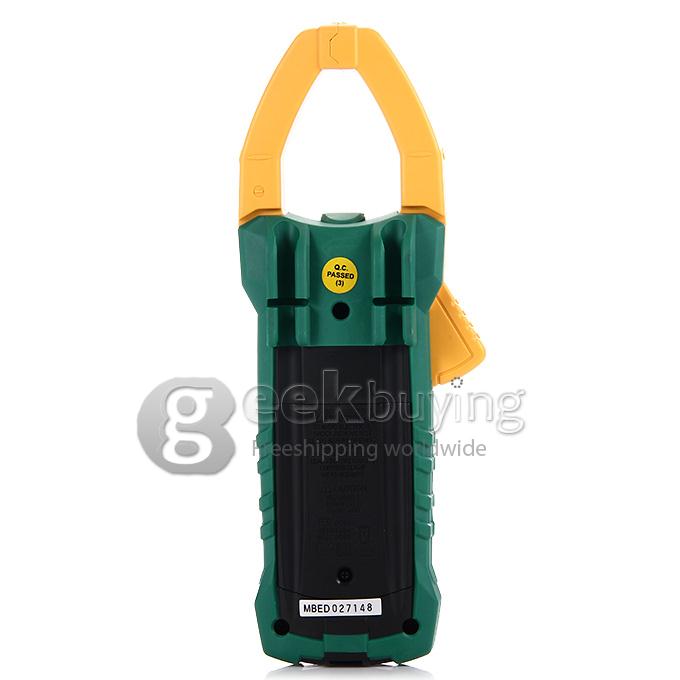

MASTECH MS2115A Digital Clamp Meter AC DC Current Voltage Resistance Tester

Share to

Ship to:

United States

Select the desired shipping method

*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.

Trusted Shipping Partners: and more

0 item(s) added

View CartContinue Shopping

Sold Out

Highlights

LCD with 6000 counts

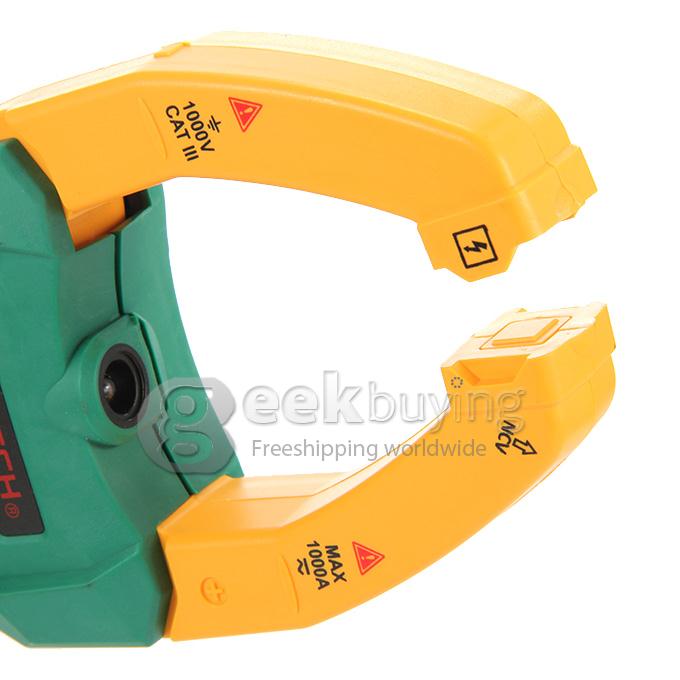

Jaw size up to 40mm/1.6 inch
DC/AC current measurement up to 1000A
Tests AC/DC voltage and current, resistance, capacitance, frequency and duty cycle
Built-in Non-contact voltage detector
True RMS for AC voltage and AC current
Work light and Auto power off
Diode check and continuity test
Reading hold function

Specification	Range	Accuracy
		MS2115A	MS2115B
DC Voltage	60mV/600mV/6V/60V/600V	±(0.7% +3)
	600mV/6.6V/66V/660V		±(0.5% +3)
	1000V	±(0.8% +2)	±(0.8% +2)
AC Voltage	60mV/600mV/6V/60V/600V	±(0.8% +3)
	600mV/6.6V/66V/660V		±(0.8% +3)
	750V	±(1% +4)	±(1% +4)
DC Current	60A/600A/1000A	±(2.5% +6)
DC Current	66A/660A/1000A		±3.0% +3)
AC Current	60A/600A/1000A	±(2.5% +6)
AC Current	66A/660A/1000A		±(2.5% +3)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ	±(0.8% +3)
	60MΩ	±(1.2% +3)
	660Ω/6.6kΩ/66kΩ/660kΩ/6.6MΩ		±(1.0% +3)
	66MΩ		±(1.5% +3)
Capacitance	10nF/100nF/1000nF/10µF/	±(4.0% +5)
	100µF/1000µF/10mF/100mF	±(4.0% +5)
	6.6nF/66nF/660nF/6.6µF/		±(4.0% +3)
	66µF/660µF/6.6mF/66mF		±(4.0% +3)
Frequency (From Clamp)	0~ 10KHz	±(1.5% +5)	±(1.5% +5)
Frequency (AC Voltage)	0~ 10KHz	±(1.5% +5)	±(1.5% +5)
Logic Frequency	0~60MHz	±(0.5% +3)
Logic Frequency	0~66MHz		±(0.5% +3)
Duty Cycle	10%~ 90%	±3.0%	±3.0%
Size	/	240 x 85 x 47mm	240 x 85 x 47mm
Net Weight	/	370g	375g
Package Content	/	1 x MS2115A Digital Clamp Meter 1 x Carrying Case 2 x Test Leads 1 x 6F22 9V Battery 1 x User manual	1 x MS2115B Digital Clamp Meter 1 x Carrying Case 2 x Test Leads 1 x 6F22 9V Battery 1 x User manual 1 x Driver CD
