Highlights
Advanced Laser Technology

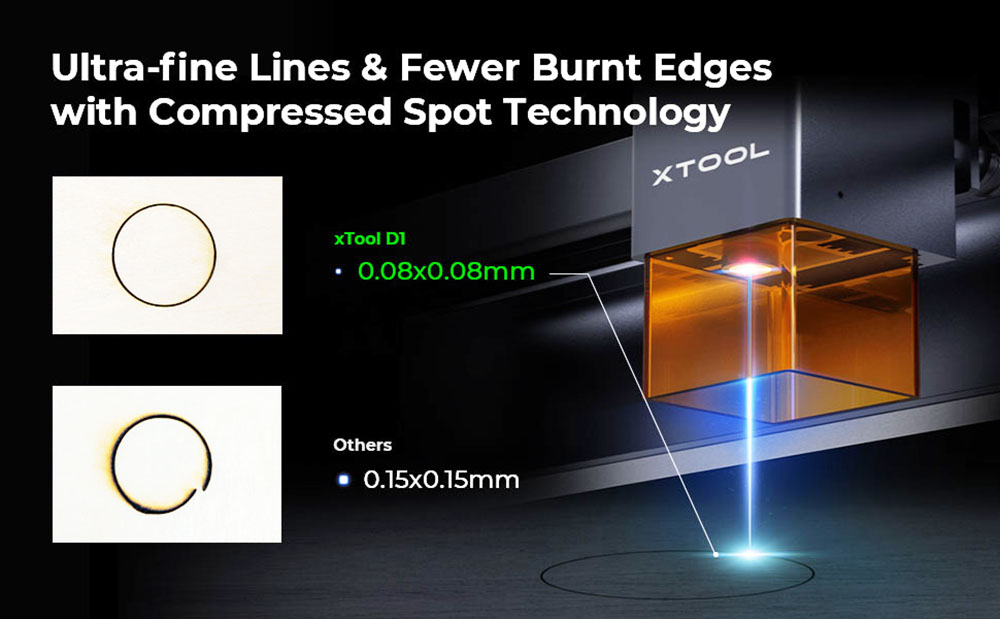

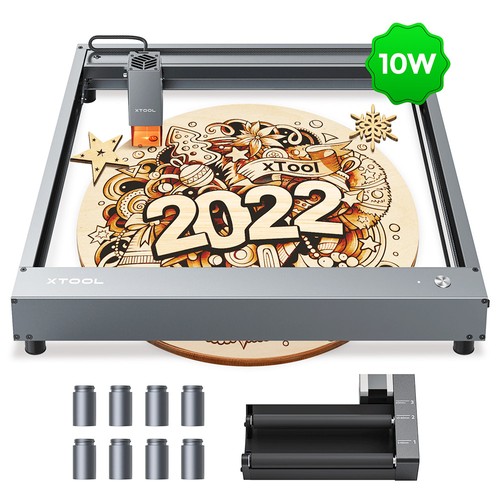

xTool D1 laser cutter and engraver machine, with 60W machine power, 10W laser module output power. The compressed spot and laser focus spot make the laser engraver more powerful and precise. It can cleanly cut 10mm thick wood and 5mm thick dark acrylic in a single pass, the engraving speed can be as high as 10000mm/min.
Solid and Easy Installation Structure Design
Industrial grade steel structure design makes the laser cutter and engraver machine more reliable and improves engraving accuracy. The entire engraving machine adopts a modular design, which is convenient for users to assemble, repair, replace and update machine parts. And the assembly can generally be completed within 10-20 minutes.
Wide Software Compatibility
xTool D1 portable laser engraver can be compatible with various mature engraving software, support Win 7 / Win 8/ Win 10, and also supports Mac system, engraving file format supports SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.
Large Engraving Area & Cylindrical Objects Engraving
432x406 mm (17x16 inch) Large engraving range to meet various DIY needs. xTool D1 laser cutter and engraver machine can engrave huge diameter cylinders by adding rotating attachments and raising the height of the machine body. Unleash your creativity on over one hundred materials including paper, bamboo, wood, leather PCB board, aluminum oxide, metal, glass, etc.
Safety Protection and Service
xTool D1 laser engraver tool with a protective cover perfectly protects your eyes, filters UV light for 97%. If you need pre-sale consultation or encounter any problems, you can get more product-related services and help.
Specification
| General |
Brand: Makeblock |
| Specification | Machine Power: 60W Laser Electric Power: 40W Laser Module Output Power: 10W Laser Spot: 0.08 mm Wavelength: 450 - 460 mm Routing Speed: 160 mm/s Working Area: 432 x 406 mm (17 x 16 inch) Max. Workpiece Height: 50 mm Voltage Input: 100-240V 50-60HZ Connecting Interfaces: USB/Wi-Fi Certification: CE/FCC/FDA Operating Systems: Windows/macOS/Android/iOS Control Software: Laserbox Software/ Laserbox App File Type(s): SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc. |
| Weight & Size | Product Weight: 5kg Package Weight: 8kg Product Size(L x W x H): 600x590x150 mm Package Size(L x W x H): 620x345x130 mm |

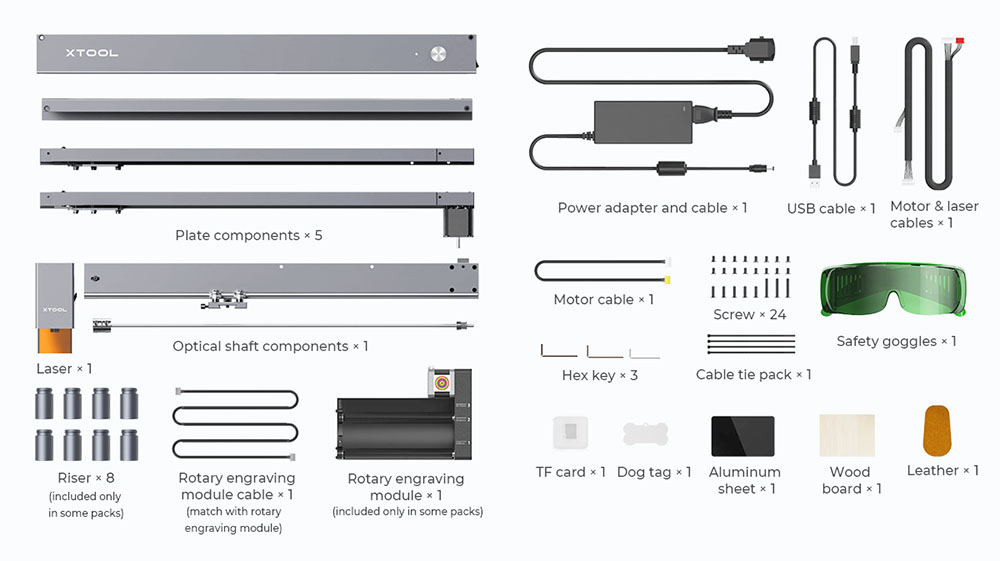

| Package Contents |
5 x Plate Components
1 x Optical Shaft Components 1 x Laser 1 x Power Adapter and Cable
1 x USB Cable
2 x Connection Cable
1 x Motor Cable 1 x Cable Tie Pack 1 x Aluminum Sheet 1 x Wood Board 1 x Leather 1 x Dog Tag 1 x Goggles
1 x TF Card
10 x Rolled Belts
3 x Hexagonal Spanner
24 x Screw
8 x Riser1 x Rotary engraving Module Cable
1 x Rotary engraving Module 1 x User Manual |
