Product Weight: 15.4kg
Package Weight: 22.5kg
Product Size (L x W x H): 718 x 611 x 248mm
Package Size (L x W x H): 817 x 660 x 275mm
Ship to:
United States
Select the desired shipping method
- Shipping Company Estimated Delivery Time Shipping Cost
Highlights

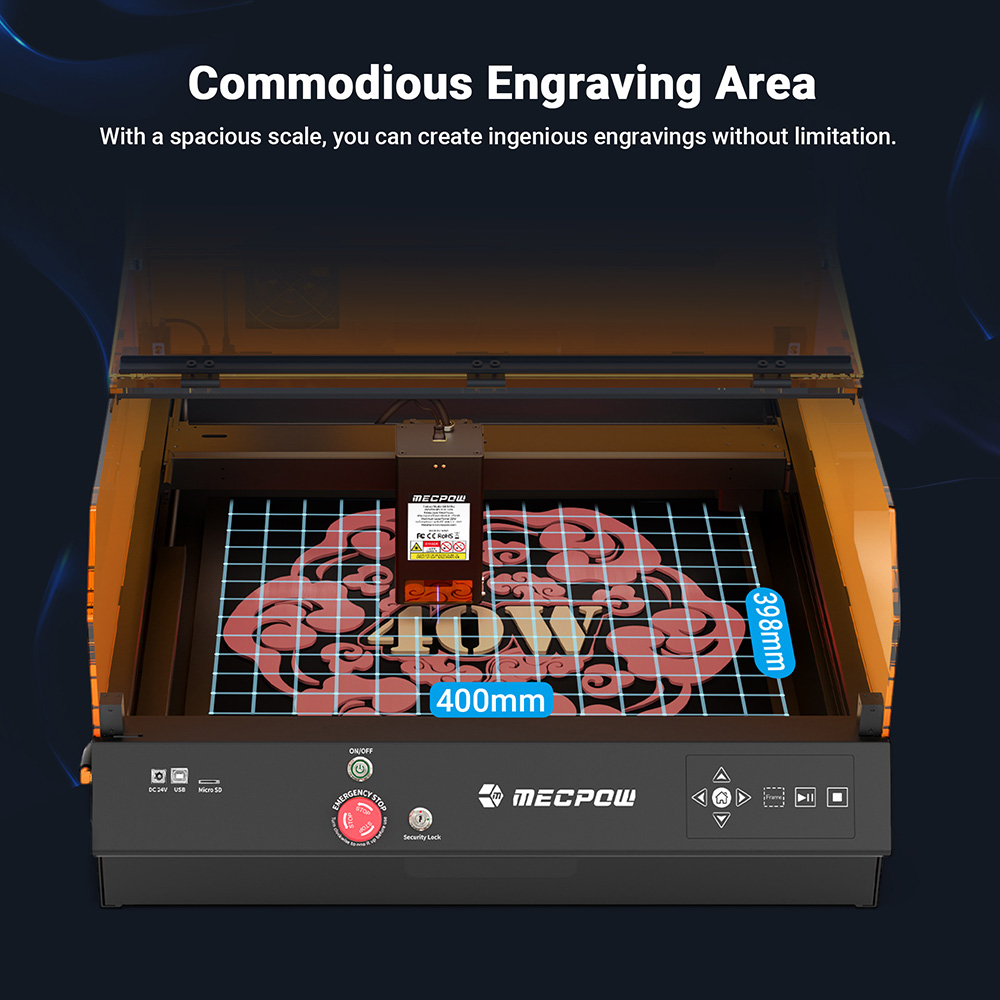

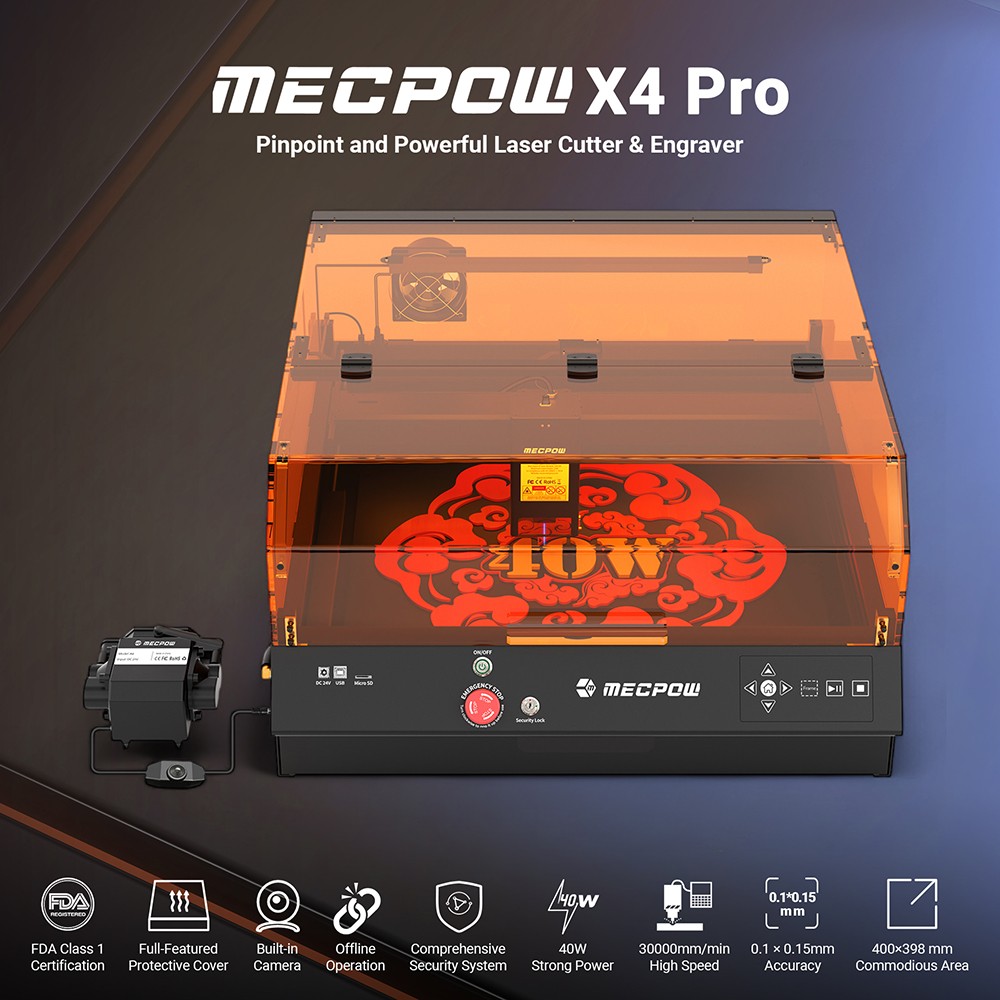

The MECPOW X4 Pro 40W is the ultimate laser cutter, combining industrial-grade 40W power with user-friendly safety features—perfect for makers, small businesses, and professional creators. FDA Class 1 certified, its spacious 400 x 398mm workspace enables safe, efficient operation while unlocking limitless creative possibilities.
Unbeatable Performance
- 40W High-Power Laser Module – Cuts through 18mm cherry wood, 15mm acrylic, and 0.1mm stainless steel in a single pass—ideal for demanding projects.

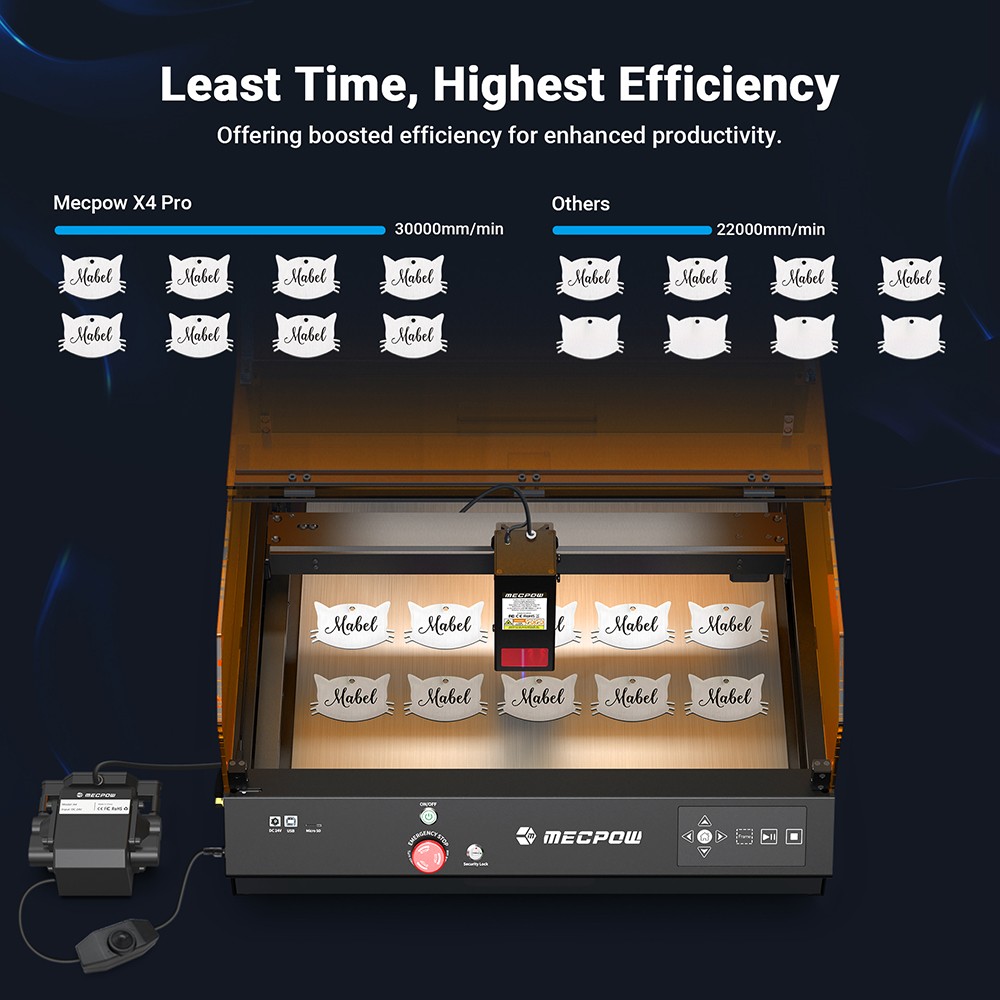

- Blazing Speed (30,000mm/min Engraving) – Faster than standard diode lasers, saving time without sacrificing quality.

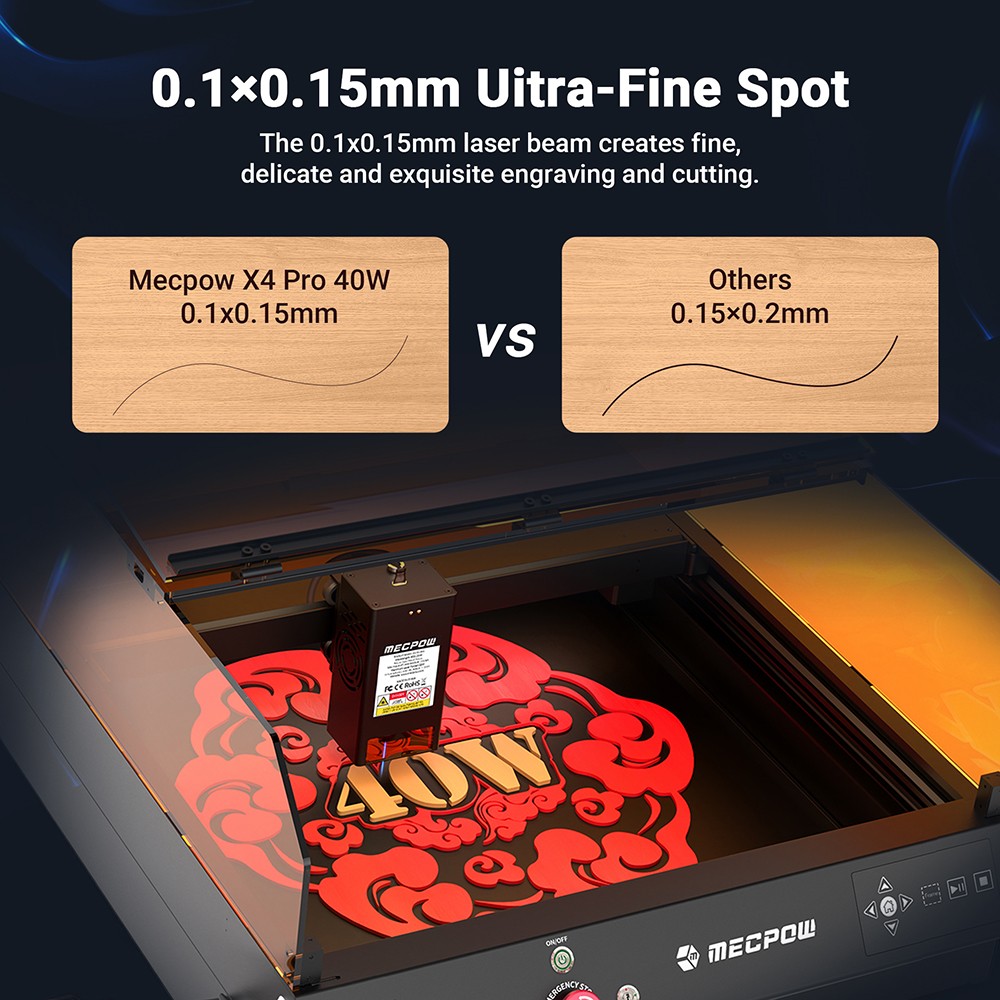

- 0.1 x 0.15mm Laser Spot – Slightly larger than the 22W version but optimized for deep cuts and high-speed engraving on thick materials.
Safety First – Intelligent Protection

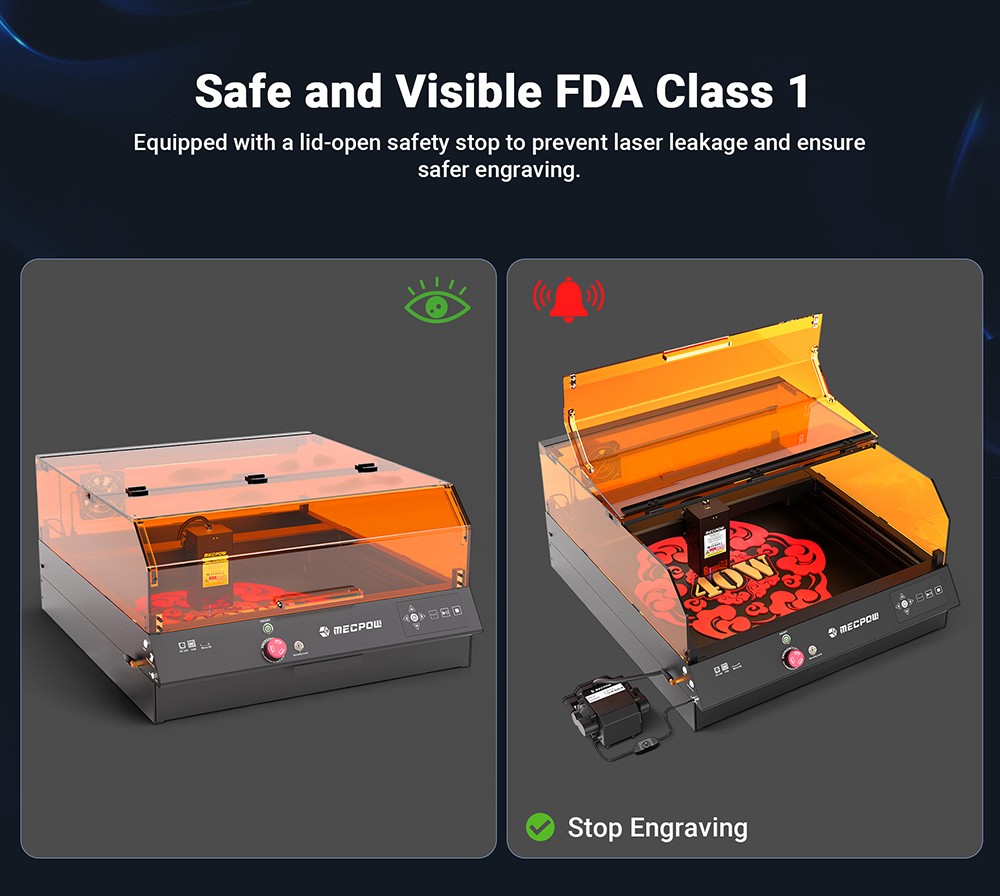

Full Enclosure with Transparent Red Cover – Blocks harmful laser light, eliminating the need for safety glasses.

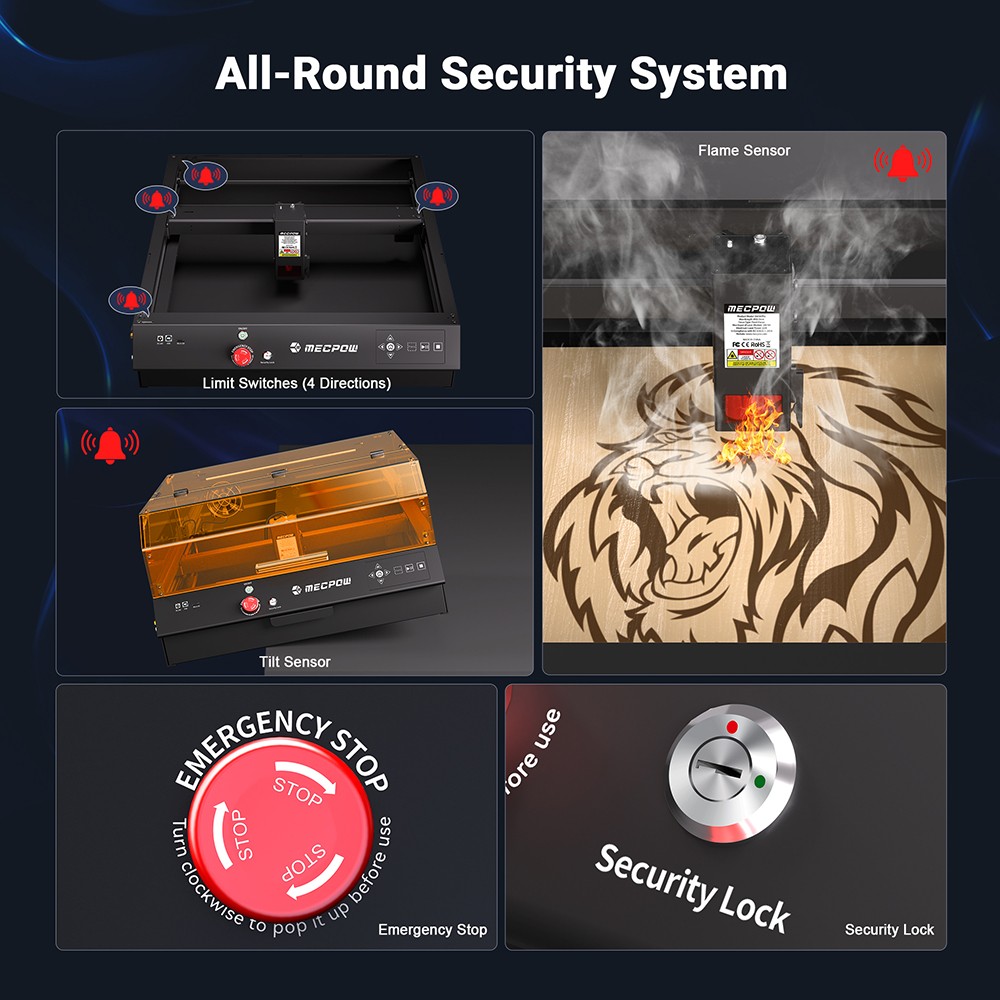

Multi-Layer Safety System:
- Safety Lock – Prevents unauthorized use.
- Flame & Tilt Sensors – Automatically halt operation if fire or instability is detected.
- Emergency Stop Button – Instantly shuts down the machine.
- Limit Switches – Ensures the laser stays within safe boundaries.
Precision Made Easy

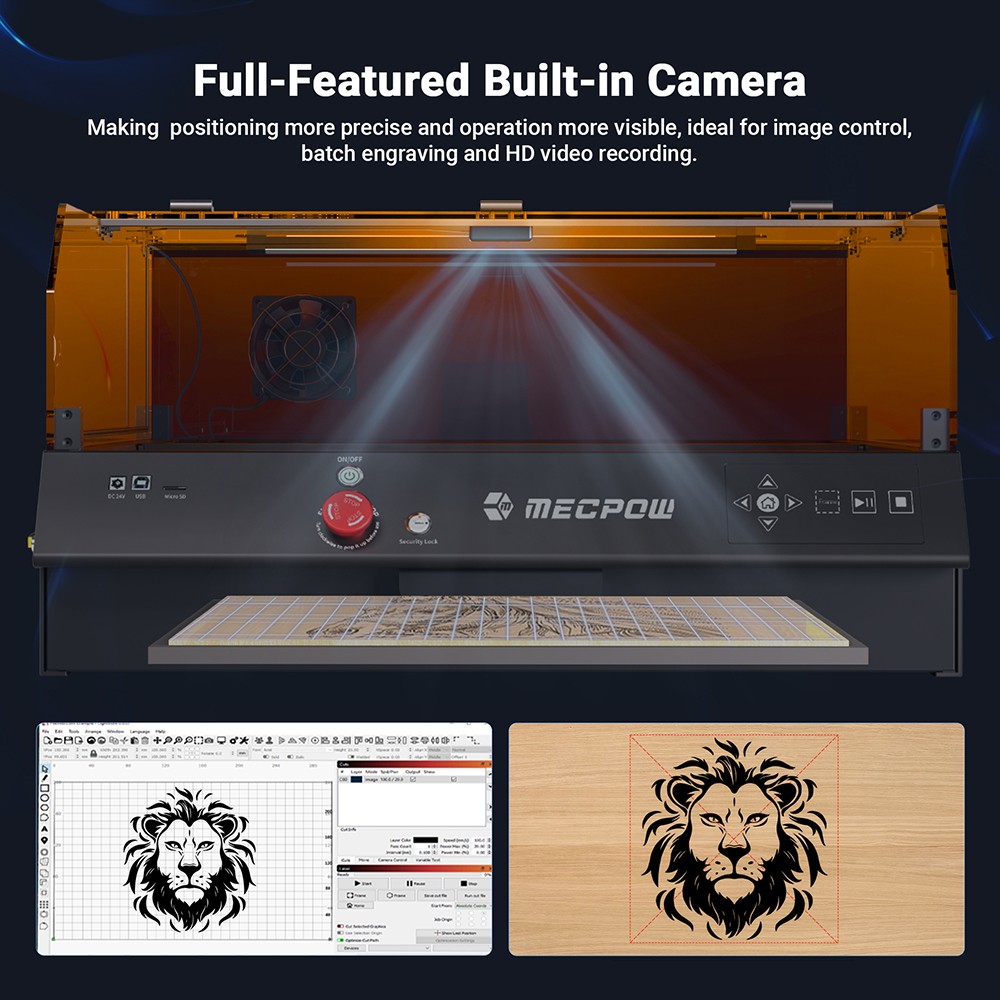

- Built-in Camera – Ensures perfect alignment for intricate designs and repeat projects.

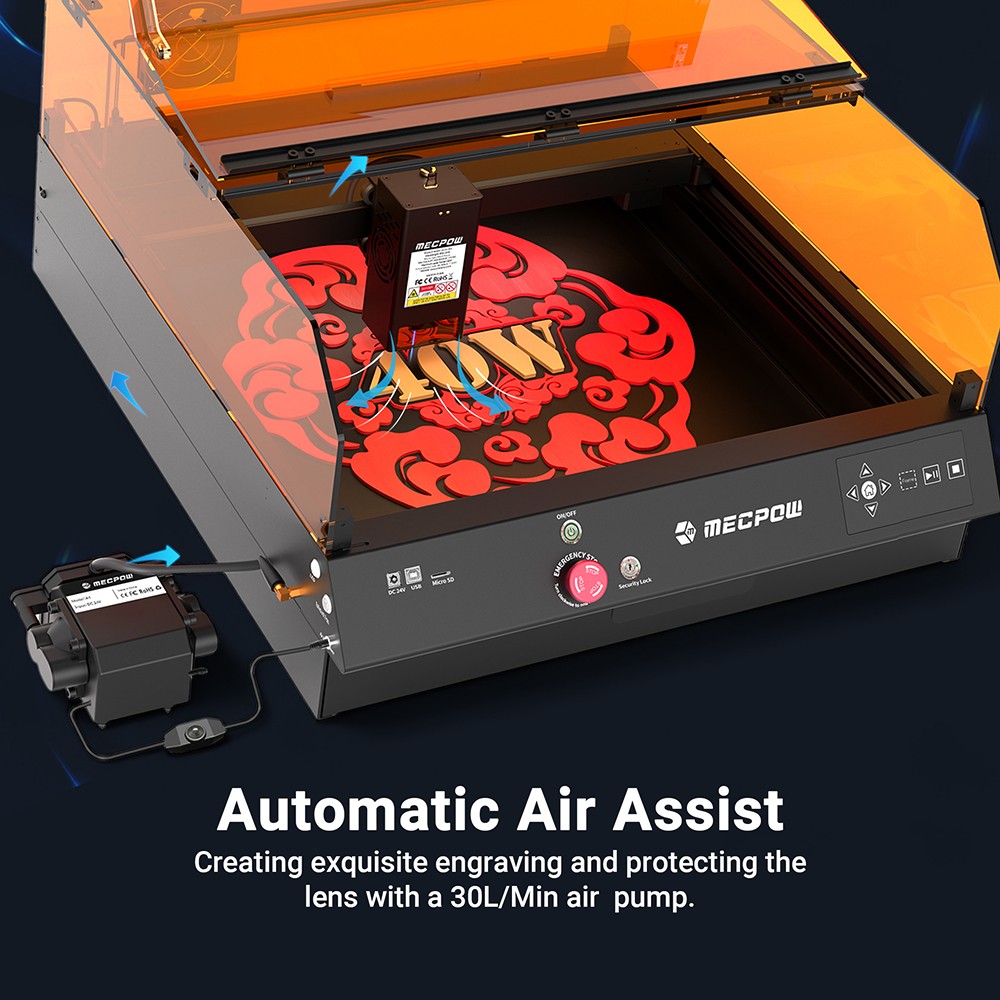

- Integrated Air Assist – Keeps the lens clean and minimizes burn marks for flawless results.

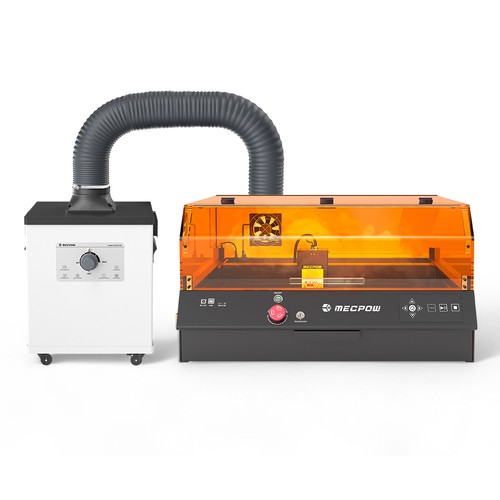

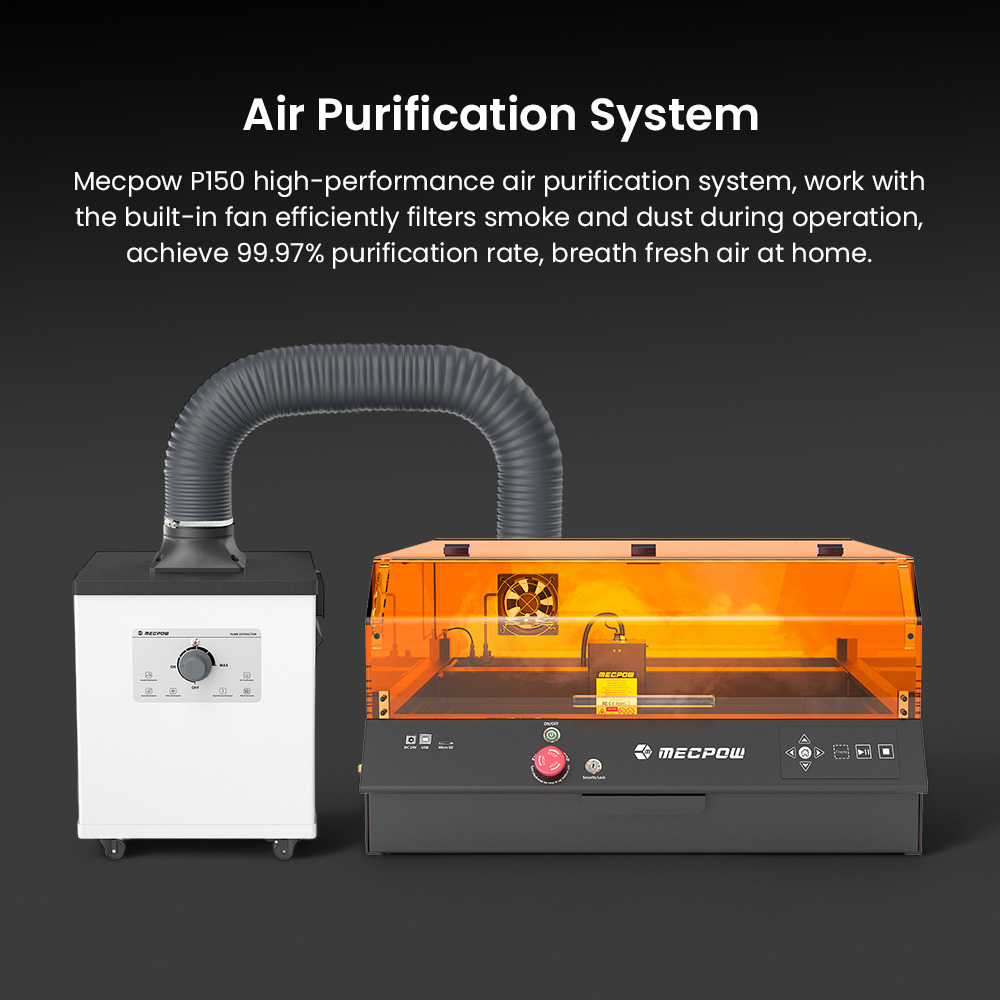

- Optional Smoke Purifier (MECPOW P150) – Filters fumes for a healthier workspace.

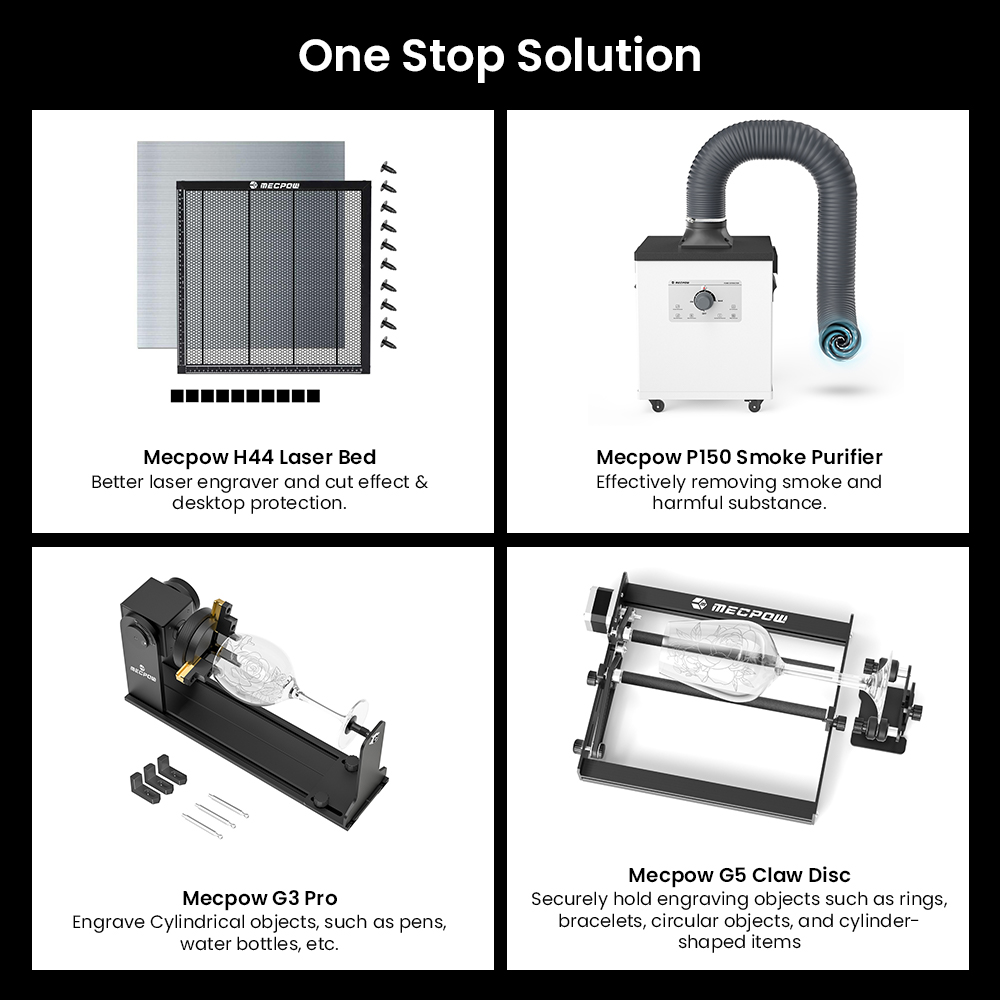

Optional Accessories for Maximum Versatility
- H44 Laser Honeycomb Bed – Reduces backside burns and improves airflow.
- MECPOW G3 Pro Rotary Roller – Engraves cups, bottles, and cylindrical objects with ease.
- MECPOW G5 Claw Disc – Secures irregularly shaped items for precision work.
User-Friendly & Versatile
- Broad Software Compatibility – Works with LightBurn, LaserGRBL, and MKSLaser.
- Multi-OS Support – Connects to Windows, Mac, Linux, Android, and iOS.
- Offline Mode – Create without a computer for uninterrupted workflow.
Why Choose the MECPOW X4 Pro 40W?
- Stronger cutting power than the 22W model for industrial-grade projects.
- Safer, smarter, and more efficient with advanced sensors and real-time monitoring.
- Ready for large-scale production with a roomy workspace and high-speed performance.
Note: The 40W module is optimized for cutting, while the 22W version excels in ultra-fine engraving. Choose based on your project needs!
Specification
|
General |
Brand: Mecpow Type: Laser Engraving Machine Model: X4 Pro-40W Color: Black and Orange |
|
Specification |
Frame Material: Aluminum Input Voltage: DC 24V Rated Power: 240W Max. Engraving Area: 400 x 398 mm Max. Engraving Speed: 30000 mm/min Spot Size of Laser Beam: 0.08 x 0.1 mm (20W), 0.1 x 0.15 mm (40W) Tilt Alarm: 50°±5 Software Support: MKSLaser (APP), LaserGRBL, LightBurn System Support: Windows, Mac, Linux, iOS, Android File Format Support: JPEG, BMP, GIF, PLT, PNG, DXF Materials for Laser Engraving: Wood, Acrylic, China, Fabric, Bamboo, Plastic Board, Leather, Fruit, Bread, etc. |
|
Laser Module |
Rated Power: 148W Input: 24V 10A Laser Power: 40W |
|
Air Pump |
Input Voltage: 24V Input Current: 1.5A Input Power: 36W Air Velocity: 30 L/min |
|
Charger |
Input Voltage: AC 100-240V Input Current: 2.5A Output Voltage: 24V Output Current: 10A |
|
Camera |
Pixel: 5MP Focal Length: 27.5cm Wide-Angle Lens: 102° (Vertical) Color Image Sensor: 1/4" CMOS |
|
Weight & Size |
|
|
Package Contents
|
1 x Main Unit 1 x Throat Hoop 1 x Screwdriver 1 x Exhaust Fan 1 x Exhaust Pipe 1 x Laser Module 1 x Power Adapter 1 x Metal Plate 1 x Goggles 1 x User Manual 1 x Air Pump 1x Screw Pack 1 x Cleaning Brush 1 x WiFi Antenna 1 x Left Protective Cover 1 x Right Protective Cover 1 x Rear Protective Cover with Metal Connecting Plate 1 x Top Protective Cover with LED Light 1 x Front Protective Cover 1 x Calibration Card 1 x TF Card 1 x TF Card Reader 1 x Wrench (1.5mm Hex Key) 2 x Key 2 x USB Cable 2 x Wood Board 2 x Adhesive Cable Clip 4 x Raiser 4 x Protective Cover Support 1 x P150 150W Smoke Purifier |
Videos
Customer Photos
Customer Videos
Customer Reviews
Clear
View all
View all
Photos
Videos
All star
All star
5 star
4 star
3 star
2 star
1 star
Most relevant
Questions & Answers
FAQ
1. Can I use the laser engraver out of the box?

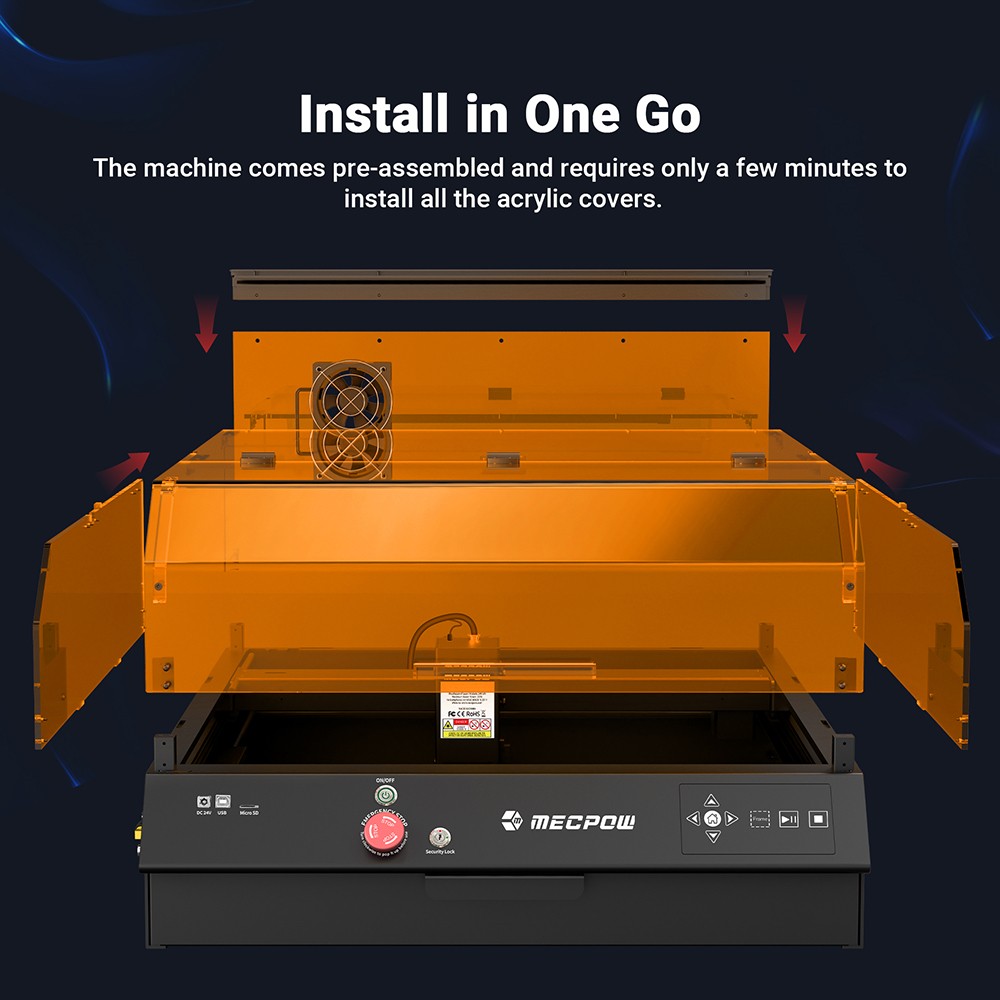

To enhance product protection during transport, it is partially assembled and will require installation. However, do not be concerned as an installation video and multi-language user manual are included in the package to assist you in assembling it easily and swiftly.
2. Will the protective cover prevent the smoke from flowing out?

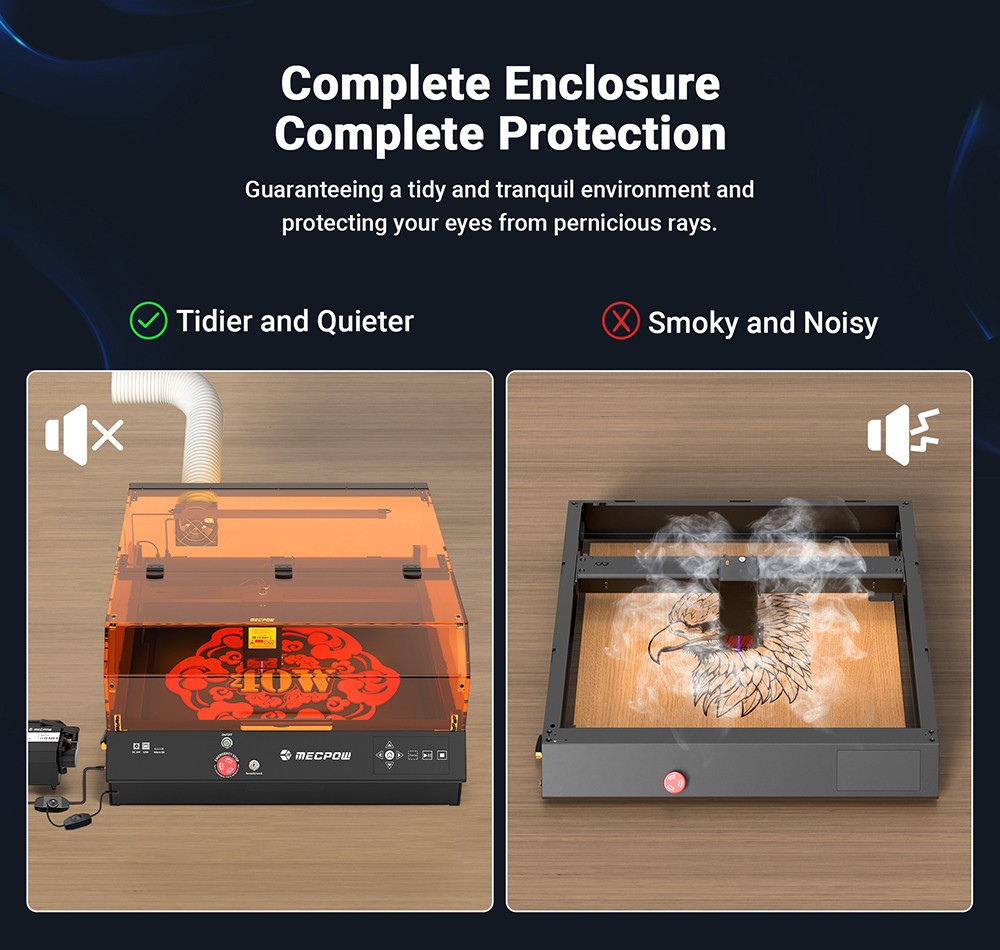

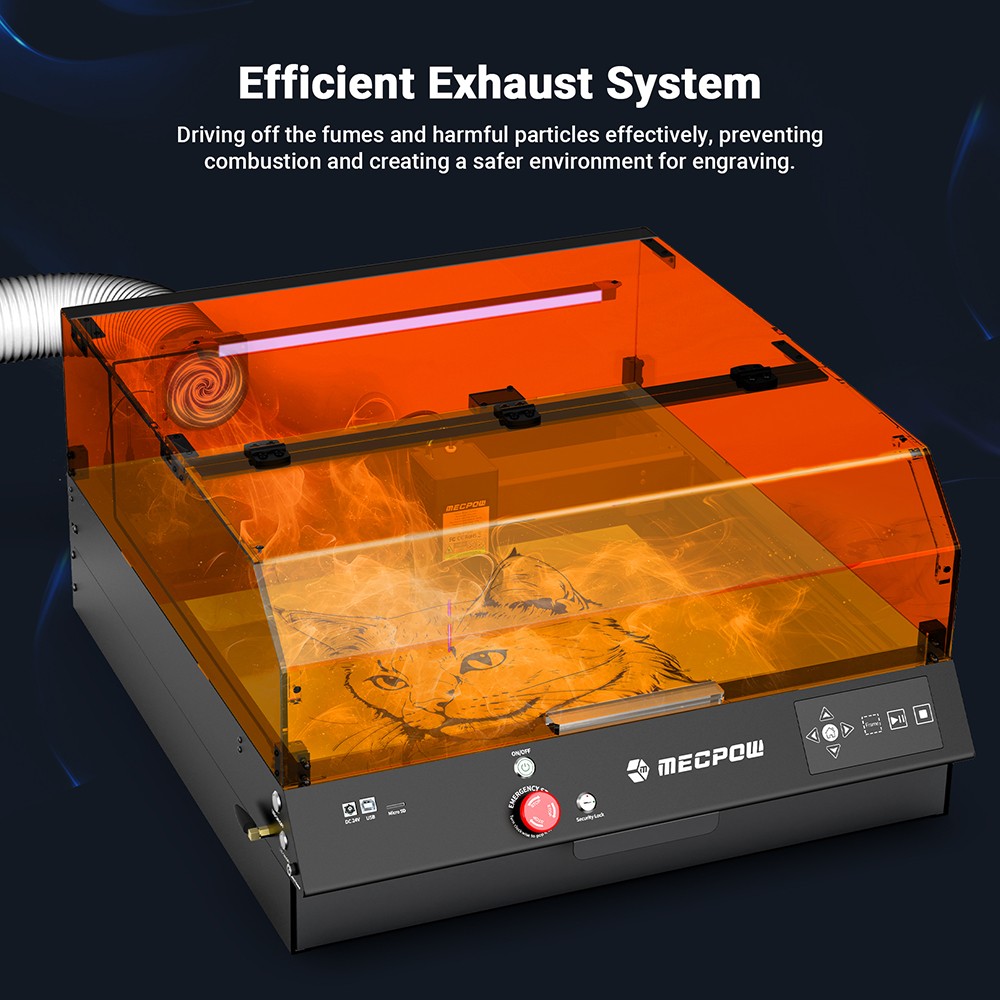

Yes. The protective cover prevents smoke from escaping from anywhere other than the exhaust fan. The exhaust pipe vents out smoke and dust to the outdoors for a clean engraving environment.
3. Can the protective cover filter the harmful rays from the laser engraver?
Yes, the anti-blue light protective cover will filter the pernicious rays while still providing a panoramic view for easy observation.
4. Will the protective cover restrict the size of the engraving objects?

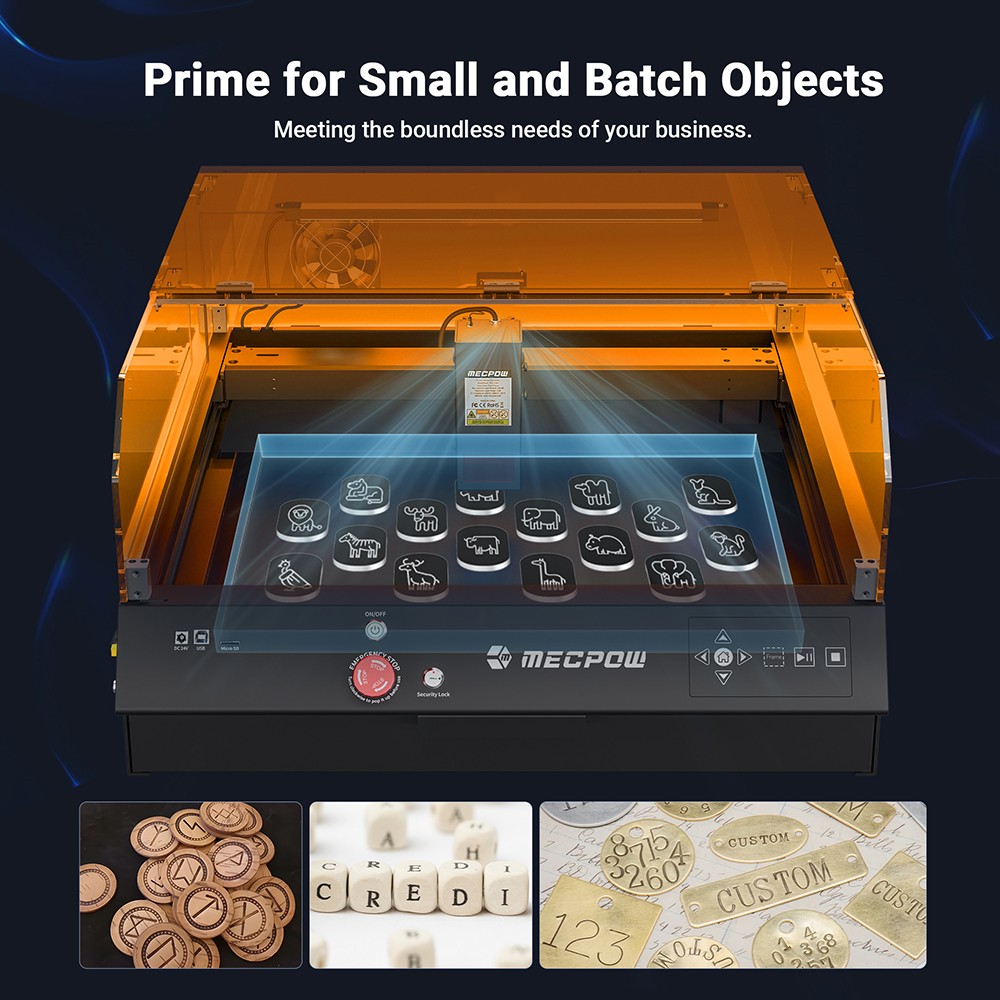

No, you can use it mainly for the engraving of small objects for batch production; you can also add raisers for the engraving of larger objects.
5. What can the camera do for us?
You can use it to record your engraving for even more fun or fast position with a visual aid for tracking the engraving position precisely.
6. What if the engraving objects are burned, even causing a fire?
Don’t worry; the situation won’t happen in most cases. The laser engraver is certified with FDA Class 1 security and has a comprehensive safety system: a flame sensor, limit switches, security lock, tilt sensor, and an emergency stop, which will ensure the safety of both users and the machine. If there is a fire, the flame sensor will detect and activate the alarm while also halting the machine’s operation. You can check the environment and avoid placing the machine in direct sunlight. Contacting customer service to adjust the sensitivity of the lame sensor is also needed.
7. What kind of objects can the X4 Pro-40W laser engraver engrave on?
The X4 Pro-40W laser engraver can engrave on many objects: Wood, Acrylic, Glass, Metal, Cylinders, Cards, Board, Stainless Steel, Food, Leather, Fabric, Rubber and so on.
8. Can it connect to the smartphone?
Yes, it can connect to a smartphone for use. By connecting to the engraver's wifi and operating on the mobile app, MKSLaser, you will embark on your creation journey.
9. Does it support offline operations?

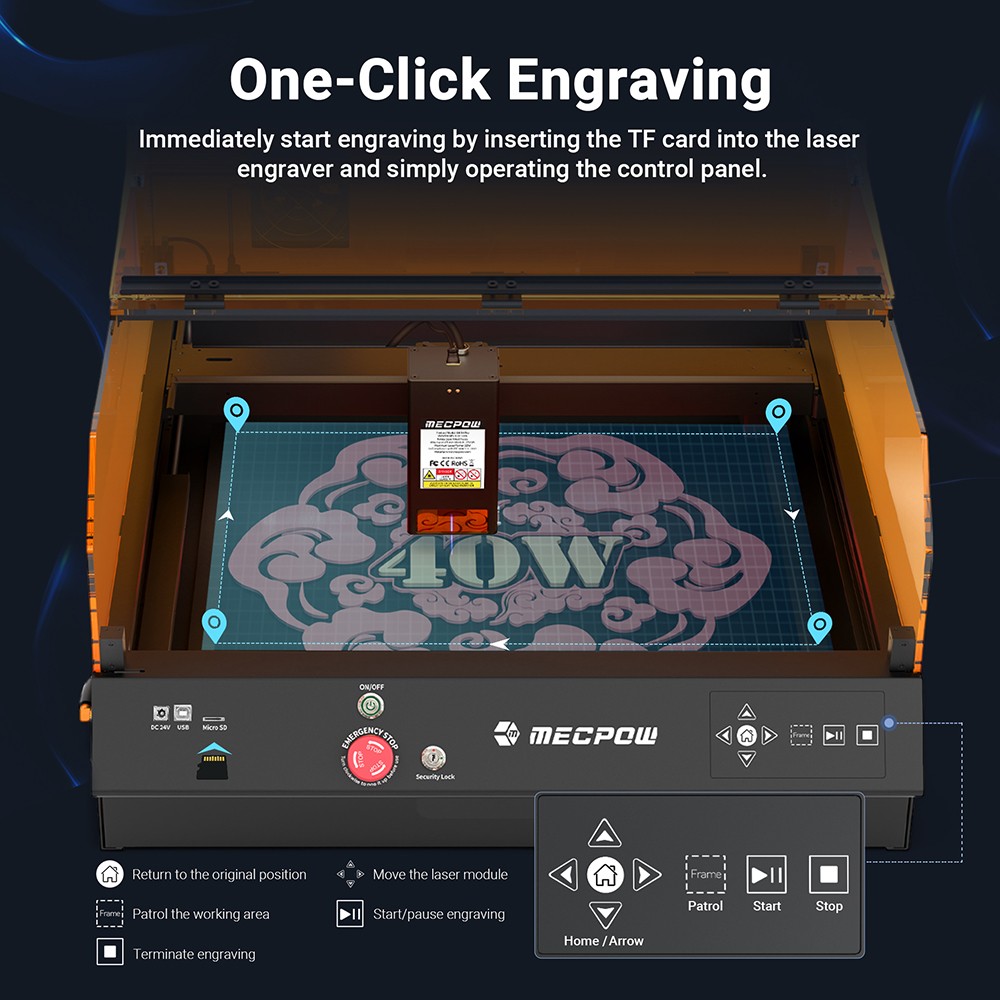

Yes, you can start the offline operation by inserting a TF card and operating on the control panel.
10. What system and software is it suitable for?
It supports multiple operating systems: Windows, Mac, Linux, Android, and iOS, and is compatible with software such as LaserGRBL and LightBurn.
11. How to switch between 20W and 40W laser power?
The laser power can be switched between 20W and 40W via a toggle switch on the laser module.
