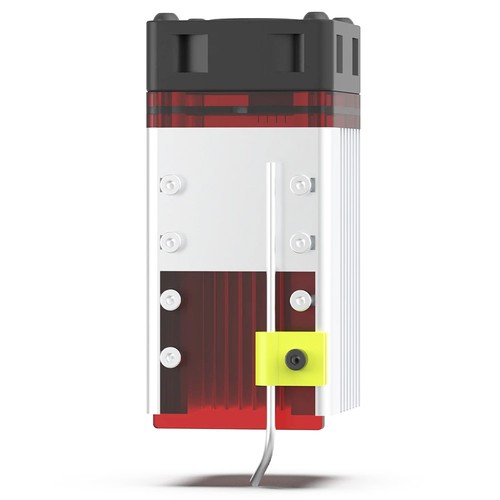

Name: NEJE A40640&#160;Laser Module
Brand: NEJE
SKU: 501347
Price: 340.99 USD
Availability: InStock

Ship to:

United States

Select the desired shipping method

Shipping Company Estimated Delivery Time Shipping Cost

*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.

0 item(s) added

View CartContinue Shopping

Description
Videos
Reviews
Q&A
Support & Firmware
Learn More

Sold Out

Highlights

Designed for Laser Engraver, 3D printer, CNC mill, Arduino project.
10W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, but it needs good focus adjustment.
More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable. More Quiet, Intelligent drive adjust the cooling fan speed according to laser temperature.
Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for NEJE laser module. The slidable mounting fixture is provided for easy adjustment of focus.

NEJE A40640 Engraving Module, 10W Output Power, FAC Tech 2 x Beam, Suitable for NEJE 3 Plus, Max, Pro Engraving Machine

Specification

General	Brand: NEJE Type: Laser Module Model: A40640 Luminous Color: Blue
Specification	Heatsink Material: Aircraft Aluminum + Brass Shell Section Size: 40mm x 40mm Cooling Mode: Temperature sensor intelligent control + 10000 rpm 40mm cooling fan Adapter Plug: 5.5 2.1 port Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum Optical power output: 10W Wavelength: 445-450nm Beam Shape: Dot (Focusable) Working Voltage: DC 12V TTL&PWM Modulation: YES, Compatible with Both TTL & PWM Modulation Input Voltage: DC12V 3-4A PWM/TTL Input: DC3.3V-12V Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-) Drive Mode: External ACC Safe temperature range: < 60 °C Life Time: 10000-20,000 hours
Weight & Size	Product Weight: 202g Package Weight: 680g Dimension: 60x40x40mm Package Size(L x W x H): 215x155x105mm
Package Contents	1 x A40640 Laser Engraving Module 1 x Laser Module Sliding fixture 1 x 4 Pin Cable(30cm) 1 x 2pin yellow and black signal line + 3pin input line 1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board 1 x 2.5mm L-shaped wrench 1 x 5mm L-shaped wrench 1 x Interface adapter board 1 x 12V4A European power adapter 1 x Air assist kit 1 x Product manual 1 x A40640 Laser Engraving Module 1 x Laser Module Sliding fixture 1 x 4 Pin Cable(30cm) 1 x 2pin yellow and black signal line + 3pin input line 1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board 1 x 2.5mm L-shaped wrench 1 x 5mm L-shaped wrench 1 x Interface adapter board 1 x 12V4A European power adapter 1 x Air assist kit 1 x Product manual
