Highlights
Unique Industrial Performance and Durability

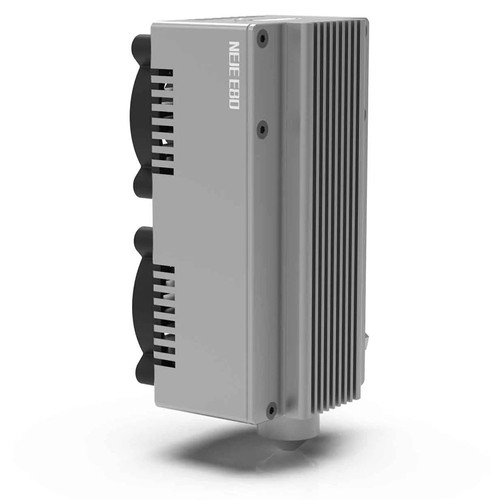

E80 laser module adopts a unique solution that does not damage the original LD optical structure, retains the reliability and durability of the original LD, and has a service life of up to 10 times longer than all other 20W output laser modules and CO2 modules. E80 is a 4xLD module designed primarily for large stock removal and powerful cuts.
Excellent Carving and Cutting Performance
Hybrid compression technology makes the focal point of NEJE E80 0.06x0.06mm, the symmetrical XY shape makes it achieve the ultimate in carving and cutting performance and the power density reaches 6666W/mm², Compared with the 40W(output) module, power density:1777W/mm² (0.15x0.15mm,8xLD, Current highest power), the performance of E80 is higher than the 40W module. Due to the extremely strong power density and optical design (symmetrical XY shape), NEJE E80 has excellent performance.
Specification
| General | Brand: NEJE Type: Laser Module Model: E80 Color: Grey + Black |
| Specification | Optical Power: Pulse 24W, CW 21W Focus Size: 0.06×0.06mm Input: 24V 5A Interface: 4pin PH2.0 + ( 2pin DC 24V extra power) Weight: 600g Number of Diodes: 4 PWM Input: VPP(3.3-24V), Recommend 1KHz, Quiet Design: Drive the built-in control ic, judge the working state, and adjust the fan work Adapter Pluga: 5.5 2.1 port Working Voltage: DC 24V TTL&PWM Modulation: YES. Compatible with Both TTL & PWM Modulation Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-) |
| Weight & Size | Package Weight: 1.4kg Package Size(L x W x H): 22*16*11cm |
| Package Contents | 1 x Laser Module 1 x Z-axis Adjuster 1 x 24V 5A Power Adapter 1 x NEJE Interface Switch / Transfer Board 1 x NEJE PWM/Temperature Tester Board 1 x 5mm L-shaped Wrench 1 x 2.5mm L-shaped Wrench 1 x M4 to M4 Connector 1 x Air Nozzle 1 x Lens 2 x 4pin Cable + 3pin Cable + 2pin Cable 1 x User Manual |
