Highlights
- Designed for Laser Engraver machine, Laser Cutter, 3D printer, CNC milling, arduino project.
- 2 in 1 focus, adjustable lens and fixed focal length in one module.
- 5.5W Optical power output, Suitable for engraving and cutting.

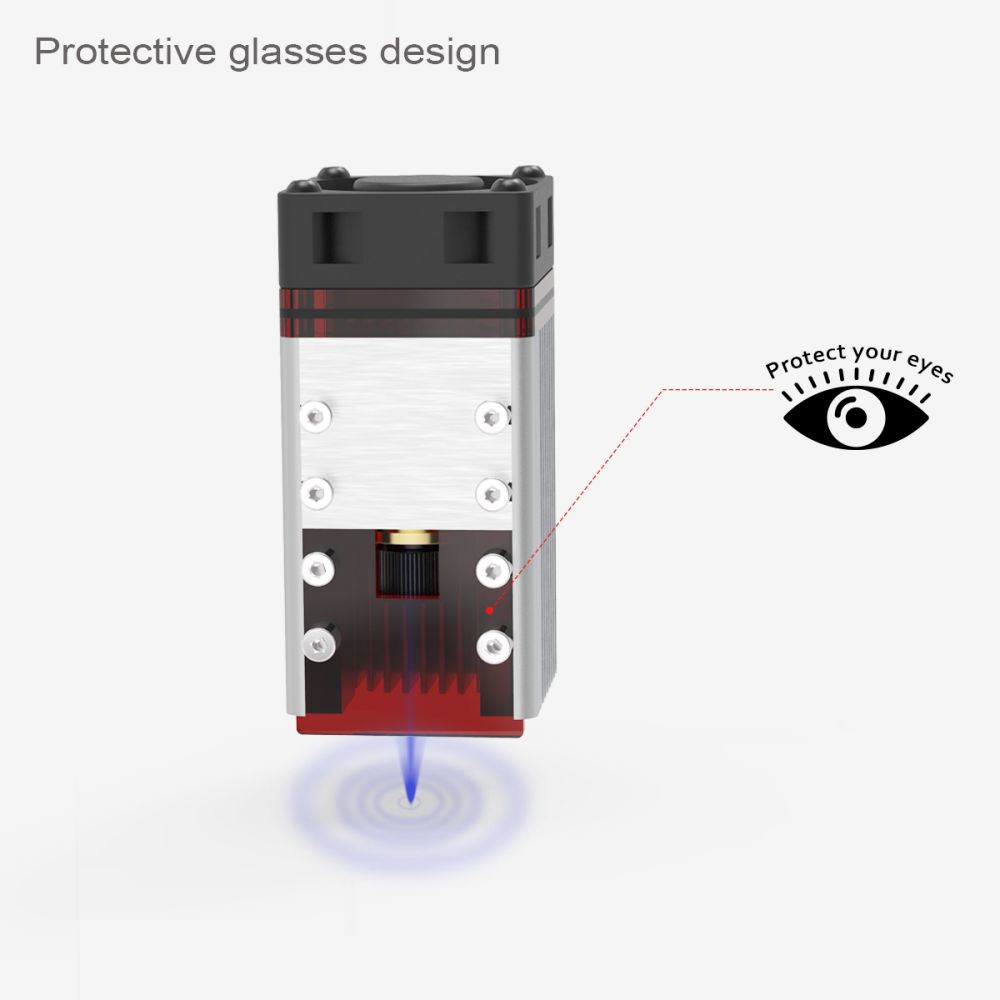

- More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

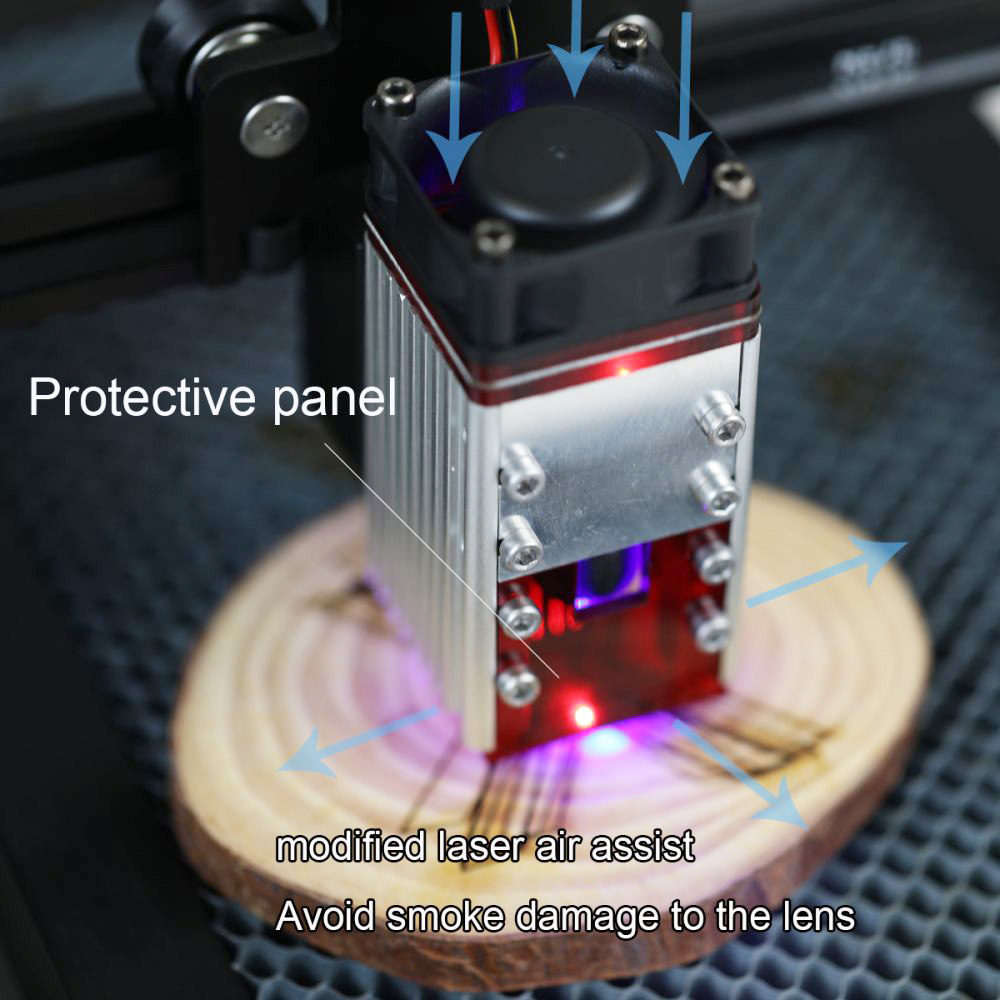

- Modified laser air assists, avoid smoke damage to the lens.
- More Quiet, Intelligent drive adjust the cooling fan speed according to laser temperature.

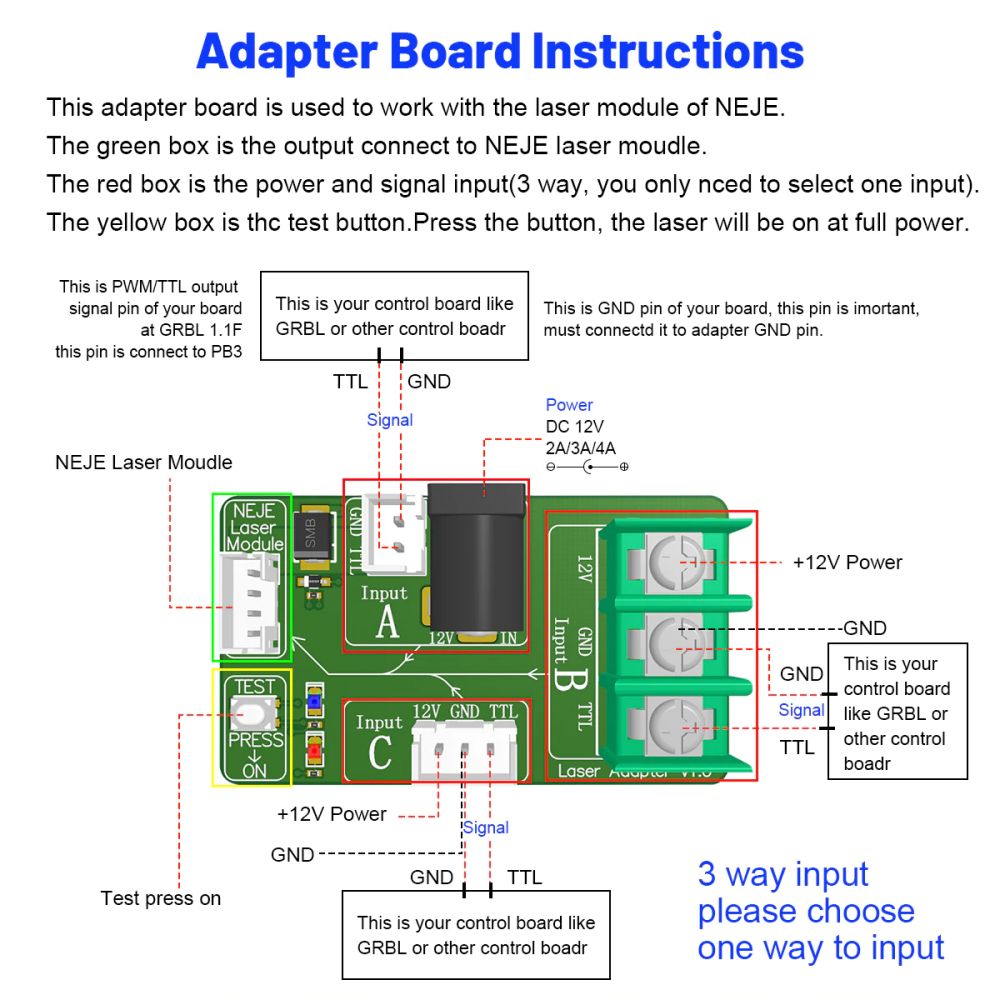

- Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for Neje laser module.

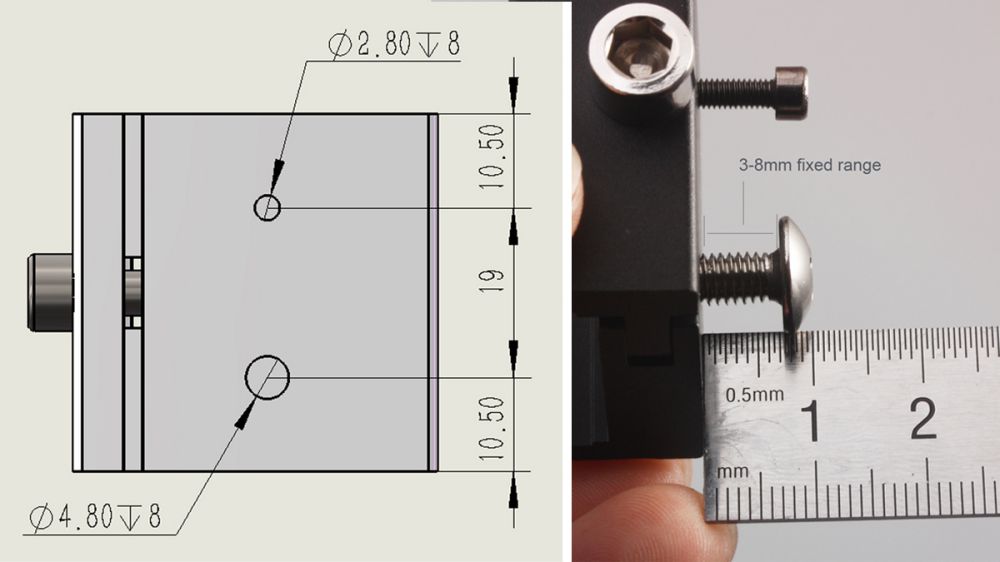

- Sliding slot is provided for easy adjustment of focus.
Specification
| General |
Brand: NEJE |
| Specification |
Heatsink Material: Aircraft Aluminum + Brass Shell Luminous Color: Blue Section Size: 40mm x 40mm Cooling Mode: Temperature sensor intelligent control + 10000 rpm 40mm cooling fan Dimension: 60 * 40 * 40mm Adapter Plug: 5.5 2.1 port Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material |
| Technical Parameters |
Module Input: 20-30W Optical power output: 5.5W Wavelength: 445-450nm Beam Shape: Dot (Focusable) Working Voltage: DC 12V TTL&PWM Modulation: YES, Compatible with Both TTL & PWM Modulation Input Voltage: DC12V 3A PWM/TTL Input: DC3.3V-12V Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-) NOTE: Temperature interface can be disconnected, NEJE provides text instructions for temperature acquisition on the wiki. Drive Mode: External ACC Safe temperature range: <60 °C Life Time: 10000-20,000 hours |
| Weight & Size | Product Weight: 202g Package Weight: 680g Dimension: 60x40x40mm Package Size(L x W x H): 215x155x105mm |
| Package Contents |
1X N40630 single module installed air auxiliary accessories 1X Trachea 1X Trachea adapter 1X Interface Adapter Board 1X Wire package(including: 1 4pin module cable, 1 3pin input cable, 1 2pin signal control cable) 1X Module general manual 1X Sliding card slot (affix the stable silicone pad and install the screws) 1X Large Allen Wrench and Small Allen Wrench Installation Kit |
