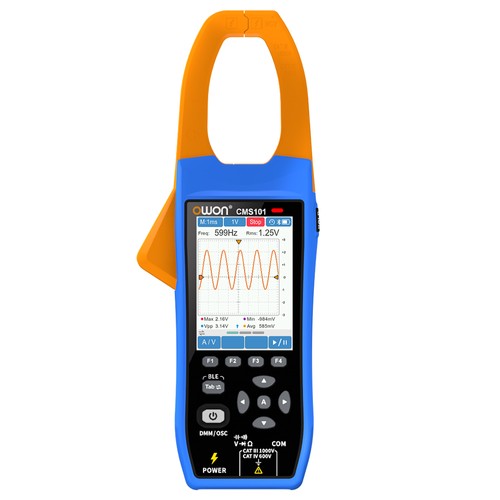

OWON CMS101 3-in-1 Digital Clamp Meter, 1000A AC/DC, Recorder and Oscilloscope Function, 20000 Counts

Multimeter Specification
DC Voltage (V): 20.000mV/200.00mV/2.0000V/20.000V/200.00V/1000.0V
AC Voltage (V): 200.00mV/2.0000V/20.000V/200.00V/1000.0V
DC Current(A): 20.00A/200.0A/1000A
AC Current (A): 20.00A/200.0A/1000A
Inrush Current (A): 20.00A/200.0A/1000A
Resistance (R): 200.00Ω/2.0000kΩ/20.000kΩ/200.00kΩ/2.0000MΩ/20.000MΩ/100.00MΩ
Capacitance(F): 2.000nF/20.00nF/200.0nF/2.000uF/20.00uF/200.0uF/2.000mF/20.00mF
Frequency (Hz): 200.00Hz/2.0000kHz/20.000kHz/200.00kHz/2.0000MHz/20.000MHz
Duty Cycle: 0.1%-99.9%(Typical:Vrms=1 V,f=100Hz); 0.1%-99.9%(≥1kHz)

Oscilloscope Specification
Analog bandwidth: 1kHz
Sample mode: Real-tine sample
Real-time sampling rate: 5.0Msa/5
Channel: 1
Input impedance: 10MΩ
Maximum input voltage: 1000V
Maximum sample current: 1000A
Scan speed: 2.5us/div~10S/div
Time base accuracy: ±(0.01%+0.1div)
Sensitivity: 30mV/div~500V/div
Displacement range: ±3grid
Sensitivity accuracy: ±(5%+0.2div)
Measurement value: Rms, Period, Freq, Max, Min, PK-PK, Avg
Trigger mode: Auto
Trigger type: Rise, Fall
