Highlights

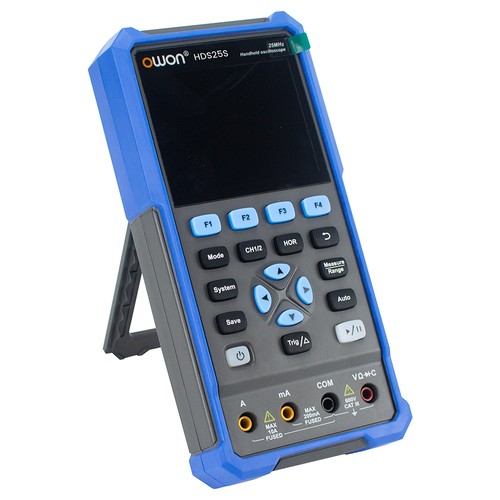

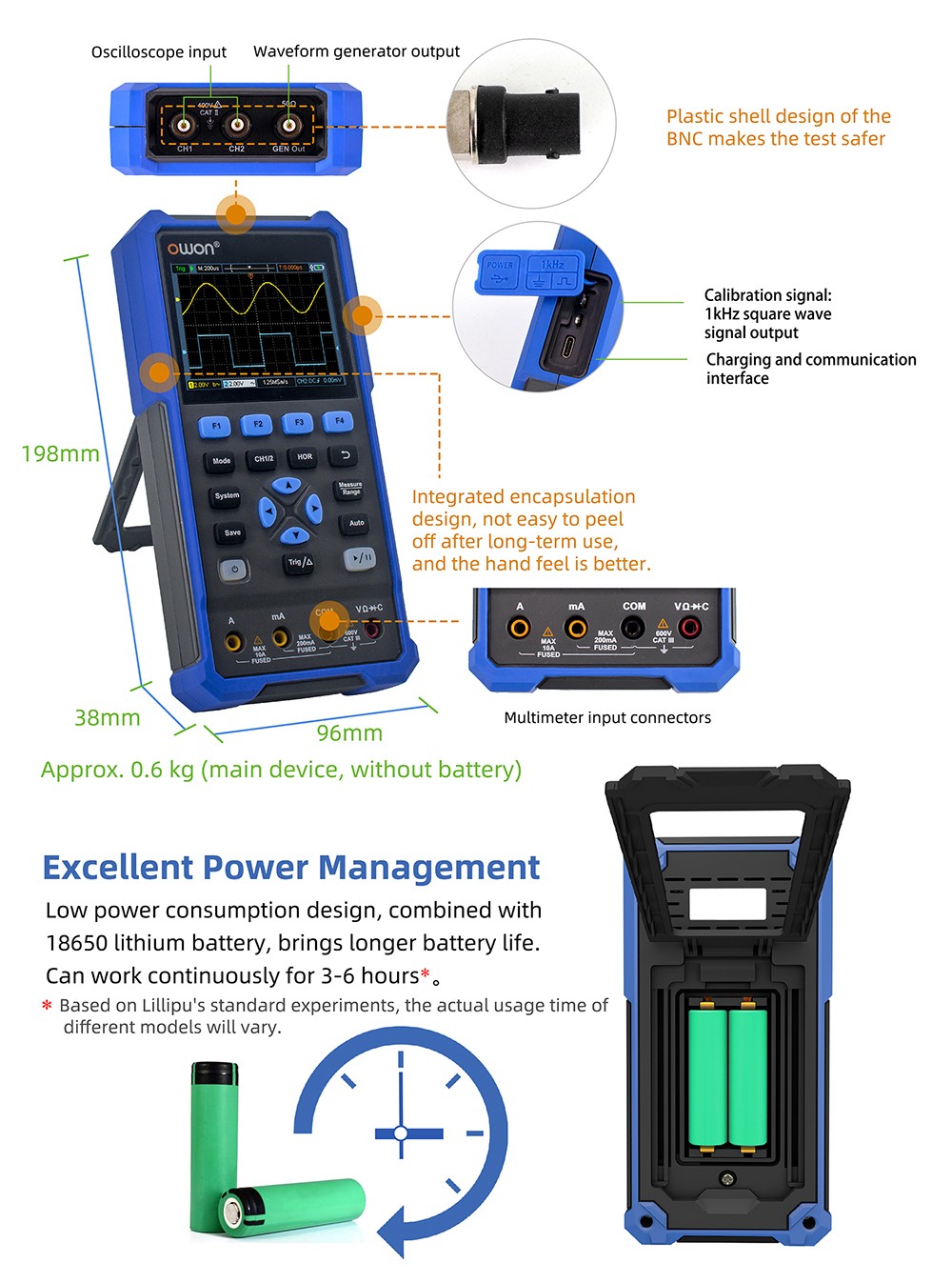

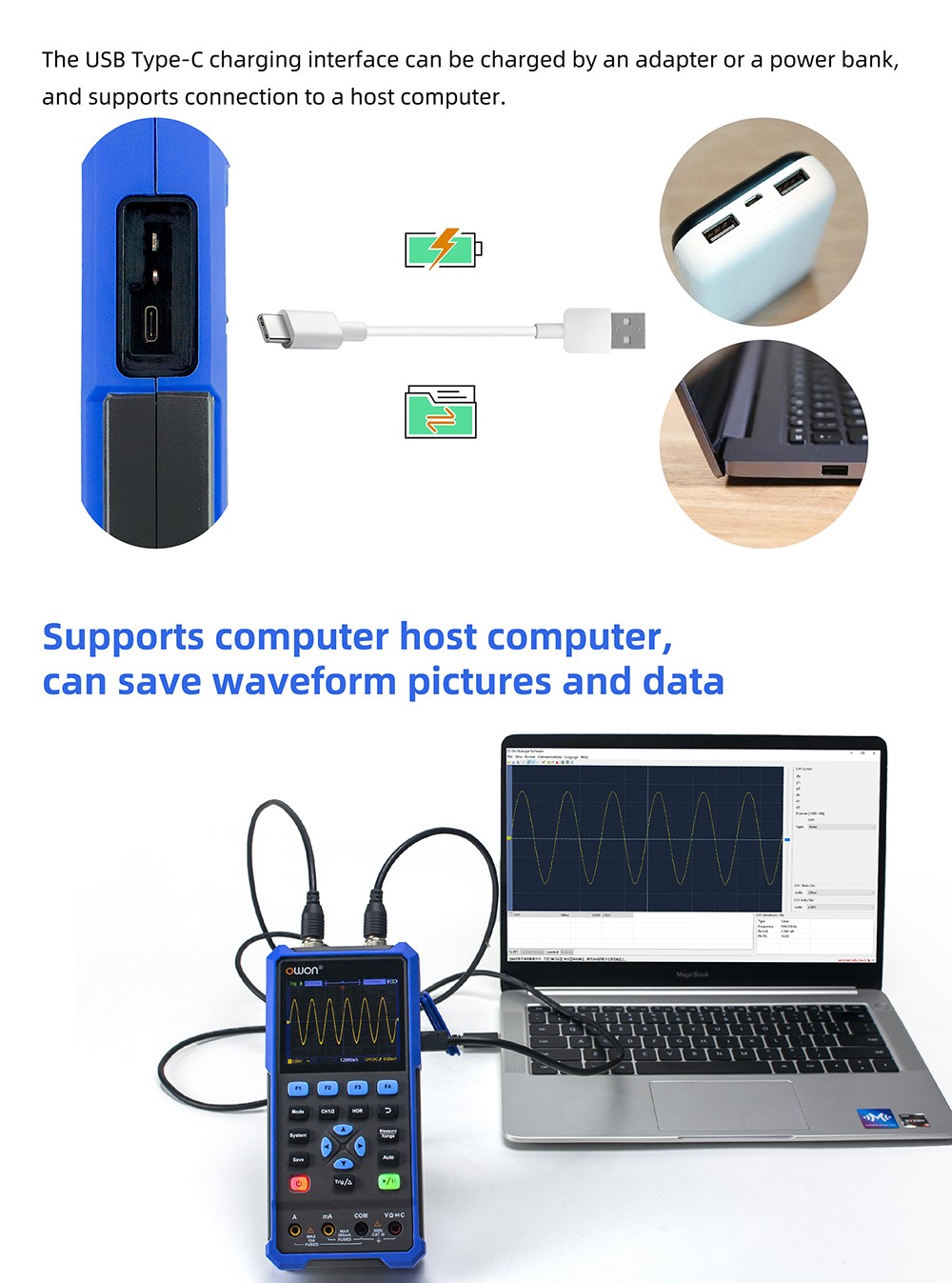

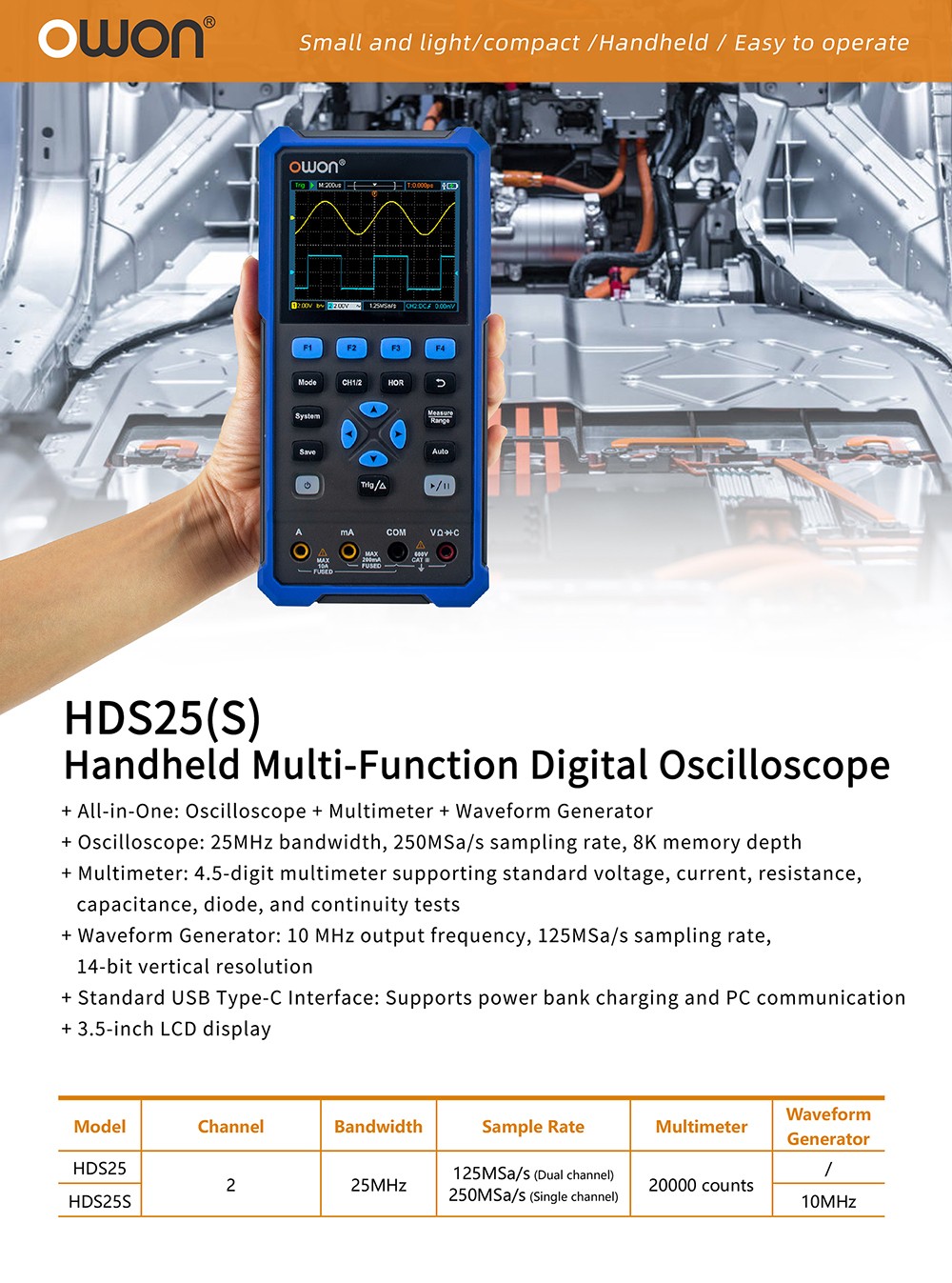

1. The Owon HDS25S is a portable 25MHz dual-channel oscilloscope that can also be used as a multimeter and function generator. The meter sports a 3.5" high-contrast colour display suitable for outdoor use and it runs on a 18650 battery. You can hook up the meter to a PC host with USB-C to use it with Owon's desktop software, control it via SCPI or to use it with a power bank.

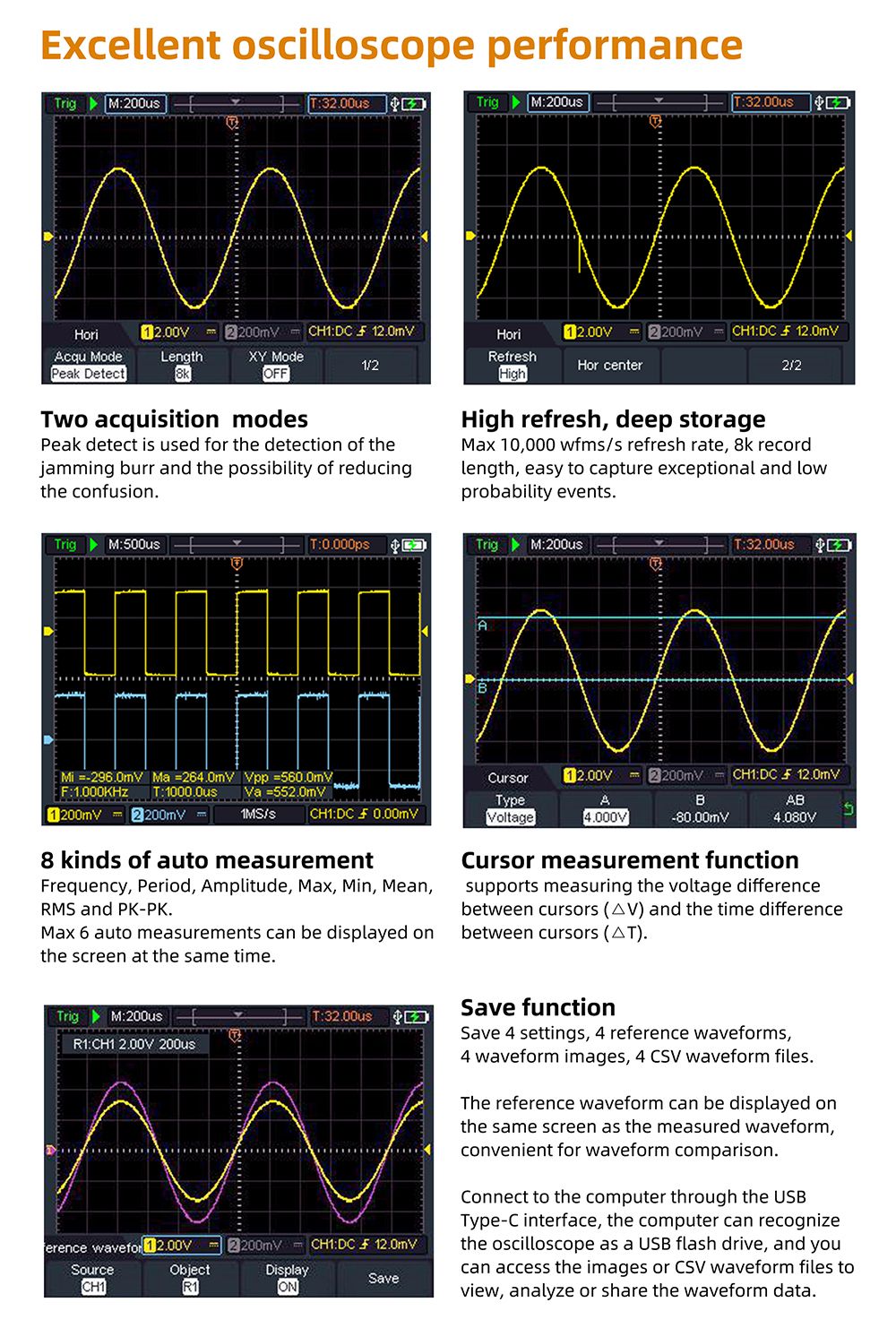

2. Signals can be recorded and stored internally, good for up to 8k data points. Waveforms can also be stored as image or CSV, to be exported via USB to a PC host.

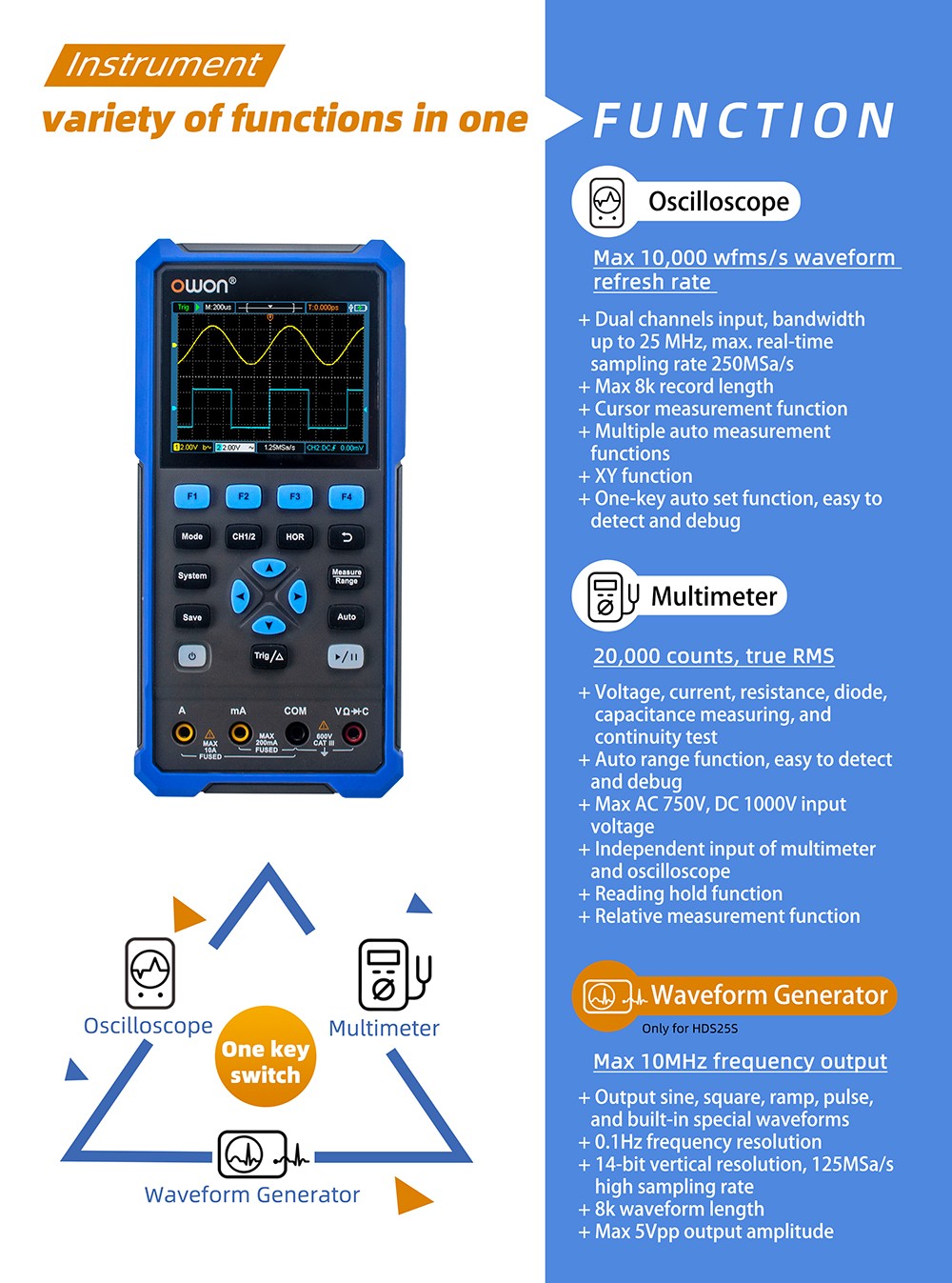

3. Besides being an oscilloscope, it independently acts as a fully featured 20.000-count True-RMS multimeter. It has the capability to measure voltage, current, resistance, capacitance, continuity and diodes. The readings will be displayed comfortably large on the display. Similar to conventional multimeters, it does auto-ranging. This model can also be used as a function generator.
Specification
| General | Brand: OWON Type: Digital Oscilloscope Model: HDS25S Color: Blue |
| Specification |
Oscilloscope Specifications
Bandwidth: 25 MHz
Channels: 2
Sample rate: 250 MSa/s (single channel), 125 MSa/s (dual channel)
Memory depth: 8 kpts or 4K optional
Display: 3.5inch LCD
Trigger type(s): Edge
Trigger Model: Auto, Normal, Single
Waveform capture rate: 10.000 wfms/s
Input Coupling: DC, AC, Ground
Input Impedance (DC Coupling): 1MΩ±2%, in parallel with16pF±10pF
Probe Attenuation: 1X, 10X, 100X, 1000X, 10000X
Max.Input Voltage: 400V (DC+AC, PK-PK)
Vertical scale: 10 mV/div - 10 V/div
Vertical resolution: 8 bit
Horizontal scale: 5 ns/div - 1000 s/div, step by 1 - 2 - 5
Automatic Measurement: Period, Frequency, Mean, PK-PK, Max, Min, Amplitude, RMS
Digital Multimeter Specifications
Full Scale Reading: max 20000 counts
Testing Modes: Voltage, Current, Resistance, Capacitance, Diode, Continuity
Max Input Voltage: AC 750V, DC 1000V
Max Input Current: AC 10A.DC 10A
Automatic Range: √
True RMS: √

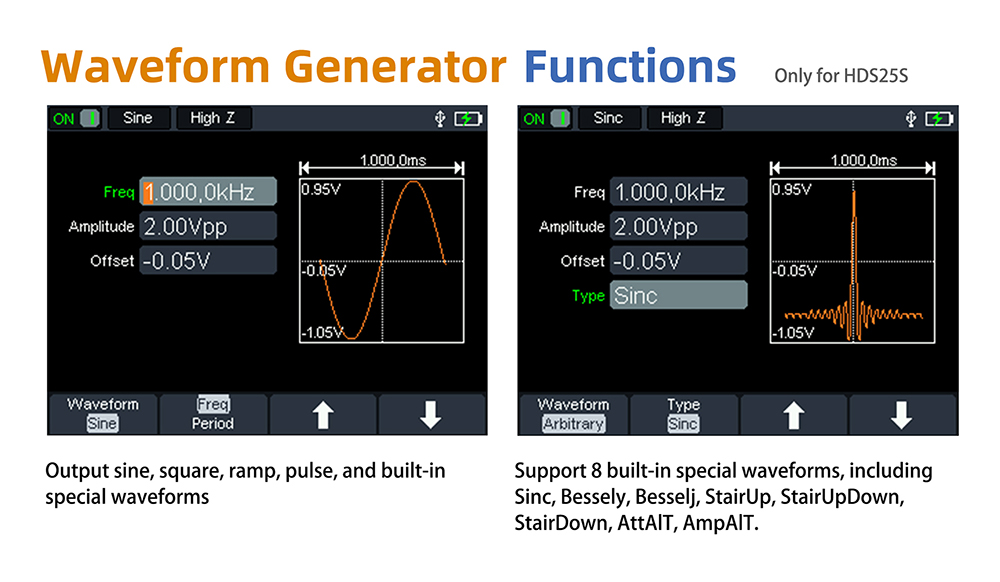

Waveform Generator Mode Specification
Frequency Output
Sine: 0.1Hz~10MHz
Square: 0.1Hz~2MHz
Ramp: 0.1Hz~1MHz
Pulse: 0.1Hz~5MHz
Arbitrary Waveform: 0.1Hz~5MHz
Amplitude(50Ω): 0.01Vpp - 2.5 Vpp
Sample rate: 125 MSa/s
Waveform length: 8K
Channel: 1
Vertical resolution: 14 bits
|
| Weight & Size | Product Weight: 1.05kg Package Weight: 1.2kg Package Size(L x W x H): 25.5x20.2x17.7cm |

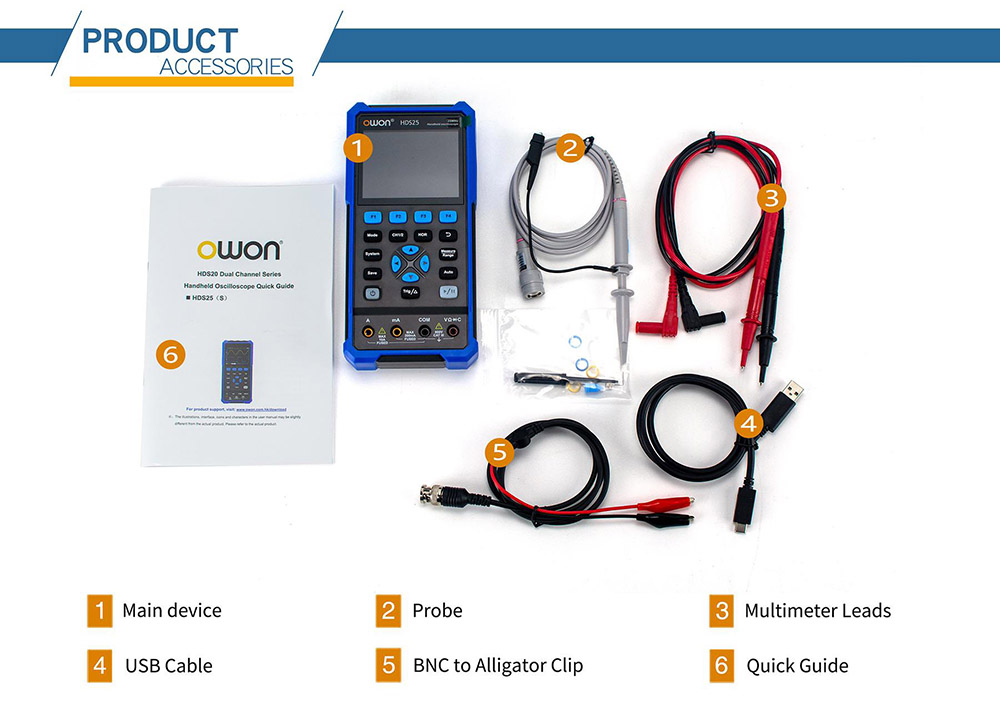

| Package Contents | 1 x Digital Oscilloscope 1 x Probe 1 x Multimeter Leads 1 x USB Cable 1 x BNC to Alligator Clip 1 x Quick Guide |
