Highlights

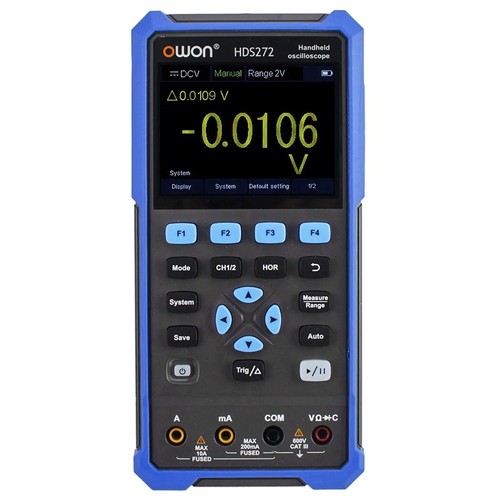

2-in-1 Handheld Oscilloscope
OWON HDS272 features a digital oscilloscope function and a multimeter function at the same time. It is easy to operate and is suitable for outdoor maintenance, rapid on-site measurement, automobile maintenance, power detection, etc.
Digital Oscilloscope Functions

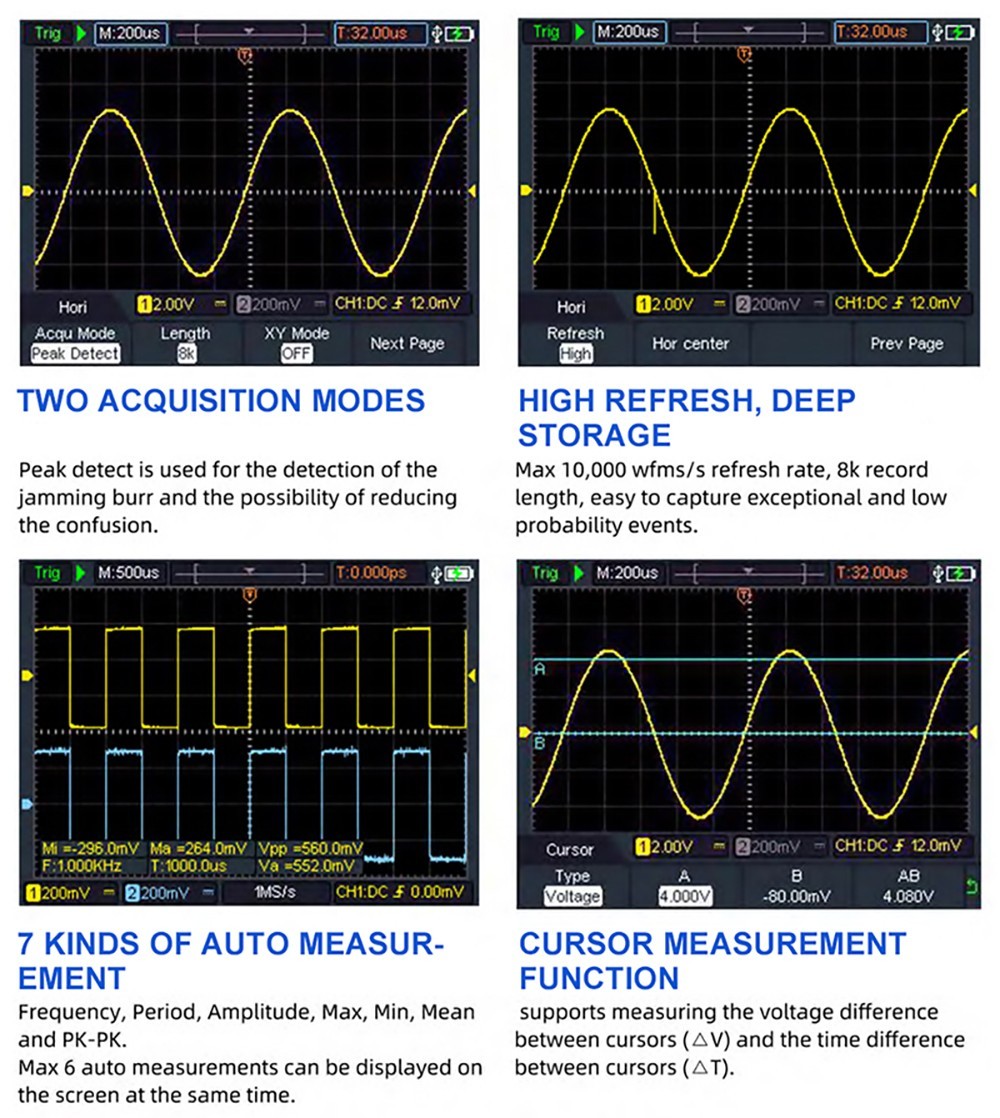

Features dual-channel input, 70MHz bandwidth, 250MSa/s real-time sampling rate, and max 8k record length. It also has a cursor measurement function and one key auto set function, easy to detect and debug.
Multimeter Functions
20000 counts true RMS multimeter features an auto-ranging function and reading hold function, it can be used to measure standard voltage, current, resistance, diode, capacitance, and continuity test. It configures max AC 750V and DC 1000V input voltage. Independent input of multimeter and oscilloscope support relative measurement function.
Specification
| General | Brand: OWON Type: 2 in 1 Digital Oscilloscope Model: HDS272 Color: Blue + Black |
| Specification |
Oscilloscope Specifications: Multimeter (Standard): |
| Weight & Size | Product Weight: 0.6kg Package Weight: 1.1kg Package Size(L x W x H): 22x15x8.5cm |
| Package Contents | 1 x 2-in-1 Digital Oscilloscope 1 x Oscilloscope Passive Probe Kit 1 x Pair of Multimeter Probe Leads 1 x Pair of Oscilloscope Probe Leads (BNC to Alligator Clip) 1 x Type-C USB Cable 1 x Adapter 1 x Cloth Bag 1 x User Manual |
