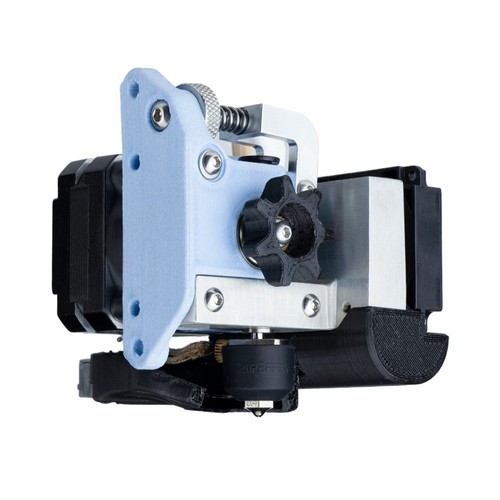

Phaetus OmniaDrop V3 Extruder, for E3D V6 Nozzle, Dual Drive Gears, Flexible Filament Printing, Hotend Cooling System

Highlights

Optimal Gear Ratio
A 5:1 planetary gear system gives the extruder a high extrusion force (100N) to print the most challenging materials on the market.

Pancake Stepper Motor
Using a Nema 17 pancake stepper motor, the OmniaDrop V3 has a compact and lightweight design with a base reference weight of 250g.

Flexible Filament Printing
The OmniaDrop V3 is an all-in-one extruder with a high extrusion consistency which was designed to print not only the most flexible filaments but also engineering-grade filaments as well as fiber-filled filaments.

Dual Drive Gears
The OmniaDrop V3 uses a new Dual Drive Gear module of 0.3 with an optimized teeth profile to get a perfect grip on all kinds of filaments without slipping once.

RNC Hardened Surface Coating
The Dual Drive Gear system is made from hardened steel with an HRC hardness of 60+. On top of that the surface is RNC coated which achieves a surface hardness of up to HV3300+, which greatly improves the life span of these gears.

Symmetric Hardware Design
All hardware components are designed symmetrically, which means that the OmniaDrop can be assembled in mirror mode, without the need for any special mirrored components.

Easy to Use
Easy loading and unloading of filament using the manual wheel. The extruder main body is 3D printed which can be redesigned according to individual requirements. Very responsive temperature measurements and control with a copper-Nickel plated Ring Heater. (280 Celsius, 50s)

Part Cooling System & Hotend Cooling System
To dissipate the heat of the extruded filament as fast as possible the part cooling fan geometry was optimized to achieve a high area cooling effect. The hotend cooling system vents the air upwards so that when you print with engineering filaments there is less chance of warping.
