PowMr 60A MPPT Solar Charge Controller, 12V 24V 36V 48V Support, LCD Display, Works with AGM, Gel, Flooded and Lithium

Highlights

60A MPPT Charge Controller

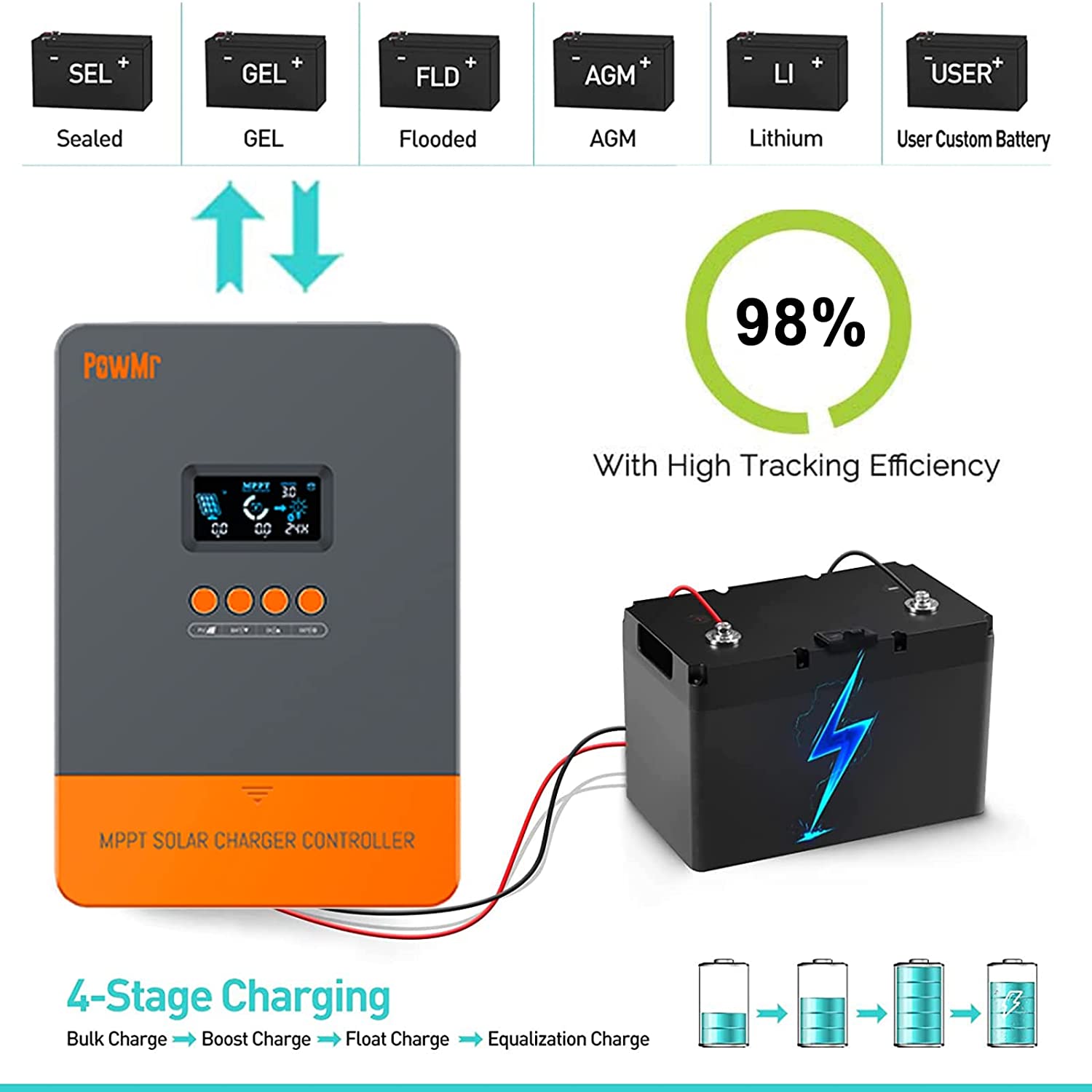

It features a 4-stage battery charging algorithm for rapid, efficient, and safe charging (bulk charge, boost charge, float charge, and equalization). The rated charging current of this charge controller can reach 60A.
Wide Range Solar Voltage/Power Support
The controller supports high PV input power and voltage and can accept solar voltage up to 190V.
When the battery is a 12V system, suggest solar power is 720W, and suggest voltage range is DC20V - DC80V.
When the battery is a 24V system, suggest solar power is 1440W, and suggest voltage range is DC37V - DC105.
When the battery is a 36V system, suggest solar power is 2100W, and suggest voltage range is DC50V - DC150V.
When the battery is a 48V system, suggest solar power is 2800W, and suggest voltage range is DC72V - DC150V.

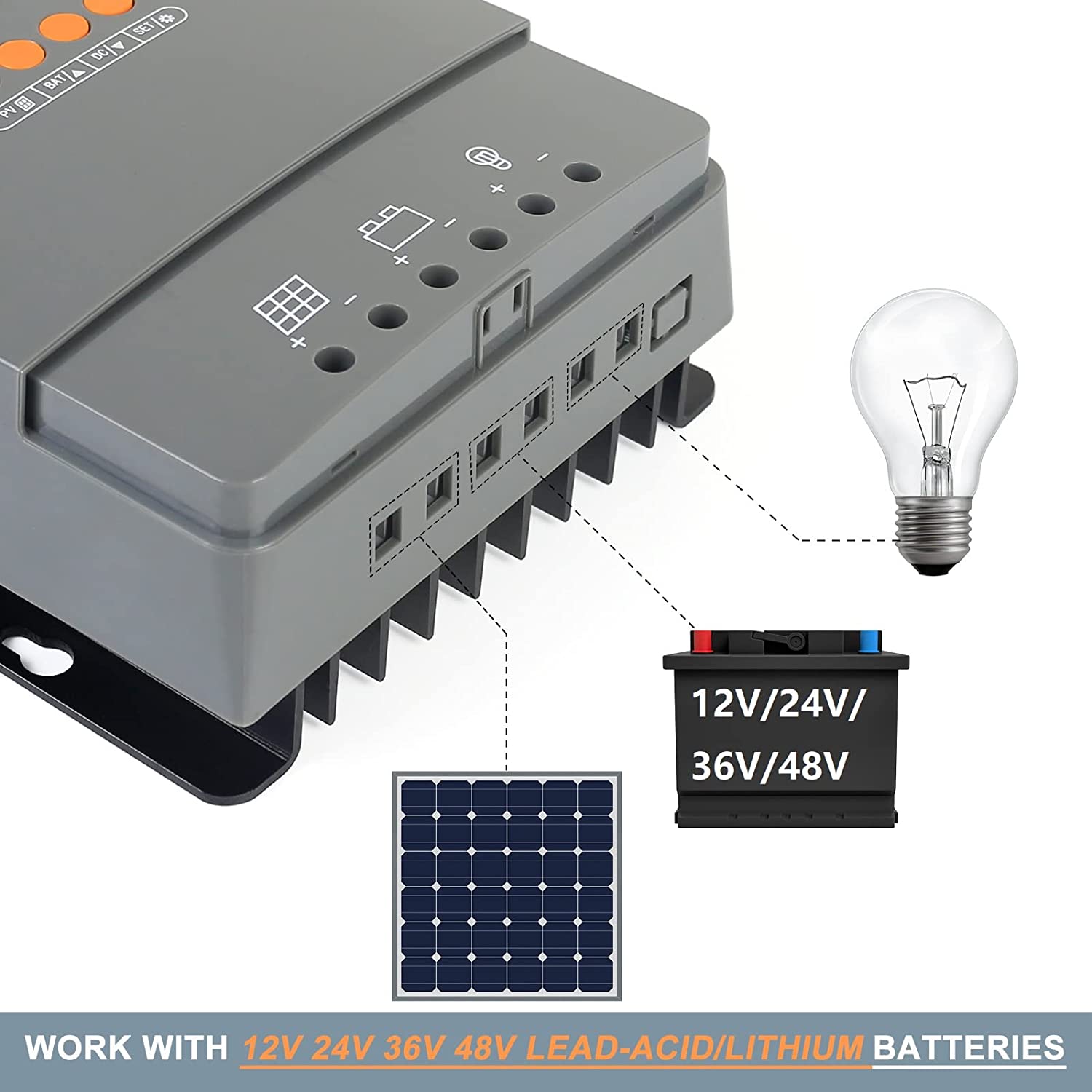

12V/24V/36V/48V Battery Support
The negative grounding design controller is safer, and it is compatible with a variety of batteries like lead-acid, lithium, sealed, gel, flooded and LI (LFP) battery charging parameters pre-set, and other batteries can be customized charging parameters according to your need.
Detailed LCD screen
There is a very detailed LCD screen and 4 buttons, making this solar controller very simple to use. Fast service support and detailed wiring instructions are available.
Smart Tracking Algorithm
This controller features a smart tracking algorithm that maximizes the energy from the solar PV modules and charges the battery. At the same time, the low voltage disconnect function (LVD) will prevent the battery from over-discharging.
Electronic Protection
It has the functions of overcharging, over-discharging, overloading, and short-circuit protection.
The reverse protection function enables any combination of solar module and battery, without causing damage to any component.
The 0 layer's charging process has been optimized for long battery life and improved system performance.

Specification
