Highlights

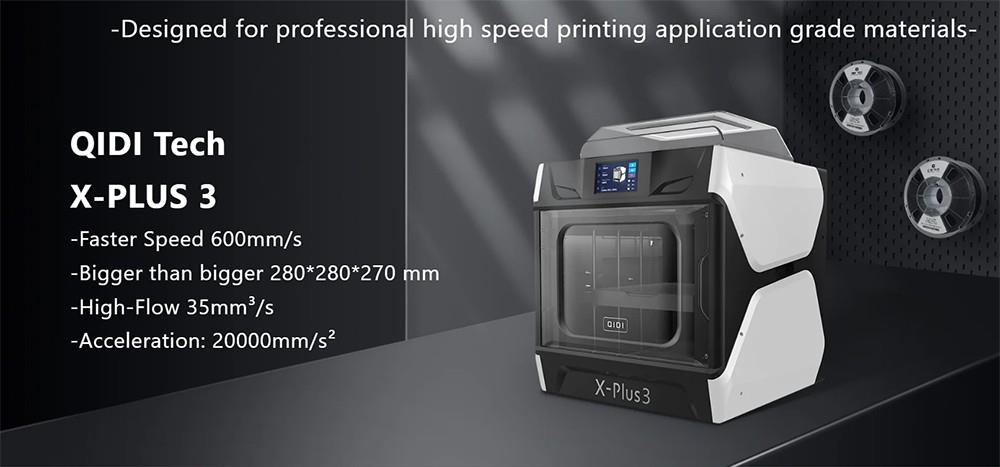

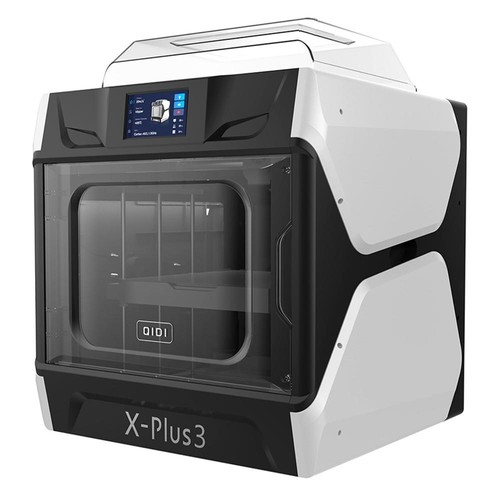

Desktop High-Speed FDM 3D Printer
QIDI Tech X-Plus 3 3D printer can offer a super high printing speed of 600mm/s, 20000mm/s² printing acceleration, and 35mm³/s extruder flow, configuring Klipper firmware, high-speed extruder, and CoreXY structure.
- 600mm/s print speed
- Klipper firmware
- High-temp printing
- Heated build chamber
- Automatic bed leveling
- Fast Speed 600mm/s
- 280*280*270 mm
- High-Flow 35mm³/s
- Acceleration: 20000mm/s²
QIDI TECH X-Plus 3 3D printer comes with:
- Two high-temp hotends
- Dryer box
- Spool of filament
- All the necessary tools

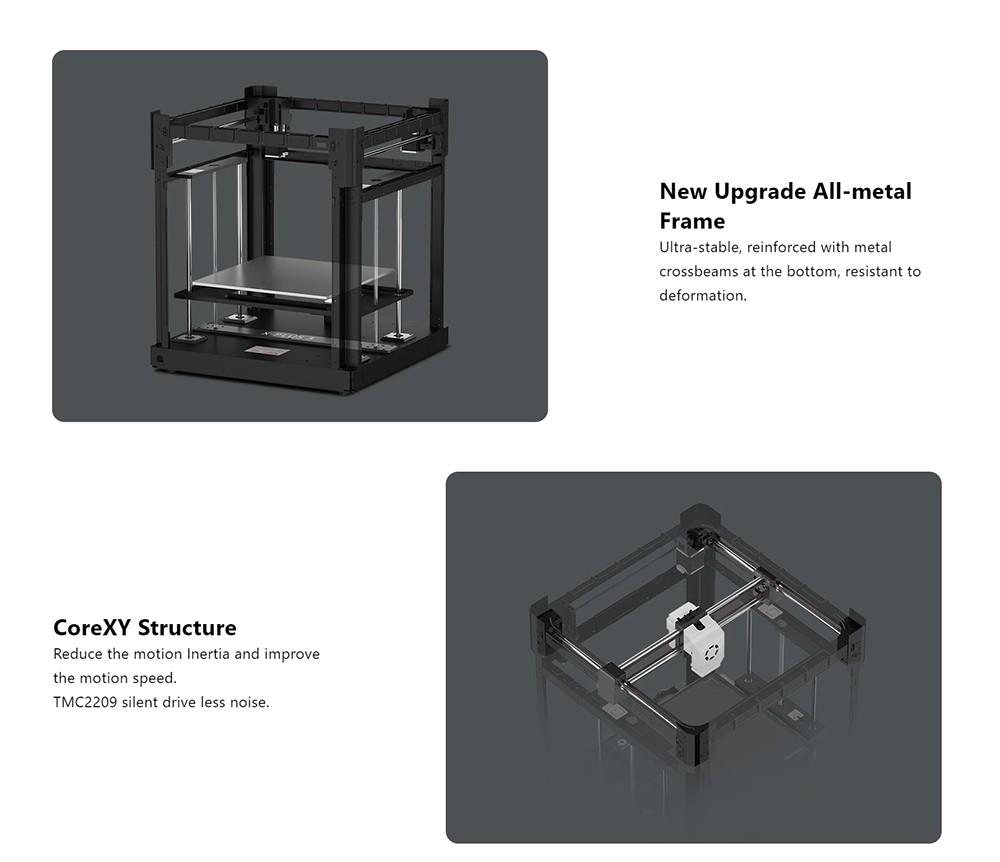

New Upgrade All-metal Frame
The all-metal frame is ultra-stable, reinforced with metal crossbeams at the bottom, and resistant to deformation.

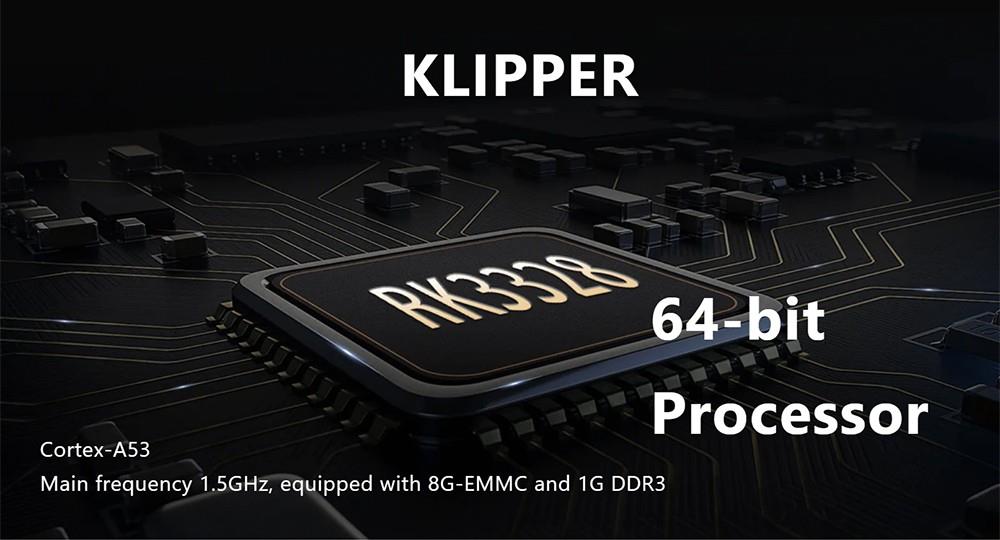

64-Bit Processor
For a higher printing speed and better effect, QIDI X-Smart 3 adopts Cortex-A53 64-bit processor, which has 1.5Ghz frequency, 8G-EMMC, and 1G DDR3.
CoreXY Structure
With TMC2209 silent drive and CoreXY structure, this 3D printer can reduce motion Inertia and improve the motion speed, offering a low-noise printing experience.

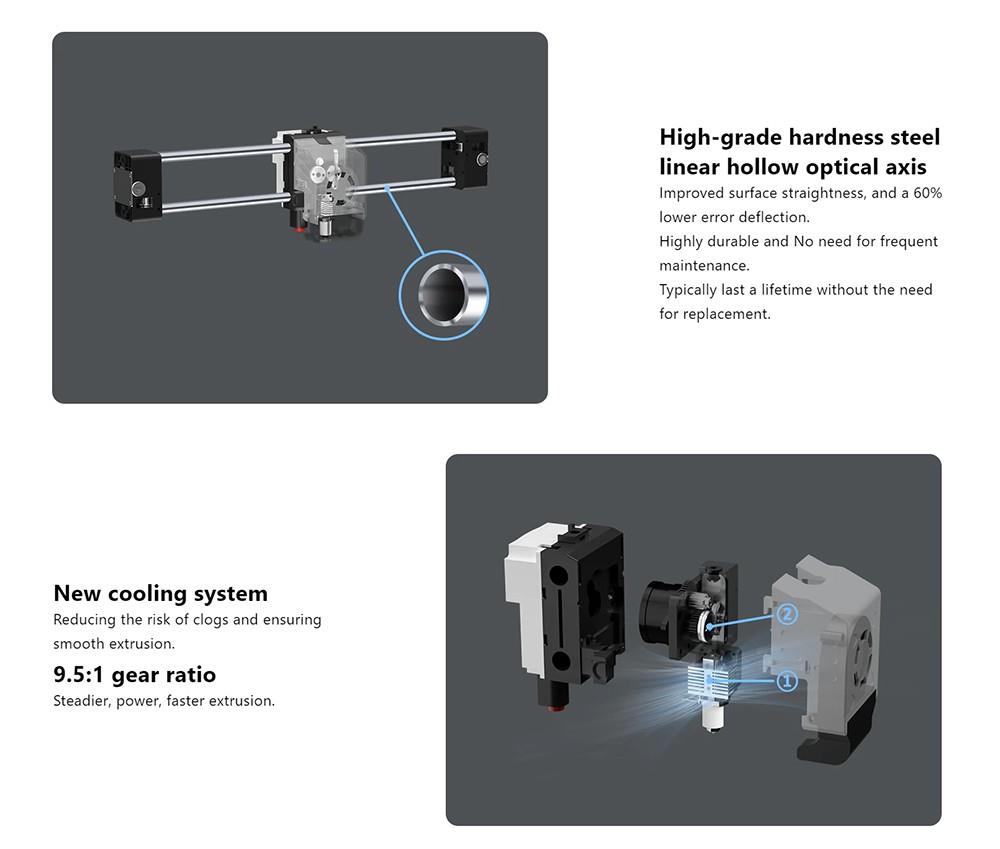

High-grade Hardness Steel Linear Hollow Optical Axis
Improved surface straightness, and a 60% lower error deflection. Highly durable and has no need for frequent maintenance.
High-Speed Extruder with Cooling System
The extruder with a 9.5:1 transmission ratio is steadier, stronger, and faster. The new cooling system can reduce the risk of clogs and ensure smooth extrusion.

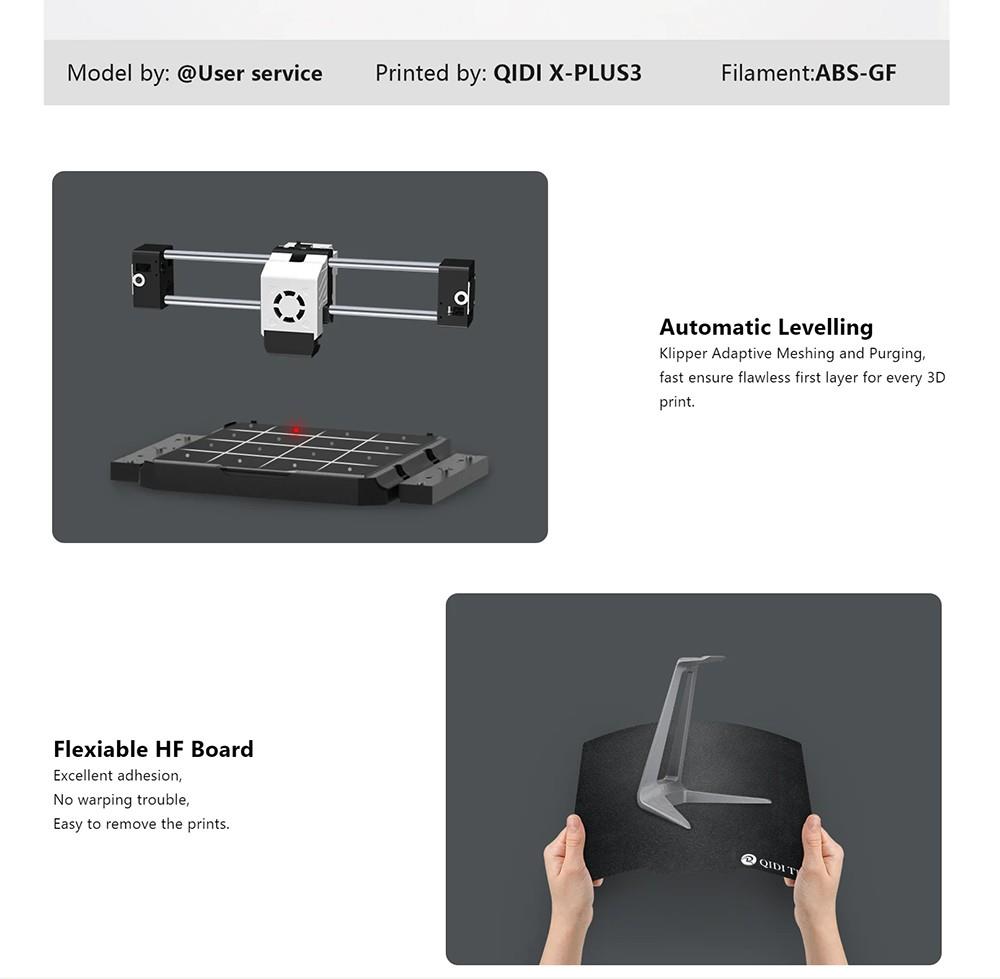

Automatic Levelling
Klipper adaptive meshing and purging, fast ensure flawless first layer for every 3D print.
Flexible HF Board
The double-sided flexible magnetic HF plate has excellent adhesion, no warping trouble, and is easy to remove the prints.

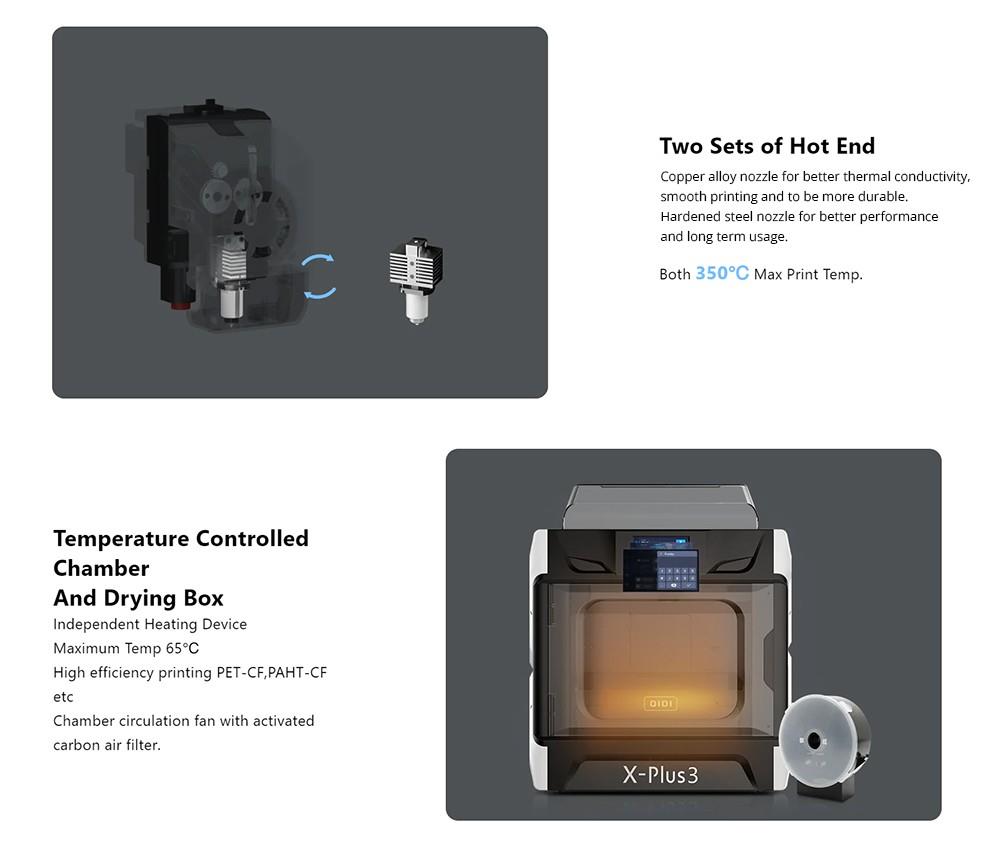

Two Sets of Hot End
Copper alloy nozzle for better thermal conductivity, smooth printing and to be more durable. Hardened steel nozzle for abrasive materials, and long-term usage. While both have a max print temp of 350 Celsius.
Temperature Controlled Chamber and Drying Box
With an independent heating device that has a maximum temp of 65 Celsius, QIDI X-Plus 3 3D printer can high-efficiency print PET-CF, PAHT-CF, etc. It also has a chamber circulation fan with an activated carbon air filter.

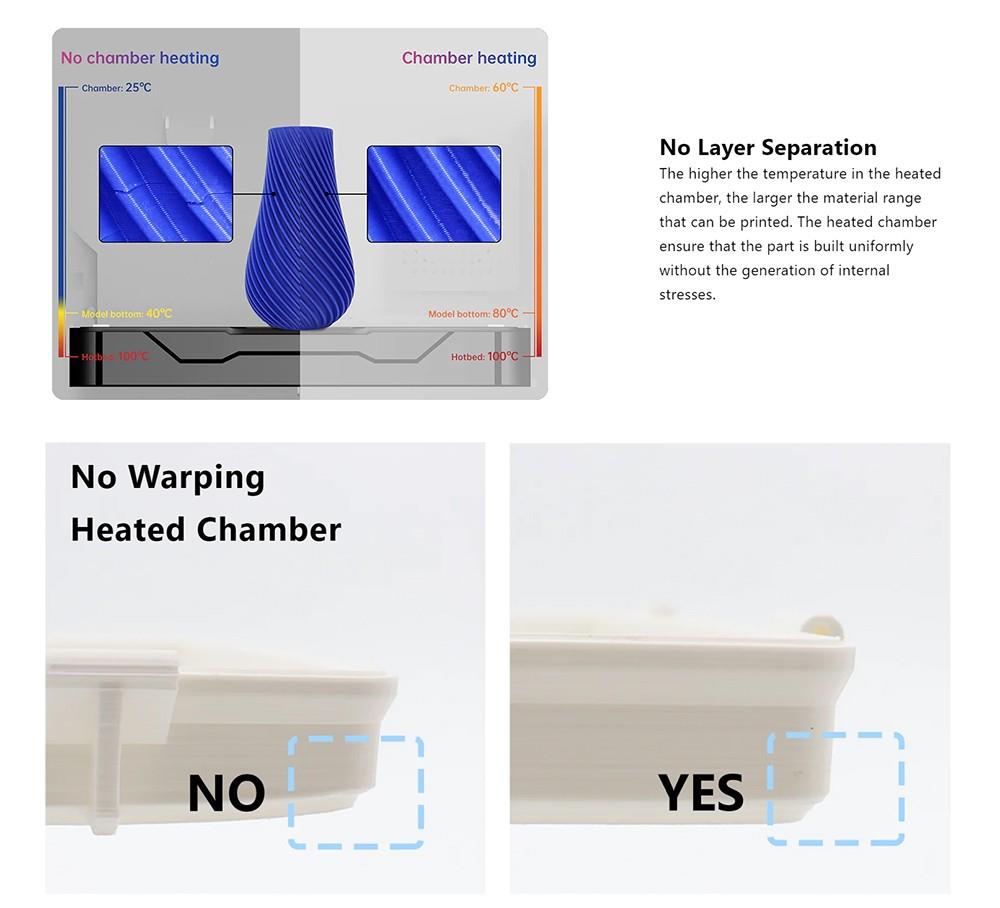

No Layer Separation

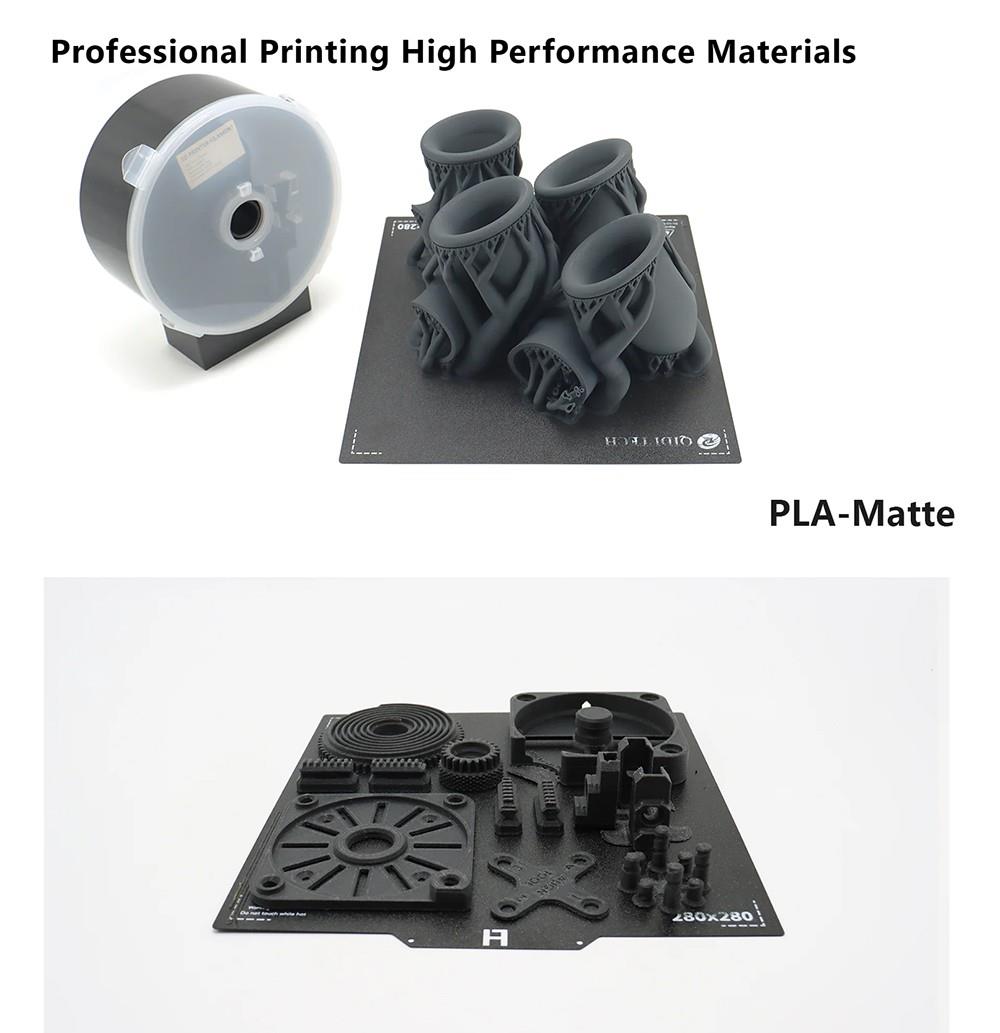

The higher the temperature in the heated chamber, the larger the material range that can be printed. The heated chamber ensures that the part is built uniformly without the generation of internal stresses.

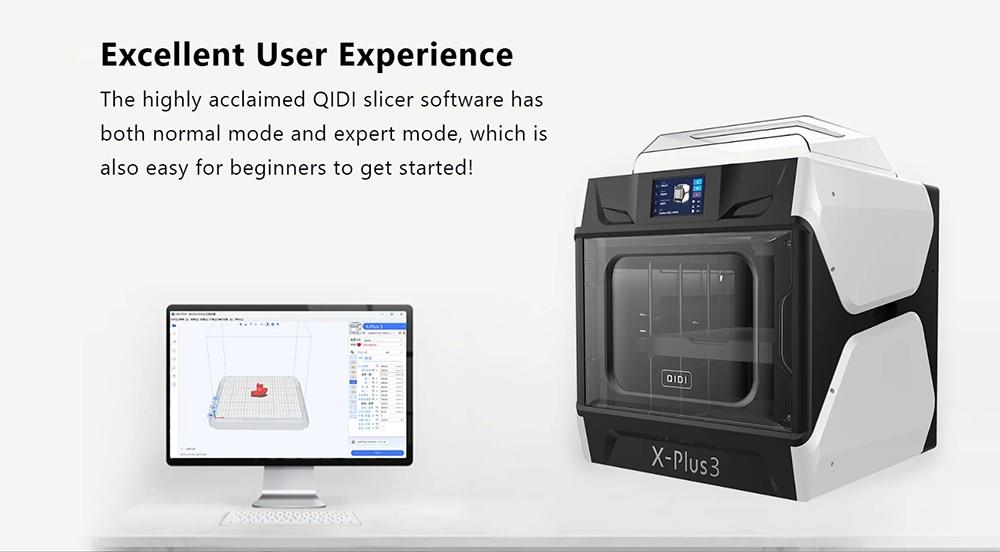

Excellent User Experience
The highly acclaimed QIDI slicer software has both normal mode and expert mode, which is also easy for beginners to get started. It also supports other third-party software, such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc.
Specification
| General | Brand: QIDI Type: 3D Printer Model: X-Plus 3 Color: Black |
| Specification | Technology: FDM Build Volume: 280*280*270mm Printing Speed: ≤600mm/s Extruder Flow: 35mm³/s Extruder Temp: ≤350°C Hotend (Included): Copper alloy nozzle hotend for Common materials; Hardened steel nozzle hotend for Abrasive materials Auxiliary Part Cooling Fan: Yes Chamber Temperature Control: 65 Celsius Independent Chamber Heating Chamber Circulation Fan with Activated Carbon Air Filter: Chamber Circulation Fan Screen: 5.0-inch, 800*480 touchscreen Seal Print: Dryer Box + Desiccant Connection Options: 150M 2.4G WiFi; USB Flash Drive/Ethernet Cable Rated Power: 800W Recommended Filament: PAHT-CF, PET-CF, PA12-CF Compatible Filament: PLA, ABS, ASA, PETG, TPU, PC, UltraPA, Nylon, etc. Structure: CoreXY Z-axis: Double Z axis X-axis: High-grade hardness steel linear hollow optical axis Firmware: Klipper Printing Acceleration: 20000mm/s² Printing Accuracy: ±0.1 mm Filament Diameter: 1.75mm Bed Leveling: Automatic Leveling Extruder Transmission Ratio: 9.5:1 Hot End: Ceramic Heating Core Extruder: High-flow Direct Drive Extruder Nozzle Diameter: 0.4mm (0.2,0.6,0.8mm Optional) Hot Bed Temperature: ≤120 Celsius Printing Plate: Double-Sided Flexible Magnetic HF Plate Filament Detection: Yes Resonance Compensation: Yes Pressure Advance: Yes Voltage: 100-240VAC, 50/60Hz Main Processor: Cortex-A53, 64-bit Processor, 1.5Ghz,8G-EMMC,1G DDR3 Slicer: QIDI Print and other third-party software, such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc. Operating System: Windows, MacOS, Linux Assembled: Assembled and First Print within 10 minutes |
| Weight & Size | Product Weight: 24.3kg Package Weight: 25kg Product Size(L x W x H): 511x527x529mm Package Size(L x W x H): 630x630x650mm |

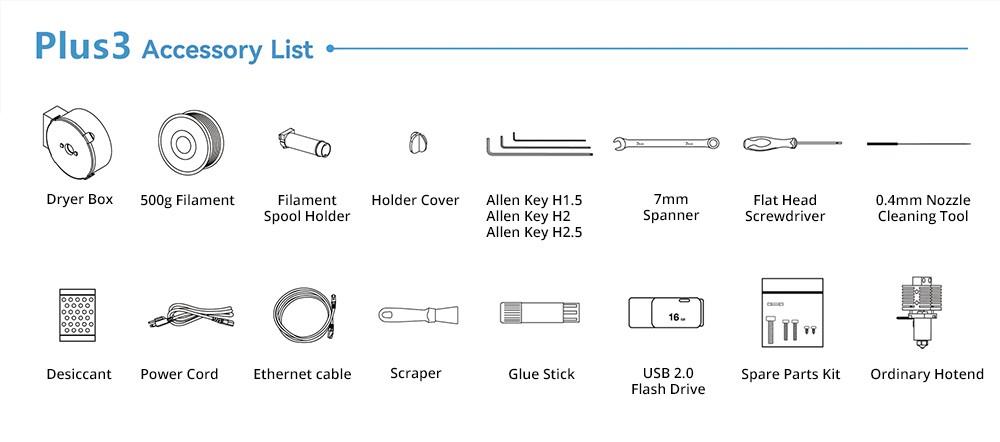

| Package Contents | 1 x 3D Printer 1 x Dryer Box 1 x 500g Filament 1 x Filament Spool Holder 1 x Holder Cover 1 x Power Cord 3 x Allen Key (H1.5, H2, H2.5) 1 x 7mm Spanner 1 x Flat Head Screwdriver 1 x 0.4mm Nozzle Cleaning Tool 1 x Desiccant 1 x Ethernet Cable 1 x Scraper 1 x Glue Stick 1 x USB 2.0 Flash Drive 1 x Spare Parts Kit 1 x Ordinary Hotend 1 x User Manual |
