Raspberry Pi RPi Model B+ Accessories Pack (Type A) 3.5" LCD + DVK512 + PCF8591 + L3G4200D + LSM303DLHC + Logic Level Converter + Mix Board

Highlights

• An accessories pack (Type A)for Raspberry Pi model B+ include: DVK512, 3.5 inch RPi LCD (A), PCF8591 AD DA Board, L3G4200D Board, LSM303DLHC Board, Mix Board, Logic Level Converter.

Specification

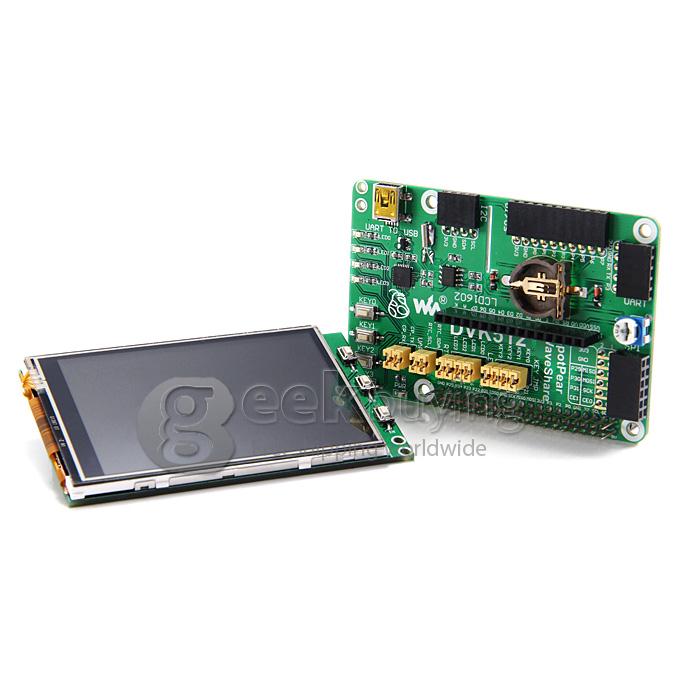

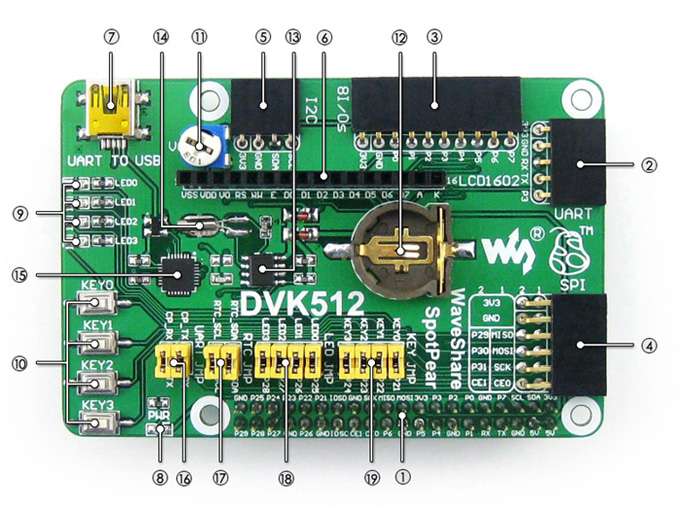

 DVK512 Product introduction

1. 1.Pinheaders for connecting with the RPi
2. 2.UART interface: easily connects to UART modules such as RS232, RS485, USB TO UART, etc.
3. 3.8I/Os interface: easily connects to modules controlled by I/Os, such as 8 Push Buttons, Logic Level Converter, Mix Board, etc.
4. 4.SPI interface: easily connects to SPI modules such as AT45DBXX Dataflash, L3G4200D Board, etc.
5. 5.I2C interface: easily connects to I2C modules such as PCF8574 Expansion Board, PCF8563 RTC Board, LSM303DLHC Board, etc.
6. 6.Character LCD interface: for connecting character LCDs like LCD1602
7. 7.USB connector: USB TO UART, supported by onboard converter CP2102
8. 8.Power indicator
9. 9.User LEDs
10. 10.User Keys
11. 11.Potentiometer: for LCD1602 contrast adjustment
12. 12.RTC battery holder
13. 13.PCF8563: onboard RTC chip
14. 14.32.768K crystal: RTC crystal
15. 15.CP2102: onboard USB TO UART chip, for debugging
16. 16.CP2102 jumper
17. 17.RTC jumper
18. 18.User LEDs jumper
19. 19.User Keys jumper

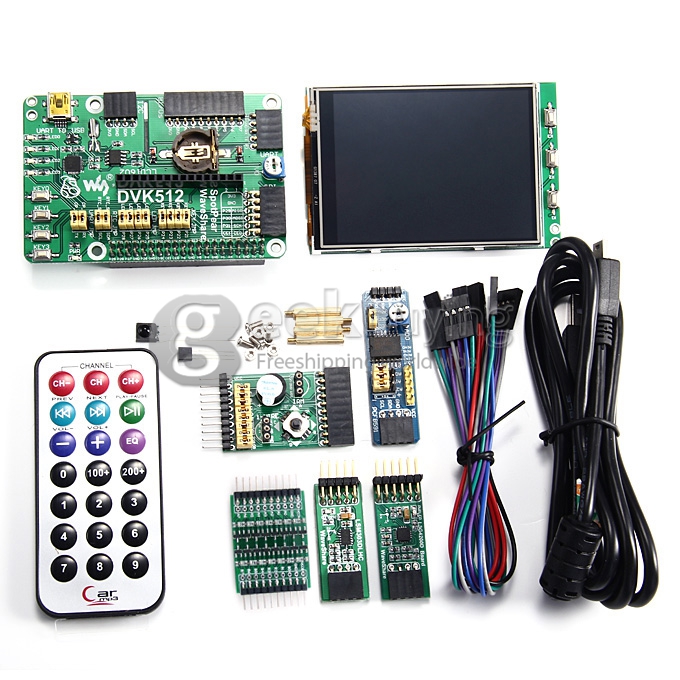

What's in the box?

• 1 x DVK512

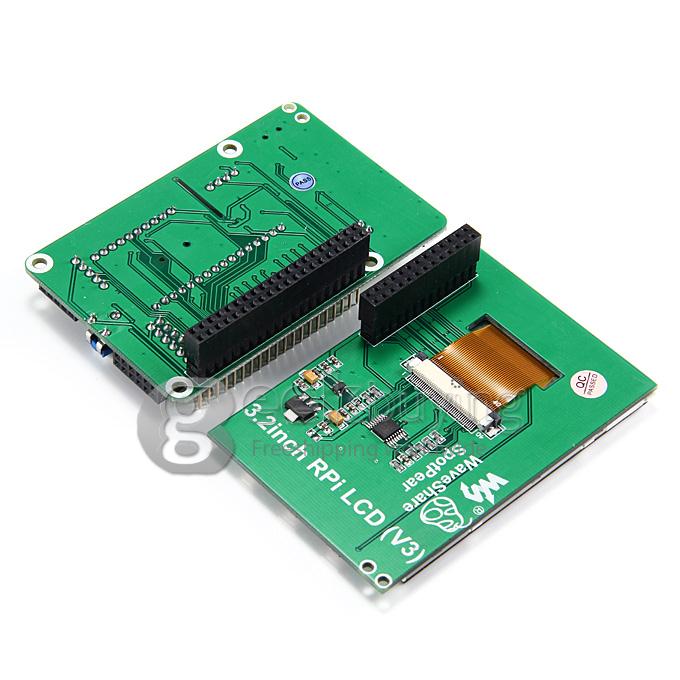

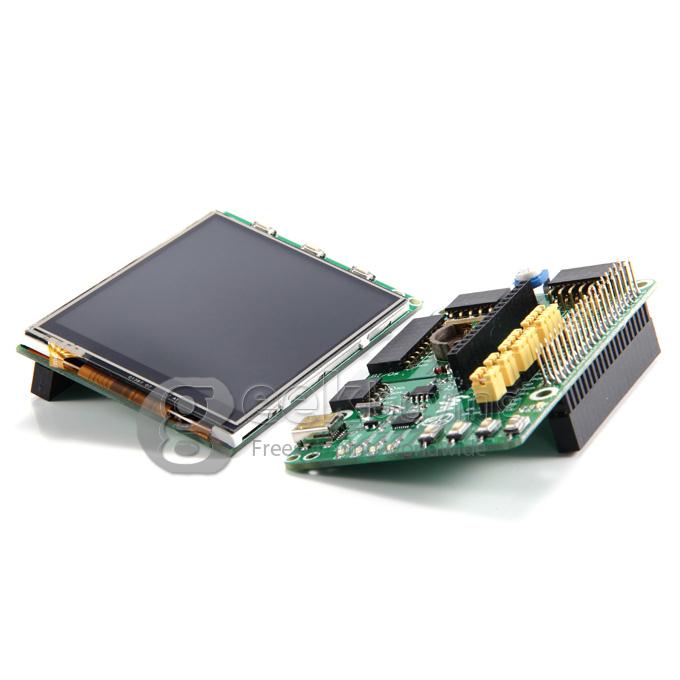

• 1 x 3.5inch RPi LCD (A)

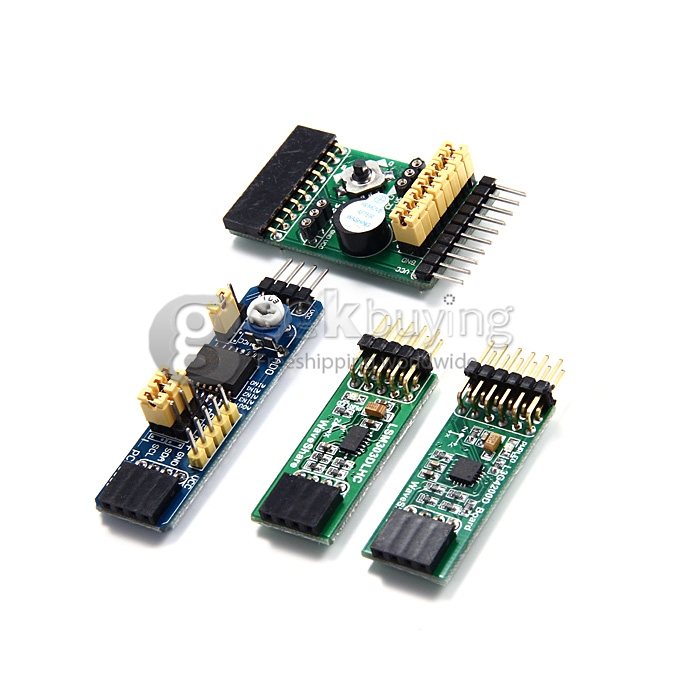

• 1 x PCF8591 AD DA Board
• 1 x L3G4200D Board
• 1 x LSM303DLHC Board
• 1 x Mix Board
• 1 x Logic Level Converter
• 1 x Infrared Remote Controller
• 1 x LFN0038K (Infrared Receiver)
• 1 x DS18B20
• 1 x USB type A plug to mini-B plug cable
• 1 x 4-pin 2-pin wires pack
• 1 x RPi screws pack (4pcs)
• 1 x User guide CD
