Highlights
Scanning Tips
Due to MINI 2's blue light technology, scanning results may vary based on the material and color of the scanned object. We recommend using scanning spray as an aid during scanning for improved results.
Next-Gen Precision & Fast Scanning Speeds

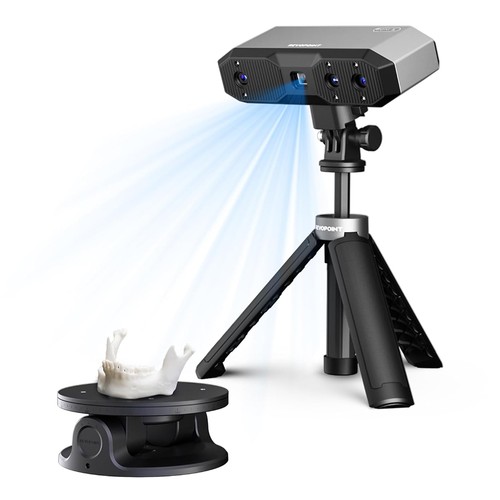

Effortlessly capture tiny intricate details using the Revopoint MINI 2 3D scanner's industrial-grade blue light technology powering a single-frame precision of up to 0.02 mm at fast capture speeds of up to 16 fps.
Industrial Class 1 Blue Light
MINI 2's industrial-grade ultra-high resolution blue light technology's narrower wavelength enables better filtering of interference from ambient light for better precision, accuracy, and higher-quality 3D models. Class 1 blue light is 100% skin-safe, but you may feel minor discomfort if it shines directly into your eyes.
Better Scanning Results
The MINI 2 offers a larger single capture range of up to 168 x 132 mm for improved tracking and scanning of larger objects. Additionally, the RGB camera's bigger aperture and Flash LEDs enhance the capture of intricate texture and color details. The 6 Flash LEDs also improve marker recognition for smoother, featureless object scanning.
Easier Operation
MINI 2’s IMU removes faulty frames caused by fast movement or shaky hands and improves tracking. Easily start scans and adjust the exposure using MINI 2's three new tactile buttons.
Faster and More Stable Connections
MINI 2’s upgraded connection options provide stable, fast connections with a Type-C USB connection for plug-and-play scanning or Wi-Fi 6 for mobile scanning.
Portable & Easy-to-use
Weighing only 175g, the MINI 2 is comfortable to hold and carry. It comes with free, user-friendly scanning software, Revo Scan, that does everything from scanning to post-processing. Export models in STL, FLY, and OBJ formats ready for use in 3D printing and modeling software.
Specification
| General | Brand: Revopoint Type: 3D Scanner Model: MINI 2 Advanced Edition Color: Black |
| Specification | Technology: Dual-camera Blue Structured Light Single-frame Precision: Up to 0.02 mm Single-frame Accuracy: Up to 0.05 mm Single Capture Area at Nearest Distance: 52 x 64 mm at 120 mm Single Capture Area at Furthest Distance: 168 x 132 mm at 250 mm Working Distance: 120 - 250 mm Point Distance: Up to 0.02 mm Minimum Scan Volume: 10 x 10 x 10 mm Scanning Speed: Up to 16 fps Position Sensors: 9-axis IMU 3D Light Source: Class 1 Blue Light Tracking Methods: Feature/Marker Output Formats: PLY, OBJ, and STL PC Requirements (macOS): RAM: ≥8GB CPU (or better): M1 Pro/M1 Max/M1 Ultra, M2/M2 Pro/M2 Max/M2 Ultra, M3/M3 Pro/M3 Max Depth Camera Resolution: 2 Megapixels RGB Camera Resolution: 2 Megapixels Outdoor Scanning: No Color Scanning: Yes Ready to Print 3D Models: Yes Compatible Operating Systems: Window 10/11 (64-bit), Android, iOS, macOS White Flash LEDs: Yes CPU: 2 core, 1.8 GHz Wi-Fi: Wi-Fi 6 Connector Type: USB Type-C User Recalibration: Yes Special Object Scanning: Use scanning spray for transparent, dark, or highly reflective objects. PC Requirements (Windows): RAM: ≥16GB CPU (or better): i5 12th/13th/14th, i7 12th/13th/14th, i9 all series |
| Weight & Size | Product Weight: 0.175kg Package Weight: 2kg Package Size(L x W x H): 28.5x24x11cm |
| Package Contents |
1 x 3D Scanner |
Videos
Customer Photos
Customer Videos
Customer Reviews
Questions & Answers
FAQ
What are the differences between MINI 2, POP 3, RANGE 2, and INSPIRE?
Scanning Scenarios:
The MINI 2 is designed for professionals who want to scan smaller objects such as industrial parts, jewelry, small statues, etc., providing precise detail capture.
The POP 3 is designed for professionals who want to scan medium-sized objects, such as engine parts or vases.
The RANGE 2 is designed for professionals who want to scan large objects such as furniture, people, and vehicles, ensuring efficient and thorough scanning results.
The INSPIRE is for hobbyists, 3D printing enthusiasts, and makers who want to scan medium-sized objects.
What are the differences between MINI 2 and MINI？
The Revopoint MINI 2 is the newest 3D scanner in the MINI series. It has doubled the Depth and RGB cameras' resolution, a bigger working distance, and a single capture range than MINI. Also, it is upgraded in hardware: 9-axis IMU for smart tracking, six flash LEDs for better color scan, tactile buttons for real-time exposure adjustment, and Type-C USB connector & Wi-Fi 6 for smooth connection.
How does MINI 2’s IMU work?
MINI 2’s IMU is a 9-axis IMU with a gyroscope, accelerometer, and magnetometer that all work together to help MINI 2 understand its location as you move the scanner around an object. This, in turn, helps MINI 2 provide smoother frame stitching and helps eliminate any faulty frames captured caused by shaking or moving too fast.
How do I recalibrate the MINI 2’s IMU?
In Revo Scan 5’s Home Screen, click the settings icon next to MINI 2’s name. Then click on the Start Calibration button to start the process. Follow the on-screen instructions to recalibrate your MINI 2.
Do you need a powerful PC to use the MINI 2?
No, the MINI 2 ’s algorithms and internal chip do most of the processing.
Minimum specs: Intel Core i5, 8GB RAM.
Recommended specs: Intel Core i7, 16GB RAM or better.
No discrete GPU like an Nvidia or AMD graphics card is needed to use MINI 2.
What technology does the MINI 2 use?
MINI 2 uses high-resolution blue structured light, dual-depth cameras, and advanced algorithms to output detailed 3D models.
What formats can Revo Scan export?
Revo Scan can export your models in PLY, OBJ, and STL for compatibility with most 3D modeling, slicer, and CAD software.
Does MINI 2 have 3D scanning software?
Yes, the MINI 2 comes with Revo Scan for free. It is compatible with iOS, macOS, Android, and Windows devices. In Revo Scan, you can perform scans and post-processing.
Can objects scanned with MINI 2 be 3D printed?
Yes, the scanned models can be output in STL format, which is compatible with most slicer software.
Is third-party scanning software available for MINI 2?
No, MINI 2 is only compatible with the Revo Scan software, which can be downloaded from our website or your device's app store. The models generated by the scan are compatible with nearly all third-party 3D modeling software.
Does MINI 2 need internet access to work?
No, MINI 2 doesn’t need to be connected to an internet-capable network to scan.
Do more frames scanned mean better 3D scan accuracy?
No, repeated scanning makes your model worse. One scan close to the object will result in the best accuracy.
Are there any objects that the MINI 2 can’t scan?
Like most 3D scanners, highly reflective, transparent, or dark objects can only be effectively scanned using 3D scanning spray to coat the object’s surface.
Can I use the MINI 2 outdoors?
Sorry. With blue light technology, outdoor scanning is not recommended. However, if you must scan outside, wait for the sun to set or a very overcast day.
What’s the minimum size of an object MINI 2 can scan?
MINI 2 has a minimum scan volume of 10 mm x 10 mm x 10 mm.
Can MINI 2 scan objects smaller than 10 x 10 x 10mm?
Yes, but advanced scanning skills and post-processing are needed.
