Highlights
Revopoint POP 3 3D Scanner Main Features
Revopoint POP 3 is the next-generation 3D scanner with new and improved hardware, design, and usability. The improvements in POP 3's capabilities make capturing 3D scans for 3D printing, 3D animation, reverse engineering, healthcare, product design, digitizing historical items, VR/AR, and more even easier.
- 0.05mm Single-Frame Precision
- 0.05mm Point Distance
- 400mm Max Scan Distance
- Up to 18fps Scan Speed
- Wifi 6
- Color Scanning
- Minimum Scan Volume 20x20x20mm
Time-Saving Accuracy
Revopoint POP 3 eliminates the need to manually measure objects by capturing accurate and detailed 3D models at fast scanning speeds consistently and efficiently between 12 to 18fps with a single-frame precision of up to 0.05mm and a point distance of 0.05mm.
Precision in Motion
Enjoy a seamless tracking and frame stitching experience with Revopoint POP 3’s 9-axis IMU (Inertial Measurement Unit) continuously measuring the scanner’s movement. At the same time, an advanced algorithm eliminates faulty frames caused by sudden movement or shaking.
Better Color Accuracy
Get improved color and texture accuracy through the RGB camera’s bigger aperture capturing more light and dual white LEDs providing supporting illumination to eliminate shadows and make the colors vibrant.

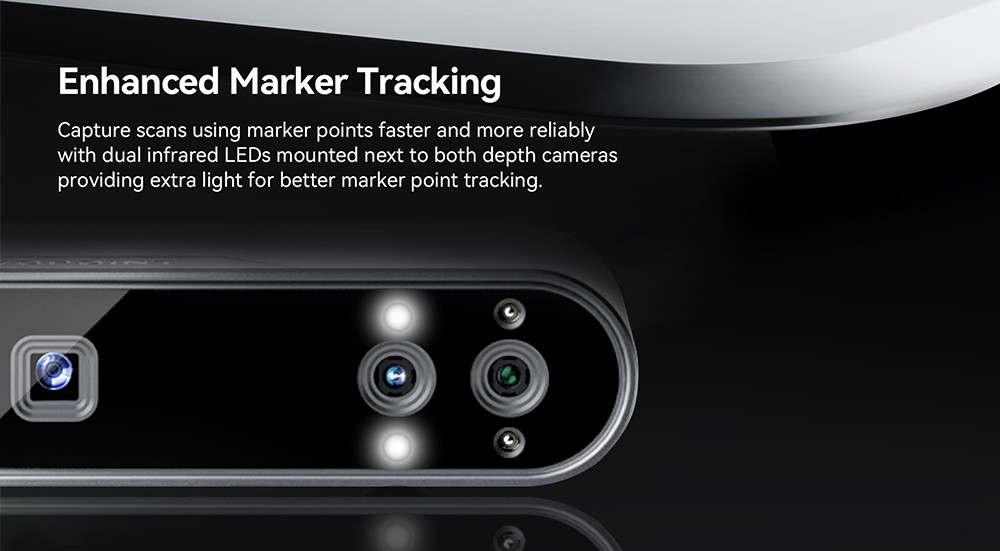

Enhanced Marker Tracking
Capture scans using marker points faster and more reliably with dual infrared LEDs mounted next to both depth cameras providing extra light for better marker point tracking.

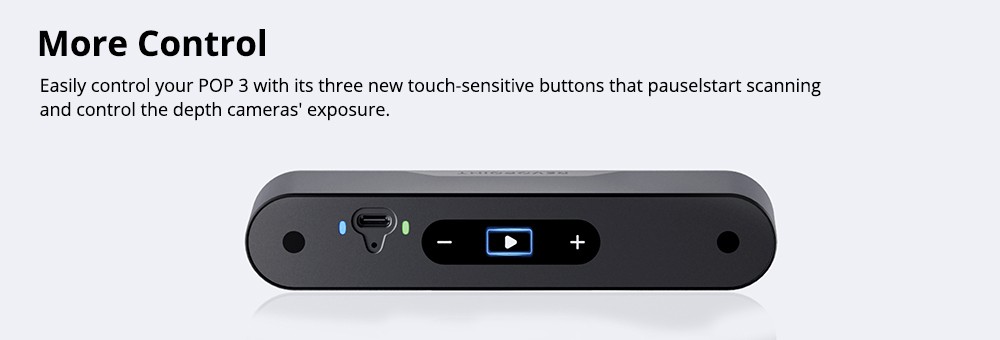

More Control
POP 3’s new design is built around optimizing the scanning experience. With the addition of three touch-sensitive buttons to Start/Pause scans and adjust the depth camera's exposure on the fly.
Energized Connectivity
Powered by Wi-Fi 6, POP 3 can transfer data nearly three times faster than POP 2 for lower latency and smoother mobile scanning. And a new Type-C USB connector for compatibility with your other cables and faster to set up.
Specification
| General | Brand: Revopint Type: 3D Scanner Model: POP 3 Standard Edition Color: Black |
| Specification | Technology: Biocular Dual Camera Infrared Light Single-frame Precision: Up to 0.05mm Special Object Scanning: Use scanning spray for transparent, dark, or highly reflective objects. Single Capture Range: 125mm x 225mm Working Distance: 150mm - 400mm Minimum Scan Volume: 20mm x 20mm x 20mm Scanning Speed: 12fps - 18fps Output Formats: PLY, OBJ, and STL Point Distance/Resolution: 0.05mm Single-frame Accuracy: Up to 0.1mm Scanning Environment: Indoors and Outdoors 3D Printing Compatible: Yes IMU: 9-axis Color Scanning: Yes Light Source: Class 1 Infrared Light WiFi: 6.0 Compatible OS: Windows, Android, iOS, macOS Buttons: Three-touch buttons Connection Modes: USB Type-C to USB 3.0 Type-A Tracking Methods: Feature, Marker |
| Weight & Size | Scanner Weight: 190g Package Weight: 2kg Scanner Size(L x W x H): 153x45x29mm Package Size(L x W x H): 28.5x24x11cm |
| Package Contents | 1 x POP 3 3D Scanner 1 x Tripod 1 x Phone Holder 1 x 2-in-1 Mobile Cable 1 x Calibration Board 1 x USB Type-C Cable 1 x Turntable USB Cable 1 x Mini Turntable 1 x Marker Topper 1 x Carrying Case 1 x Type-C Adapter 1 x Sample Bust 1 x Gifts |
