Highlights

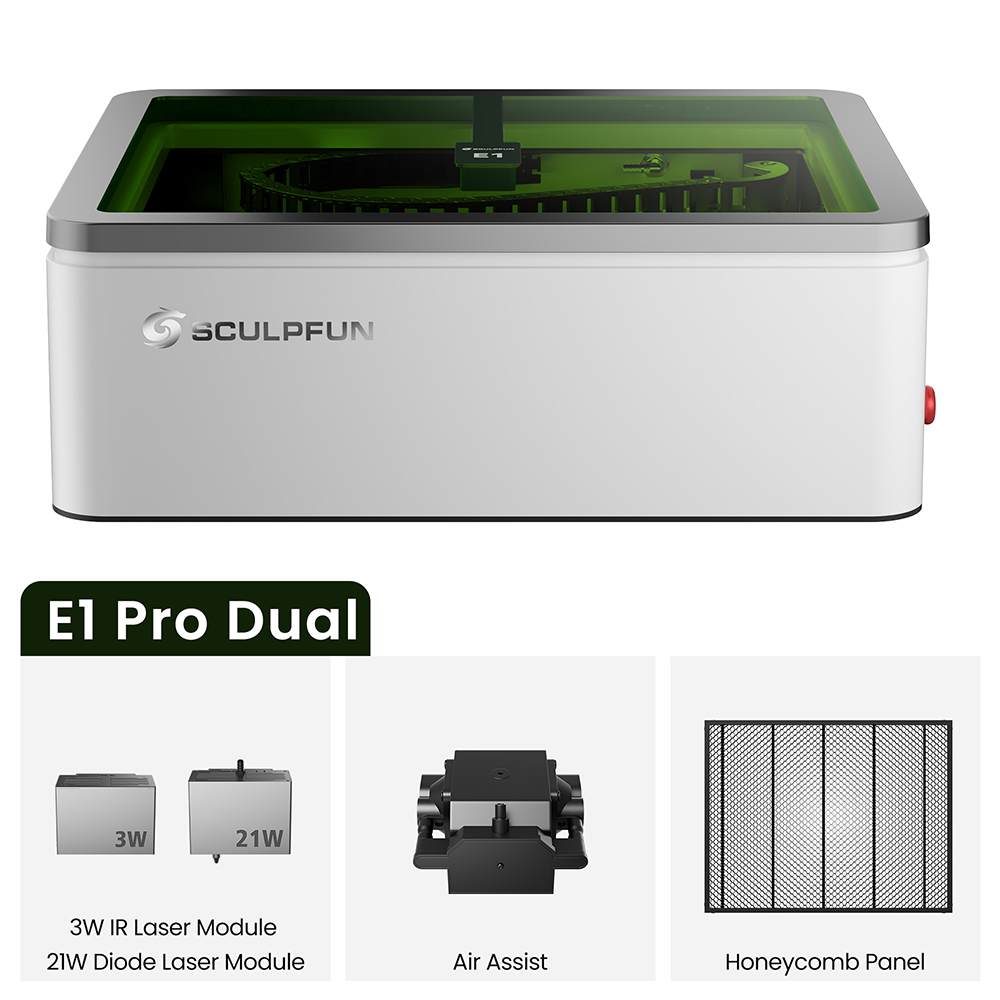

Fully Enclosed Class 1 Safety Design
The E1 Pro Dual features a fully enclosed structure that reduces smoke, heat, and noise while improving safety. It meets Class 1 laser safety standards and includes a safety lock, emergency stop button, Hall sensor, and automatic laser shutdown when the cover is opened.
Powerful 21W Laser for High-Efficiency Cutting
Equipped with a 21W 455nm diode laser, it delivers precise engraving and strong cutting performance, cutting up to 10mm wood and 8mm acrylic in one pass. With engraving speeds up to 600mm/s, it ensures fast and efficient operation.
3W 1064nm IR Laser for Expanded Applications
The E1 Pro Dual features a 3W 1064nm IR laser module for fine engraving on metals, plastics, and coated materials. Supporting 360+ materials, it significantly expands application possibilities.
Large Working & Material Area
Offers a 400 × 320mm working area and a 450 × 350mm material placement area, providing a spacious platform for larger and more complex projects. Supports materials up to 42mm thick for added flexibility.
High-Precision CoreXY Motion System
The CoreXY structure ensures smooth movement, higher positioning accuracy, and stable high-speed performance, improving engraving detail and cutting consistency.
Plug-and-Play Design
All-in-one structure with minimal setup required. Works with Sculpfun Space software for an easy and intuitive user experience.
Built-In Camera & Expandable Accessories
Comes with a built-in camera, pre-installed honeycomb panel, and air assist system for precise positioning and better cutting quality. Supports rotary attachment, riser base, and SP1 smoke purifier for expanded applications.
Specification
| Brand | SCULPFUN |
| Type | Laser Engraver |
| Model | E1 Pro Dual |
| Color | White-Green |
| Laser Power | 21W 455nm Diode Laser + 3W 1064nm IR Laser |
| Laser Spot Size (Diode) | 0.06 × 0.08mm |
| Laser Spot Size (IR) | 0.03 × 0.03mm |
| Connection | USB / Wi-Fi (App Only) |
| Operating Voltage | 24V |
| Operating Current | 6A |
| Working Area | 400 × 320mm |
| Material Placement Area | 450 × 350mm |
| Maximum Processing Thickness (With Honeycomb Panel) | 30mm |
| Maximum Processing Thickness (Without Honeycomb Panel) | 42mm |
| Diode Laser Engraving Materials | Wood, Bamboo, Cardboard, Plastics, Leather, PCB Boards, Anodized Aluminum, 304 Stainless Steel, Ceramics, Dark-Colored Stone |
| Diode Laser Cutting Materials | Wood Sheets, Acrylic Sheets, Cardboard, Non-Woven Fabric, Bamboo Sheets, Certain Plastic Sheets |
| IR Laser Engraving Materials | Metals, Plastics, Wood, Leather, Acrylic, Stone, Ceramics, Glass, Paper (300+ Materials) |
| Product Weight | 12.05kg |
| Package Weight | 18.35kg |
| Product Size(L x W x H) | 590×500×205mm |
| Package Size(L x W x H) | 675×585×285mm |
| Package Contents | 1 x Machine 1 x User Manual 1 x 455nm Laser Module (Pre-installed) 1 x 1064nm Laser Module 1 x Exhaust Hose 1 x Flange 1 x Hose Clamp 1 x Air Pump 1 x Air Hose 1 x Safety Goggles 1 x 24V/6A Power Adapter 1 x Honeycomb Panel (Pre-installed) 1 x Tool Kit 1 x USB Safety Key 1 x Cable Set 2 x Camera Calibration Papers 1 x Laser Maintenance Kit 5 x 3mm Basswood Sheets |
