Highlights
This LFP Series Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch. low frequency, low Idle Current, BTS cable, remote control.
The split-phase inverter requires 240VAC input and provide can 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.

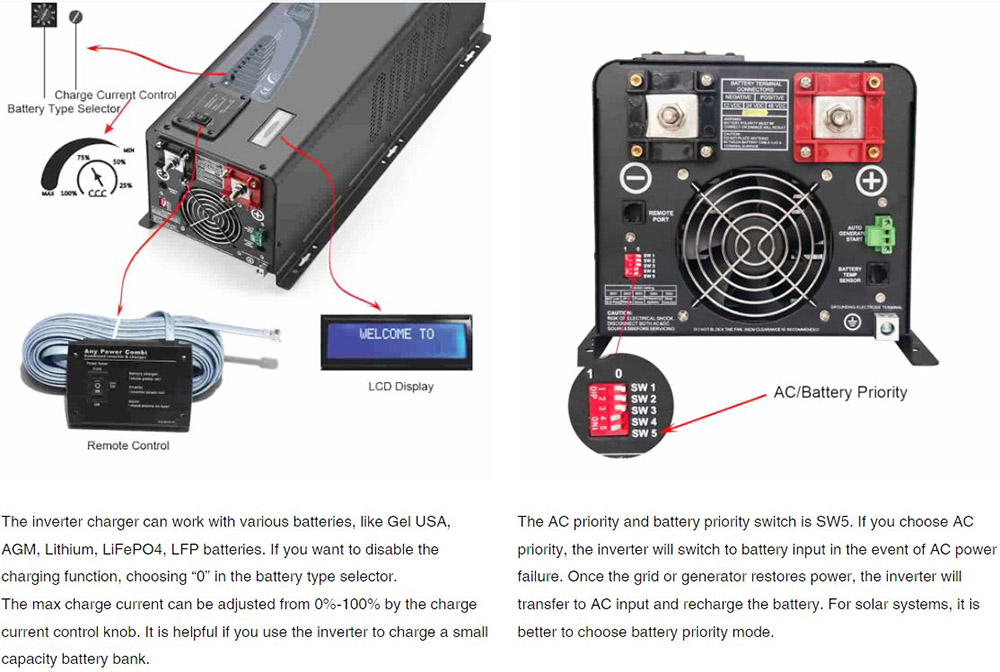

AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.

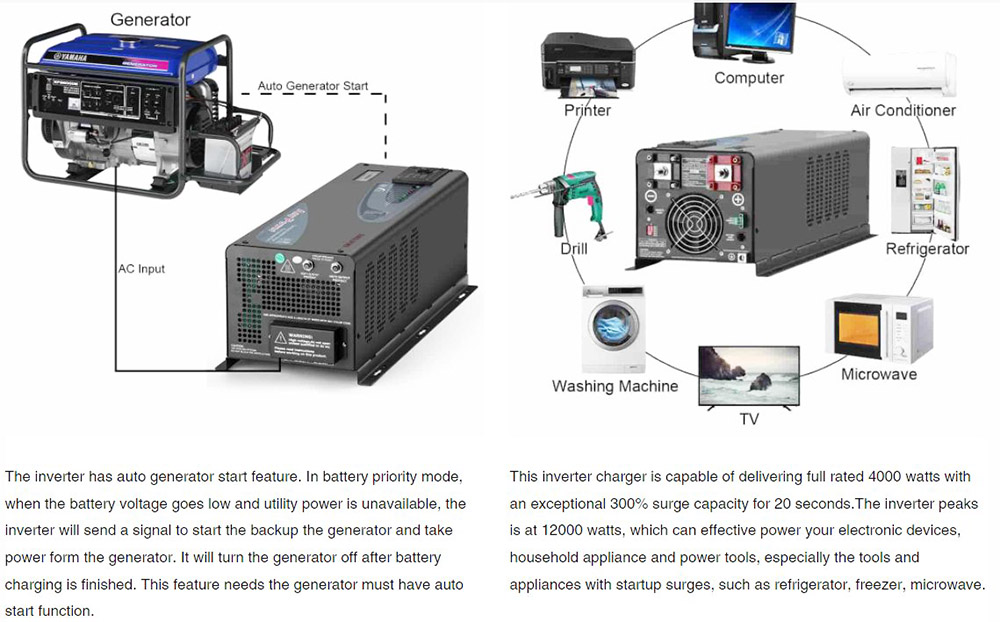

Auto Gen Start: The inverter can start up a generator when the battery voltage goes low. and turn the generator off after battery charging is finished.
Specification
| General | Brand: SunGoldPower |
| Specification | Inverter Output: *Continuous Output Power: 4000W *Surge Rating: 12000W (20 Seconds) *AC Output: AC 120V and AC 240V *AC Input: 240V *Output Wave: Pure Sine Wave (bypass mode) *Typical Transfer Time: 10ms (MAX) *Nominal Efficiency: >88% DC Input: *Nominal Input Voltage: 24.0Vdc *Minimum Start Voltage: 20.0Vdc *Low Battery Alarm: 21.0Vdc-22.0Vdc *Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1) *High Voltage Alarm: 32.0Vdc *Low battery Voltage Restart: 26Vdc *Idle Consumption: 48W *Power Saver Mode Idle Consumption: 19W AC Charger : *Charger Rate: 50+/-5A *AC input Range (Grid or Generator): 140V-270VAC/184V-253VAC (select by SW2) *Over Charge Protection Shut down: 31.4V *Selectable Charge Setting based on battery type *Adjustable charge current: off 0%-100% *3-step intelligent battery charger |
| Weight & Size | Unit Weight: 55LB Unit Size: 22 x 9.1 x 7.5 inch Shipping Weight: 64LB Shipping Size: 27 x 13.4 x 13 inch |
| Package Contents | 1 x PURE SINE WAVE INVERTER |
