Highlights
1. Shorter drive gears 11mm vs 15mm
2. Hardened filament drive gears
3. Weight reduced to ~135 grams
4. Smaller more compact dimensions (11.6% shorter)
5. New motor design offers ~40% increase in pushing force in real printing conditions and much-improved
acceleration performance
6. Flipped drive gears – filament path closer to the extruder center for a more balanced design and a perfect fit on delta printers as well
7. Stainless steel filament exit guide with 0.2-0.3mm clearance to drive gears for best TPU printing
experience and extreme wear resistance when using abrasive filaments.
8. High-temperature resistant injected housings, GPA12
9. Machined PEEK secondary drive gear sleeve
10. Tension mechanism with grab screw design (Captive Grab Screw)
11. Mounting screws in line with filament exit path – improving housing stiffness and easier mounting
12. Perfectly aligned filament path
13. New smaller and better PTFE input coupler
14. Motor position rotated by additional 10 degrees for easier maintenance and assembly
15. Filament sensor add on with auto load and unload button add on feature
16. And many more small changes to improve mechanical accuracy and design look
Specification
| General |
Brand: Trianglelab |
| Specification | Phase Number: 2 Rated Voltage: DC 2.1V / Phase Phase Resistance: 2.1x(1+10%) Ω Holding Torque: 100mN-m MIN Rotate Direction: ACBDA CW HI-POT: AC600V/1mA/1S Rotor Inertia: 16 g-cm2 REF Step Angle: 1.8° + 5% Rated Current: DC 1.0A / Phase Detent Torque: 5 mN-m REF. Insulate Resistance: 100Mohm(DC500V) Insulation Class: Class H 180°C |
| Weight & Size | Product Weight: 85g Package Weight: 140g Package Size(L x W x H): 8x5x3cm |
| Package Contents |

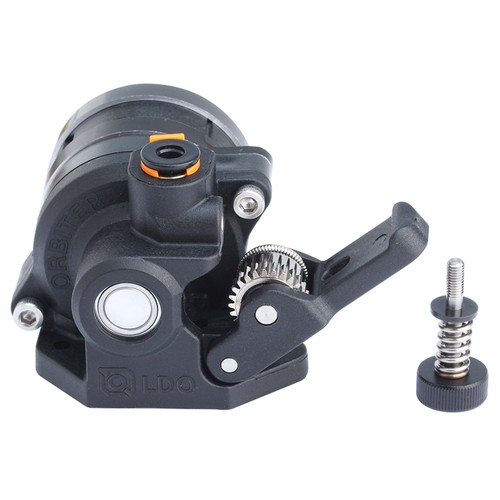

Trianglelab Orbiter Extruder V2.0 LDO MOTOR x 1 |
