General |
Core |
O.S |
Built in Linux |
Control protocol |
ONVIF2.4 protocol,high interoperability |
Processor |
Hi3518C processor,built in ARM9 @Max. 440MHz and High-speed video co-processor |
Video |
Compression format |
H.264 Baseline Profile@H.264 Main Profile@MJPEG/JPEG Baseline |
resolution/frame rate |
720p/VGA/QVGA 30fps/25fps |
Image adjustment |
Brightness, Contrast, Saturation are adjustable |
Sensor |
1/4 720p Progressive CMOS sensor |
Minimum illumination |
1.0 Lux / F1.2 |
CMOS |
support AWB,AGC,BLC |
Sensor size |
3.84mm×2.16mm |
Video coding |
Multi stream:720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture |
Bit Rate |
CBR/VBR,output range:32kbps~40Mbps |
Lens/viewing angle |
3.6mm/56.14° |
Night Vision |
Night vision |
Dual IR-CUT Filter auto switch, 30pcs 850nmΦ5mm LED,15m IR distance |
Network |
Socket |
10/100Mb self-adaptable Ethernet slot |
Network Protocol |
TCP/IP,HTTP,RTSP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,,P2P ,ONVIF ect. |
Online visitor |
Support 4 online visitors viewing simutaneously |
IP address |
Dynamic IP and static IP address |

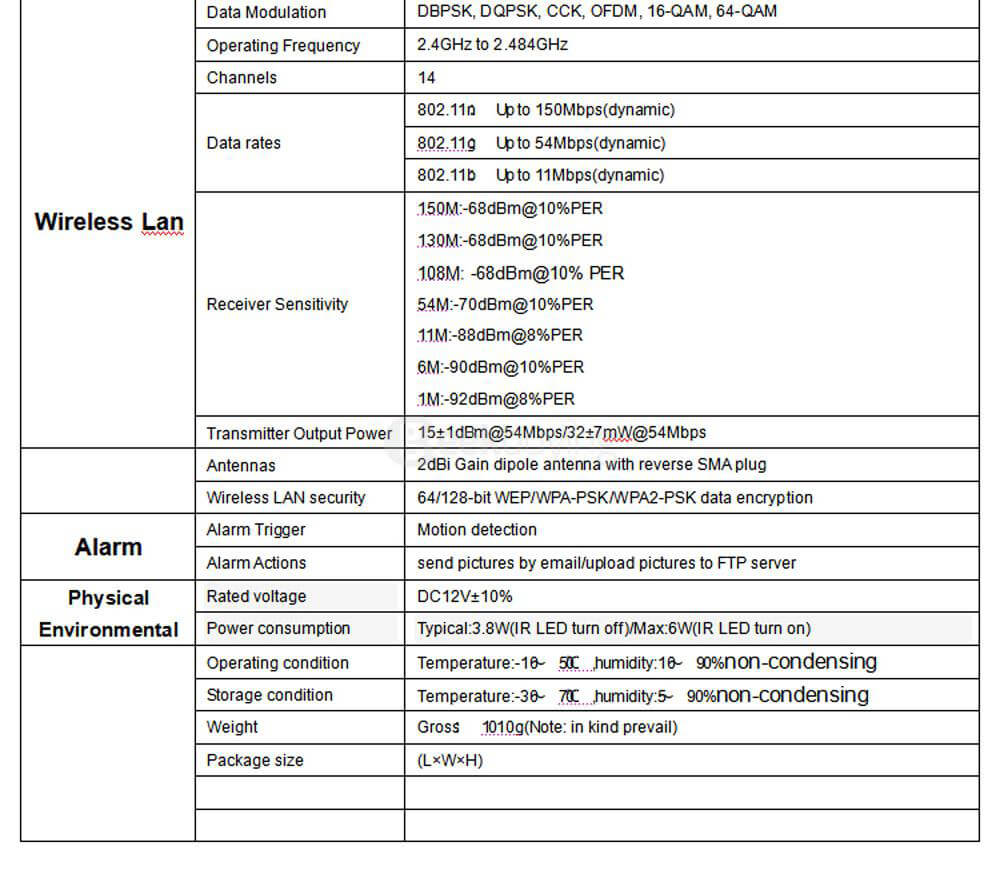

WIFI |
WIFI 802.11 b/g/n |
TF card |
support 64G TF card . |
Network adaptability |
can auto adjust stream and frame rate according to the bandwidth |
Others |
Housing material |
Engineering-plastics |
Use Enviroment |
both indoor and outdoor |
Power supply |
DC12V±10% |
Working temperature |
-20 ~ 50 ºC |
RTP |
Support RTP, can auto adjust time when restart after power failure. |
Accessories |
Power adapter, user manual, warranty card,mounting bracket,screws. |
|
Motioin Detection |
can setup motion detection sensitivity |
Alarm notification |
E-mail snapshot, FTP upload alarm pic . |
System Requirements |
Operating System |
Win98 SE/ME/2000/XP/Vista/win7 IE5.0, NET4.5, firefox, chrome |
Certificate |
Certificates |
ISO FCC CE RoHS |
|
|
Only for reference |
