Highlights

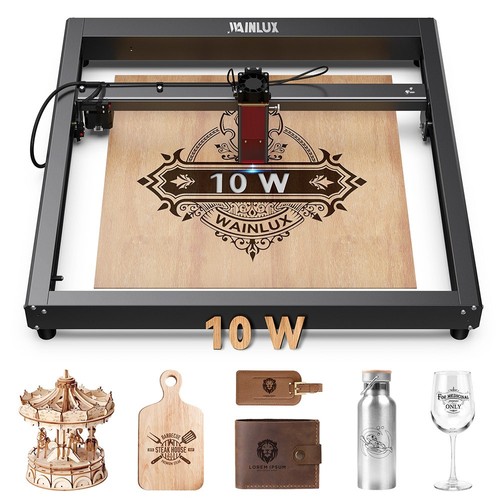

WAINLUX JL7 Laser Engraver Main Features
WAINLUX JL7 is a desktop DIY laser engraver, capable of cutting 8mm light wood boards easily and smoothly. It is an ideal gift for carving enthusiasts and carving artists alike. JL7 works on a great variety of materials, including wood, bamboo, leather, craft paper, cardboard, felt, plastic, rubber, acrylic, Stainless steel, titanium steel, painted metal, etc.
- 10W Laser Power
- Fixed Focus, adjustable with Knob
- 0.05*0.08mm Compressed Spot
- 0.01mm Engraving Precision
- 12000mm/min Engraving Speed
- App Control, 400*400mm

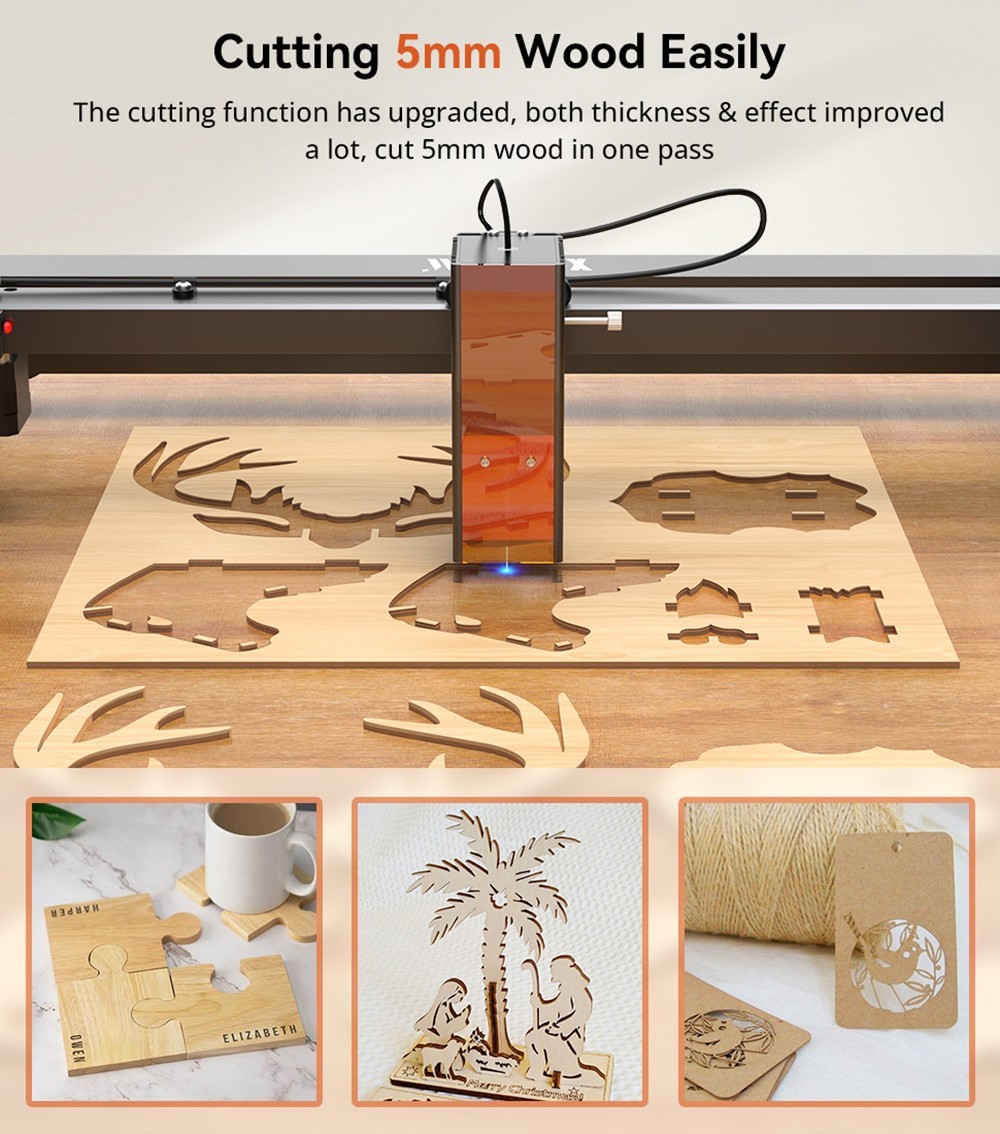

Real 10W Laser Engraver
WAINLUX JL7 Laser Engraver has 60w machine power and 10w output power, which can deliver super-cutting penetration and precision, allowing you to cut a 10mm basswood board and a 10mm black acrylic with ease.
Higher Precision
Featuring a 0.08*0.05mm ultra-fine compressed light spot technology, the minimum engraving accuracy reaches 0.01mm, WAINLUX JL7 laser engraver is possible to achieve the perfect 1:1 existence of the engraving renderings. A large engraving size of 400*400mm meets your multiple engraving and cutting needs.

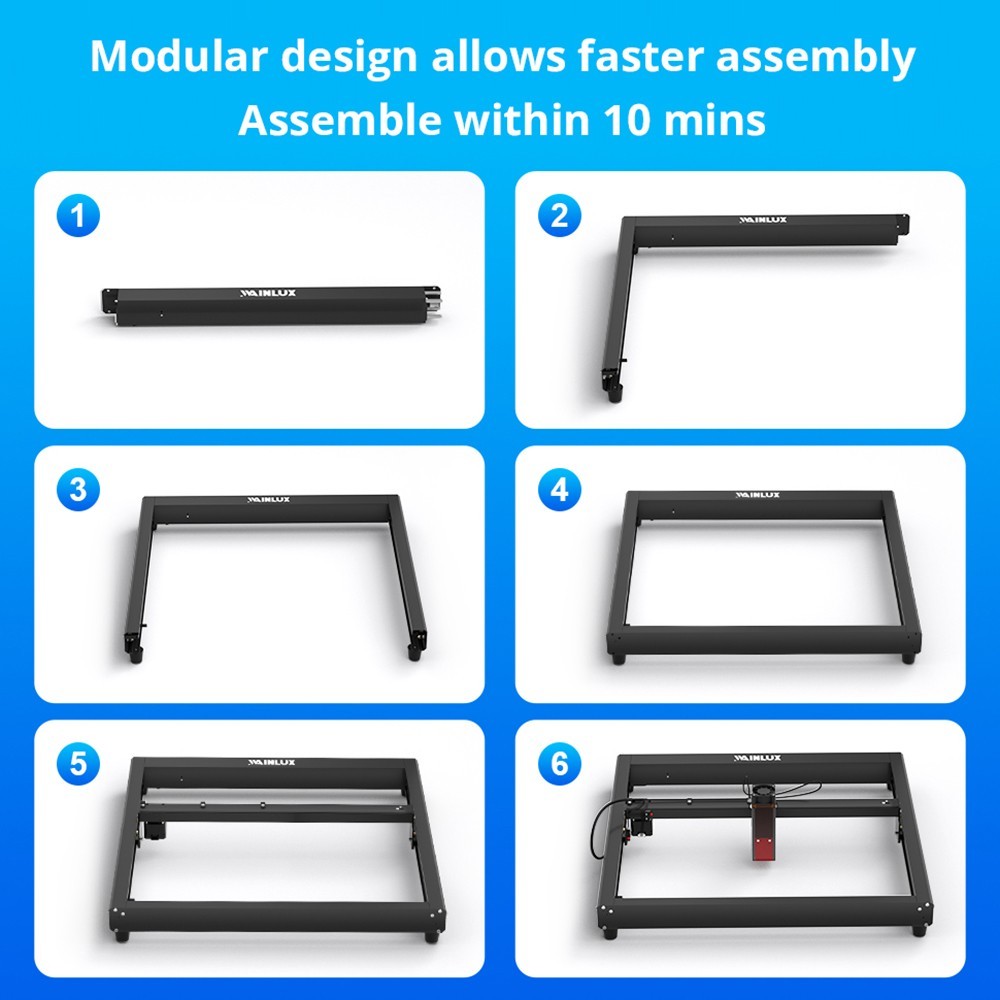

Solid and Easy to Install
The design of all-steel guide rails and closed synchronous belts improves stability several times compared to the ordinary bare belt + nylon pulley structure on the market. It's easy to install within 10 minutes, and you can unleash your creativity on many materials including bamboo, wood, leather, aluminum oxide, metal, glass, and more.

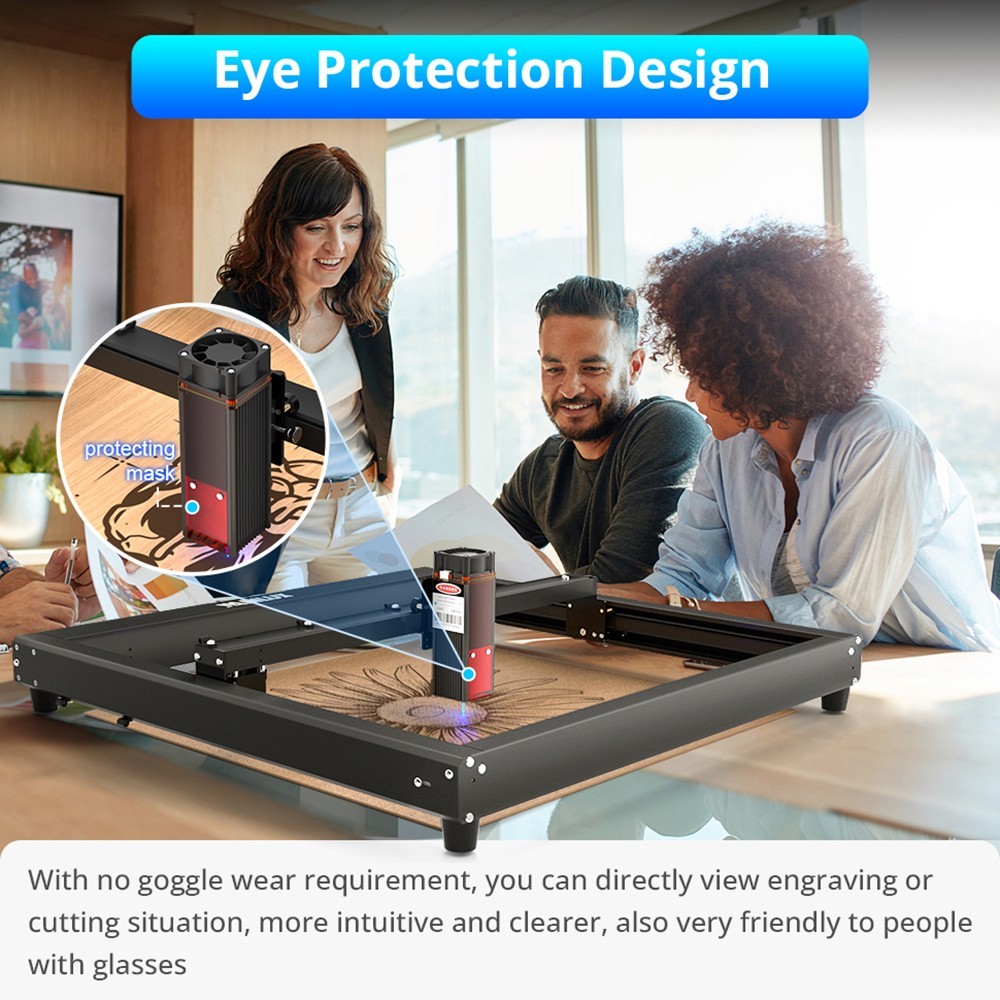

Safety Protection
When JL7 laser cutter is displaced or tilted 15°±5°, it will automatically stop the laser to prevent damage to the target from the laser. 360° anti-UV filter acrylic on the laser module filters 97% of UV rays to monitor the engraving progress and protect your eyes.
Wide Compatibility
The WAINLUX JL7 laser cutter and engraver machine is compatible with LightBurn and LaserGRBL, and also supports the use of WAINLUX's own developed free software. It also supports Bluetooth, USB data cable, and TF card to transmit data, and can be run on Windows XP, 7, 8, 10, 11, and Mac systems.
Specification
| General | Brand: WAINLUX Type: Laser Engraver Model: JL7 Color: Black |
| Specification | Laser light power: 10W Fuselage structure material: High-strength aluminum (anodized) + ABS engineering plastics Engraving size(mm): 400*400mm assembly time: 15min Machine power: 60W Engraving precision: 0.01mm Cooling method: air cooled Laser eye protection design: Eye protection acrylic in orange Laser type: 10W spot compression, wavelength 455nm Focus method: Knob-fixed focus Laser stability: Reasonable design of driver board, laser die, heat dissipation, stable optical and electrical performance Laser wavelength: 455nm Focus type of laser module: Spot compression Laser spot size: 0.08*0.05mm Laser module life: About 15000h at 27°C ambient temperature Engraving speed: 100mm/s Motor: stepper motor Motor-driven: Stepper motor driver chip Processor: 32-bit high-speed MCU Cuttable material: Cardboard, wood board, cloth, leather, etc. Engravable Material: Most non-transparent materials such as cardboard, wood, cloth, leather, stone, ceramics, stainless steel; transparent materials such as glass can be engraved after blackening. Support system: GRBL software platform (windowsOS, macOS); Xinjia software platform (windowsOS, macOS, Android, IOS), Note: LaserGRBL software does not support macOS. |
| Weight & Size | Product Weight: 5kg Package Weight: 5.6kg Package Size(L x W x H): 20x28x64cm |
| Package Contents | 1 x Laser Engraver 1 x User Manual |
