Highlights
Powerful DC Power Supply

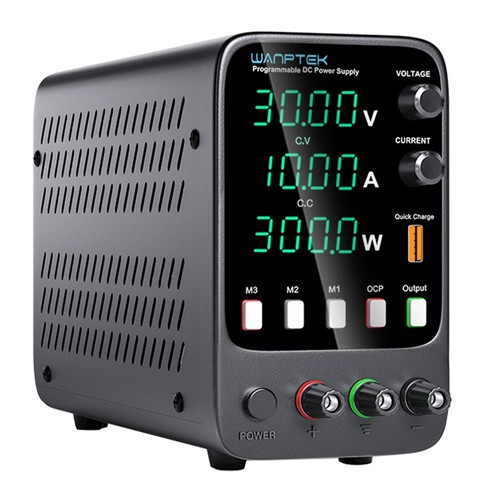

Wanptek APS3010H is a three-window four-digit display, with data storage, and program-controlled switch DC-regulated power supply, which can display voltage, current, and power at the same time. They are widely used in mobile phone repair, computer repair, battery charging, school teaching, and production line use.
USB Fast Charge
The output voltage and output current can be continuously adjusted between 0 and the nominal value by using the coding potentiometer, and the set value can be displayed in advance, which is convenient for use and adjustment. This machine has a USB fast charging function and supports multiple fast charging protocols.
Safe and Easy to Use
With perfect OVP and OCP short-circuit protection circuits, this product also provides a host computer communication function (optional), which is convenient for users to remotely control PC computers and other main control devices through USB data lines. The stability and ripple factor of the power supply are very good. It is small in size, beautiful in design, and easy to operate.
Specification
| General | Brand: WANPTEK Type: DC Power Supply Model: APS3010H Color: Black |
| Specification | Output Voltage: 0-30V Output Current: 0-10A Auxiliary functions: USB fast charging, output on and off, data storage, USB host communication (optional) Input voltage: AC230V ± 10% 50HZ Working TEMP: 0 - 40 Celsius; Humidity: <80% RH Storage TEMP: 10 - 70 Celsius; Humidity: <70% RH C.V: Voltage stability: ≤0.5% ±3mV Load stability: ≤0.5% ±3m Ripple voltage: ≤ 0.5% Vp-p C.C: Current stability: ≤0.5% ±3MA Load stability: ≤0.5% ±3MA Ripple current: ≤ 0.5% Vp-p Temperature Coefficient: ≤100ppm/℃ Protection mode: OVP overvoltage protection, OCP overcurrent protection, overtemperature protection, short circuit alarm stop output Display: Four-digit digital tube, three-window display Accuracy: 0.5% ± digit Resolution: Voltage: 0.01V; current: 0.001A |
| Weight & Size | Product Weight: 1.15kg Package Weight: 1.5kg Product Size(L x W x H): 19x9x14.5cm Package Size(L x W x H): 26.5x13.5x19.5cm |
| Package Contents | 1 x DC Power Supply 1 x U-shaped Transmission Line 1 x Power Cord 1 x User Manual |
