Highlights

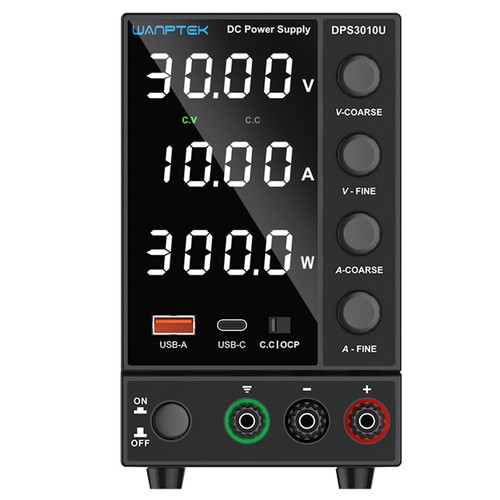

High Precision DC Regulated Power Supply
The DPS series product is a high-precision switch type DC regulated power supply with 3 windows and 4 positions display, which can simultaneously display voltage, current, and power. It is widely used for mobile phone repair, computer repair, school and production line use
Encoder Adjustment, Safe Protection

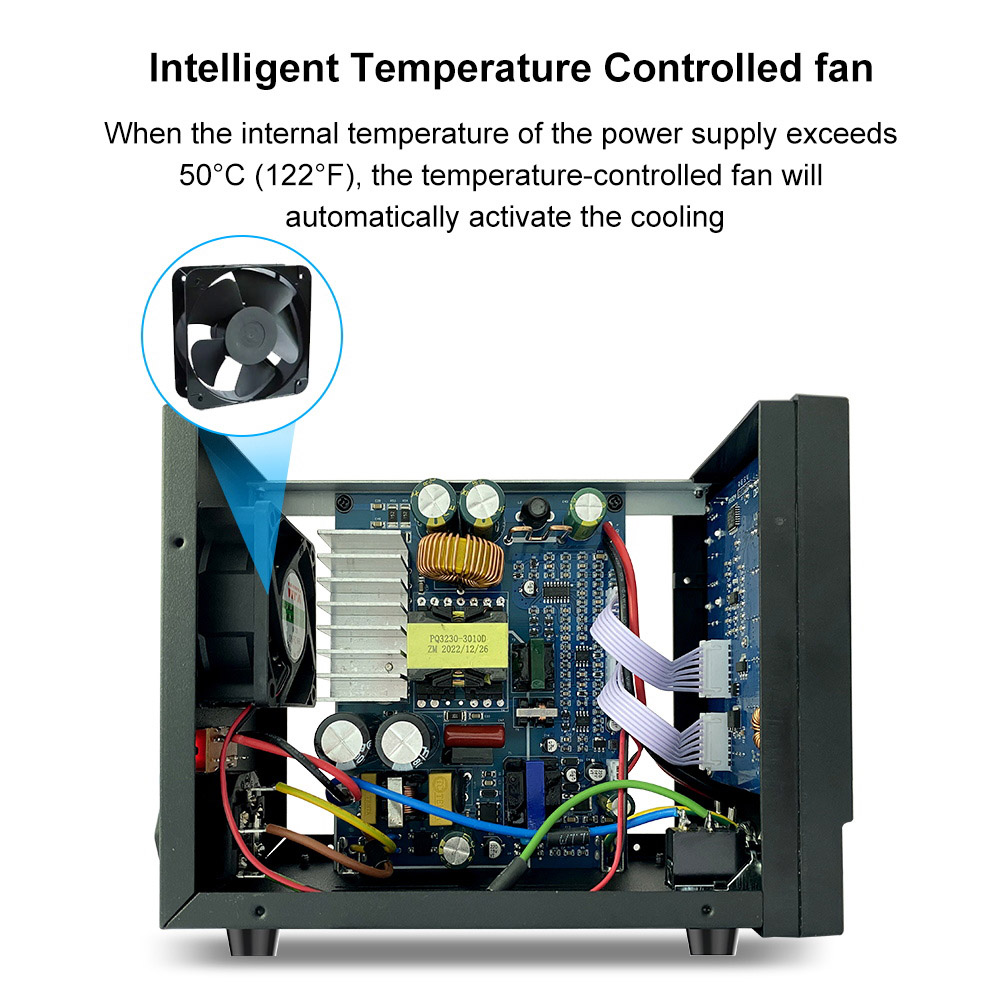

Its output voltage and output current can be continuously adjustable using an encoder. The stability and ripple coefficient of the power supply are very good, and the machine has a perfect OCP short-circuit protection circuit. Temperature-controlled fan for heat dissipation, low noise, and long service life.
USB-A/Type-C Fast Charging
The auxiliary function includes USB-A/Type-C fast charging function. Its small size, beautiful design, convenient operation, and ability to work at full load for long periods are deeply loved by users.
Specification
| General | Brand: WANPTEK Type: DC Power Supply Model: DPS3010U Color: Black |
| Specification | Output Power: 300W Output Voltage: 0 - 30V Output Current: 0 - 10A Auxiliary functions: USB-A/Type-C fast charging, supporting various fast charging protocols Protection mode: Current limiting protection / short circuit alarm stop output, self-recovery Input voltage: AC230V ± 10% 50Hz Working TEMP: 0 - 40 Celsius; Humidity: <80% RH Storage TEMP: -10 - 70 Celsius; Humidity: <70% RH C.V: Voltage stability: 0.1%±3mV Load stability: 0.2%±3mV Ripple voltage: ≤ 0.5% Vp-p C.C: Current stability: 0.1%±3mA Load stability: 0.2%±3mA Ripple current: ≤ 0.5% Vp-p Recovery time: ≤500μS Temperature coefficient: ≤100ppm/℃ Display: 0.56 inch white light 4-digit digital tube display Accuracy: 0.5% ± digit Resolution: Voltage: 0.01V; current: 0.001A |

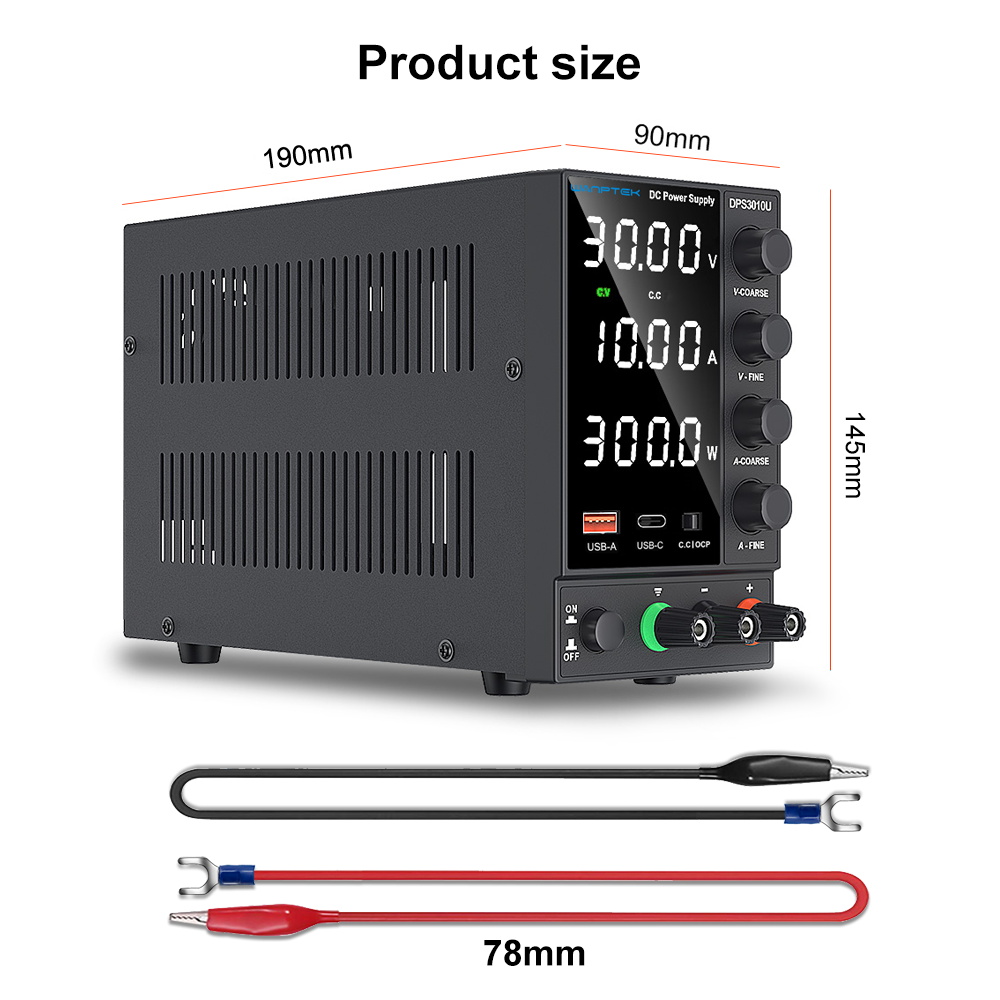

| Weight & Size | Product Weight: 1.2kg Package Weight: 1.6kg Product Size(L x W x H): 190x90x145mm Package Size(L x W x H): 265x135x195mm |
| Package Contents | 1 x DC Power Supply 1 x Power Cord 1 x Test Line 1 x User Manual |
