Highlights

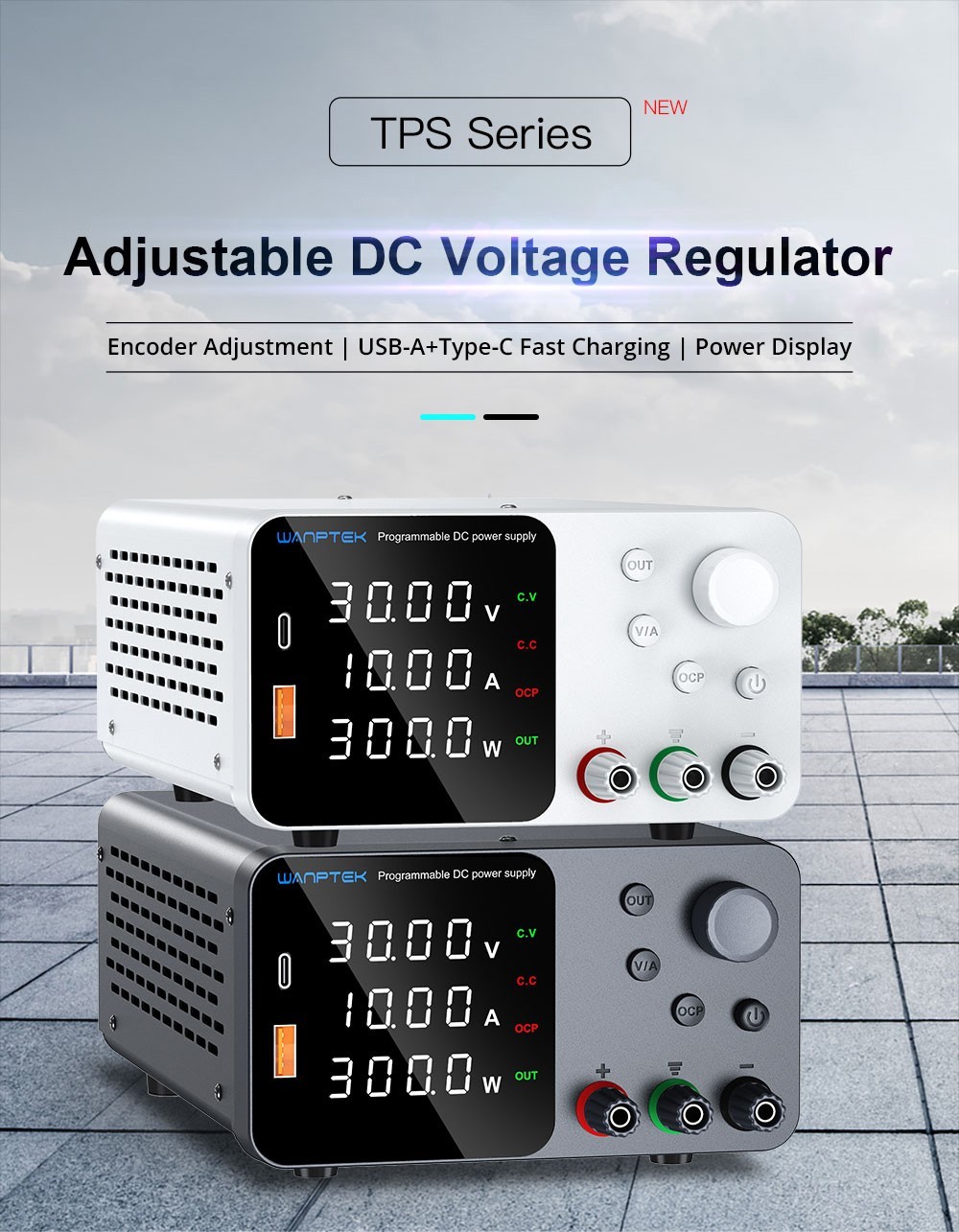

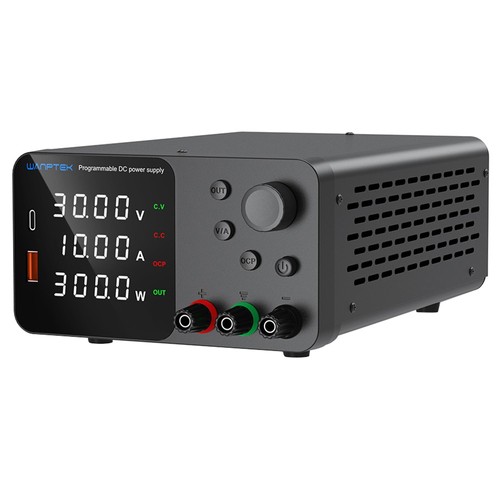

Powerful DC Power Supply

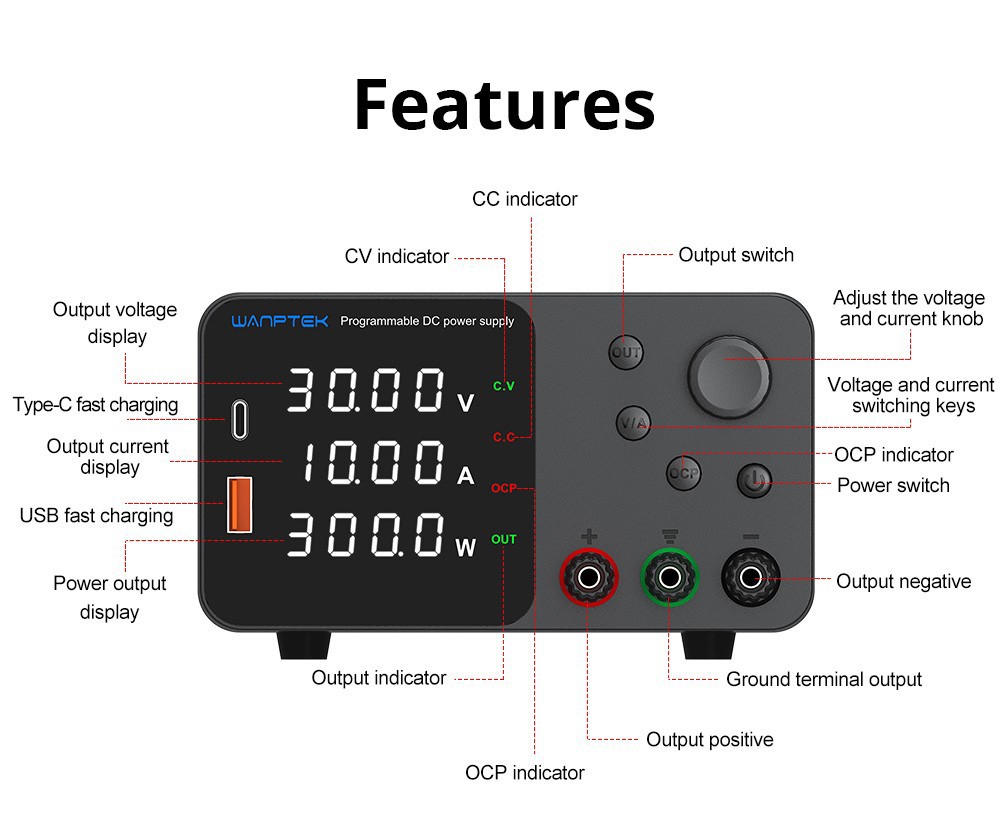

WANPTEK TPS3010 is a DC-regulated power supply with a three-window four-digit display, which can display voltage, current, and power at the same time. They are widely used in mobile phone repair, computer repair, battery charging, school teaching, and production line use.

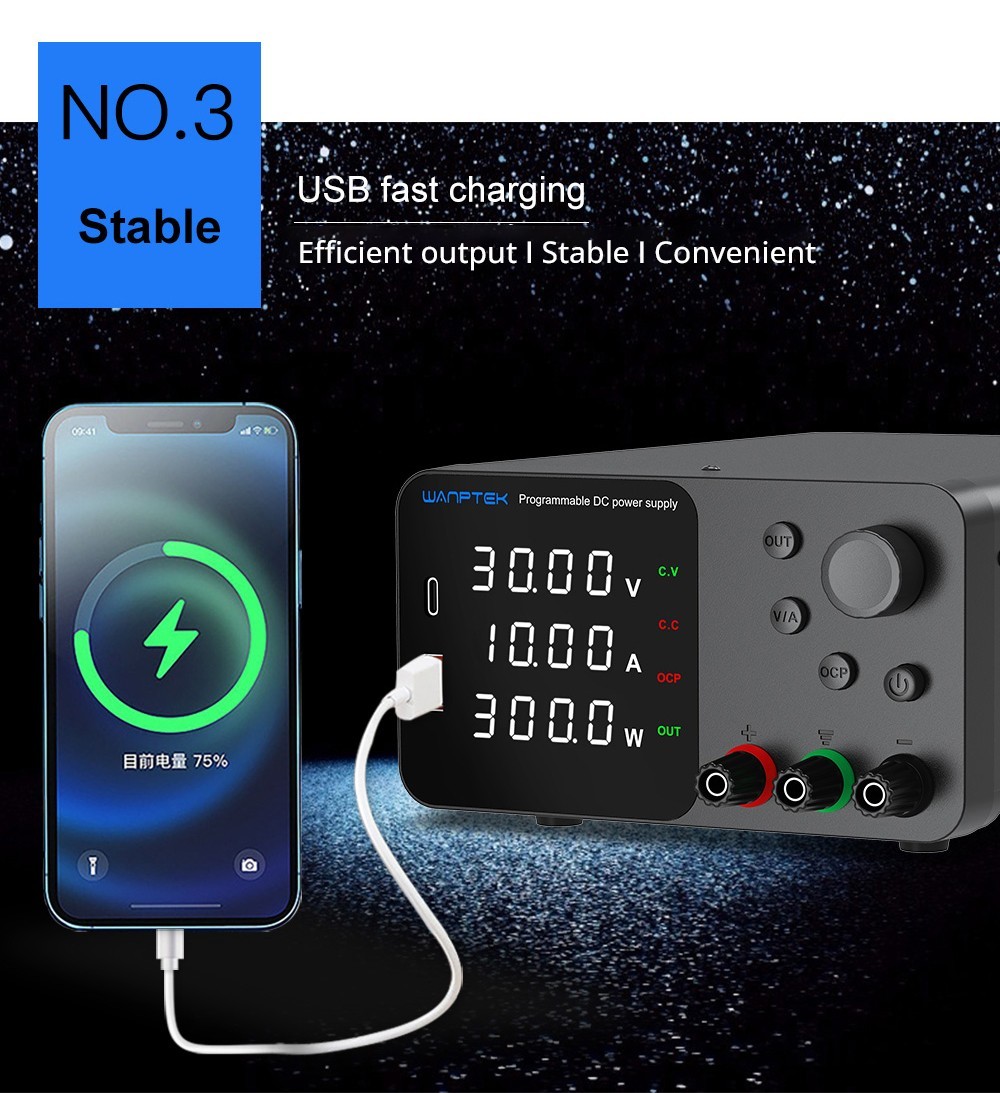

USB-A/Type-C Fast Charge

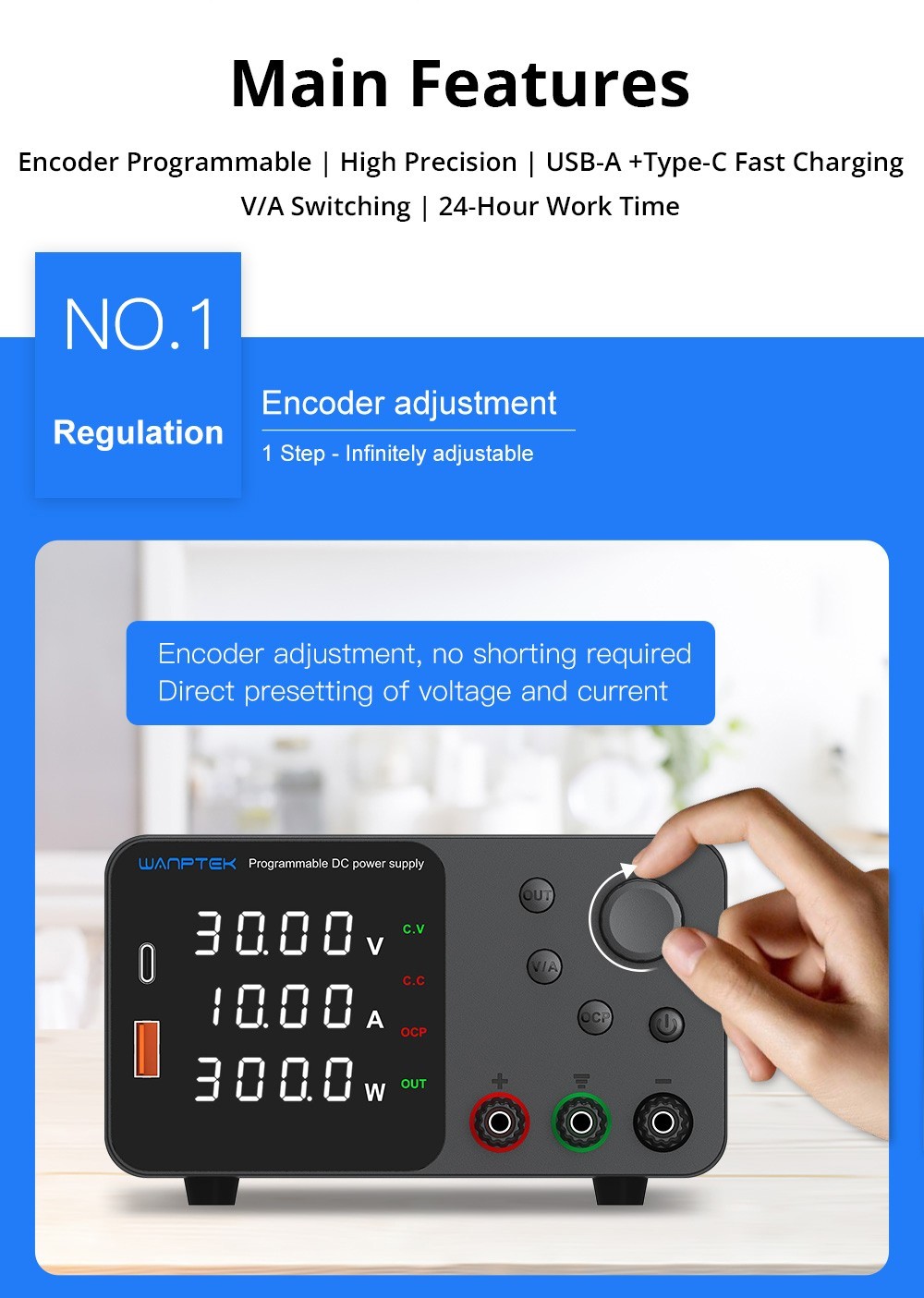

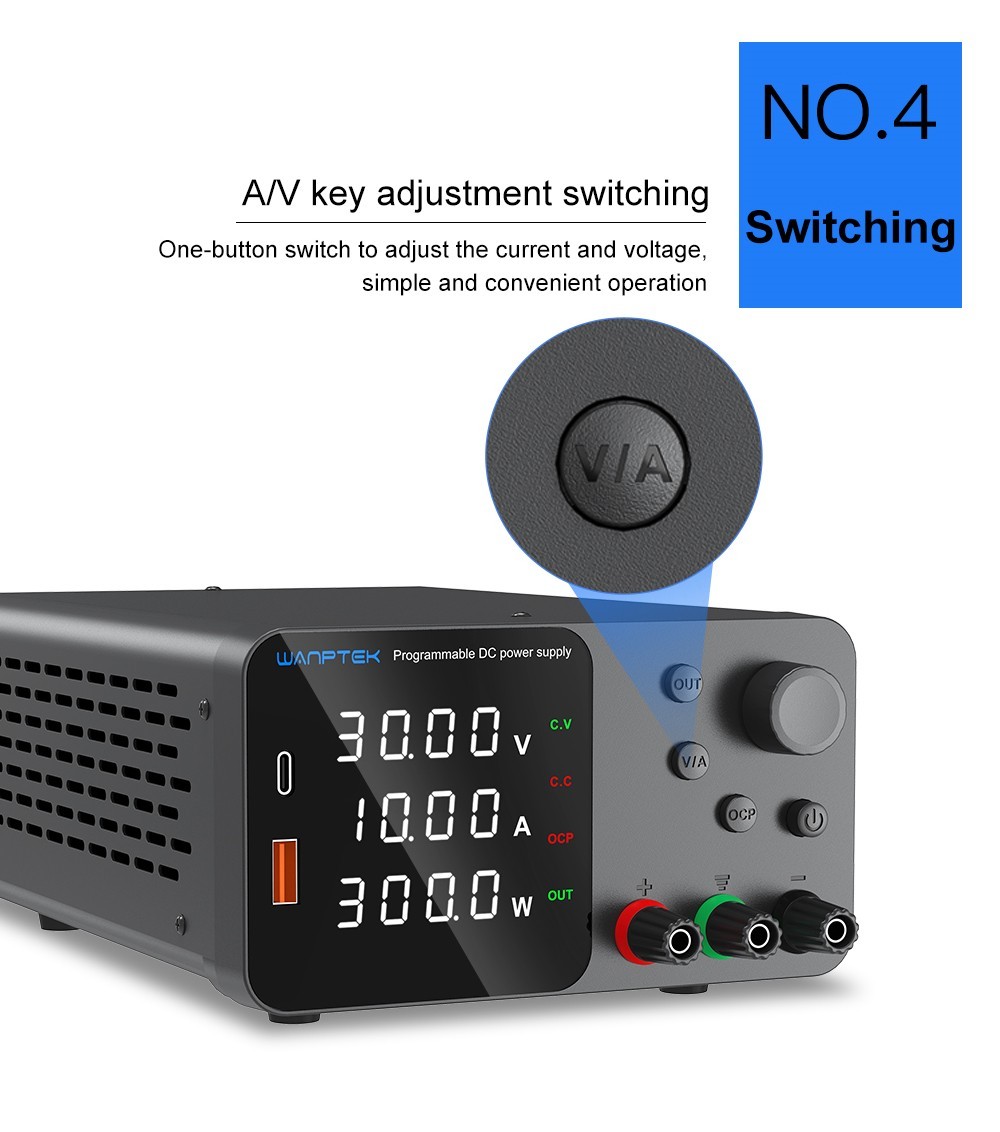

The output voltage and output current can be continuously adjusted between 0 and the nominal value by using the coding potentiometer, and the set value can be displayed in advance, which is convenient for use and adjustment. This machine has a USB-A/Type-C fast charging function and supports multiple fast charging protocols.
Safe and Easy to Use

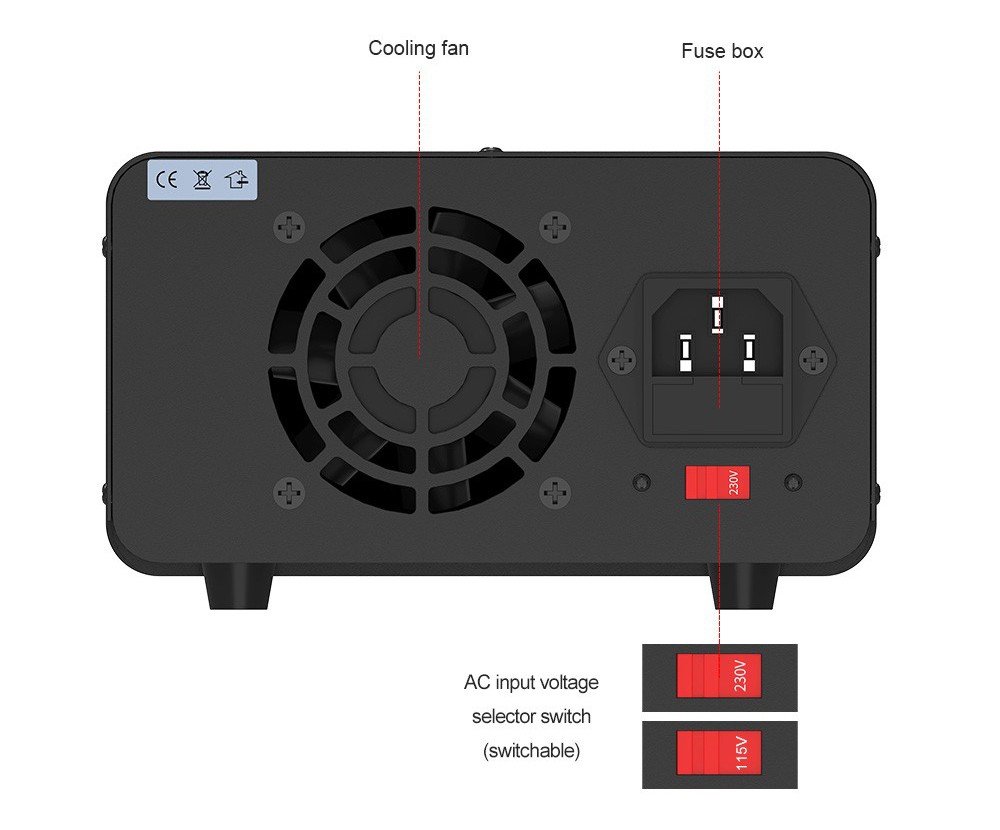

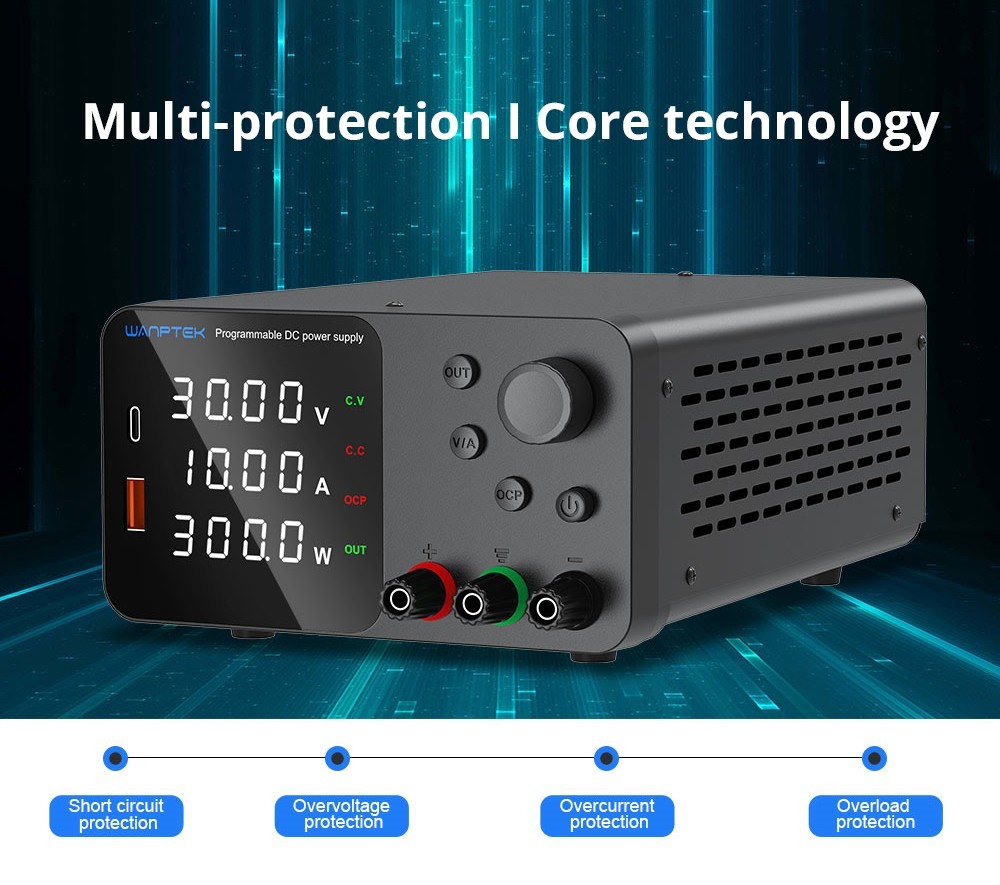

It has perfect OCP short circuit protection and short circuit alarm stop output function. Temperature-controlled fan can dissipate heat. Low noise, long service life, small in size, and easy to operate.
Specification
| General | Brand: WANPTEK Type: DC Power Supply Model: TPS3010 Color: Black |
| Specification | Output Voltage: 0 - 30V Output Current: 0 - 10A Auxiliary functions: USB-A/Type-C fast charging, support various fast charging protocols Input voltage: AC 115V ± 10% 60 HZ Working TEMP: 0 - 40 Celsius; Humidity: <80% RH Storage TEMP: 10 - 70 Celsius; Humidity: <70% RH C.V: Voltage stability: 0.1% ± 3mV Load stability: 0.2% ± 3mV Ripple voltage: ≤ 0.5% Vp-p C.C: Current stability: 0.1% ± 3mA Load stability: 0.2% ± 3mA Ripple current: ≤0.5% Vp-p Temperature Coefficient: ≤100ppm/℃ Protection mode: Current limiting protection/short circuit alarm stop output, self-recovery Display: Four-digit digital tube, three-window display Accuracy: 0.5% ± digit Resolution: Voltage: 0.01V; current: 0.001A |

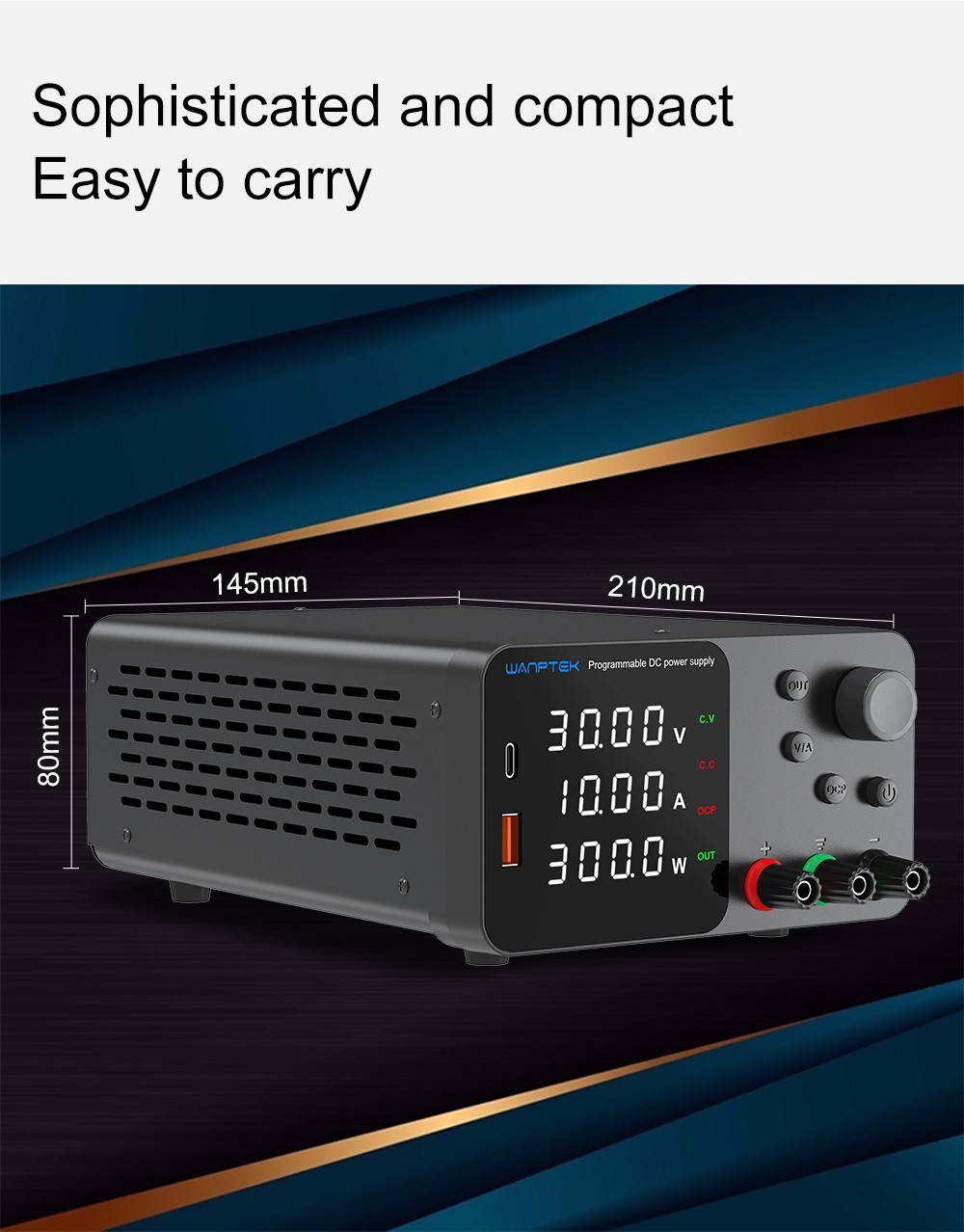

| Weight & Size | Product Weight: 1.2kg Package Weight: 1.6kg Product Size(L x W x H): 21x14.5x8cm Package Size(L x W x H): 30x19.5x13.5cm |

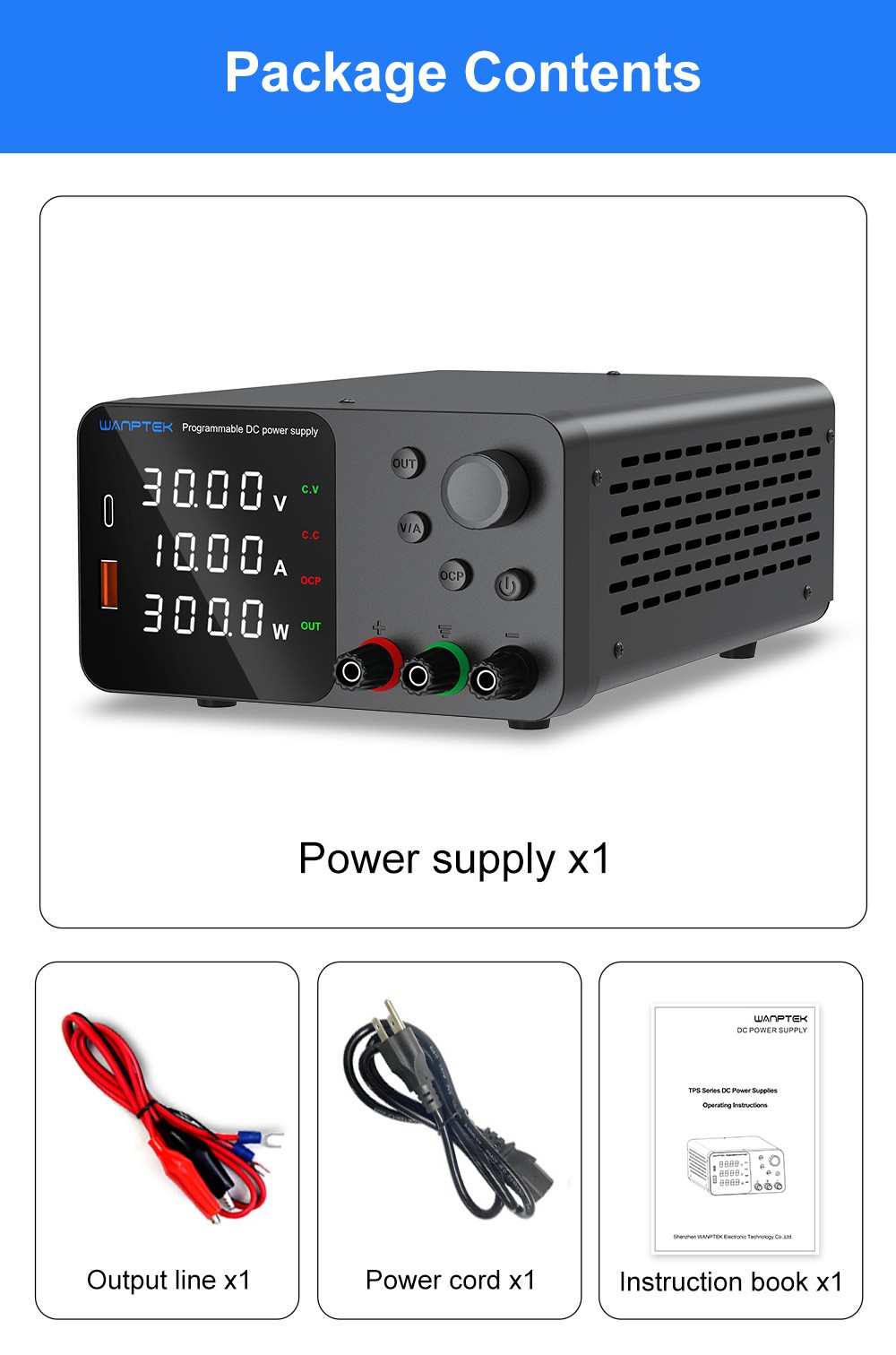

| Package Contents | 1 x DC Power Supply 1 x Output Line 1 x Power Cord 1 x User Manual |
