Highlights

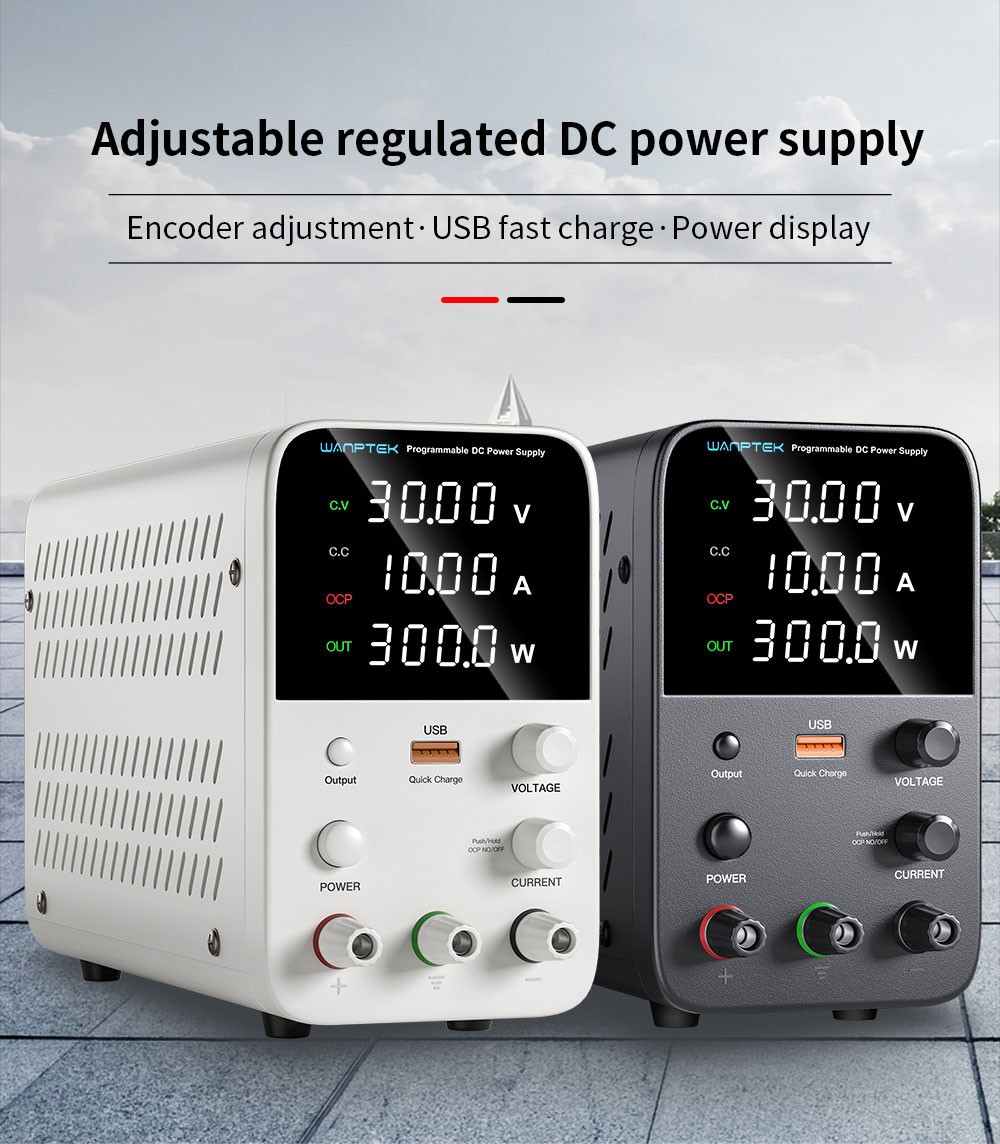

Programmable DC Power Supply

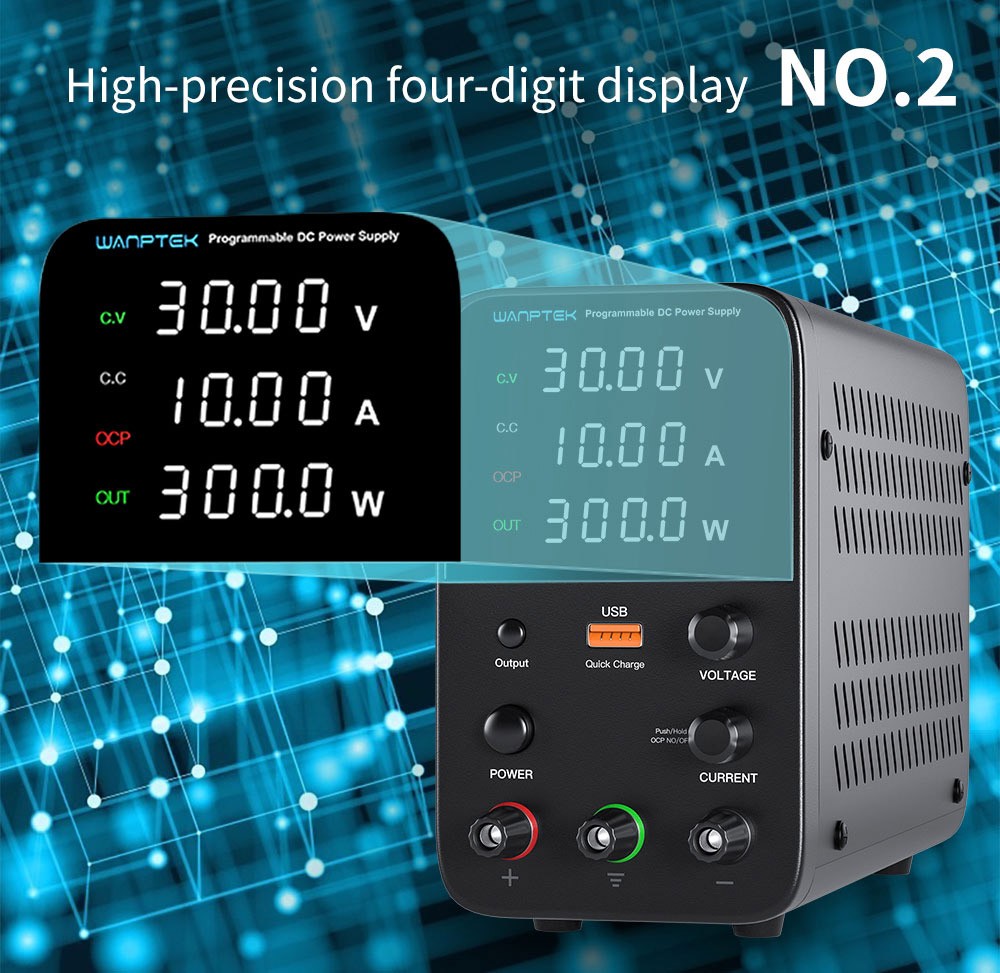

Wanptek WPS3010B is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides a high-precision three-window digital tube display of voltage, current, and power, so that users can intuitively see the current use status and various parameters of the machine.
Various Adjustment Functions
It can automatically switch between constant voltage and constant current. Dual voltage input, easy to choose. It also has the characteristics of high precision, voltage regulation, current limiting, and simple operation; the output voltage/current can be continuously adjusted from 0 to the rated voltage/current; adjusted between 0 and nominal value with fine regulating and coarse regulating.
Safe and Long Life

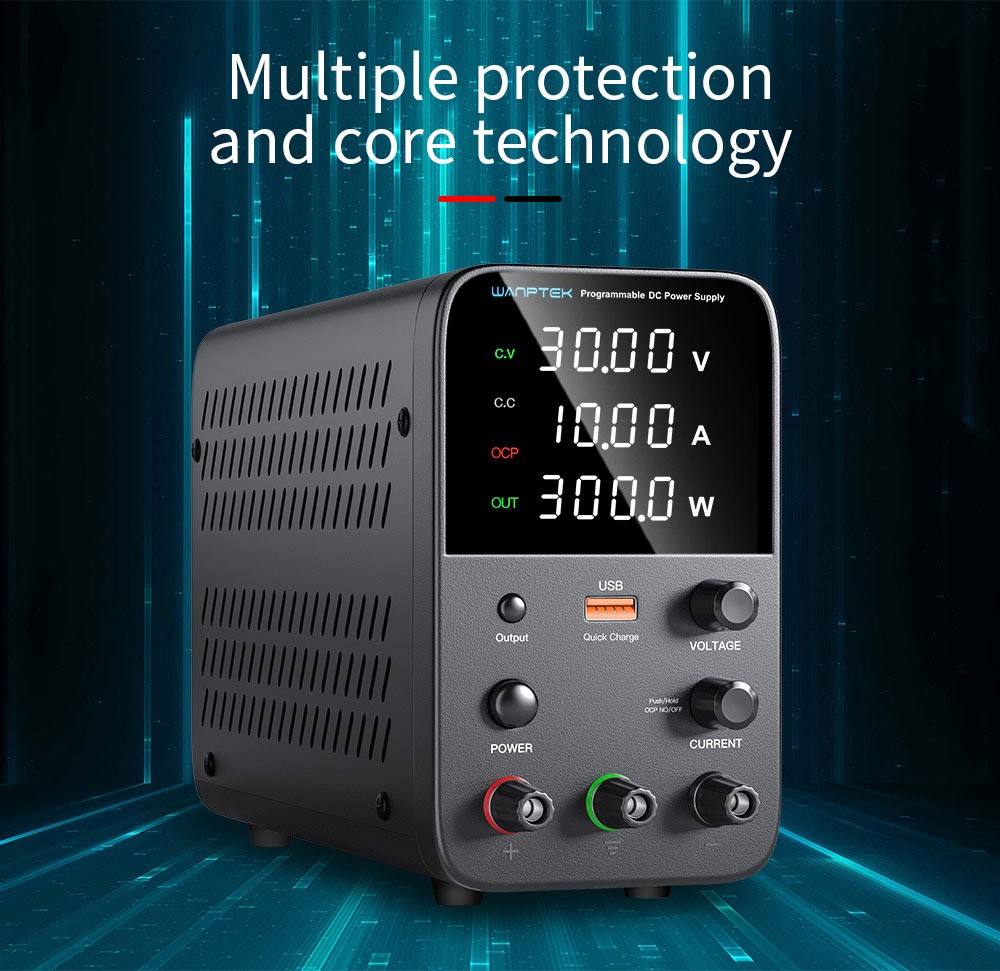

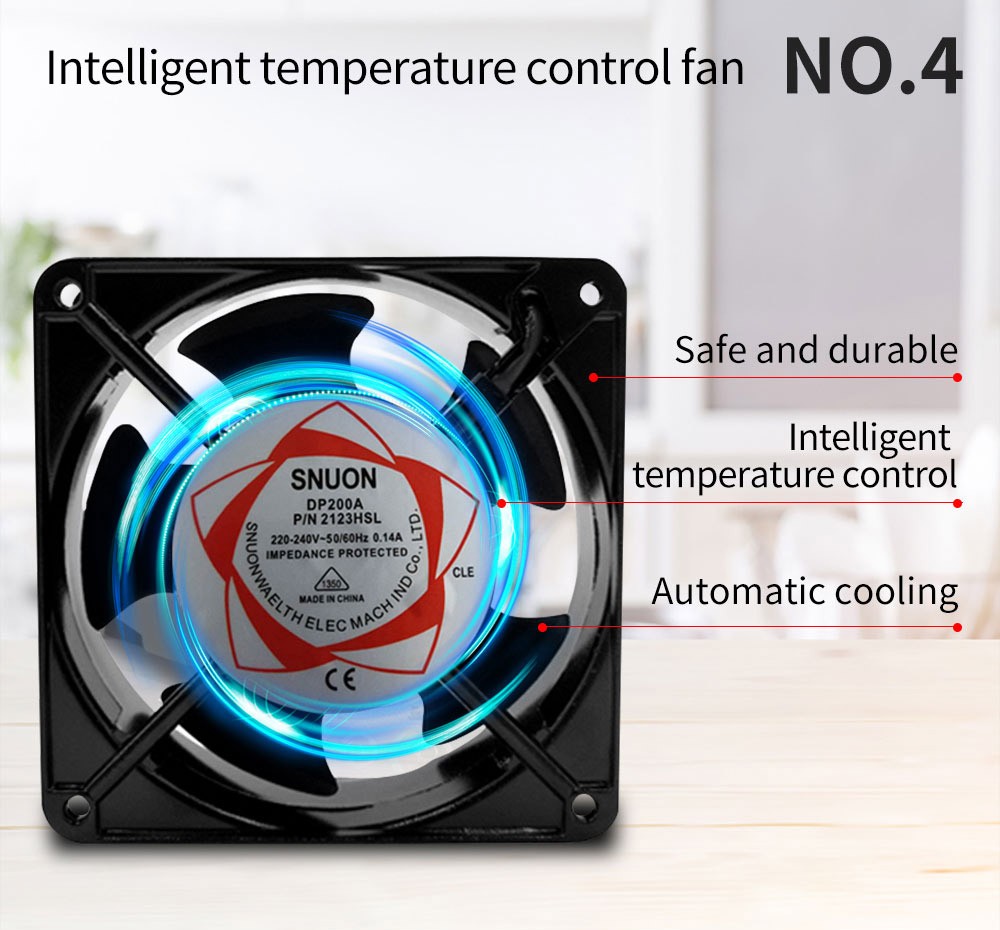

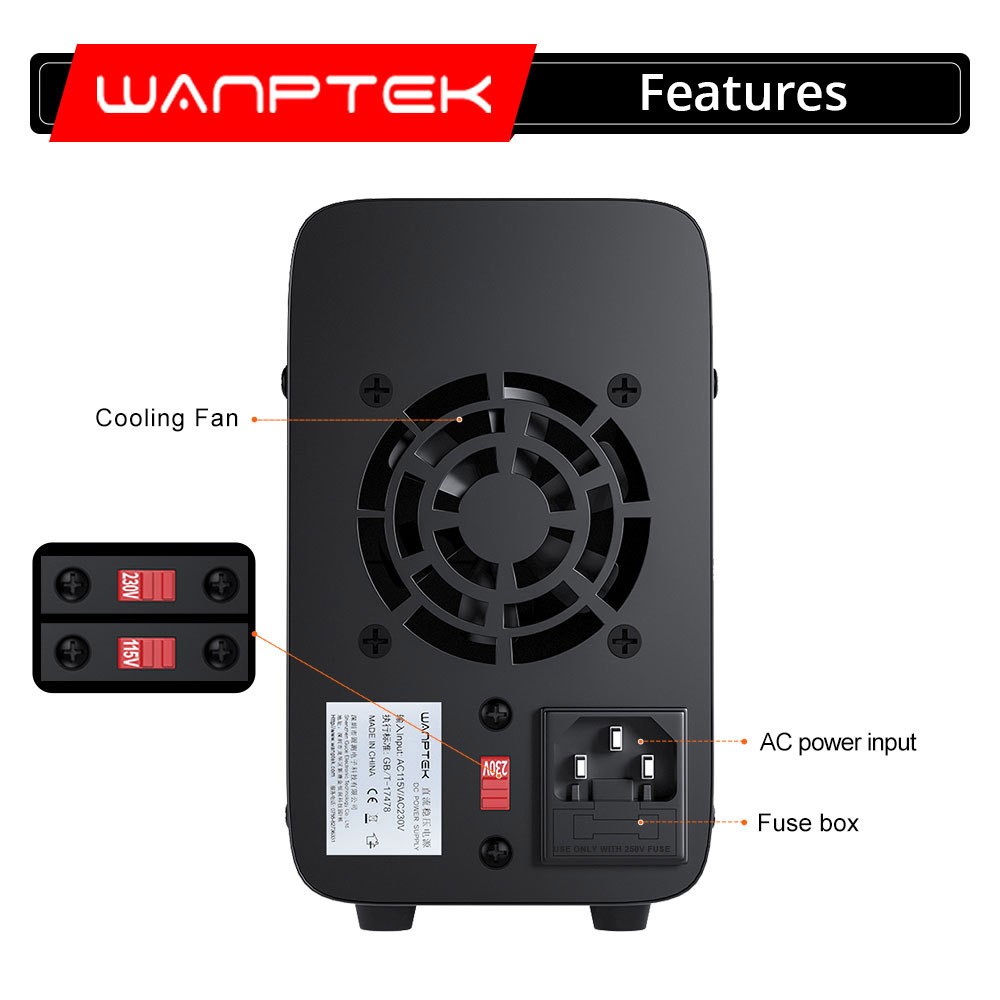

The programmable DC power supply is small in size, light in weight, and has sufficient power. Featuring over-voltage protection, over-current protection, over-temperature protection, temperature-controlled fan cooling, low noise, long life, etc., to ensure a safe use process.
Specification
| General | Brand: WANPTEK Type: DC Power Supply Model: WPS3010 Color: Black |

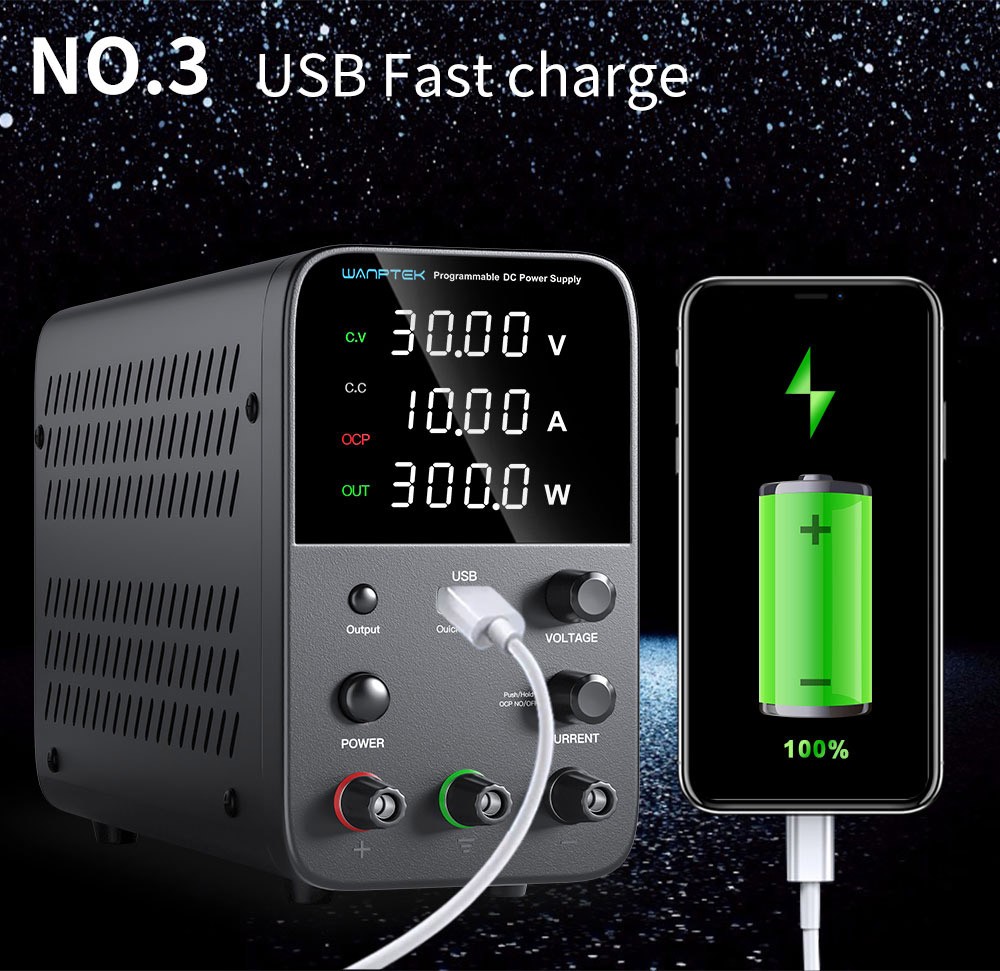

| Specification | Output Voltage/Current: 30V 10A Auxiliary output: USB Quick Charging 18W. Supports multiple quick charging protocols Input voltage: AC230V ± 10% 50HZ Working TEMP: 0 - 40 Celsius; Humidity: <80% RH Storage TEMP: 10 - 40 Celsius; Humidity: <70% RH C.V: Voltage stability: ≤0.1%+3mV Load stability: ≤0.1%+3m Ripple noise: ≤20m Vrms(Effective value) C.C: Current stability: ≤1%+3MA Load stability: ≤2%+3MA Ripple noise: ≤5marms (Effective value) Protection mode: Current limiting protection/short circuit alarm stop output and self-recovery Display: Four-digit digital tube, three-window display Accuracy: 0.5%+3digit Resolution: Voltage: 00.01V; current: 0.001A |

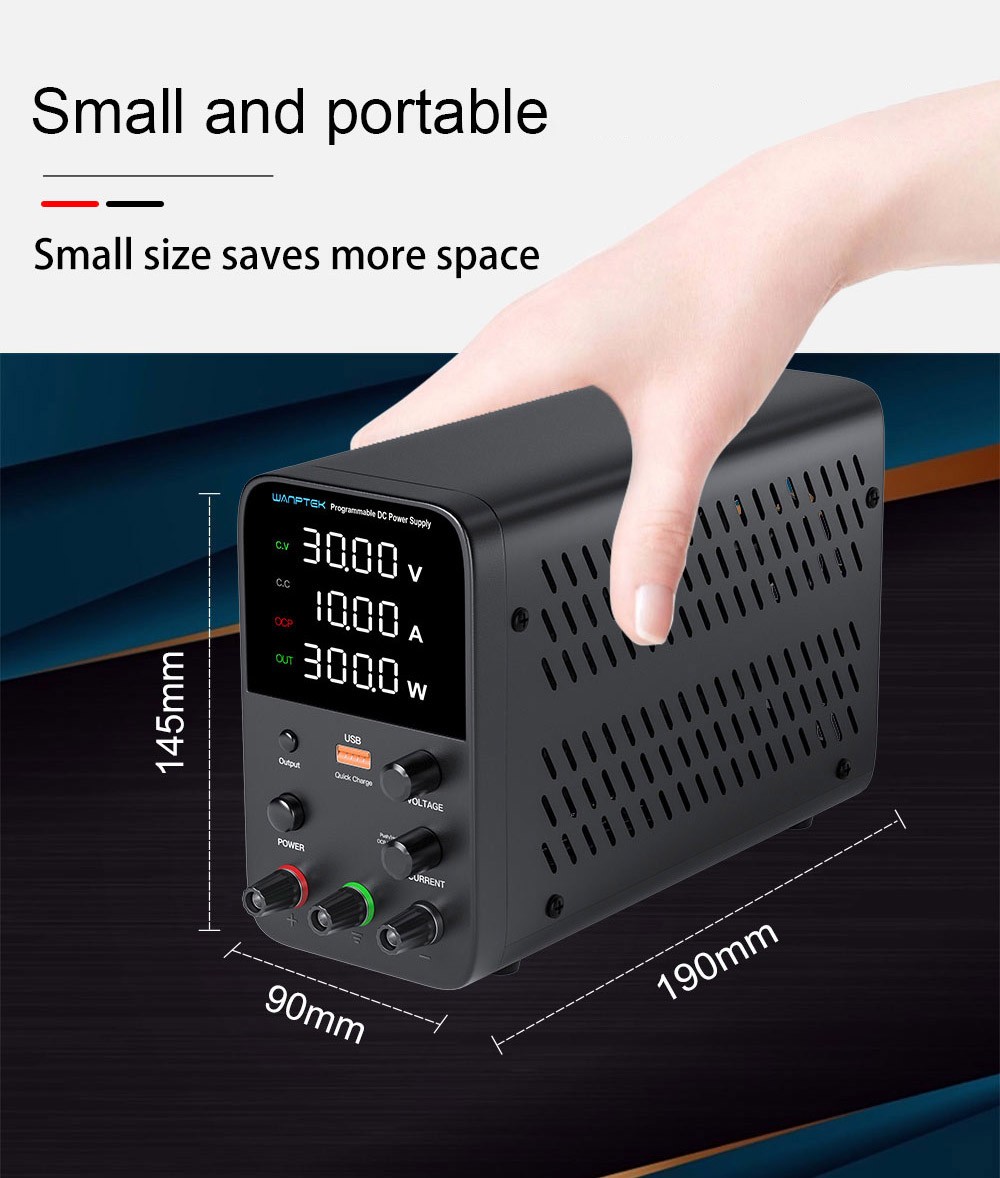

| Weight & Size | Product Weight: 1.15kg Package Weight: 1.5kg Product Size(L x W x H): 19x9x14.5cm Package Size(L x W x H): 26.5x13.5x19.5cm |

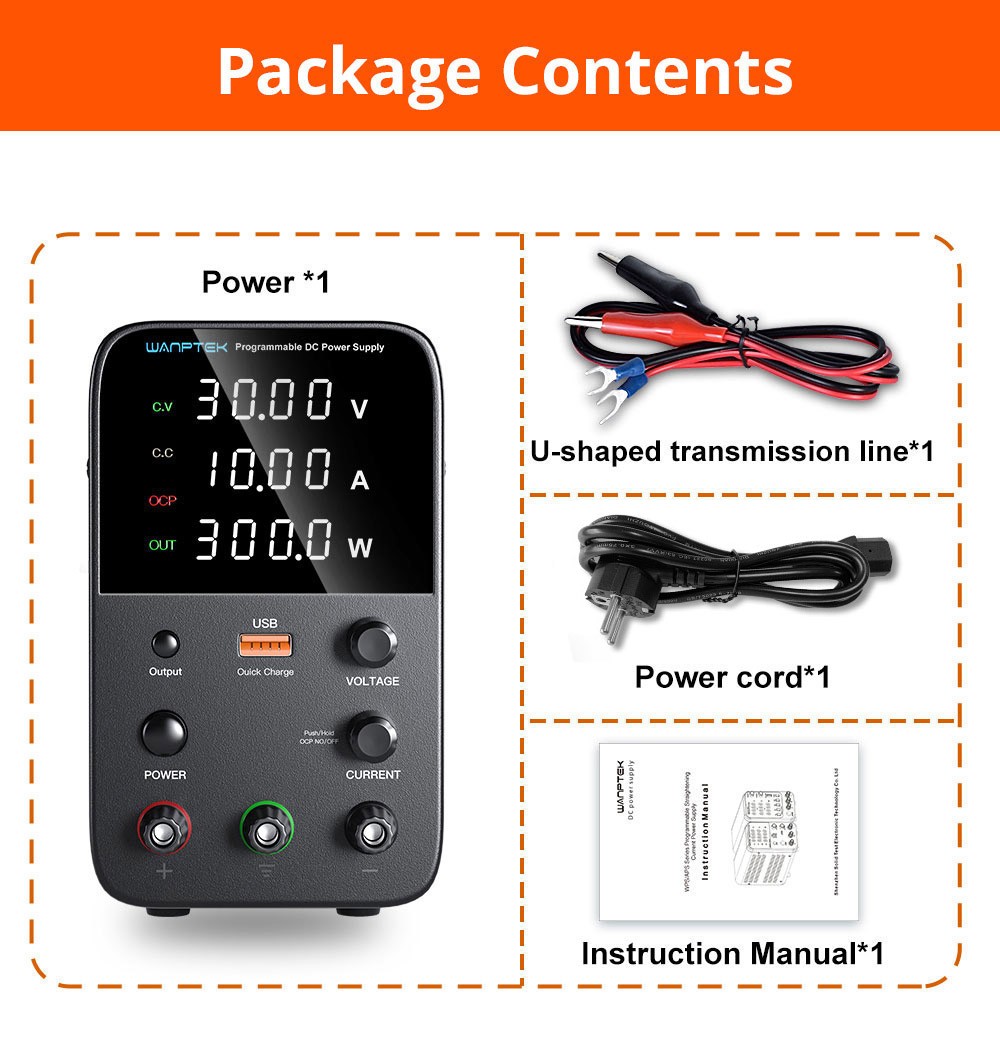

| Package Contents | 1 x DC Power Supply 1 x U-shaped Transmission Line 1 x Power Cord 1 x User Manual |
