Highlights

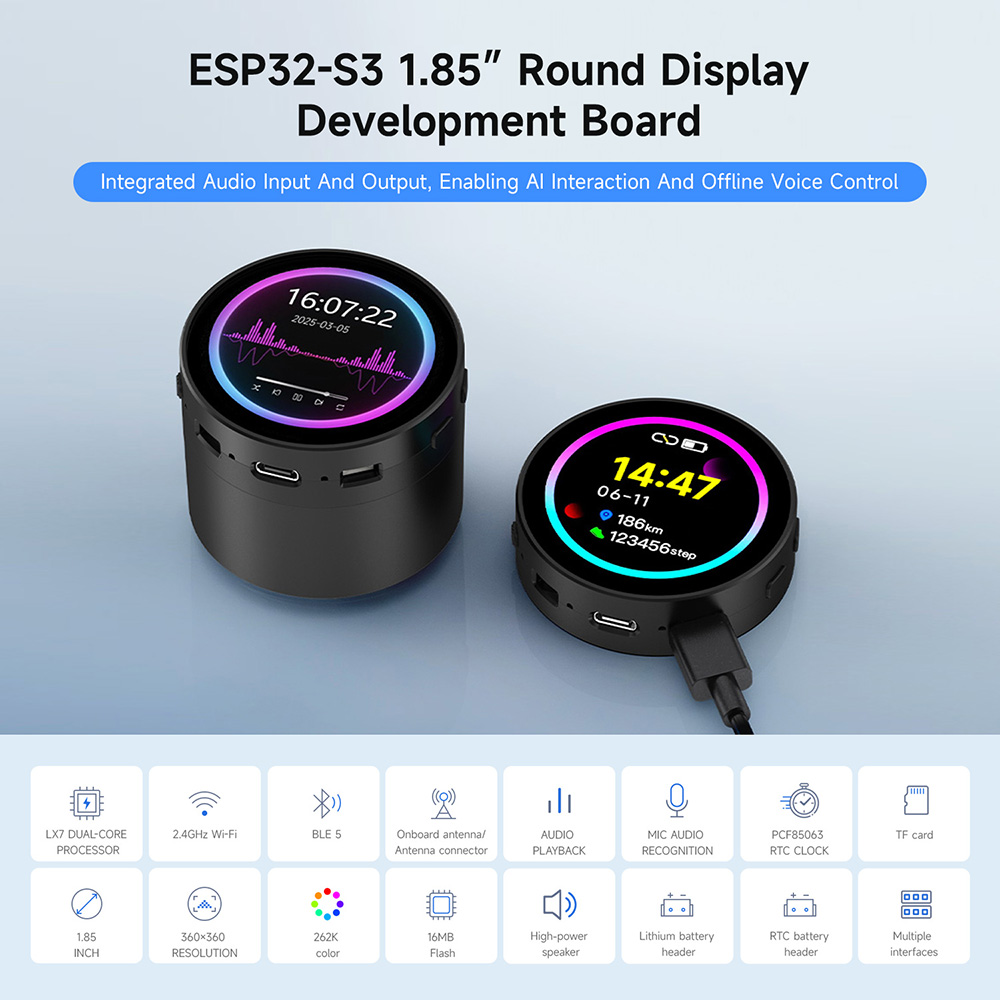

ESP32-S3-Touch-LCD-1.85 is a microcontroller development board with 2.4GHz Wi-Fi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.85inch LCD display which can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, it is suitable for the quick development of the HMI and other ESP32-S3 applications.
- Equipped with a high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

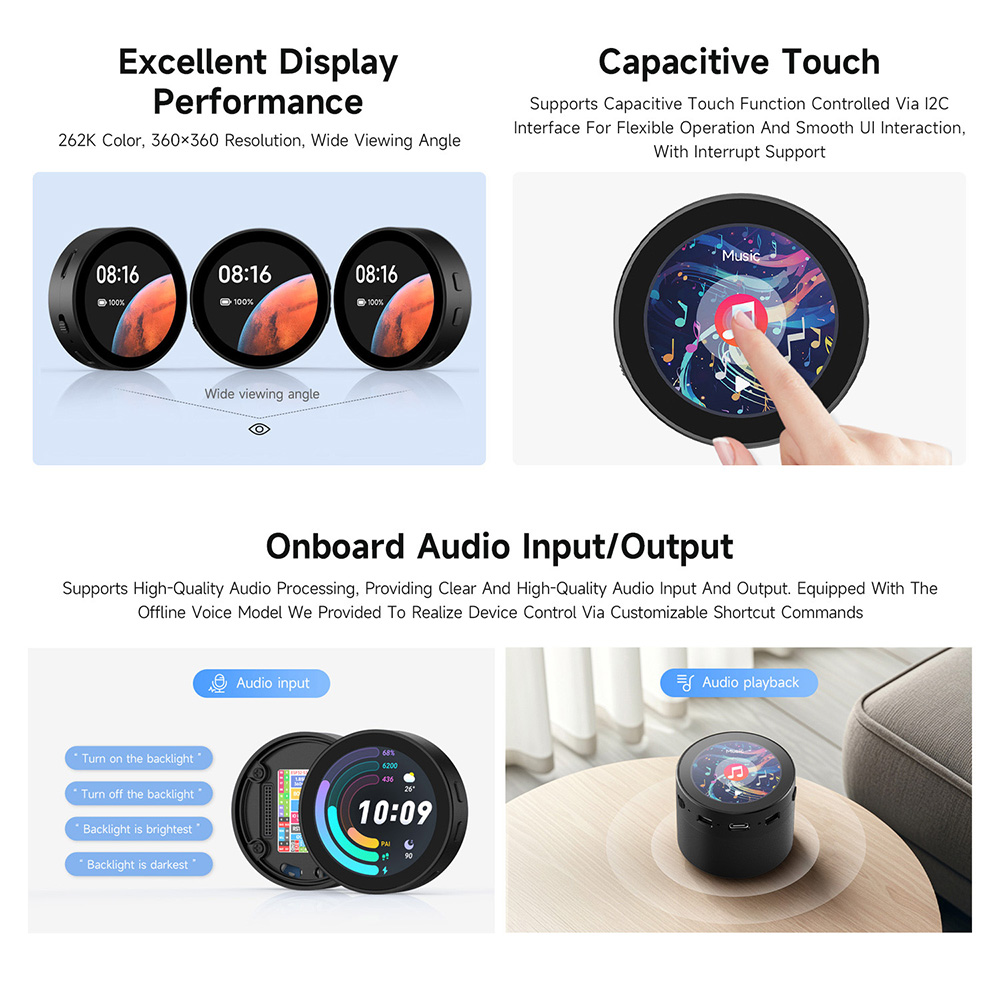

- Onboard 1.85inch LCD display, 360×360 resolution, 262K color
- Supports capacitive touch controlled via I2C interface, with interrupt support

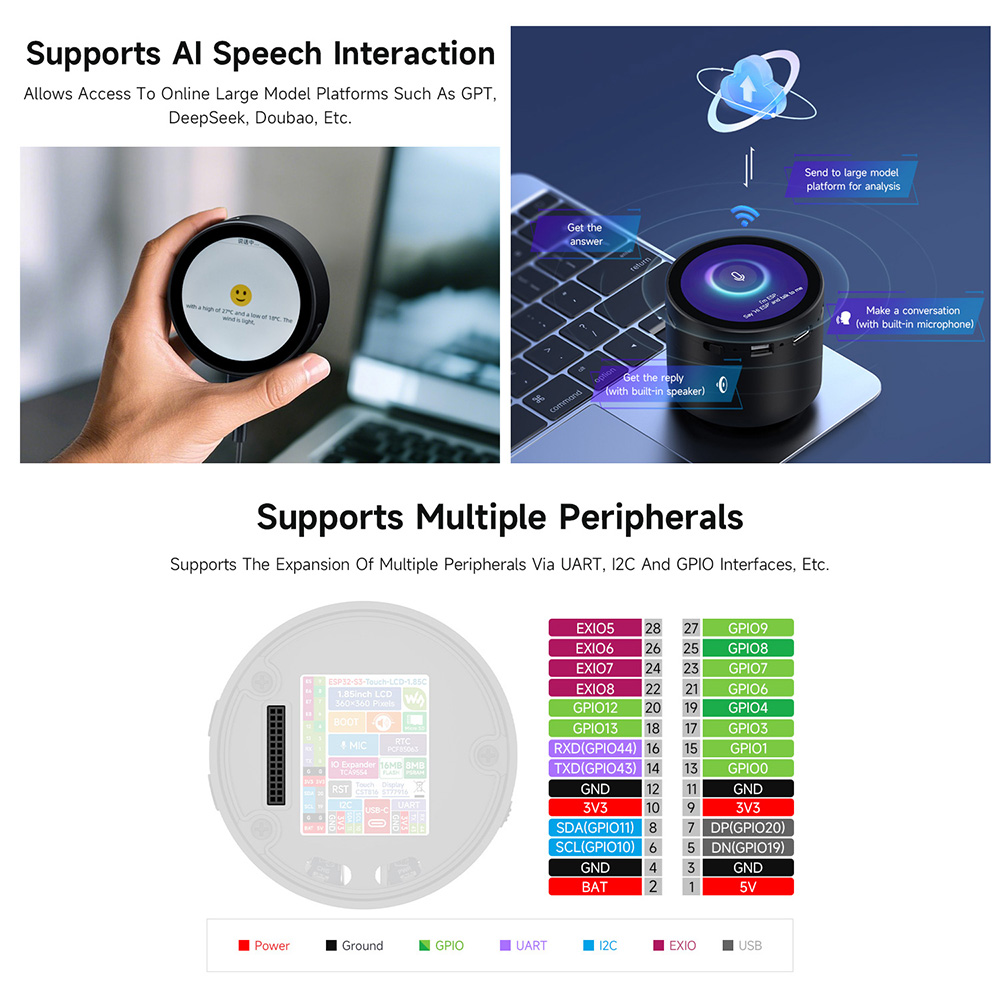

- Adapting UART, I2C and some IO interfaces

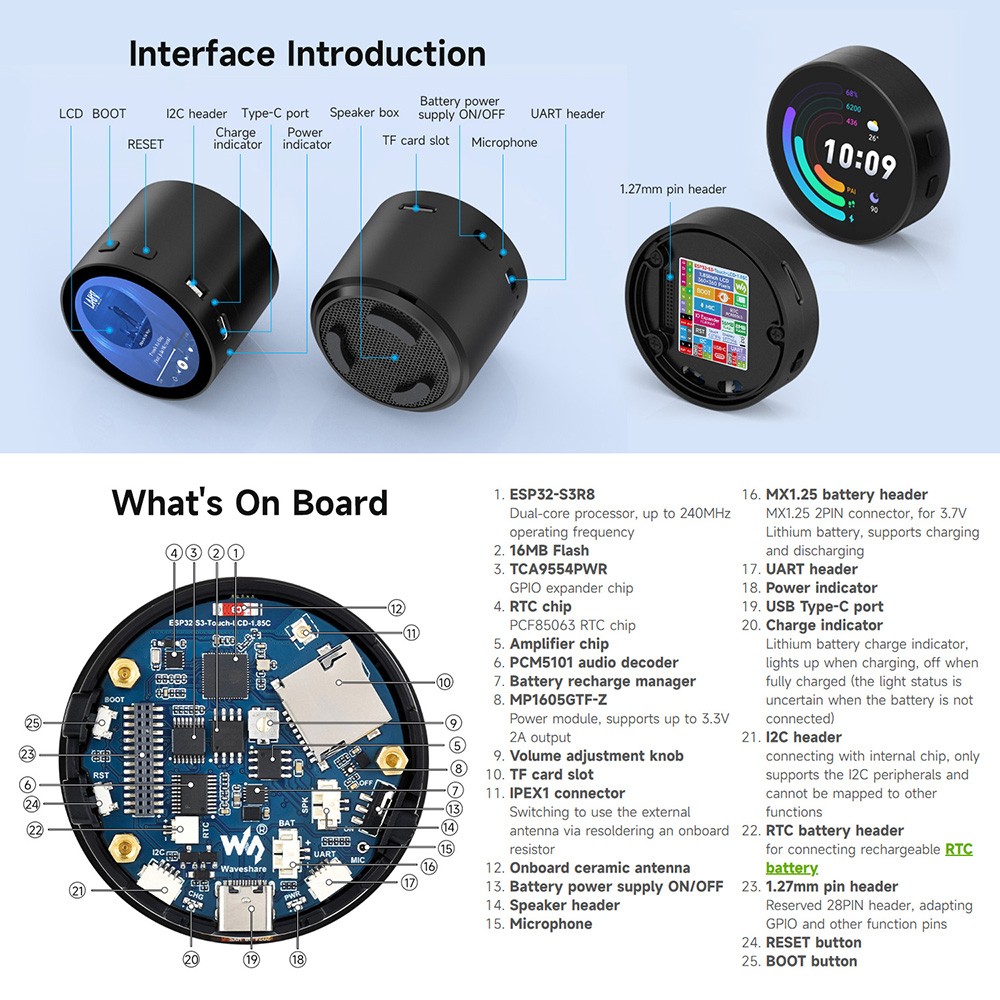

- Onboard audio decoder, Microphone, RTC sensor, TF card slot and battery recharge management module, etc.
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Specification
| General | Brand: Waveshare Type: Development Board Model: ESP32-S3-Touch-LCD-1.85C Color: Black |
| Specification | Max Frequency: Up to 240MHz Wi-Fi: 2.4GHz (802.11 b/g/n) LCD: 1.85-inch Resolution: 360×360 |

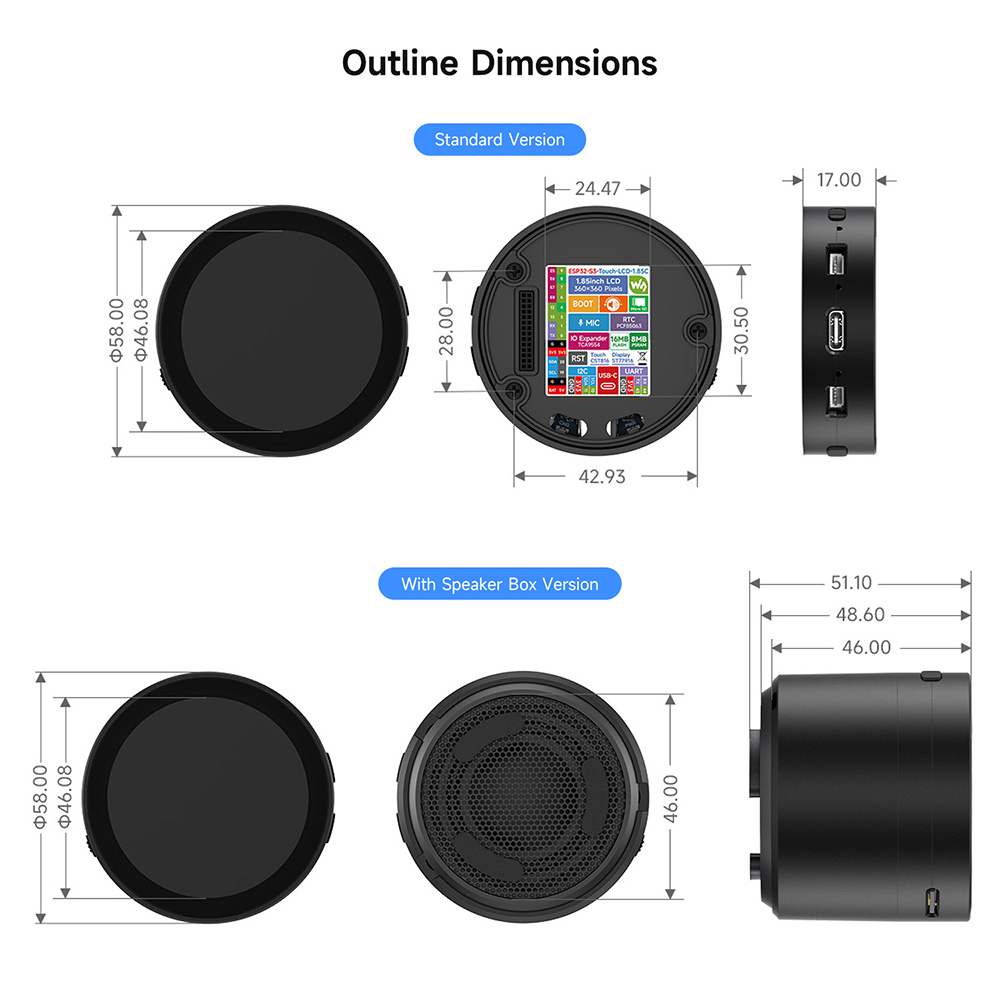

| Weight & Size | Product Weight: 0.043kg Package Weight: 0.043kg Product Size(L x W x H): 5.8x5.8x1.7cm Package Size(L x W x H): 11x8x7cm |

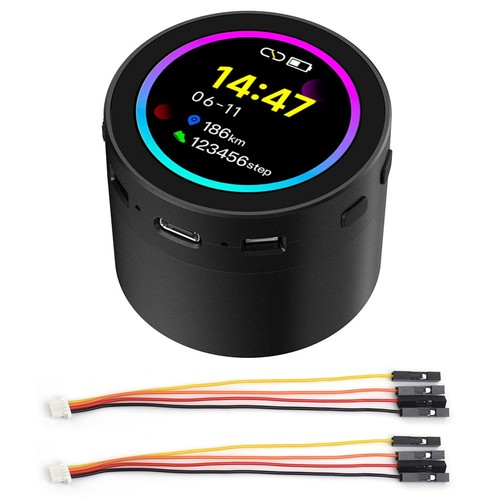

| Package Contents | 1 x ESP32-S3-Touch-LCD-1.85C 2 x SH1.0 4PIN Cable ~100mm |
