Highlights

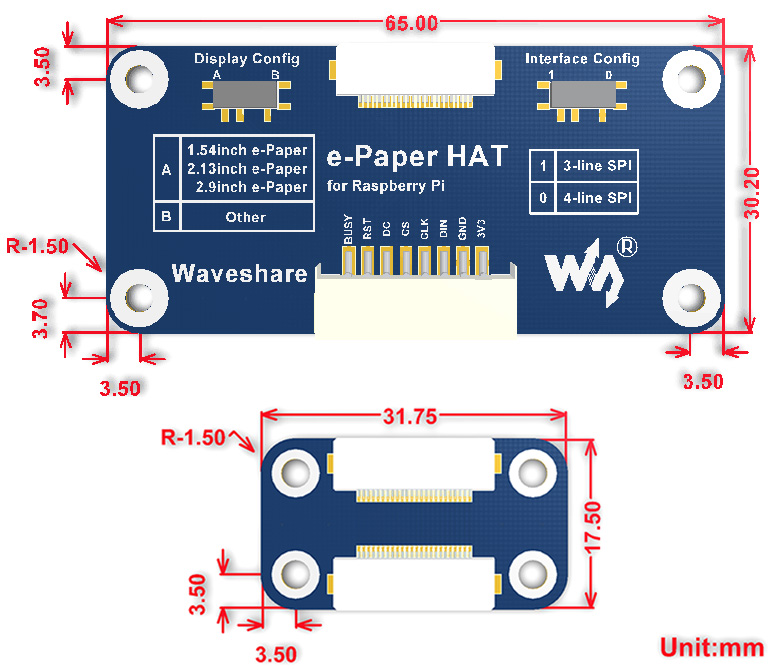

This is a universal driver board for e-Paper raw panels, can be used to drive various SPI interface e-Paper from Waveshare.
Raspberry Pi connectivity, compatible with Raspberry Pi 2B/3B/Zero/Zero W (directly-pluggable)
SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specification
Specifications |
Operating voltage: 3.3V |
Interface | VCC: 3.3V GND: Ground DIN: SPI MOSI pin CLK: SPI SCK pin CS: SPI chip selection, low active DC: Data/Command selection (high for data, low for command) RST: External reset, low active BUSY: Busy status output, low active |
Package Contents | 1 x e-Paper Driver HAT 1 x RPi screws pack (2pcs) 1 x PH2.0 20cm 8Pin |
