Highlights

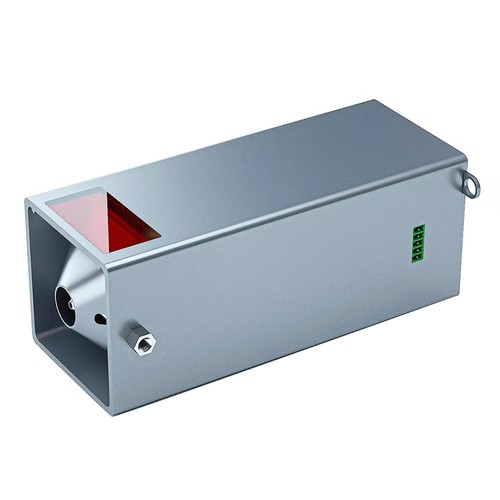

20W High Power
With the latest generation of four 5W laser coupling technology, it is able to cut off 15mm thick solid wood board at one time.
Built-in Air Assists
The air assist can effectively remove the smoke and dust generated in the process of laser cutting/engraving, prevent the smoke and dust from causing laser energy attenuation, ensure the stability of laser energy, and make your engraving Cut pieces for the best results.
Adjustable Focus
The adjustable focus laser head is flexible and easy to use and can ensure fast clear engraving with high efficiency and high precision.
High-Quality Material
This laser module features a solid durable aluminum alloy shell, high engraving speed, low power loss, stability, and a long lifetime.
Strong Compatibility
It works with laser cutting machines, laser engraving machines, CNC engravers, DIY lasers, and more, supporting most engraving software.
Various Materials to Cut and Engrave
Engravable materials are including wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer, lacquered metal, and blackening utility knife. Cutting materials are including cardboard, non-woven fabric, veneer, acrylic, and some thin plastic board.
Specification
General | Brand: ZBAITUP Type: Laser Module Model: F20-PF Color: Silver |
Specification | Laser Power: 20W Product Material: Aluminum 6061 Anode Electric Power: 24V 6A Cutting Depth: 20mm Spot Size: 0.08x0.08mm Focal Length: 45mm Air Assist: Yes Adjustable Focus: Yes Eye Protection: Yes Optical Lens: φ6/glass Fan: 24V Laser Beam Mode: Spot Wavelength: 445±5nm Engraving Accuracy: 0.01mm Working Time: 10000H Working Temperature: 0 - 70 Celsius Storage Temperature: -40 - 85 Celsius Sintering Temperature: 2000 - 2400 Celsius |
Weight & Size | Product Weight: 358g Package Weight: 800g Product Size(L x W x H): 14X5x5cm Package Size(L x W x H): 18x15x7cm |
Package Contents | 1 x 20W Laser Module 1 x User Manual |
