Highlights
It is a Auto-ranging digital MultiMate using double-integral style A/D transform as the core.
Can be used to measures Temperature AC/DC Voltage AC/DC Current Resistance Capacitance Diode and Continuity testing temperature Frequency and Etc.
The products are battery powered they are characterized by stable function and high reliability, with the features of overload protection and LCD display for clear reading are an ideal tools for lavatory radio fans and family use.
Auto Range
True RMS measurement
Resistance capacitance frequency file high voltage 550V protection
Large screen display, the maximum of 6000 words
Sampling rate: about 3 times per second
Temperature measuring
Backlight display
Data retention
Polarity automatic recognition
Low voltage display
10A large current measurement MA level small current measurement Automatic shutdown
Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance
Diode / off measurement, frequency and duty ratio measurement
Specification
| General |
Brand: ZOYI |
| Product Details | Frequency measurement range: to 10MHz 1Hz Capacitance measurement range: to 6000uF 10pF AC voltage measurement range: to 750V 0.1mV DC voltage measurement range: to 1000V 0.1mV AC current measurement range: to 10A 0.1uA DC current measurement range: to 10A 0.1uA Resistance measurement range: 0.1 60M to Width ratio measurement range: 1% to 99% Measurement mode: double-integral style A/D transform Sample rate: 3 times per second Over range indication: OL Powered by 2 x AAA batteries (Not included). Working Environment: 0-40 degrees relative humidity: <80% |

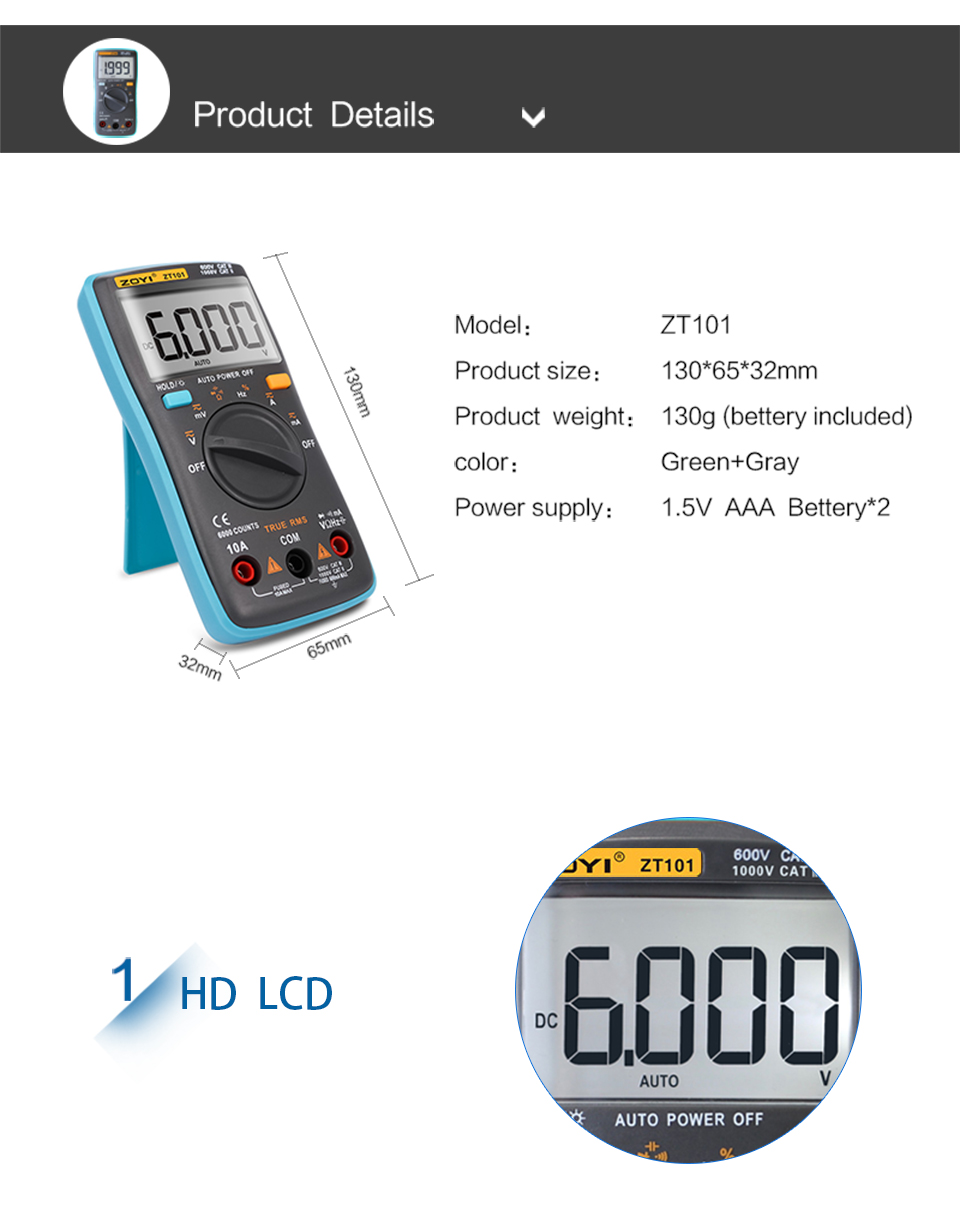

| Size & Weight | Product Weight:0.13kg Product Dimensions:13*6.53.2 cm Package Weight:0.23kg Package Dimensions:16*10*4.6 cm |
| Package Contents |
1 x ZOYI ZT101 Digital Ture RMS 6000 Counts Multimeter |
