Highlights

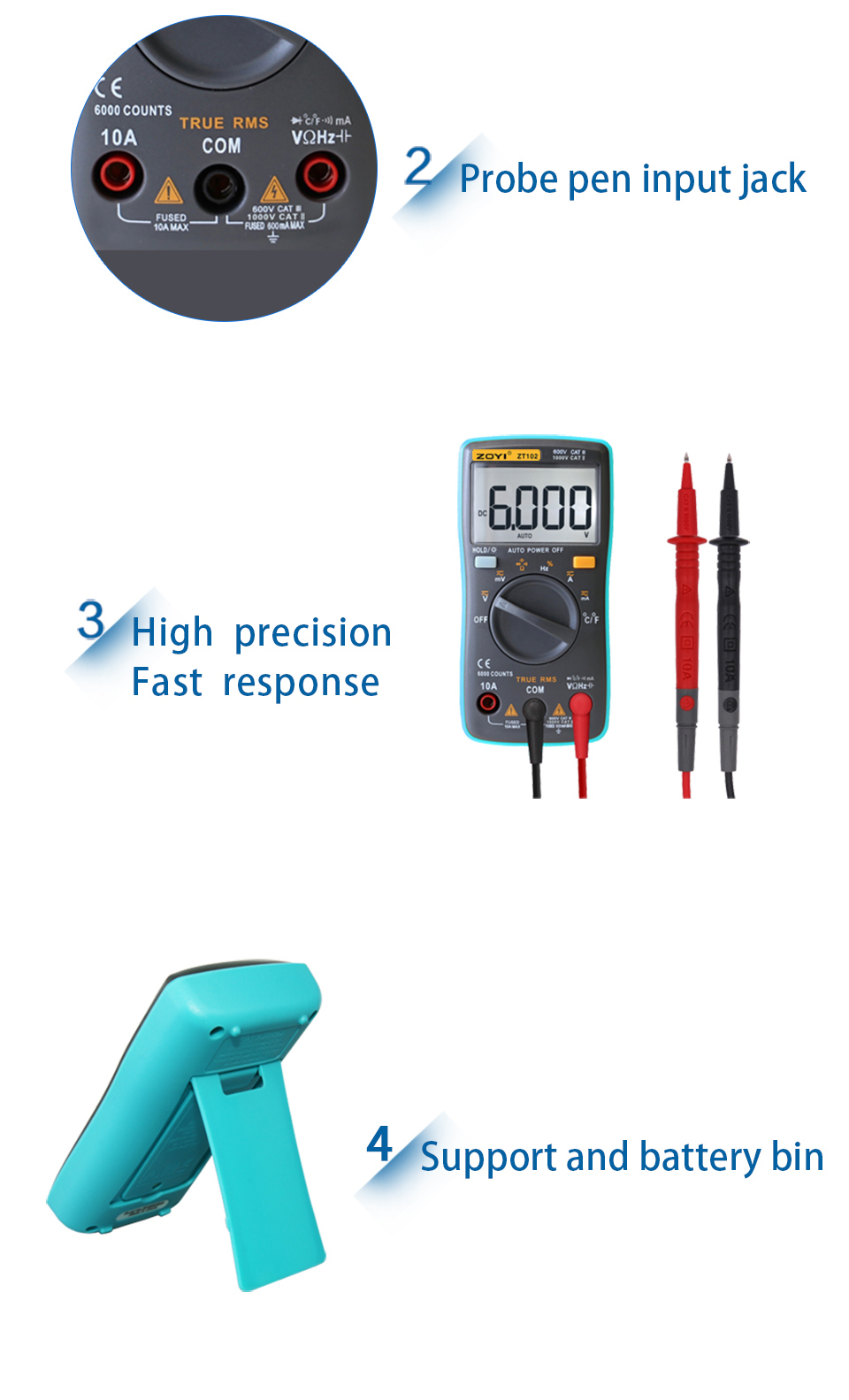

It is a auto-ranging digital multimeter using double-integral style A / D transform as the core, which can be used to measure AC / DC voltage, AC / DC current, resistance, capacitance, diode and continuity testing, temperature, frequency and etc. They are characterized by the stable function and high reliability, with the features of overload protection and LCD display for clear reading, an ideal tool for lab, factory, radio fans and family use.
Automatic range
True RMS measurement
550V high voltage protection (except mA file)
Computer self-calibration design
6000 word high-precision display
Backlit display, anti-break bracket
Data retention, automatic shutdown
Specification
| General |
Model: Double-integral Style A / D Transform |
| Product Details | Max. Display: 6000 DC Voltage: 600mV / 6V / 60V / 600V / 1000V AC Voltage: 600mV / 6V / 60V / 600V / 750V DC Current: 600uA / 6000uA / 60mA / 600mA / 10A AC Current: 600uA / 6000uA / 60mA / 600mA / 10A Resistance : 600ohm / 6Kohm / 60Kohm / 600Kohm / 6Mohm / 60Mohm Frequency: 5Hz / 50Hz / 500Hz / 5KHz / 50KHz / 500KHz / 5MHz / 10MHz Capacitance: 10nF / 100nF / 1uF / 10uF / 100uF / 1000uF / 10000uF Data Hold: Yes Backlit Display: Yes Auto power off: Yes Operation Method: Auto Range Powered by: 2 x AAA Battery |

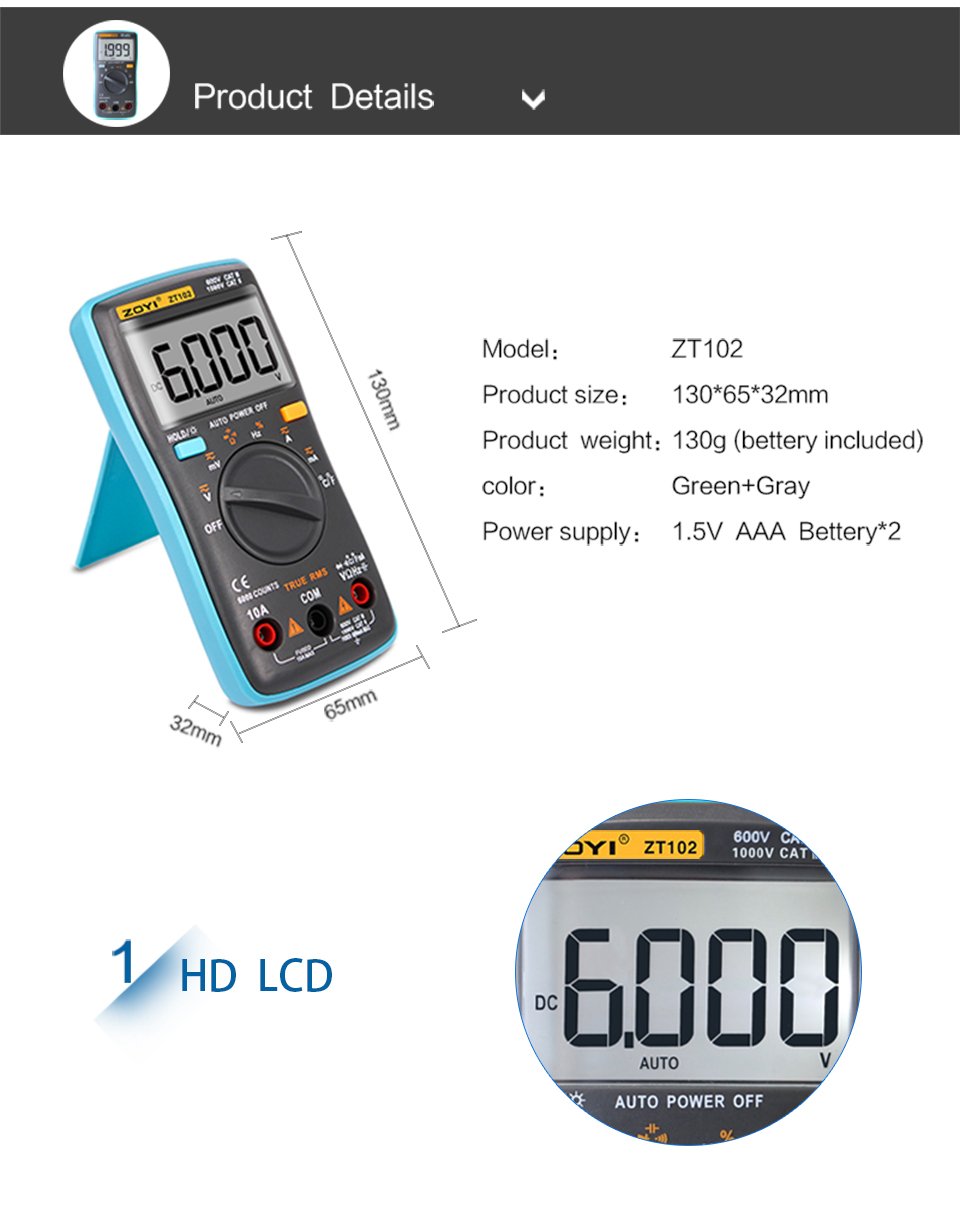

| Size & Weight | Product weight: 0.13 kg Package weight: 0.241 kg Product size (L x W x H): 13 x 6.5x 3.2 cm Package size (L x W x H): 16 x 10 x 4.6 cm |

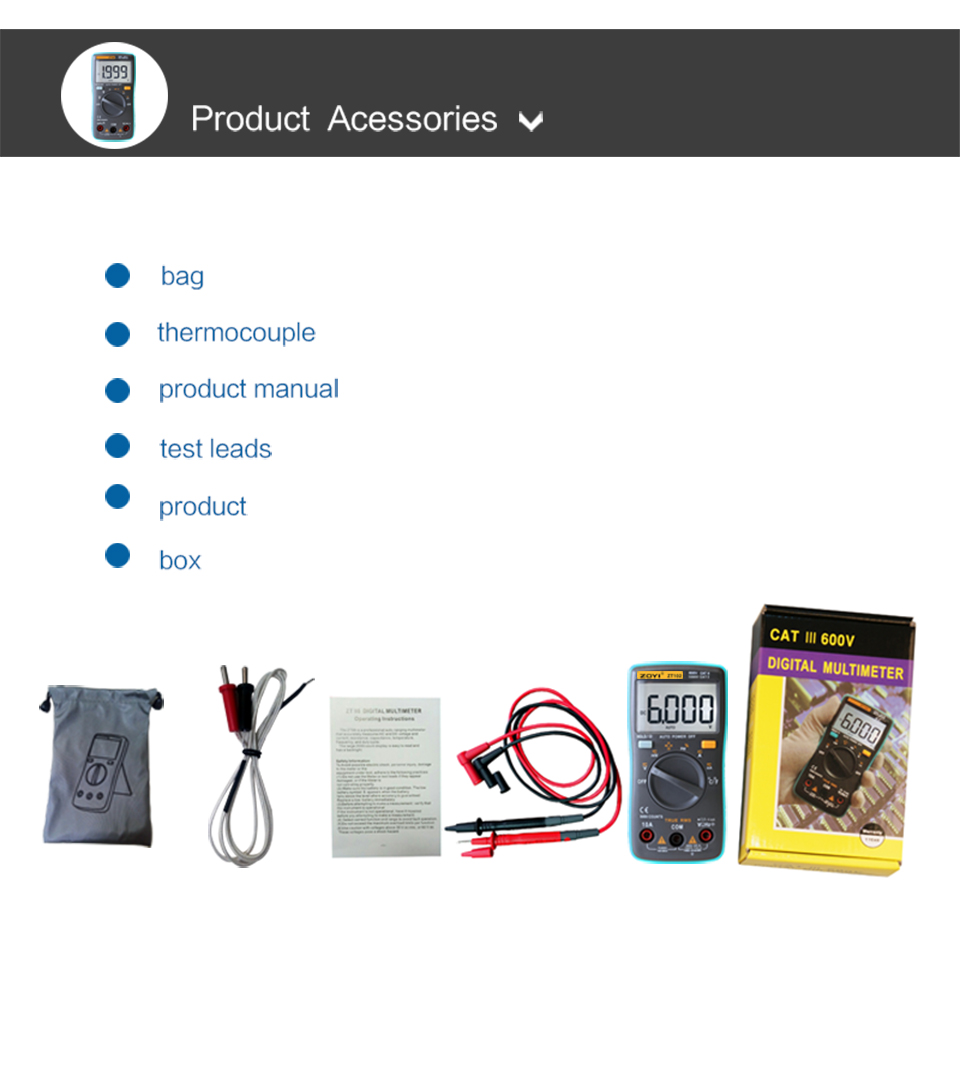

| Package Contents |
1 x Cloth Bag |
