Highlights
- If you have ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be. The bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V and steps up 3.3V to 5V at the same time.
- It is very easy to use. The board needs to be powered from the two voltages sources (high voltage and low voltage) that your system is using. High voltage (5V for example) to the 'HV’ pin, low voltage (3.3V for example) to 'LV’, and ground from the system to the 'GND’ pin.
Specification
| General | |
|---|---|
| Type | Bi-direction Converter Module |
| Quantity | 1 Piece |
| Function | 5V / 3.3V bidirectional logic level converter |
|
Power Supply |
External |
|
Number of Converter Channels |
4 |
|
Operating Frequency |
400KHz (max) |
| Application | I2C interface level converter, UART serial level converter, etc. |
| Compatible | Breadboard DIY Projects |
| Package Contents | |

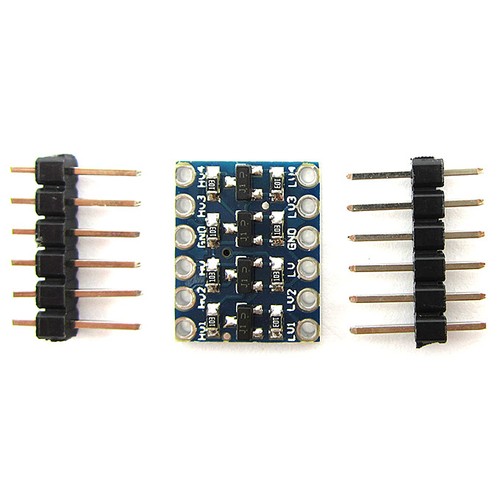

| 1 x 4-Channel logic level converter module | |
| 2 x 1X6P pin headers (2.54mm pitch) | |
