    MPR121 Breakout I2C Capacitive Touch Sensor Controller Module For Arduino/Raspberry Pi

    Ship to:
    United States
    Select the desired shipping method
    Shipping Company Estimated Delivery Time Shipping Cost
    Priority Line5-14 business days$3.73
    Expedited Shipping5-14 business days$22.10
    *Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
    0 item(s) added
    View CartContinue Shopping

    Highlights

    • Capacitive touch sensor controller driven by an I2C interface
    • Four jumpers on the bottom of the board
    • No regulation on the board

    Specification

    General
    Model MPR121
    Quantity 1 Piece
    Specification
    Voltage 2.5 - 3.6VDC
    Package Contents
    1 x MPR121 Capacitive Touch Sensor module

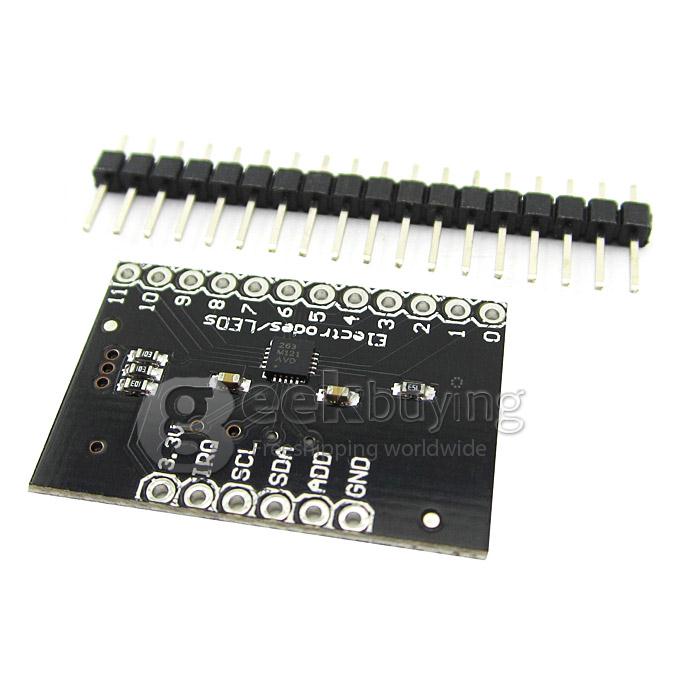

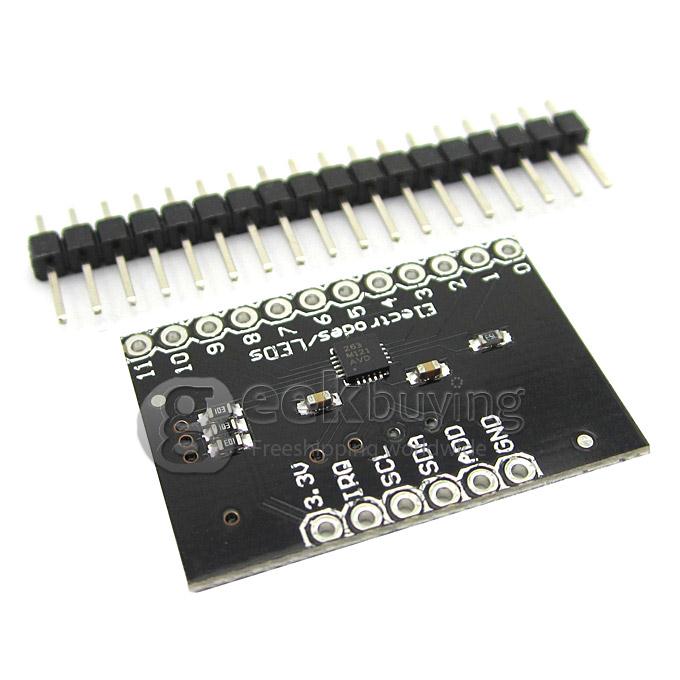

    This is a breakout board for Freescale's MPR121QR2. The MPR121 is a capacitive touch sensor controller driven by an I2C interface. The chip can control up to twelve individual electrodes, as well as a simulated thirteenth electrode. The MPR121 also features eight LED driving pins. When these pins are not configured as electrodes, they may be used to drive LEDs.

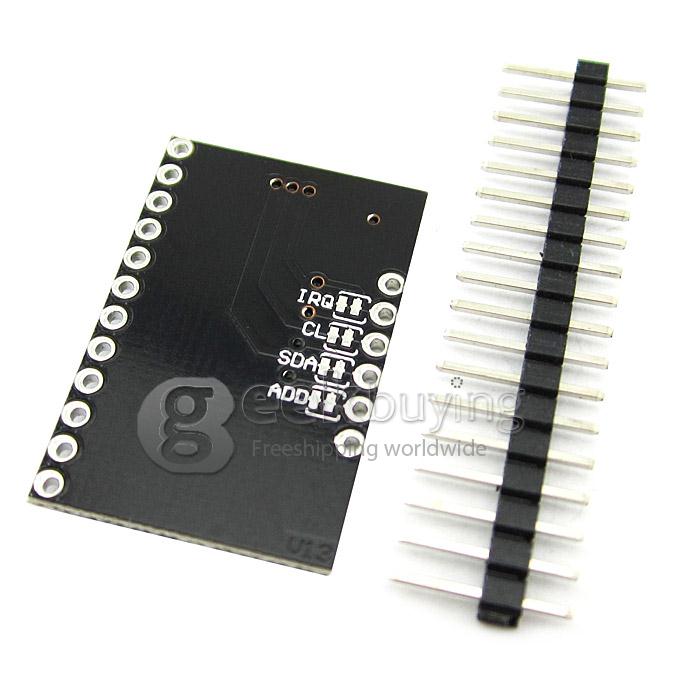

    There a four jumpers on the bottom of the board, all of which are set (closed) by default. An address jumper ties the ADD pin to ground, meaning the default I2C address of the chip will be 0x5A. If you need to change the address of the chip (by shorting ADD to a different pin), make sure you open the jumper first. Jumpers also connect SDA, SCL and the interrupt pin to 10k pull-up resistors. If you don't require the pull-up resistors ,you can open the jumpers by cutting the trace connecting them.

    There is no regulation on the board, so the voltage supplied should be between 2.5 and 3.6VDC. The VREG pin is connected through a 0.1uF capacitor to ground, which means, unless you modify the board, you can't operate the MPR121 in low-supply voltage mode (1.71-2.75VDC).
