Shop special dealsThe E80 is a powerful laser with perfect optical quality and extremely long life, suitable for commercial applications in carving and cutting. It is a standard product for diode lasers entering the industrial age. The NEJE team also attaches special importance to the safety of the high-performance model.

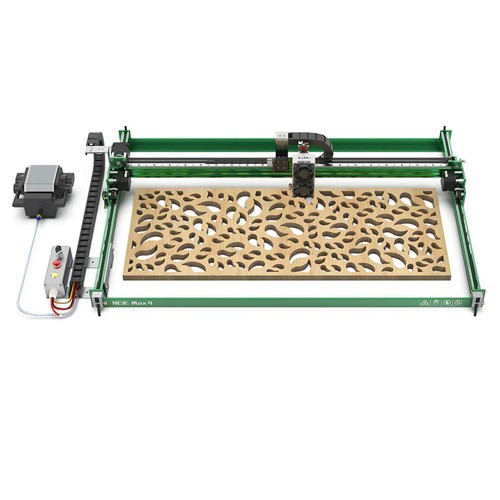

The NEJE MAX 4 laser engraver features a new high-precision (0.001 mm) Z axis that allows repositioning within 45 mm. The focal length of each layer can be adjusted in Lightburn software and thicker materials (20-25mm) can be cut automatically and efficiently for each layer by adjusting the height of the Z axis. 750(X)*460(Y)*45(Z) mm engraving surface allows you to set no limits to your creativity.
The upgraded NEJE MAX 4 laser engraving machine features industrial-grade rails made of a high-hardness alloy that effectively eliminate machine vibrations and improve machine stability with a mechanical accuracy of 0.01 mm. With the high-resolution NEJE E80 module, it takes only 10 minutes to draw a 300 x 300 mm work of art, and the fine works of art are delicately and surprisingly well executed.
NEJE 4 MAX supports wireless offline engraving and cutting. You can create anything you want in Lightburn, save the file in G-code format, and then use NEJE software to operate the machine wirelessly. Offline work is possible up to a distance of 10 metres.
General | Brand: NEJE Type: Laser Engraver and Cutter Model: Max4 V2 E80 Color: Green |
Specification | Engraving Size: 700×460mm (27.6×18.1"), expandable to 700×1030mm (27.6×40.6") Maximum Speed: 1000mm/s with 100,000 mm/s² Limit Button: None, Contactless Reset Technology Repetition Accuracy: 0.1mm Laser Wavelength: 455±5nm Focus Adjustment Method: Motorized Z-axis with customizable focal point positioning for each element and 0.1mm manual focus adjustment precision. Spot Size: 90 μm*90 μm Laser Optic Output Power: 20W+ Transmission Method: BLE, USB Support Systems: IOS, Android, Windows, Mac Air Flow Rate: 0-60 L/min Air Flow Power Supply: Input 100-240V AC, 50/60HZ, output 12V 3A MEMS Vibration Protection: Three-level adjustable Memory: 256MB Machine Power Supply: Input GaN 100-240V AC, 50/60HZ, output 24V 5A Quality Certification: CE, FCC, RoHS, FDA, PSE |
Cutting Materials | Steel plate 0.15mm; Wood & plywood < 30 mm, MDF < 10 mm; Leather < 4 mm, PU/PVC Leather < 4 mm; Corrugated cardboard < 18 mm, Hard cardboard 3 mm, Scratch paper Weeding invitation paper, Colored A4 paper, Kraft paper; Vinyl, Non-woven, ABS sheet < 2 mm - Dark, color PVC sheet 2 mm - Dark color; Cotton, Linen, Velvet, Canvas, Fabric polyester, Fabric synthetics |
Engraving Materials | Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton, slate |
Software & Service | LaserGRBL, LightBurn, NEJE Win Software (Professional multi-layer control software, featuring NEJE "REC" function and NEJE "Bridge" function)NEJE App (Android app, Android phone-to-PC wireless transfer tool; iPhone and Mac APP)NEJE Cloud (Content service platform)NEJE OTA (Over-the-air software and firmware update service) |

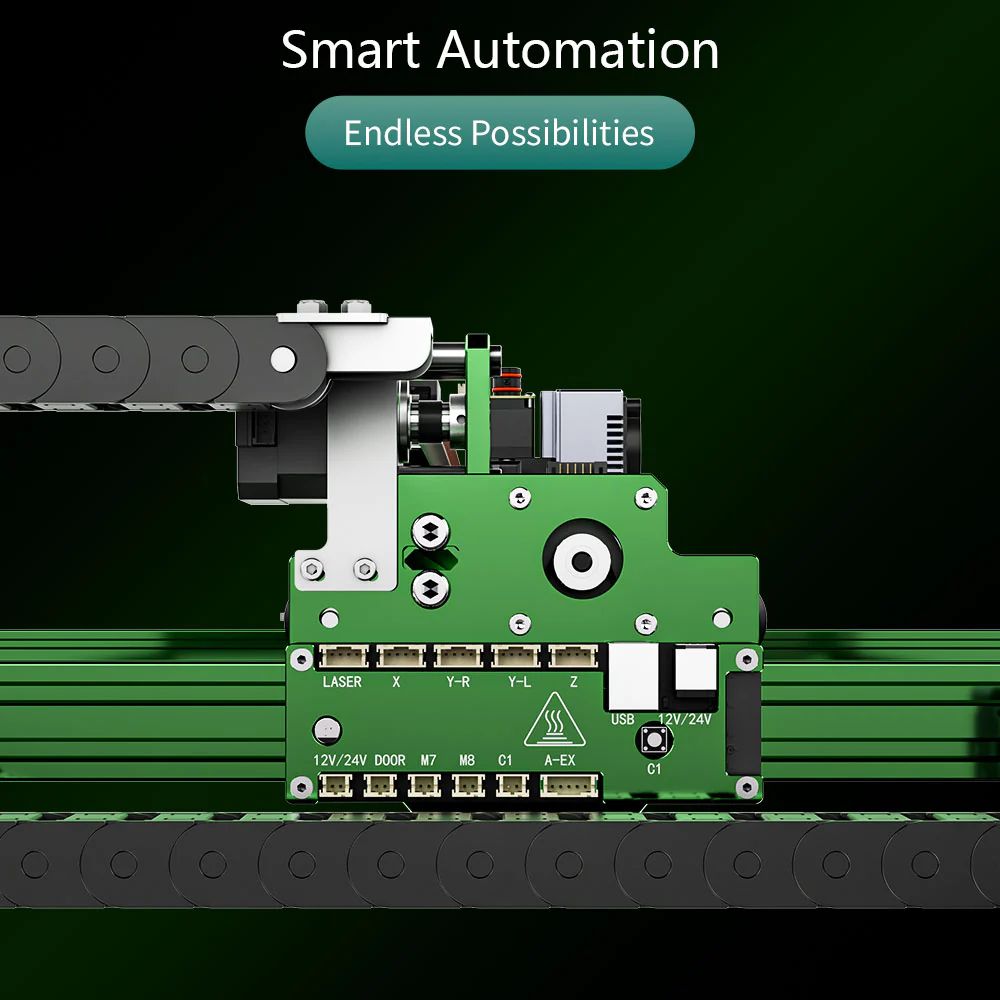

Motion System | X-axis: 42mm × 42mm × 40mm stepper motor, Y-axis: Dual 42mm × 42mm × 30mm stepper motors (Y1 + Y2), Z-axis: 28mm stepper motor, Independent A-axis reference interface, Full 16-tooth 2GT timing pulleys |
Weight & Size | Product Weight: 9.6kg Package Weight: 10.6kg Product Size(L x W x H): 103.4x60.7x18cm Package Size(L x W x H): 104x26x19cm |
Package Contents |
1 x E80 Optical Module 1 x Dual-Mode Electric/Manual Z-Axis 1 x NEJE Max4 V2 (700x460mm) 1 x Air Pump System 1 x 24V/5A GaN Power Adapter 1 x User Manual |
